Administration Console Remote Install

Threat Prevention supports the deployment of remote Administration Console, enabling you to install additional consoles on standalone machines, like administrator or user workstations. In this way, users can launch the Administration Console on their workstations, as an alternate to using it on the Enterprise Manager server only.

Follow the steps to install the Administration Console on a remote machine.

Step 1 – From the Threat Prevention Installer package, run the server executable (threatprevention-server-7.5.x.xxx.msi). The Netwrix Threat Prevention Server Setup wizard opens.

Step 2 – On the Welcome page, click Next to begin the installation. One of the following happens:

• If the installer detects .NET Framework 4.7.2 or later version installed on the machine, it proceeds with the installation.

• If it does not detect .NET Framework 4.7.2 or later version, a message is displayed to inform you to install it.



  You can either exit the wizard and install it manually or walk through the wizard until its last page and install it as part of the Threat Prevention installation process.

On clicking Next, the End-User License Agreement page is displayed.

Step 3 – On the End-User License Agreement page, select the I accept the terms in the License Agreement checkbox and click Next.

Step 4 – The Custom Setup page displays the Threat Prevention components that are available to install.

NOTE: EPE Rest Site is available if Internet Information Services (IIS) is installed on the machine.

By default, Enterprise Manager and Administration Console are selected for installation. However, you can choose to select or deselect a component for installation.

• To select a component – Click on the red cross next to a component name and select the Entire feature will be installed on local hard drive option. An icon representing a hard drive appears for the component.
• To deselect a component – Click on the icon next to a component name and select the Entire feature will be unavailable option. A red cross appears for the component.

As you have to install the Administration Console only, deselect the Enterprise Manager and EPE Rest Site components.

Step 5 – On selecting the Win Console option, the page displays the location where the Administration Console will be installed. By default, the Threat Prevention infrastructure components are installed to the C:\Program Files\Netwrix\Netwrix Threat Prevention\ directory.

(Optional) Click Browse… to change the installation location. The Change destination folder page opens.

• Use the Look in field to select the desired installation folder.
• When the Folder name box is set as desired, click OK.

The wizard returns to the Custom Setup page. You can use the Reset button to revert to the default settings on the Custom Setup page. Click Next to proceed.

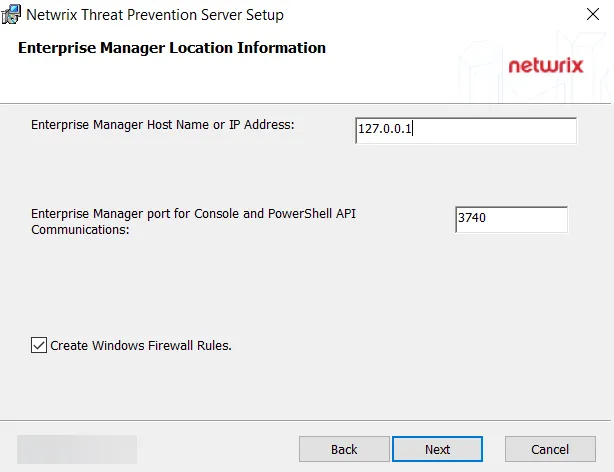

Step 6 – On the Enterprise Manager Location Information page, the host name or IP address for the Enterprise Manager server is pre-populated. Enter the ports for the Enterprise Manager service to communicate with the other Threat Prevention components.

• Enterprise Manager port for Console and PowerShell API Communications – 3740

NOTE: As a requirement for using custom managed certificates, you must provide the Enterprise Manager server DNS name, hostname, or FQDN (instead of the IP address) when installing the following:

• Threat Prevention server
• Remote instance of the Administration Console
• Agent

See the Administration Console and Agent Not Communicating with the Enterprise Manager topics for additional information.

Checking the Create Windows Firewall Rules box automatically sets the Windows firewall rules needed to open these ports on the server during the installation process. If using a third party firewall, uncheck this option and manually create the necessary firewall rules. See the Firewall Ports topic for additional information.

When the settings are configured, click Next.

Step 7 – On the Ready to Install Netwrix Threat Prevention Server page, click Install. When finished, the Completed the Netwrix Threat Prevention Server Setup Wizard page is displayed.

If .NET Framework 4.7.2 is not installed, the Completed the Netwrix Threat Prevention Server Setup Wizard page displays the Run .NET installation package checkbox. Check it and click Finish to install it.

You can also choose to skip the built-in download of .NET Framework 4.7.2 and install it manually.

Step 8 – Click Finish on the Completed the Netwrix Threat Prevention Server Setup Wizard page.

The Administration Console has been installed, and the Windows Console icon is now on the desktop.

Step 9 – To enable the remote Administration Console to communicate with the Enterprise Manager, you must manually copy the ca-crt.pem file from the CertsInfo folder on the Threat Prevention server to the CertsInfo folder on the machine where the Administration Console is installed:

CertsInfo folder path on the Threat Prevention server:

...\Netwrix\Netwrix Threat Prevention\SIEnterpriseManager\CertsInfo\

CertsInfo folder path on the remote Administration Console machine:

…\Netwrix\Netwrix Threat Prevention\SIWinConsole\CertsInfo\

CAUTION: Never copy all files from the Certsinfo folder on the server to a machine where the Enterprise Manager is not installed. Doing so exposes the Enterprise Manager private keys, which undermines security.

The remote Administration Console is now ready to be launched.
