Administration

Threat Prevention monitors events in real‐time, gathers and processes event data, then outputs that data in usable ways. Threat Prevention components allow you to create and configure policies to control what is monitored, where to look in the network, and when. You can also create and control responses to event data via reports, alert notifications, analytic triggers, as well as take actions with scripts.

The following components make up Threat Prevention:

  • Software Components
  • Analytics
  • Policies & Policy Templates
  • Database Components

Software Components​

Threat Prevention consists of a number of components that work together to monitor and report on activity on a network:

  • Threat Prevention Enterprise Manager
  • Threat Prevention Win Console (Administration Console)
  • Threat Prevention Agents deployed across the environment
  • Netwrix Threat Manager Reporting Module

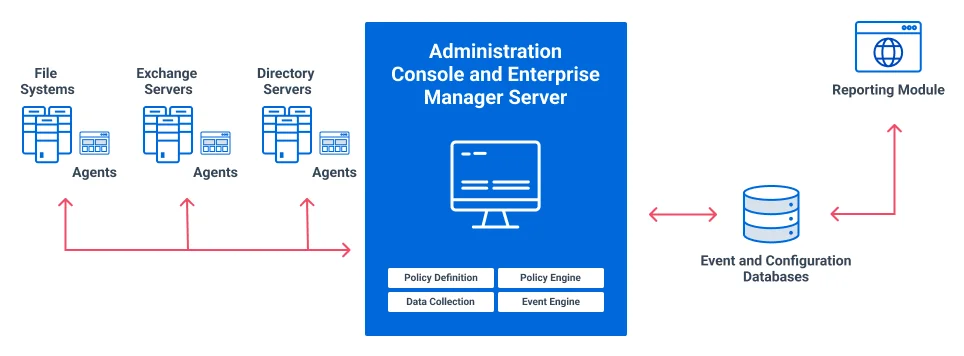

Threat Prevention Architecture

Threat Prevention Architecture Diagram

Threat Prevention Enterprise Manager

The Threat Prevention Enterprise Manager stores and maintains policies and policy templates, as well as receives and processes all captured events. Only one Enterprise Manager is needed for any environment.

Threat Prevention Administration Console

The Threat Prevention Administration Console is used to create and manage policies and their associated alerts and actions. Multiple instances of the Administration Console are supported.

Threat Prevention Agents

The Threat Prevention Agents retrieve configuration data from the Enterprise Manager, monitor network activity, and report events to the Enterprise Manager. The events collected by an Agent are those specified by the policies that are active in the system. There must be an Agent deployed on every server being monitored. See the Agent Information topic for information on where to deploy Agents and supported platforms. See the Agents Interface section for deployment procedures.

Netwrix Threat Manager Reporting Module

The Netwrix Threat Manager Reporting Module application provides a way to generate and to view reports for the event data that is collected by the Agent and stored in the event database. Reports can be generated for specific time frames and saved as CSV or JSON files. These files can be downloaded or emailed. See the Reporting Module topic for additional information.

Analytics​

Threat Prevention’s Analytics engine identifies patterns based on observed activities that may indicate that a security incident is in process or being attempted. For example, the frequency of an event over a particular time period or a combination of events with one or more correlating attribute could indicate that a security risk incident is in process. See the Analytics Interface topic for additional information.

Policies & Policy Templates​

For Threat Prevention to monitor activity on a network, it must be configured to monitor the desired activity. Most of this configuration is done with Threat Prevention policies.

A policy describes the types of event data to monitor. As events occur, if all the described filters set in a policy are met, the event data is captured and sent to the reporting database. Policies can also be defined to block events where all filters are met, and information about the attempted change is sent to the reporting database.

A Threat Prevention policy is a specification, configured in the Administration Console, for events that provide evidence of a high‐level policy violation. For example, if there is an organizational policy stating only members of the Administrators group can create user accounts, then a policy can be configured to detect when a user account is created by someone other than a member of the Administrators group.

Policies​

A Threat Prevention Policy has many attributes which define the activities and objects it monitors, where on a network that policy applies, and when it is active. See the Policy Configuration topic for additional information.

General

General components include the name and description of the policy, policy creation and modification information, policy schedule, whether or not the policy is sending alerts, and whether or not the policy is enabled.

The schedule controls when the policy is active. For example, if it is desired that certain activity be more closely monitored outside of regular business hours, then a policy can be created and scheduled to be active only outside of regular business hours.

Event Type

Event Type components indicate what kind of events are to be monitored or blocked by the policy. A single policy can contain multiple event types, even from different event sources. For example, a policy might monitor the creation of user accounts in Active Directory.

Each event type has an optional set of filters associated with it. The available filters vary depending on the event source.

Actions

Actions components are used to process and respond to events once they have been captured. A policy can include one or more actions (or event consumers). It can also have no actions, but this is not recommended. Actions are policy specific and cannot be shared between policies. However, they can be exported with a policy.

Policy Templates​

A policy template is an inactive policy specification that can be used to create active policies. Policy templates contain one or more event types that match a set of related events.

Some settings in a policy template are necessarily generic. For example, the filters associated with the event types of a template may need to be refined to refer to a particular local domain, container, or group.

There are usually no actions associated with a policy template because these are typically customized for a particular installation, e.g. the name of a text file, the connection information for a local SMTP server, etc.

See the Pre-Created Templates and Template Configuration topics for additional information.

Database Components​

Threat Prevention needs to store event data and configuration information for several components. The following SQL Server databases are used to store this information:

  • NVMonitorConfig database
  • NVMonitorData database

Both these databases are created during the installation process of the Threat Prevention Enterprise Manager. See the Application Server Install topic for additional information.

NVMonitorConfig Database

This database contains configuration information for the Threat Prevention product. The Threat Prevention Enterprise Manager maintains and shares this information with the Agents, primarily policy configuration information. .

NVMonitorData Database

This database contains the event activity data captured by Threat Prevention policies. Agents capture these events, as defined by policies, and send them to the Enterprise Manager. The Enterprise Manager receives, processes, and stores the data in the events database.
