Example Applications

In this section you'll find examples for applications.

SAML Application for Dropbox

SAML Configuration Example for Dropbox​

This chapter explains how to configure the SAML application for Dropbox. It is assumed that Configuration of SAML has already been activated in the Server Manager.

  • Log in as administrator at the Dropbox
  • Open the Admin Console

Admin Consoles

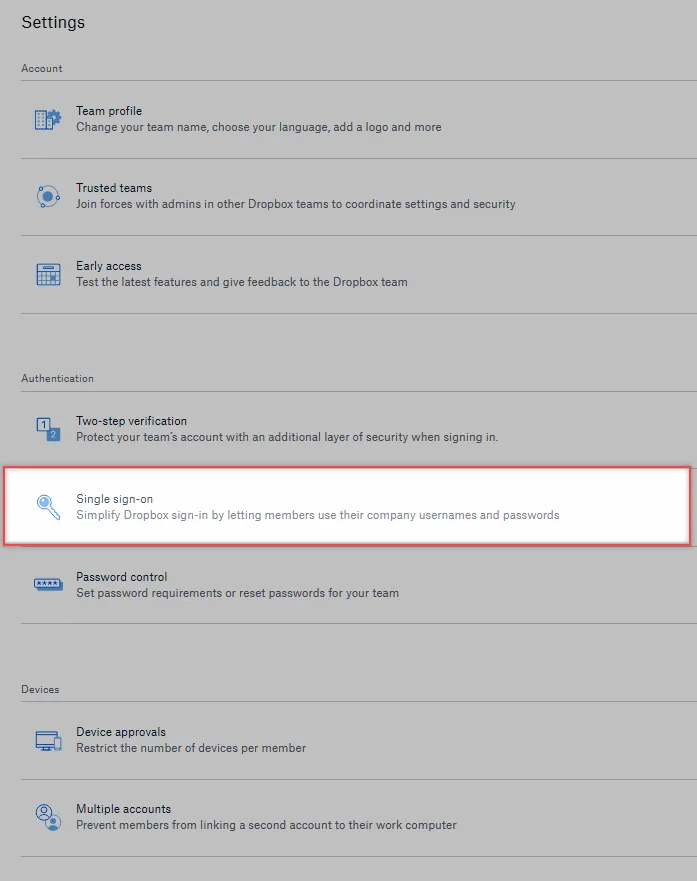

  • Open Settings

settings dropbox

  • Single Sign On

SSO dropbox

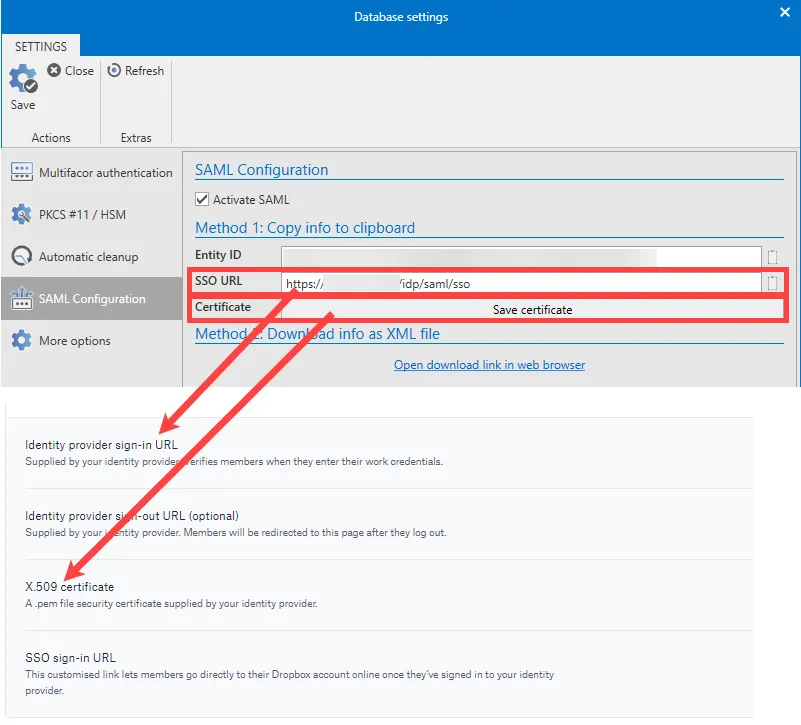

  • This is where the data SSO URL and the certificate from the Server Manager must be deposited.

database settings

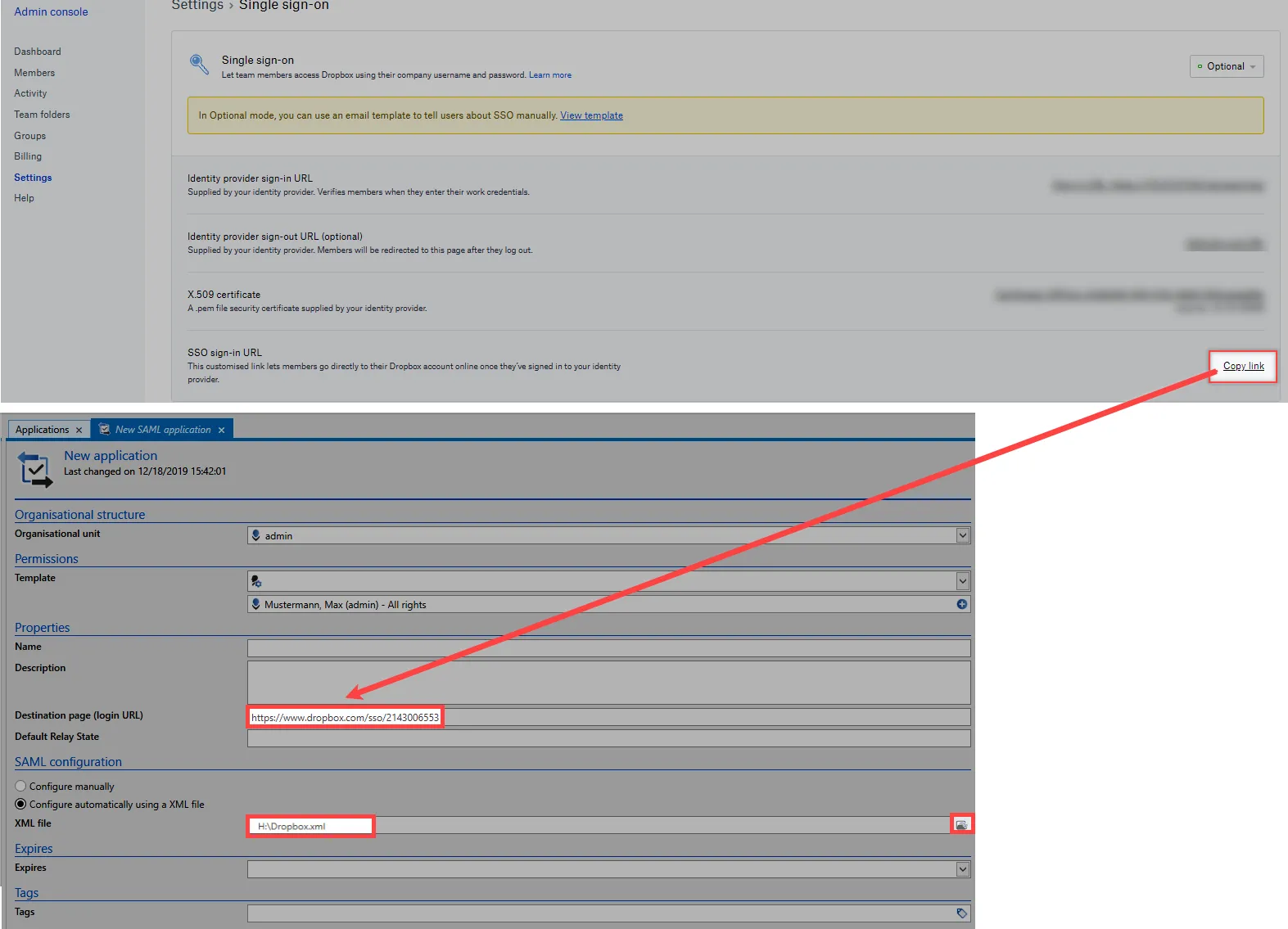

  • In the Advanced view, a new SAML application must be created in the Applications module.
  • Then the target page (login URL) and the XML file must be stored in the application.

login with SAML

The XML file must look like this.

  • The application can now be executed via the Basic view.

SAML application for Postman

SAML configuration example for Postman​

This chapter explains how to configure the SAML application for Postman. It is assumed that Configuration of SAML has already been activated in the Server Manager.

  • First, you register with Postman.
  • After logging in, click on the avatar and select "Settings".

settings postman

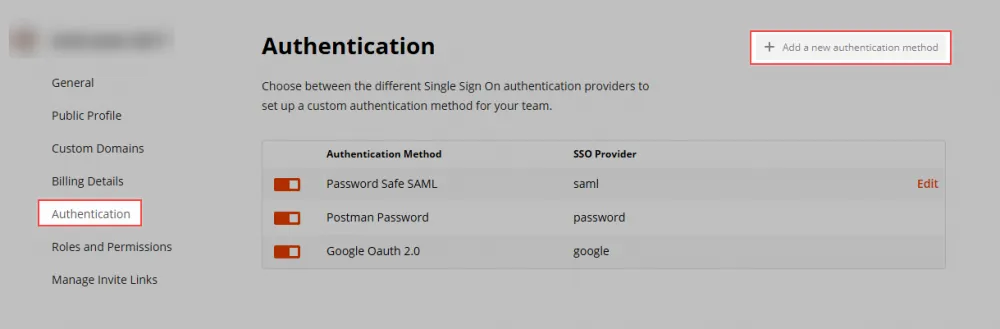

  • Then click on Authentication. Select a new method in the upper right corner.

option authentication postman

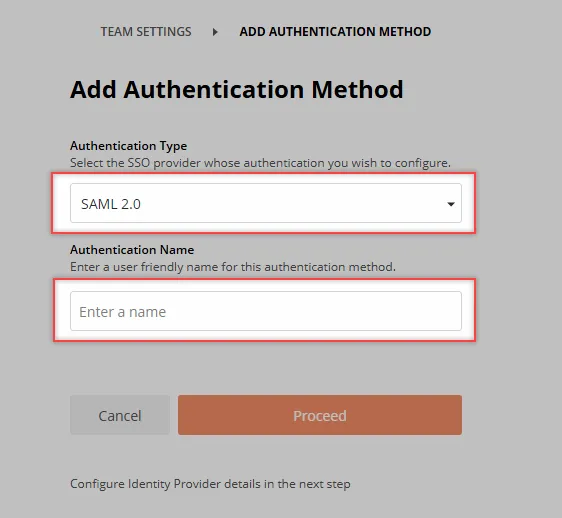

  • Here the Authentication Type must be defined with SAML 2.0 and any useful Authentication Name.

add authentication method

Then you come to the actual configuration.

  • Store Provider Details

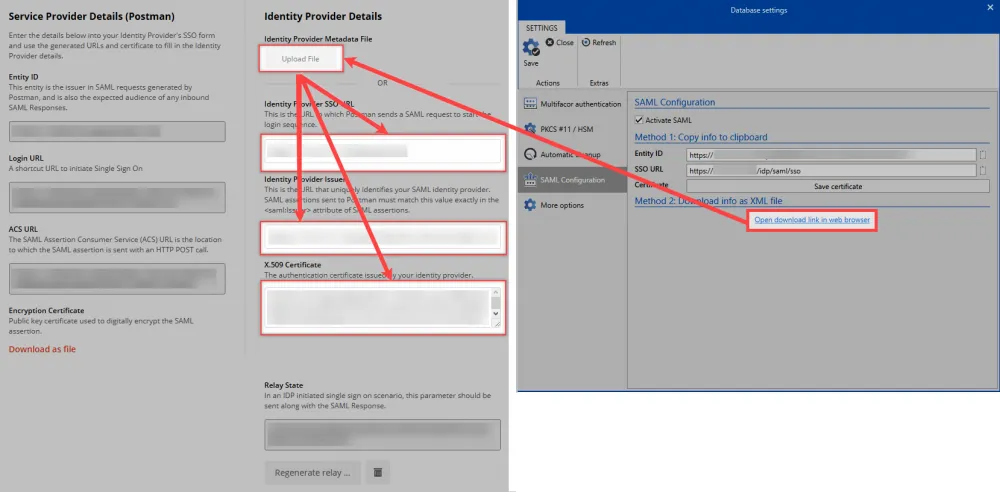

  • Identity Provider Details The data from the Server Manager is uploaded as XML or stored manually.

postman identity provider details

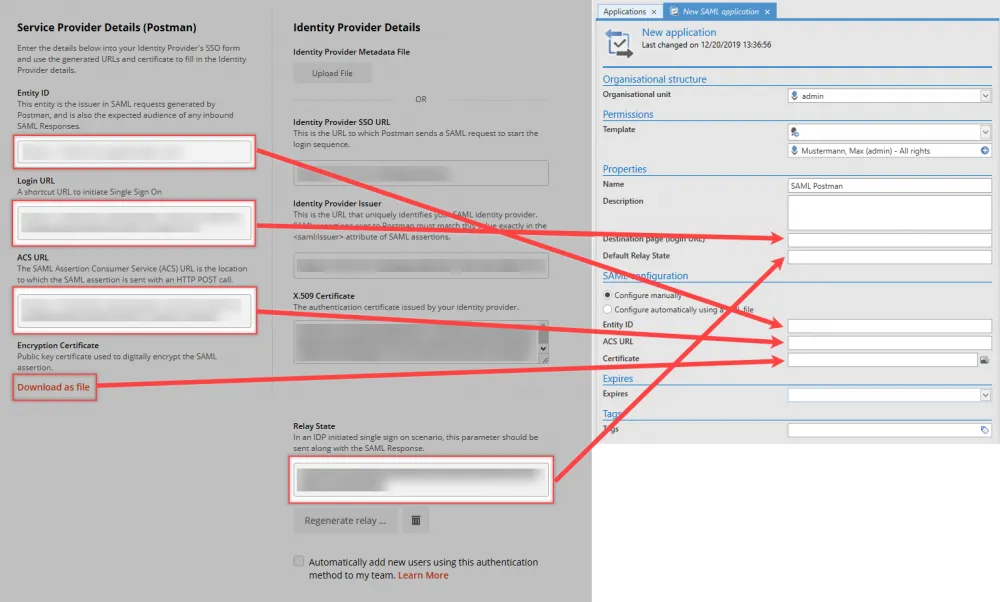

  • Service Provider Details The service provider details are now copied to the application in the Netwrix Password Secure Client.

postman service provider details

NOTE: Please note that a Relay State is required. This value can be created in the Configure Identity Provider Details View.

SAP GUI logon - SSO Application

Fundamental information​

Logging into SAP can be achieved via the usage of Start Parameter. The prerequisite here is for the login process to be carried out via the "SAPshortcut". All available parameters are listed in the SAP-Wiki.

Form Firstly, a Forms should be created with the required fields. This could look like this:

SAP form

Record​

A corresponding record is then created via the form:

SAP record

Application​

A corresponding SSO application now needs to be created.

SAP Application

The record now needs to be linked with the application. To do this, open the context menu by right clicking on the record. The previously created application can then be selected here via Applications and Connect application.

link record/application

The link is then displayed in the ribbon. Clicking on the link will now open SAP, whereby the parameters for logging in to the application are directly transferred.
