Rules
Netwrix Password Policy Enforcer uses rules to decide if it should accept or reject a password. Each policy has rules that are configured independently of the rules in other policies. To display the rules for a policy:
Step 1 – Open the Configuration Console:
Click Start > Netwrix Password Policy Enforcer > PPE Configuration
or
Double click the PPE Configuration desktop shortcut.
Step 2 – Click on a policy name to open the policy configuration page.

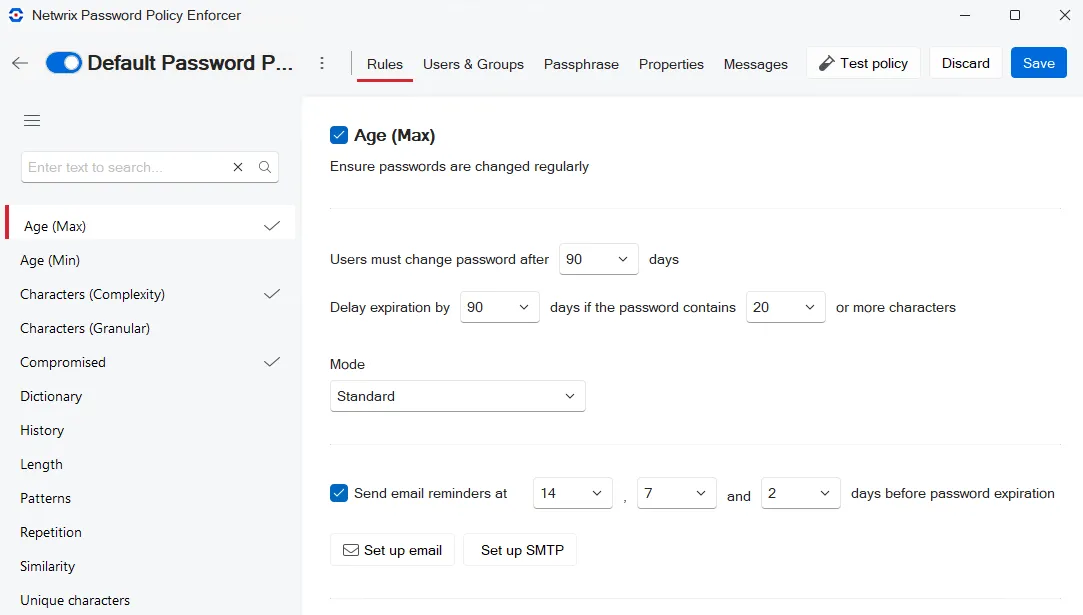

The Rules tab opens by default. A check mark beside a rule indicates that the rule is enabled (being enforced). Click a rule to set the rule's properties.
Review the sections on Detecting Character Substitution and Tolerance prior to setting up the rules for your policy.
You can Save each rule and use Test Policy as you are setting your rules. Turn on Verbose logging on the Test Policy window to see which rules you have tested.
Rules:
- Age (Max) Rule
- Age (Min) Rule
- Characters (Complexity) Rule
- Character (Granular) Rules
- Compromised Rule
- Dictionary Rule
- History Rule
- Length Rule
- Patterns Rule
- Repetition Rule
- Similarity Rule
- Unique Characters Rule
Detecting Character Substitution
Character substitution is a technique used by some users to improve password quality. They replace some alphabetic characters with non-alphabetic characters that have a similar appearance. For example, "sold" becomes "$old". Many of these substitutions are well known and do little to improve password strength.
Some Password Policy Enforcer rules have a Detect Character Substitution check box. When this check box is selected, Password Policy Enforcer tests passwords with, and without character substitution. This stops users from circumventing the rule by substituting some characters. Password Policy Enforcer detects these common character substitutions:
| Original | Substituted | |
|---|---|---|
| A | a | ^ @ |
| B | b | 8 |
| C | c | ( or { or < or [ |
| D | d | ) or } or > or ] |
| E | e | 3 |
| G | g | 6 or 9 |
| I | i | ! or | or 1 |
| O | o | 0 or (zero) |
| S | s | $ or 5 |
| T | t | + or 7 |
| Z | z | 2 |
Tolerance
Some Password Policy Enforcer rules have a Tolerance drop-down list that allows you to control how strictly the rule is enforced. Tolerance is normally expressed as the maximum allowable number of consecutive matching characters in the password and some other parameter. Password Policy Enforcer rejects a password if the specified tolerance is exceeded. For example, the logon name "maryjones", and the password "Jonestown" contain five consecutive matching characters (shown in bold type). Password Policy Enforcer will reject this password if the tolerance for the User Logon Name rule is four (or lower), and accept it if the tolerance is five (or higher).
The User Logon Name, User Display Name, Similarity, and Character Patter rules have an Auto tolerance option. Setting the tolerance to Auto instructs Password Policy Enforcer to only reject passwords that contain the entire parameter being compared. This is very useful when the length of the comparison parameter is unknown. For example, if you want Password Policy Enforcer to reject passwords that contain the user's entire logon name, then you cannot specify a fixed tolerance unless all logon names have the same length. Setting the tolerance to Auto allows Password Policy Enforcer to calculate an appropriate tolerance during every password change.
Password Policy Enforcer sets the tolerance to the length of the comparison parameter minus one. The table below shows some parameter values and the calculated tolerance. Password Policy Enforcer rejects a password if it contains all the text in the Value column (or a derivative of it if character substitution detection or bi-directional analysis is enabled).
| Rule | Parameter | Value | Tolerance |
|---|---|---|---|
| User Logon Name | Logon name | maryjones | 8 |
| User Display Name | Display name | Mary Jones | 9 |
| Similarity | Current password | oldpass | 6 |
| Character Pattern | Character pattern | abcdefgh | 7 |
Password Policy Enforcer's Auto tolerance calculation has a minimum limit to stop passwords from being rejected when the comparison parameter is very short. The limit is set to two characters by default, so Password Policy Enforcer accepts passwords that contain the parameter value if the comparison parameter only contains one or two characters. Contact Netwrix support if you need to change the minimum limit.
