Fulfill Microsoft Exchange via PowerShell

This guide shows how to set up a PowerShell connector to fulfill data in Microsoft Exchange Server. It will focus on registering Identity Manager within the target Microsoft Exchange instance, configuring the connector, and building the job to perform a regularly scheduled fulfillment. Of course, any other system compatible with PowerShell can be chosen.

Prerequisites

External System Configuration

Check the following prerequisites:

Let's consider a simplified system, including three parts:

Identity Manager
Microsoft Exchange Server
Active Directory

For more details on the complete system, see Exchange architecture.

Identity Manager can:

export and fulfill AD entries independently of Microsoft Exchange.
export mailboxes from Microsoft Exchange independently of AD.
fulfill a mailbox but Identity Manager needs first to fulfill an AD entry and then, launch the Microsoft Exchange Fulfill.

Identity Manager Configuration

This step sets up the Identity Manager Agent to use the Active Directory and PowerShell connectors in order to fulfill the Microsoft Exchange mailboxes.

The settings must be entered in appsettings.agent.json > Connections. For more details, see the Active Directory and PowerShellProv sections.

Add Sections

As explained previously, the simplified system consists of Identity Manager and two other systems. It means that settings are required in appsettings.agent.json to connect with the systems. See the Microsoft Exchange , PowerShellProv , andActive Directory topics for additional information.

This example contains export and fulfillment settings for the Active Directory and for Microsoft Exchange:

appsettings.agent.json
{
    "Connections": {
    ...
    "ADFulfillment": {
      "Servers": [
        {
          "Server": "...",
          "BaseDN": "..."
        },
        {
          "Server": "paris.contoso.com",
          "BaseDN": "DC=defense,DC=paris,DC=com"
        }
      ],
      "AuthType": "Basic",
      "Login": "...",
      "Password": "...",
      "Filter": "(objectclass=*)",
      "EnableSSL": true,
    }
    "MicrosoftExchangeExportFulfillment": {
      // Export Microsoft Exchange settings
      ...
      // Fulfillment Microsoft Exchange settings
      "PowerShellScriptPath": "C:/identitymanagerDemo/Scripts/Fulfill-Exchange.ps1",
      "Options": {
        "AuthType": "Basic",
        "Server": "http://ex-server1/powershell",
        "Login": "PIXELABS\\Administrateur",
        "Password": "Secret123"
      }
    },
  }
}

As this guide focuses on the fulfillment of an external system, export settings will be omitted.

The Fulfill-PowerShell needs a script whose path is defined by the attribute PowerShellScriptPath. Identity Manager provides a script in the SDK in Usercube.Demo/Scripts/Fulfill-Exchange.ps1.See the Write a PowerShell Script for Provisioning topic for additional information on how to write a customized script.

To define and apply additional settings when authenticating to an external system, we can set the attribute Options and add required parameters for authentication.

In the example above, the Basic AuthType was chosen to show how to fill the credentials, but it isn't mandatory to use this . See the Microsoft Exchange topic for additional information.

For pedagogical reasons, this guide focuses on the simplest way to set up the fulfillment, but it's not the most secure. Hence, it is strongly recommended to use Kerberos AuthType or credentials protection via Azure Key Vault or CyberArk in a production environment. See the PowerShellProv topic for additional information.
Netwrix Identity Manager (formerly Usercube) recommends completing this guide once, testing the configuration, and only then, switching to a more secure way of storing credentials.

Build the Connector

To be used for export tasks, a connector must be declared in the applicative configuration and linked to an Agent. See the Toolkit for XML Configuration topic for additional information.

It is strongly recommended that the applicative configuration be stored in the working directory Conf folder as a set of xml files organized by connector. To follow this structure, create a MicrosoftExchange directory in the Conf folder.

Declare a Connector

In the MicrosoftExchange directory, create a MicrosoftExchange Connector.xml file. This file contains the declaration of the connector and the associated Entity Model.

This example declares the MicrosoftExchange Connector on the Local agent, and the Connection linked to the previously defined MicrosoftExchangeExportFulfillment JSON section (see the example above):

Conf/MicrosoftExchange/MicrosoftExchange Connector.xml
<?xml version="1.0" encoding="utf-8"?><ConfigurationFile xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="urn:schemas-usercube-com:configuration">    ...
    <Connector Identifier="MicrosoftExchange" DisplayName_L1="Microsoft Exchange" Agent="Local" />    <Connection Connector="MicrosoftExchange" DisplayName_L1="Connection Microsoft Exchange" Identifier="MicrosoftExchangeExportFulfillment" Package="Usercube.MicrosoftExchange@0000001"/>    <Category Policy="Default" Identifier="MicrosoftExchange" DisplayName_L1="Microsoft Exchange"/>    ...
</ConfigurationFile>

Write Entity Types

The Entity Model should match as closely as possible the structure of the Microsoft Exchange data relevant for Identity Manager. It is designed by analyzing the Microsoft Exchange data structure, and describing said data with Entity Types and Entity Association .

Eventually, it is up to the integration team to design the Entity Model that best serves the Role Model needs. It will most likely be refined iteratively throughout the project integration. See the Assignment Policy topic for additional information.

A good starting point for the Entity Model is to mirror the shape of the Microsoft Exchange mailboxes and databases.

Example

This example defines the entity types named MicrosoftExchange_Database and MicrosoftExchange_Mailbox.

Notice the omitted TargetColumnIndex attribute and the presence of Type="ForeignKey" for the Mailboxes and Database properties. If omitted, this attribute indicates that the properties are navigation properties.

Conf/MicrosoftExchange/MicrosoftExchange Connector.xml
...
<EntityType Identifier="MicrosoftExchange_Database" DisplayName_L1="Microsoft Exchange - Database">  <Property Identifier="Name" DisplayName_L1="Name" TargetColumnIndex="4" Type="String" />  <Property Identifier="Server" DisplayName_L1="Server" TargetColumnIndex="5" Type="String" />  <Property Identifier="Mounted" DisplayName_L1="Mounted" TargetColumnIndex="7" Type="String" />  <Property Identifier="ObjectCategory" DisplayName_L1="ObjectCategory" TargetColumnIndex="1" Type="String" />  <Property Identifier="Guid" DisplayName_L1="Guid" IsKey="true" TargetColumnIndex="0" Type="String" />  <Property Identifier="WhenChangedUTC" DisplayName_L1="WhenChangedUTC" TargetColumnIndex="2" Type="String" />  <Property Identifier="WhenCreatedUTC" DisplayName_L1="WhenCreatedUTC" TargetColumnIndex="3" Type="String" />  <Property Identifier="ObjectState" DisplayName_L1="ObjectState" TargetColumnIndex="6" Type="String" />  <Property Identifier="Mailboxes" DisplayName_L1="Mailboxes" Type="ForeignKey" /></EntityType><EntityType Identifier="MicrosoftExchange_Mailbox" DisplayName_L1="Microsoft Exchange - Mailbox">  <Property Identifier="EmailAddresses" DisplayName_L1="EmailAddresses" TargetColumnIndex="8" Type="String" />  <Property Identifier="UseDatabaseRetentionDefaults" DisplayName_L1="UseDatabaseRetentionDefaults" TargetColumnIndex="34" Type="String" />  <Property Identifier="RetainDeletedItemsUntilBackup" DisplayName_L1="RetainDeletedItemsUntilBackup" TargetColumnIndex="27" Type="String" />  <Property Identifier="DeliverToMailboxAndForward" DisplayName_L1="DeliverToMailboxAndForward" TargetColumnIndex="28" Type="String" />  <Property Identifier="ExchangeGuid" DisplayName_L1="ExchangeGuid" TargetColumnIndex="5" Type="String" />  <Property Identifier="ExchangeUserAccountControl" DisplayName_L1="ExchangeUserAccountControl" TargetColumnIndex="35" Type="String" />  <Property Identifier="ForwardingAddress" DisplayName_L1="ForwardingAddress" TargetColumnIndex="40" Type="String" />  <Property Identifier="ForwardingSmtpAddress" DisplayName_L1="ForwardingSmtpAddress" TargetColumnIndex="41" Type="String" />  <Property Identifier="IsMailboxEnabled" DisplayName_L1="IsMailboxEnabled" TargetColumnIndex="36" Type="String" />  <Property Identifier="ProhibitSendQuota" DisplayName_L1="ProhibitSendQuota" TargetColumnIndex="19" Type="String" />  <Property Identifier="ProhibitSendReceiveQuota" DisplayName_L1="ProhibitSendReceiveQuota" TargetColumnIndex="20" Type="String" />  <Property Identifier="RecoverableItemsQuota" DisplayName_L1="RecoverableItemsQuota" TargetColumnIndex="9" Type="String" />  <Property Identifier="RecoverableItemsWarningQuota" DisplayName_L1="RecoverableItemsWarningQuota" TargetColumnIndex="10" Type="String" />  <Property Identifier="CalendarLoggingQuota" DisplayName_L1="CalendarLoggingQuota" TargetColumnIndex="11" Type="String" />  <Property Identifier="IsResource" DisplayName_L1="IsResource" TargetColumnIndex="29" Type="String" />  <Property Identifier="IsLinked" DisplayName_L1="IsLinked" TargetColumnIndex="30" Type="String" />  <Property Identifier="IsShared" DisplayName_L1="IsShared" TargetColumnIndex="31" Type="String" />  <Property Identifier="SamAccountName" DisplayName_L1="SamAccountName" TargetColumnIndex="21" Type="String" />  <Property Identifier="AntispamBypassEnabled" DisplayName_L1="AntispamBypassEnabled" TargetColumnIndex="32" Type="String" />  <Property Identifier="ServerName" DisplayName_L1="ServerName" TargetColumnIndex="26" Type="String" />  <Property Identifier="UseDatabaseQuotaDefaults" DisplayName_L1="UseDatabaseQuotaDefaults" TargetColumnIndex="37" Type="String" />  <Property Identifier="UserPrincipalName" DisplayName_L1="UserPrincipalName" TargetColumnIndex="7" Type="String" />  <Property Identifier="WhenMailboxCreated" DisplayName_L1="WhenMailboxCreated" TargetColumnIndex="14" Type="String" />  <Property Identifier="IsInactiveMailbox" DisplayName_L1="IsInactiveMailbox" TargetColumnIndex="33" Type="String" />  <Property Identifier="AccountDisabledIsDirSynced" DisplayName_L1="AccountDisabledIsDirSynced" TargetColumnIndex="42" Type="String" />  <Property Identifier="Alias" DisplayName_L1="Alias" TargetColumnIndex="22" Type="String" />  <Property Identifier="OrganizationalUnit" DisplayName_L1="OrganizationalUnit" TargetColumnIndex="3" Type="String" />  <Property Identifier="DisplayName" DisplayName_L1="DisplayName" TargetColumnIndex="12" Type="String" />  <Property Identifier="MaxSendSize" DisplayName_L1="MaxSendSize" TargetColumnIndex="23" Type="String" />  <Property Identifier="MaxReceiveSize" DisplayName_L1="MaxReceiveSize" TargetColumnIndex="24" Type="String" />  <Property Identifier="PrimarySmtpAddress" DisplayName_L1="PrimarySmtpAddress" TargetColumnIndex="6" Type="String" />  <Property Identifier="RecipientType" DisplayName_L1="RecipientType" TargetColumnIndex="17" Type="String" />  <Property Identifier="RecipientTypeDetails" DisplayName_L1="RecipientTypeDetails" TargetColumnIndex="18" Type="String" />  <Property Identifier="Identity" DisplayName_L1="Identity" TargetColumnIndex="2" Type="String" />  <Property Identifier="IsValid" DisplayName_L1="IsValid" TargetColumnIndex="38" Type="String" />  <Property Identifier="Name" DisplayName_L1="Name" TargetColumnIndex="13" Type="String" />  <Property Identifier="DistinguishedName" DisplayName_L1="DistinguishedName" TargetColumnIndex="1" Type="String" />  <Property Identifier="Guid" DisplayName_L1="Guid" IsKey="true" TargetColumnIndex="0" Type="String" />  <Property Identifier="ObjectCategory" DisplayName_L1="ObjectCategory" TargetColumnIndex="4" Type="String" />  <Property Identifier="WhenChangedUTC" DisplayName_L1="WhenChangedUTC" TargetColumnIndex="15" Type="String" />  <Property Identifier="WhenCreatedUTC" DisplayName_L1="WhenCreatedUTC" TargetColumnIndex="16" Type="String" />  <Property Identifier="ObjectState" DisplayName_L1="ObjectState" TargetColumnIndex="25" Type="String" />  <Property Identifier="Database" DisplayName_L1="Database" Type="ForeignKey" TargetColumnIndex="128" /></EntityType>...

Write the Entity Type Mapping

The entity type must be mapped, on a property by property basis, to the exported attributes of Microsoft Exchange mailboxes and databases (namely, the columns of the CSV source files generated by the export). The Entity Type Mapping element maps scalar properties from a CSV source file to an EntityType.

Example

In this example, the CSV source files are microsoftexchange_databases.csv and microsoftexchange_mailboxes.csv located in the Application Settings folder.

Conf/MicrosoftExchange/MicrosoftExchange Connector.xml
...
<EntityTypeMapping Identifier="MicrosoftExchange_Database" Connector="MicrosoftExchange" ConnectionTable="microsoftexchange_databases">  <Property Identifier="Name" ConnectionColumn="Name" IsUniqueKey="true" />  <Property Identifier="Server" ConnectionColumn="Server" />  <Property Identifier="Mounted" ConnectionColumn="Mounted" />  <Property Identifier="ObjectCategory" ConnectionColumn="ObjectCategory" />  <Property Identifier="Guid" ConnectionColumn="Guid" IsPrimaryKey="true" />  <Property Identifier="WhenChangedUTC" ConnectionColumn="WhenChangedUTC" />  <Property Identifier="WhenCreatedUTC" ConnectionColumn="WhenCreatedUTC" />  <Property Identifier="ObjectState" ConnectionColumn="ObjectState" /></EntityTypeMapping><EntityTypeMapping Identifier="MicrosoftExchange_Mailbox" Connector="MicrosoftExchange" ConnectionTable="microsoftexchange_mailboxes">  <Property Identifier="EmailAddresses" ConnectionColumn="EmailAddresses" />  <Property Identifier="UseDatabaseRetentionDefaults" ConnectionColumn="UseDatabaseRetentionDefaults" />  <Property Identifier="RetainDeletedItemsUntilBackup" ConnectionColumn="RetainDeletedItemsUntilBackup" />  <Property Identifier="DeliverToMailboxAndForward" ConnectionColumn="DeliverToMailboxAndForward" />  <Property Identifier="ExchangeGuid" ConnectionColumn="ExchangeGuid" />  <Property Identifier="ExchangeUserAccountControl" ConnectionColumn="ExchangeUserAccountControl" />  <Property Identifier="ForwardingAddress" ConnectionColumn="ForwardingAddress" />  <Property Identifier="ForwardingSmtpAddress" ConnectionColumn="ForwardingSmtpAddress" />  <Property Identifier="IsMailboxEnabled" ConnectionColumn="IsMailboxEnabled" />  <Property Identifier="ProhibitSendQuota" ConnectionColumn="ProhibitSendQuota" />  <Property Identifier="ProhibitSendReceiveQuota" ConnectionColumn="ProhibitSendReceiveQuota" />  <Property Identifier="RecoverableItemsQuota" ConnectionColumn="RecoverableItemsQuota" />  <Property Identifier="RecoverableItemsWarningQuota" ConnectionColumn="RecoverableItemsWarningQuota" />  <Property Identifier="CalendarLoggingQuota" ConnectionColumn="CalendarLoggingQuota" />  <Property Identifier="IsResource" ConnectionColumn="IsResource" />  <Property Identifier="IsLinked" ConnectionColumn="IsLinked" />  <Property Identifier="IsShared" ConnectionColumn="IsShared" />  <Property Identifier="SamAccountName" ConnectionColumn="SamAccountName" />  <Property Identifier="AntispamBypassEnabled" ConnectionColumn="AntispamBypassEnabled" />  <Property Identifier="ServerName" ConnectionColumn="ServerName" />  <Property Identifier="UseDatabaseQuotaDefaults" ConnectionColumn="UseDatabaseQuotaDefaults" />  <Property Identifier="UserPrincipalName" ConnectionColumn="UserPrincipalName" />  <Property Identifier="WhenMailboxCreated" ConnectionColumn="WhenMailboxCreated" />  <Property Identifier="IsInactiveMailbox" ConnectionColumn="IsInactiveMailbox" />  <Property Identifier="AccountDisabledIsDirSynced" ConnectionColumn="AccountDisabledIsDirSynced" />  <Property Identifier="Alias" ConnectionColumn="Alias" />  <Property Identifier="OrganizationalUnit" ConnectionColumn="OrganizationalUnit" />  <Property Identifier="DisplayName" ConnectionColumn="DisplayName" />  <Property Identifier="MaxSendSize" ConnectionColumn="MaxSendSize" />  <Property Identifier="MaxReceiveSize" ConnectionColumn="MaxReceiveSize" />  <Property Identifier="PrimarySmtpAddress" ConnectionColumn="PrimarySmtpAddress" />  <Property Identifier="RecipientType" ConnectionColumn="RecipientType" />  <Property Identifier="RecipientTypeDetails" ConnectionColumn="RecipientTypeDetails" />  <Property Identifier="Identity" ConnectionColumn="Identity" />  <Property Identifier="IsValid" ConnectionColumn="IsValid" />  <Property Identifier="Name" ConnectionColumn="Name" />  <Property Identifier="DistinguishedName" ConnectionColumn="DistinguishedName" />  <Property Identifier="Guid" ConnectionColumn="Guid" IsPrimaryKey="true" />  <Property Identifier="ObjectCategory" ConnectionColumn="ObjectCategory" />  <Property Identifier="WhenChangedUTC" ConnectionColumn="WhenChangedUTC" />  <Property Identifier="WhenCreatedUTC" ConnectionColumn="WhenCreatedUTC" />  <Property Identifier="ObjectState" ConnectionColumn="ObjectState" /></EntityTypeMapping>...

Write Entity Associations

Entity types are associated through their navigation properties with Entity Association elements.

Example

The following example declares a 1:n ('one-to-many') association. One MicrosoftExchange_Database may be referenced by any number of MicrosoftExchange_Mailbox(es), but each MicrosoftExchange_Mailbox can only reference one MicrosoftExchange_Database.

The properties used for the association must be Primary or Unique keys.

Conf/MicrosoftExchange/MicrosoftExchange Connector.xml
...
<EntityAssociation Identifier="MicrosoftExchange_Mailbox_Database" DisplayName_L1="Database" IsProperty1Collection="true" Property1="MicrosoftExchange_Database:Mailboxes" Property2="MicrosoftExchange_Mailbox:Database" />...

Write the Entity Association Mapping

The Entity Association Mapping element maps column values from a CSV source file to an EntityType navigation property.

Example

This example describes the mailbox/database associations between MicrosoftExchange_Mailbox and MicrosoftExchange_Database. Thanks to the Export Microsoft Exchange job, the file microsoftexchange_mailboxes.csv is generated. This file looks like:

Command;Property_1;Property_2;...;Property_N
Add;value1;value2;...;valueN

Each line of the CSV file corresponds to a MicrosoftExchange_Mailbox. The properties used in the association are:

Guid: the Guid of the MicrosoftExchange_Mailbox.
Name: the name of the MicrosoftExchange_Database referencing the MicrosoftExchange_Mailbox (name is unique among the databases).

The following table can be extracted from the CSV file:

Guid	Name
4ecbdba7-e984-409a-a9ac-6027ac81fa42	Mailbox Database 1882404652
1d3e67a2-7d44-46f1-a300-afa73ae120f4	DB1
aab57e15-847b-4e16-96f1-82ebc54c01e2	DB1
ea513604-3758-463f-9b72-6c42ea949260	DB2

It means that the MicrosoftExchange_Mailbox with Guid ? 4ecbdba7-e984-409a-a9ac-6027ac81fa42 is contained in the MicrosoftExchange_Database with Name ? Mailbox Database 1882404652. This association is created for every line in the CSV file, and therefore also for every line in the table above.

This can be enabled with an EntityAssociationMapping like in the following XML:

Conf/MicrosoftExchange/MicrosoftExchange Connector.xml
...
<EntityAssociationMapping Identifier="MicrosoftExchange_Mailbox_Database" Column1="Database" Column2="Guid" Connector="MicrosoftExchange" ConnectionTable="microsoftexchange_mailboxes" EntityPropertyMapping1="MicrosoftExchange_Database:Name" EntityPropertyMapping2="MicrosoftExchange_Mailbox:Guid" />...

The CSV file microsoftexchange_mailboxes.csv must be exported to the export output folder. See the Application Settings topic for additional information.

Build the Role Model

A Entitlement Management must be created with the following elements:

ResourceType
ResourceTypeMapping
ResourceCorrelationRule
SingleRole (optional)

Resource Type

A Resource Type is a conceptual model of an information system object, here a mailbox.

The resource type contains several rules:

Type Rule which assigns a resource to a user
which specifies the value to be set to an assigned resource scalar property
Resource Type which specifies a value to be set to an assigned resource multi-valued navigation property

Example

Conf/MicrosoftExchange/Directory User Role Model MicrosoftExchange.xml"
...
<ResourceType Identifier="MicrosoftExchange_Mailbox_NominativeUser" DisplayName_L1="Microsoft Exchange Mailbox (nominative)" DisplayName_L2="Bo�te Microsoft Exchange (nominative)" Policy="Default" TargetEntityType="MicrosoftExchange_Mailbox" Category="MicrosoftExchange" SourceEntityType="Directory_User" ApprovalWorkflowType="One" MaximumUpdatePercent="100" MaximumInsertPercent="100">  <ScalarRule Property="SamAccountName" Binding="Login" />  <ScalarRule Property="PrimarySmtpAddress" Binding="Mail" />  <ScalarRule Property="EmailAddresses" Expression="C#:person:return String.IsNullOrEmpty(person.ProxyAddress) ? &quot;SMTP:&quot; + person.Mail : &quot;smtp:&quot; + person.ProxyAddress + &quot; SMTP:&quot; + person.Mail;" />  <NavigationRule Property="Database" Resource="24679385-b2dd-461d-aebf-42a77e0c620e" SingleRole="Mailbox Database 1882404652" />  <NavigationRule Property="Database" Resource="9c512155-d912-4fcb-9448-0755fbaf1b96" SingleRole="DB1" />  <NavigationRule Property="Database" Resource="d1d81888-3ad3-4256-a621-2273aba7c48f" SingleRole="DB2" /></ResourceType>...

The TargetEntityType is MicrosoftExchange_Mailbox and the SourceEntityType is Directory_User.

This Resource Type allows Identity Manager to compute the values used when fulfilling the external system.

Finally, the Navigation Rule sets the property Database of the entity MicrosoftExchange_Mailbox. See the Fulfill Microsoft Exchange via PowerShell topic for additional information.

Resource Type Mapping

A Resource Type Mappings element contains all the resource types (sharing the same Identifier) that can be provisioned into targeted platforms, applications, and systems.

Example

Conf/MicrosoftExchange/Directory User Role Model MicrosoftExchange.xml"
...
<ResourceTypeMapping Identifier="MicrosoftExchange_Mailbox_NominativeUser" Connection="MicrosoftExchangeExportFulfillment" />...

In this example, Fulfill-PowerShell requires only a simple ResourceTypeMapping (including only one Identifier and one Connection):

The Identifier attribute is MicrosoftExchange_Mailbox_NominativeUser which corresponds to the identifier of the resource type defined earlier.
The Connection attribute is MicrosoftExchangeExportFulfillment which corresponds to the section in appsettings.agent.json containing the parameters used to provision the external system.

Resource Correlation Rule

A Resource Correlation Rule is used to correlate the resource MicrosoftExchange_Mailbox_NominativeUser with the Directory_User.

Example

Conf/MicrosoftExchange/NotImplementInAutoTest/Directory User Role Model MicrosoftExchange.xml"
...
<ResourceCorrelationRule ResourceType="MicrosoftExchange_Mailbox_NominativeUser" TargetBinding="SamAccountName" Policy="Default" SourceMatchedConfidenceLevel="100" SourceBinding="Login" />...

This rule means if the SamAccountName (MicrosoftExchange_Mailbox) is equal to the Login (Directory_User) then, the ResourceType can be linked to the User with a confidence rate of 100%.

Single Role (optional)

A Single Role encapsulates system entitlements.

Example

Conf/MicrosoftExchange/Directory User Role Model MicrosoftExchange.xml"
...
<SingleRole Identifier="Mailbox Database 1882404652" DisplayName_L1="Mailbox Database 1882404652" DisplayName_L2="Base de donn�e pour bo�te mail 1882404652" Category="MicrosoftExchange" ApprovalWorkflowType="One" EntityType="Directory_User" Policy="Default" /><SingleRole Identifier="DB1" DisplayName_L1="DB1" DisplayName_L2="DB1" Category="MicrosoftExchange" ApprovalWorkflowType="One" EntityType="Directory_User" Policy="Default" /><SingleRole Identifier="DB2" DisplayName_L1="DB2" DisplayName_L2="DB2" Category="MicrosoftExchange" ApprovalWorkflowType="One" EntityType="Directory_User" Policy="Default" />...

This single role was previously used in one of the navigation rules defined in the ResourceType.

Conf/MicrosoftExchange/Directory User Role Model MicrosoftExchange.xml"
...
<NavigationRule Property="Database" Resource="24679385-b2dd-461d-aebf-42a77e0c620e" SingleRole="Mailbox Database 1882404652" /><NavigationRule Property="Database" Resource="9c512155-d912-4fcb-9448-0755fbaf1b96" SingleRole="DB1" /><NavigationRule Property="Database" Resource="d1d81888-3ad3-4256-a621-2273aba7c48f" SingleRole="DB2" />...

If a Directory_User is assigned the SingleRole DB1 then, the NavigationRule indicates that the property Database (in MicrosoftExchange_Mailbox) will have the value 9c512155-d912-4fcb-9448-0755fbaf1b96 (unique id of a MicrosoftExchange_Database).

Display

This step focuses on configuring a nice display for the synchronized list of resources in the UI.

A Menu Item can be added to include a link to the resources list in the left menu on the UI home screen.

It is strongly recommended that you gather synchronized resources menu items under parent menu items. This is usually declared in the Nav.xml file in the configuration root folder.

NETWRIX also advises to use a new MicrosoftExchange Nav.xml file in the MicrosoftExchange connector's folder to add a mailboxes and databases menu item.

Example

Conf/MicrosoftExchange/MicrosoftExchange Nav.xml
...
<MenuItem Identifier="Nav_Connectors_MicrosoftExchange" DisplayName_L1="Microsoft Exchange" DisplayName_L2="Microsoft Exchange" ParentMenuItem="Nav_Connectors">  <MenuItem Identifier="Nav_Connectors_ADMicrosoftExchange_Entry" DisplayName_L1="AD Entries" DisplayName_L2="Entr�es AD" EntityType="ADMicrosoftExchange_Entry" />  <MenuItem Identifier="Nav_Connectors_MicrosoftExchange_Database" DisplayName_L1="Databases" DisplayName_L2="Bases de donn�es" EntityType="MicrosoftExchange_Database" />  <MenuItem Identifier="Nav_Connectors_MicrosoftExchange_Mailbox" DisplayName_L1="Mailboxes" DisplayName_L2="Boites mails" EntityType="MicrosoftExchange_Mailbox" /></MenuItem>...

This example adds a new menu item under the Nav_Connectors menu item declared in the root Conf/Nav.xml file. This new menu item gives access to the list of synchronized Microsoft Exchange entities.

Microsoft Exchange Menu Items

Configuration

It is strongly recommended that the display configuration be written to a new MicrosoftExchange UI.xml file in the MicrosoftExchange connector's folder.

All-in-One Scaffolding

The View Target Resource Template generates all the required elements to be seen by the user.

Example

The documentation explains what is generated by the following scaffolding:

Conf/MicrosoftExchange/MicrosoftExchange UI.xml
...
<ViewTargetResourceTemplate EntityType="MicrosoftExchange_Database" Profile="Administrator" /><ViewTargetResourceTemplate EntityType="MicrosoftExchange_Mailbox" Profile="Administrator" />...

The following sections show how to override the elements generated by this scaffolding in order to provide a more precise display.

Display Entity Type

The Display Entity Type describes how a single resource should be displayed.

Example

Conf/MicrosoftExchange/MicrosoftExchange UI.xml
...
<DisplayEntityType Identifier="MicrosoftExchange_Database">  <Property OutputType="BasicCollection" Identifier="Mailboxes" /></DisplayEntityType>...

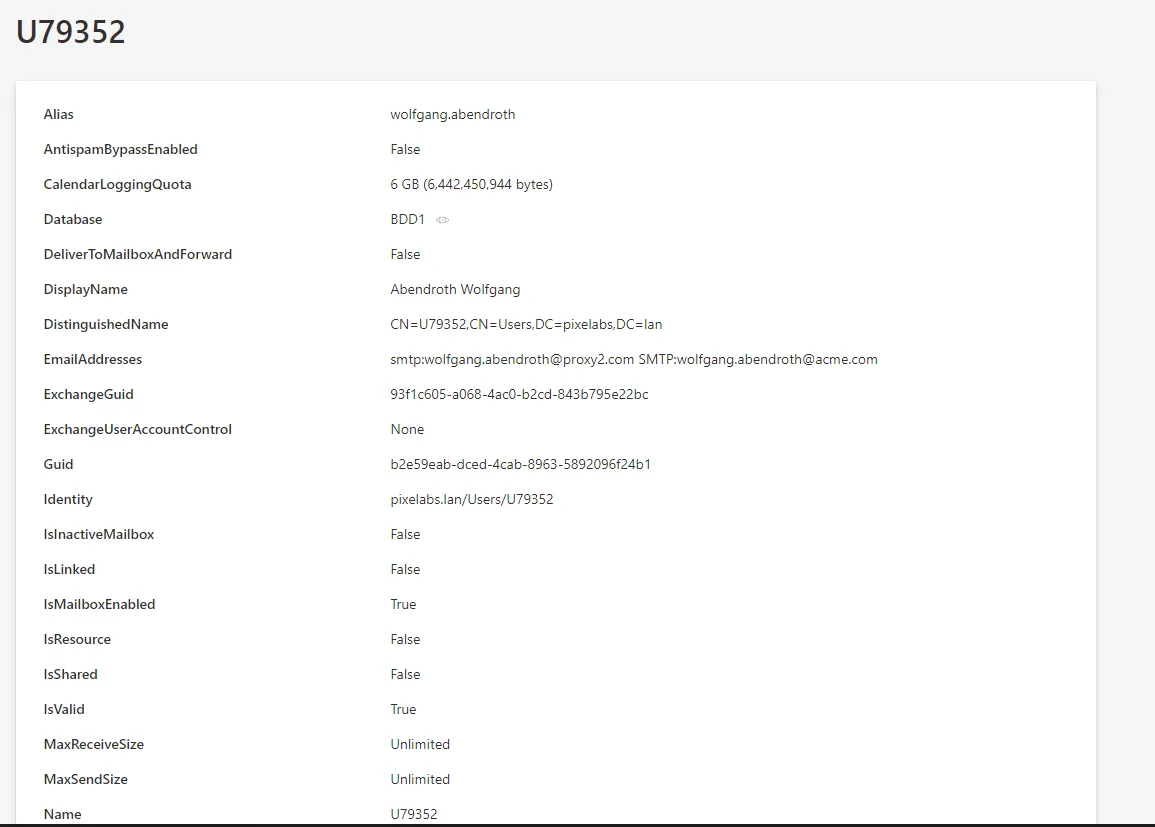

This example configures the following display for wolfgang.abendroth@acme.com.

Microsoft Exchange Display Entity Type

The scalar properties require no configuration: they are automatically displayed. The only information that the Display Entity Type adds here, is that the property BasicCollection is a navigation property. An eye icon will be displayed to take you directly to the matching page.

Display Table

The Display Table elements describe how a list of resources should be displayed.

The Display Table contains a list of Display Table columns elements that identify which properties should be included in the list display.

Example

Conf/MicrosoftExchange/MicrosoftExchange UI.xml
...
<DisplayTable Identifier="MicrosoftExchange_Database" EntityType="MicrosoftExchange_Database" DisplayTableDesignElement="table" IsEntityTypeDefault="true">  <Column DefaultSortPriority="1" DisplayBinding="Guid" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="1" />  <Column DisplayBinding="Name" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="Server" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /></DisplayTable><DisplayTable Identifier="MicrosoftExchange_Mailbox" EntityType="MicrosoftExchange_Mailbox" DisplayTableDesignElement="resourcetable" IsEntityTypeDefault="true">  <Column DefaultSortPriority="1" DisplayBinding="Guid" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="1" />  <Column DisplayBinding="ServerName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="UserPrincipalName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /></DisplayTable>...

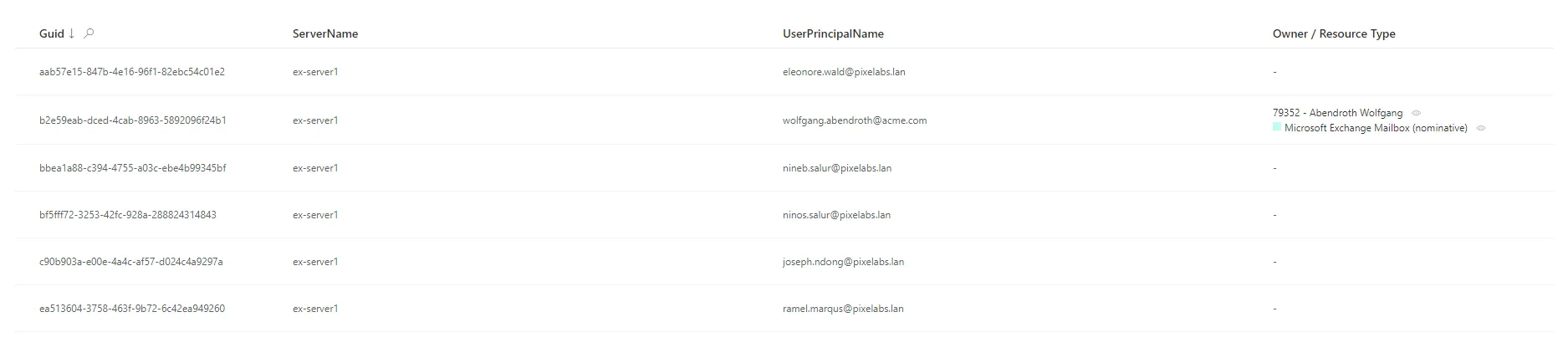

This example configures the following list display:

Microsoft Exchange Display Table

Internal Display Name

An InternalDisplayName can also be declared as an Entity Type property expression. The InternalDisplayName is used in several UI screens to identify a resource for the user.

With no custom InternalDisplayName, a default value is used (instead of the first property of the identity) containing the string name. If no such property is found, the first declared property of the entity type is used.

Example

Conf/MicrosoftExchange/MicrosoftExchange UI.xml
...
<EntityPropertyExpression Identifier="MicrosoftExchange_Database_InternalDisplayName" Expression="C#:item:return item.Name;" EntityType="MicrosoftExchange_Database" Property="InternalDisplayName" /><EntityPropertyExpression Identifier="MicrosoftExchange_Mailbox_InternalDisplayName" Expression="C#:item:return item.Name;" EntityType="MicrosoftExchange_Mailbox" Property="InternalDisplayName" />...

This example adds the InternalDisplayName to the MicrosoftExchange_Mailbox entity type to be used by the UI.

Permissions

This step focuses on setting up permissions for Identity Manager's end-users granting them access to the connector.

The Access Control Rule and Access Control Entry elements define AccessControlPermission for end-user profiles to read and write the connector's data (such as resources of a given entity type). It is used by the UI when displaying data such as resources and available roles.

It is strongly recommended that permissions be written to a new file. For example, the administrator profile permissions can be written to the MicrosoftExchange Profile Administrator.xml file.

Example

Conf/MicrosoftExchange/MicrosoftExchange Profile Administrator.xml
...
<ViewAccessControlRules Profile="Administrator" EntityType="MicrosoftExchange_Database"/><ViewAccessControlRules Profile="Administrator" EntityType="MicrosoftExchange_Mailbox"/>...

This example sets permissions for the Administrator profile.

It entitles an administrator to display Microsoft Exchange resources (mailboxes and databases) and role categories from the UI.

Jobs

Construction

This step focuses on writing a Complete Synchronization Job.

Netwrix Identity Manager (formerly Usercube) recommends writing Jobs associated with the MicrosoftExchange connector to the Conf/MicrosoftExchange/MicrosoftExchange Jobs.xml file.

Example

Conf/MicrosoftExchange/MicrosoftExchange Jobs.xml
...
<CreateConnectorSynchroComplete Connector="MicrosoftExchange" DisplayName_L1="01: Microsoft Exchange - Synchronization Complete (scaffolding)" JobIdentifier="MicrosoftExchange_Synchronize_Complete_Scaffolding">  <OpenIdIdentifier Identifier="Job"/>  <NoSynchronization/></CreateConnectorSynchroComplete>...

This job will be executed on Microsoft Exchange's connector agent.

Notice the Identifier attribute with the value Job in the OpenIdIdentifier tag. It refers to the ClientId written to the appsettings.agent technical configuration. The Tasks will authenticate with the profile associated with this ClientId in the <OpenIdClient> xml configuration element.

There is also the tag <NoSynchronization/> which means that the export will not be executed. Removing the tag will launch export-related tasks before fulfillment-related tasks. Export tasks need the same XML configuration and additional settings in Fulfill Microsoft Exchange via PowerShell .

All the job steps generated by the scaffolding can be found in the Create Connector Synchro Complete scaffolding.

Check Create Connector Synchro Incremental for incremental synchronization.

Permissions

The execution of a Job entails the execution of Tasks, reading/writing to the Database and sending files over to the Server. These operations are protected by an authorization mechanism.

A Profile is required and must have the proper permissions for the associated Job or Task to perform.

Here, jobs use the default OpenId.

Job Launch

Scheduling the job execution can rely either on Identity Manager's scheduler or an external scheduler.

With Scheduler

Use the Job Cron Tab Expression attribute.

With an external scheduler

An external scheduler would rely on the Usercube-Invoke-Job tool.

Validation

Deploy Configuration

The configuration is written to the database using the Deploy Configuration Task tool.

Test

ADMicrosoftExchange Prerequisites

An Active Directory configuration is required for Microsoft Exchange to work. Fill the AD Microsoft Exchange Export Fulfillment settings in accordance with the configuration.

To reset the password, if AuthType is Basic, then EnableSSL must be true.
Otherwise, if AuthType is Kerberos, then EnableSSL is not required.

Mailbox Creation

To create a new mailbox, apply the following procedure:

Select a user and validate both resource types ADMicrosoftExchange_Entry_NominativeUser and MicrosoftExchange_Mailbox_NominativeUser.
In the Provisioning Review, confirm both resource types.
First, launch the job AD Microsoft Exchange Synchronization.
Then, launch the job Microsoft Exchange Synchronization.

In fact, an ADMicrosoftExchange_Entry is required to create a mailbox. To update or delete an existing mailbox, the Active Directory part can be skipped.

Interface display

The Synchronization job should be found in the UI, under the Job Execution menu, with the name input in the Job's DisplayName_Li attribute.

Microsoft Exchange Jobs

From there, the Synchronization job can be launched and debugged (if needed).

After execution, Microsoft Exchange resources and databases should be in the UR_Resources table of the SQL Server database.

The results can also be viewed on the UI:

Microsoft Exchange Menu Items

Microsoft Exchange Display Entity Type

Microsoft Exchange Display Table

Write a PowerShell Script for Provisioning

This guide shows how to write a PowerShell script used by the PowerShellProv connector.

Structure of a PowerShell Script

The goal of the script is to append, for each provisioning order, a line in a CSV file.

Let's consider the following ResourceType:

...
<ResourceType Identifier="PowerShellCsv_User_NominativeUser" DisplayName_L1="PowerShell CSV User (nominative)" DisplayName_L2="Utilisateur PowerShell CSV (nominatif)" Policy="Default" TargetEntityType="PowerShellCsv_User" Category="PowerShellCsv" SourceEntityType="Directory_User" RemoveOrphans="true" AllowAdd="true" AllowRemove="true">  <ScalarRule Property="identifier" Binding="EmployeeId"/>  <ScalarRule Property="firstName" Binding="FirstName"/>  <ScalarRule Property="lastName" Binding="LastName"/></ResourceType>...

The end of the CSV file must look like:

command;identifier;firstName;lastName
...
insert;007;James;Bond
...

Define the common part of every script

The goal of the common part is to get all required variables needed by the script.

Two parameters are required at the top of the script:

param(
  [Parameter(Mandatory = $true)][string]$resultsFilePath,
  [Parameter(Mandatory = $true)][string]$ordersPath
)

resultsFilePath is the agent-side path of the result file containing the summary of the executed and errored orders.
ordersPath is the agent-side folder path containing the JSON provisioning orders.

It is important for these settings to be defined at the top of the script and keep these names because they are filled by the Fulfill-PowerShell connector.

The Fulfill-CSV.ps1 script must be placed in the script folder of Identity Manager containing the Environment.ps1 script. Thanks to this, environment variables (such as $runtimePath) are loaded and can be used in the script:

. (Join-Path -Path $PSScriptRoot -ChildPath "Environment.ps1")
. (Join-Path -Path $runtimePath -ChildPath "Usercube-Visit-Orders.ps1")

Define the specific function

A function which is called for each provisioning order must be defined.

Define the header

The header is always the same. Only the name of the function can change:

function Fulfill-CSV {
  param ([parameter(Mandatory = $true)] $order)

The previous parameter $order is an object corresponding to the following provisioning order (JSON):

{
    "ProvisioningOrdersList": [
        {
            "AssignedResourceTypeId": "3930001",
            "ChangeType": "Added",
            "WorkflowInstanceId": "81",
            "Owner": {
                "Id": "21511",
                "InternalDisplayName": "007 - Bond James",
                "Identifier": "007",
                "EmployeeId": "007",
                "PhotoTag": -3065,
                "MainFirstName": "James",
                "MainLastName": "Bond",
                ...
            },
            "ResourceType": {
                "Id": "-41",
                "SourceEntityType": {
                    "Id": "51",
                    "Identifier": "Directory_User"
                },
                "TargetEntityType": {
                    "Id": "70",
                    "Identifier": "PowerShellCsv_User"
                },
                "Identifier": "PowerShellCsv_User_NominativeUser"
            },
            "Changes": {
                "identifier": "007",
                "firstName": "James",
                "lastName": "Bond"
            }
        }
    ]
}

There can be more sections and attributes.

Define mandatory parameters

The ChangeType parameter (Added, Deleted or Modified) is always mandatory and must be checked.

Depending on the function requirements, other parameters should be checked. For example, the function below always needs an identifier to work properly, therefore you should check its presence.

  $changeType = $order.ChangeType
  # if the change type is not recognized, we throw an error
  if ($changeType -ne 'Added' -and $changeType -ne 'Deleted' -and $changeType -ne 'Modified') {
    $artId = $order.AssignedResourceTypeId
    throw "Order ChangeType: $changeType not recognized in AssignedResourceTypeId: '$artId'"
  }

  # if the section is Changes, we want to create/update the identifier
  $identifier = $order.Changes.identifier
  if(!$identifier){
    # if the section is Resources, we want to keep the same identifier
    $identifier = $order.Resource.identifier
    if(!$identifier){
      throw "identifier is the primary key and must not be null."
    }
  }

Define order processing

This is the last part of the function:

Parameters from the provisioning order are stored in variables.
A specific treatment is applied if ChangeType is Added, Deleted or Modified.

  # firstName and lastName are the two other properties of the ResourceType
  $firstName = $order.Changes.firstName
  $lastName = $order.Changes.lastName

  # change type defines what is written in the 'command' column
  if ($changeType -eq 'Added') {
    $command = "Insert"
  }
  elseif ($changeType -eq 'Deleted') {
    $command = "Delete"
  }
  elseif ($changeType -eq 'Modified') {
    $command = "Update"
  }

  # CSV columns are command, identifier, firstName and lastName
  $script:powershellResults += New-Object -TypeName psobject -Property @{Command = "$command"; identifier = "$identifier"; firstName = "$firstName"; lastName = "$lastName" }
}

Define how to send logs to Identity Manager

The three methods to log in Identity Manager are:

Write-Host: writes Information in the log.
Throw: raises an exception (which stops the script), and writes the Error in the log (the provisioning order will be errored too).
Write-Error: writes Error in the log (the provisioning order will be errored too). It is not recommended because the script continues its execution.

Now that the function has been defined, the main code of the script can be written.

Write the main code of the script

Read the options parameter from the standard input

The options parameter isn't mandatory in the JSON file. If it isn't provided, don't perform this step.

# Just to show how to read the options in the script
$options = [System.Console]::ReadLine()
$options = ConvertFrom-Json $options
$options.Message # -> Hello

Rest of the main script

In general, this part contains the code to connect to the external system and executes the Usercube-Visit-Orders script.

# The goal of the script is to write the users in the following CSV file
$powershellResultFilePath = Join-Path -Path "$demoPath" -ChildPath "Temp/ExportOutput/powershellcsv_users.csv"

# powershellResults has a larger scope and is used in the last line of the Fulfill-CSV function
$powershellResults = @()

# Usercube-Visit-Orders is provided by Usercube, it must not be modified
# It loops on the provisioning orders and calls Fulfill-CSV on each of them
Usercube-Visit-Orders $resultsFilePath $ordersPath Fulfill-CSV

# We write the results in $powershellResultFilePath
if ($powershellResults.Length -gt 0){
  $powershellResults | ConvertTo-Csv -Delimiter ";" -NoTypeInformation | & (Join-Path -Path "$runtimePath" -ChildPath "Usercube-Encrypt-File.exe") -o $powershellResultFilePath
}

Never modify Usercube-Visit-Orders.ps1.

Synthesis

Skeleton

To sum up the previous part, the script can be written as follows:

# Common part

# Specific function
  # Header of the function
  # Check mandatory parameters
  # Order processing (treatment for Added, Deleted or Modified)

# Main script
  # Read standard input (Optional)
  # Rest of the main script (Connection, Usercube-Visit-Order...)

Full script

The full script is as follows:

# Common part

param(
  [Parameter(Mandatory = $true)][string]$resultsFilePath,
  [Parameter(Mandatory = $true)][string]$ordersPath
)

. (Join-Path -Path $PSScriptRoot -ChildPath "Environment.ps1")
. (Join-Path -Path $runtimePath -ChildPath "Usercube-Visit-Orders.ps1")

# Specific function

function Fulfill-CSV {
  param ([parameter(Mandatory = $true)] $order)

  $changeType = $order.ChangeType
  # if the change type is not recognized, we throw an error
  if ($changeType -ne 'Added' -and $changeType -ne 'Deleted' -and $changeType -ne 'Modified') {
    $artId = $order.AssignedResourceTypeId
    throw "Order ChangeType: $changeType not recognized in AssignedResourceTypeId: '$artId'"
  }

  # if the section is Changes, we want to create/update the identifier
  $identifier = $order.Changes.identifier
  if(!$identifier){
    # if the section is Resources, we want to keep the same identifier
    $identifier = $order.Resource.identifier
    if(!$identifier){
      throw "identifier is the primary key and must not be null."
    }
  }

  # firstName and lastName are the two other properties of the ResourceType
  $firstName = $order.Changes.firstName
  $lastName = $order.Changes.lastName

  # change type defines what is written in the 'command' column
  if ($changeType -eq 'Added') {
    $command = "Insert"
  }
  elseif ($changeType -eq 'Deleted') {
    $command = "Delete"
  }
  elseif ($changeType -eq 'Modified') {
    $command = "Update"
  }

  # CSV columns are command, identifier, firstName and lastName
  $script:powershellResults += New-Object -TypeName psobject -Property @{Command = "$command"; identifier = "$identifier"; firstName = "$firstName"; lastName = "$lastName" }
}

# Main script

# Just to show how to read the options in the script
$options = [System.Console]::ReadLine()
$options = ConvertFrom-Json $options
$options.Message # -> Hello

# The goal of the script is to write the users in the following CSV file
$powershellResultFilePath = Join-Path -Path "$demoPath" -ChildPath "Temp/ExportOutput/powershellcsv_users.csv"

# powershellResults has a larger scope and is used in the last line of the Fulfill-CSV function
$powershellResults = @()

# Usercube-Visit-Orders is provided by Usercube, it must not be modified
# It loops on the provisioning orders and calls Fulfill-CSV on each of them
Usercube-Visit-Orders $resultsFilePath $ordersPath Fulfill-CSV

# We write the results in $powershellResultFilePath
if ($powershellResults.Length -gt 0){
  $powershellResults | ConvertTo-Csv -Delimiter ";" -NoTypeInformation | & (Join-Path -Path "$runtimePath" -ChildPath "Usercube-Encrypt-File.exe") -o $powershellResultFilePath
}

Prerequisites​

External System Configuration​

Identity Manager Configuration​

Add Sections​

Build the Connector​

Declare a Connector​

Write Entity Types​

Example​

Write the Entity Type Mapping​

Example​

Write Entity Associations​

Example​

Write the Entity Association Mapping​

Example​

Build the Role Model​

Resource Type​

Example​

Resource Type Mapping​

Example​

Resource Correlation Rule​

Example​

Single Role (optional)​

Example​

Display​

Navigation​

Example​

Configuration​

All-in-One Scaffolding​

Example​

Display Entity Type​

Example​

Display Table​

Example​

Internal Display Name​

Example​

Permissions​

Example​

Jobs​

Construction​

Example​

Permissions​

Job Launch​

With Scheduler​

With an external scheduler​

Validation​

Deploy Configuration​

Test​

ADMicrosoftExchange Prerequisites​

Mailbox Creation​

Interface display​

Write a PowerShell Script for Provisioning

Structure of a PowerShell Script​

Define the common part of every script​

Define the specific function​

Define the header​

Define mandatory parameters​

Define order processing​

Write the main code of the script​

Synthesis​

Skeleton​

Full script​

Prerequisites

External System Configuration

Identity Manager Configuration

Add Sections

Build the Connector

Declare a Connector

Write Entity Types

Example

Write the Entity Type Mapping

Example

Write Entity Associations

Example

Write the Entity Association Mapping

Example

Build the Role Model

Resource Type

Example

Resource Type Mapping

Example

Resource Correlation Rule

Example

Single Role (optional)

Example

Display

Navigation

Example

Configuration

All-in-One Scaffolding

Example

Display Entity Type

Example

Display Table

Example

Internal Display Name

Example

Permissions

Example

Jobs

Construction

Example

Permissions

Job Launch

With Scheduler

With an external scheduler

Validation

Deploy Configuration

Test

ADMicrosoftExchange Prerequisites

Mailbox Creation

Interface display

Structure of a PowerShell Script

Define the common part of every script

Define the specific function

Define the header

Define mandatory parameters

Define order processing

Write the main code of the script

Synthesis

Skeleton

Full script
