Sql

This connector exports data from one of various Database Management Systems.

This page is about:

• Database/ Generic SQL ;
• Database/ SQL Server ;
• Database/ MySQL ;
• Database/ ODBC ;
• Database Oracle Database ;
• Database/ PostgreSQL ;
• SAP ASE .

Overview

A database is a collection of relational data which represents some aspects of the real world. A database system is designed to be built and populated with data for a specific task.

A Database Management System (DBMS) is a software for storing and retrieving users' data while considering appropriate security measures.

Some popular DBMS systems are Microsoft SQL Server, MySQL, Oracle, PostgreSQL, etc.

The goal of this connector is to connect to a DBMS and execute a query in order to export a table.

Prerequisites

Implementing this connector requires:

• the configuration of a DBMS system;

  For example for Microsoft SQL Server 2017, see Microsoft's documentation for planning a SQL Server installation, the SQL Server installation guide and (optionally) downloading SQL Server Management Studio (SSMS).

• creating a database MyDb with several tables and data so the user can query on the database, for testing purposes.

Export

This connector exports the content of any table from an SQL database and writes it to a CSV file.

Configuration

This process is configured through a Connection in the UI and/or the XML configuration, and in the appsettings.agent.json > Connections section:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "<ConnectionIdentifier>": {
      ...
    }
  }
}

The identifier of the connection and thus the name of the subsection must:

• be unique.
• not begin with a digit.
• not contain <, >, :, ", /, \, |, ?, * and _.

The following example configures the connection to Microsoft SQL Server and exports the table UC_Connectors from the database MyDb:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SqlExport": {
      "ConnectionString" : "data source=.;Database=MyDb;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;",
      "SqlCommand": "SELECT * FROM [MyDb].[dbo].[UC_Connectors]"
    }
  }
}

Setting attributes

Name	Details
ConnectionString required	Type String Description Connection string of the database. See the specific syntax.
Timeout optional	Type Int32 Description Time period (in seconds) after which the request attempt is terminated and an error is generated.
---	---
SqlCommand optional	Type String Description SQL request to be executed. Note: when not specified and SqlFile neither, then all the Entity Type Mapping of this connector will be exported.
SqlFile optional	Type String Description Path of the file containing the SQL request to be executed. Note: ignored when SqlCommand is specified. Note: when not specified and SqlFile neither, then all the Entity Type Mapping of this connector will be exported.
CsvEncoding default value: UTF-8	Type String Description Encoding of the file. See the list of available encodings.
ProviderClassFullName optional	Type String Description Invariant name to register the provider. Note: required when querying a DBMS other than Microsoft SQL Server.
ProviderDllName optional	Type String Description DLL, i.e. name and extension, to be loaded by the connector. Note: the DLL must be in the Runtime folder. Note: required when querying a DBMS other than Microsoft SQL Server.
IsolationLevel default value: ReadUncommitted	Type String Description Locking behavior of the transaction: ReadUncommitted; ReadCommitted - used for the databases that do not support the ReadUncommitted level, like Oracle databases.

Connect to other DBMS

Connect to a DBMS other than Microsoft SQL Server by proceeding as follows:

1. Download and extract the package.

   For MySQL, download the package from MySql.Data.



2. Copy the DLL file (corresponding to the correct .Net version) to the Runtime folder.

   For MySQL, the DLL is MySql.Data.dll.

3. Get the value required for ProviderClassFullName and ProviderDllName:

   • for a DBMS handled by Identity Manager's packages, by accessing the References: Packages ;

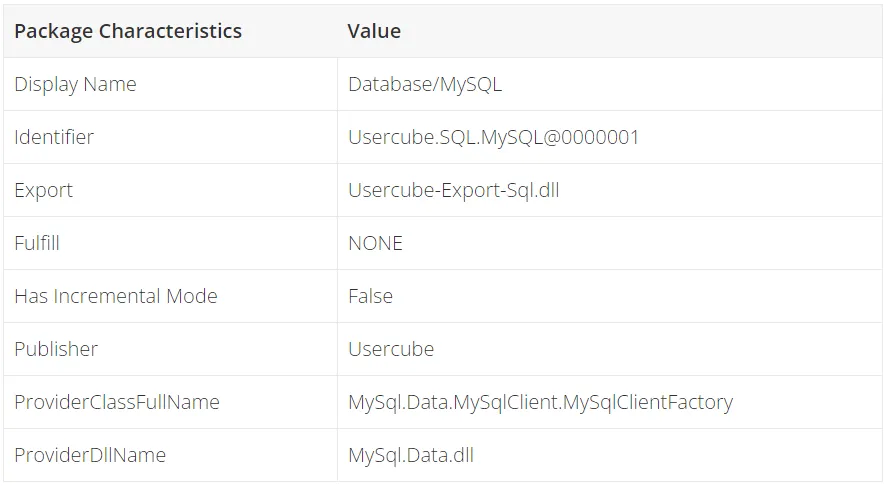

     For MySQL:



   • for another DBMS, by accessing the DBMS' documentation for .Net and finding a class with Factory in its name.

     If MySQL were not part of Identity Manager's packages, you would see MySqlClientFactory.

     The Factory class must derive from DbProviderFactory. After verification, the ProviderClassFullName can be found in the Inheritance Hierarchy of the class.

     For MySQL, here ProviderDllName is MySql.Data.dll and ProviderClassFullName is MySql.Data.MySqlClient.MySqlClientFactory.

     Then the following example configures the connection to MySQL and exports the table UC_Connectors from the database MyDb (the SQL command is inside mySql.sql):

     appsettings.agent.json
     {
       ...
       "Connections": {
         ...
         "SqlExport": {
           "ConnectionString" : "Server=localhost;Database=MyDb;Uid=root;Pwd=secret",
           "SqlFile": "C:/identitymanagerDemo/Conf/Sql/mySql.sql",
           "ProviderClassFullName": "MySql.Data.MySqlClient.MySqlClientFactory",
           "ProviderDllName": "MySql.Data.dll"
         }
       }
     }

     Another example for ODBC:

     appsettings.agent.json
     {
       ...
       "Connections": {
         ...
         "SqlExport": {
           "ConnectionString": "Driver=ODBC Driver 17 for SQL Server;Server={YOUR-PC}\\SQLEXPRESS;Database={Database Name};Hostname=Localhost;DBALIAS={Database Alias};trusted_connection=Yes",
           "ProviderClassFullName": "System.Data.Odbc.OdbcFactory",
           "ProviderDllName": "System.Data.Odbc.dll",
           "SqlCommand": "SELECT * FROM {Table Name}",
           "IsolationLevel": null
         }
       }
     }

Output details

This connector is meant to generate to the Application SettingsExport Output folder one CSV file, named <connectionIdentifier>.csv whose columns correspond to the columns returned by the SQL query.

Fulfill

There are no fulfill capabilities for this connector.

Authentication

Password reset

This connector does not reset passwords.

Credential protection

Data protection can be ensured through:

• Connection , configured in the appsettings.encrypted.agent.json file;
• An Connection safe;

Attribute	Naming Convention for the Key in Azure Key Vault
ConnectionString	Connections--<identifier>--ConnectionString
SqlCommand	Connections--<identifier>--SqlCommand
SqlFile	Connections--<identifier>--SqlFile
CsvEncoding	Connections--<identifier>--CsvEncoding
ProviderClassFullName	Connections--<identifier>--ProviderClassFullName
ProviderDllName	Connections--<identifier>--ProviderDllName
Timeout	Connections--<identifier>--Timeout

Connection is not available for this connector.
