Add Change Aspect

Modifies a given property value.

Examples

The following example computes a new value for the property IsDraft from the Directory_User entity type. The new value is always true. The pointcuts define when the value change must happen.

<AddChangeAspect Identifier="Directory_UserRecord_AddChange_IsDraft" Binding="Workflow_Directory_User:Directory_User.IsDraft" ExpressionBinding="Workflow_Directory_User:Directory_User" Expression="C#:record:return true;">
    <PointCut Activity="Directory_User_NewInternal:PersistDraft" ActivityState="PersistOnlyResources-Invoked" Mode="Before" TemplateTransformation="NewInternalWorkflowIsReviewRequired" />    <PointCut Activity="Directory_User_NewExternal:PersistDraft" ActivityState="PersistOnlyResources-Invoked" Mode="Before" TemplateTransformation="NewExternalWorkflowIsReviewRequired" /></AddChangeAspect>

Accept Null Value

The following example computes a new value for the Card property in users' records, considering null as a value. Instead of being ignored, a null value returned by Expression will replace the old value.

<AddChangeAspect Identifier="AddChangeAspect_Self_PersonRecord_Card" Binding="Workflow_Person:Person.PersonRecords.Card" AcceptNullValueExpression="C#:record:return true;" ExpressionBinding="Workflow_Person:Person.PersonRecords" Expression="C#:record:
        if(!string.IsNullOrEmpty(record.Card))
        {
            return record.Card;
        }
        return null;" >    <PointCut Activity="Self_DataUpdate:Request" ActivityState="Action-Executed" Mode="After" /></AddChangeAspect>

Properties

Property	Details
Binding required	Type String Description Binding whose difference with ExpressionBinding defines the property to be changed.
Identifier required	Type String Description Unique identifier of the aspect.
AcceptNullValueExpression optional	Type String Description C# expression returning a boolean, true to consider null for the new value returned by Expression. By default, null values are ignored.
Expression optional	Type String Description C# expression returning a new value for the property to be changed. Note: this property can also be defined by a binding via ExpressionBinding.
ExpressionBinding optional	Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
IfExpression optional	Type String Description Expression that conditions the aspect execution. See the Expressions topic for additional information.
Priority default value: 0	Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value.

Child Element: PointCut

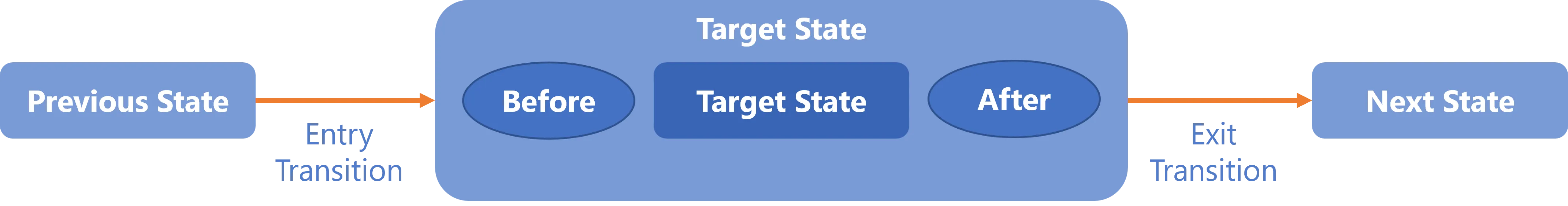

A pointcut is a mechanism telling Identity Manager when to execute the linked Aspects.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Details
Activity required	Type Int64 Description Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Type Enumeration Description Identifier of the activity state that triggers the aspect.
Mode default value: 0	Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Assert Value Aspect

Checks whether the value of a given property satisfies a given condition.

Examples

The following example makes sure that, when creating a new employee, the contract end date is after the contract start date. The pointcuts define when the value assertion must happen.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AssertValueAspect Identifier="Directory_User_NewInternal_CheckDates" Binding="Workflow_Directory_User:Directory_User.Records.ContractEndDate" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Expression="C#:record: return ( ((Nullable&lt;DateTime&gt;) record.ContractStartDate).HasValue && ((Nullable&lt;DateTime&gt;) record.ContractEndDate).HasValue) ?  record.ContractStartDate &lt; record.ContractEndDate : true;" Message_L1="Contract's end date must be after contract's start date.">    <PointCut Activity="Directory_User_NewInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="Before" />    <PointCut Activity="Directory_User_NewInternal:Review" ActivityState="ReviewWithFeedback-Approved" Mode="Before" /></AssertValueAspect>

Assert a multi-valued object

When asserting a multi-valued object, said object must not be called through a binding that goes back and forth between entities.

For example, to manage records, using the ExpressionBinding set to Workflow_Directory_User:Directory_User. Records and the Expression using C#:record:return record.Directory_User.Records... will not work.

Instead, the ExpressionBinding should be set to Workflow_Directory_User:Directory_User and the Expression should use C#:user:return user.Records.

The following example makes sure that a user's positions do not overlap.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AssertValueAspect Identifier="RecordsOverlapCheck" Binding="Workflow_Directory_User:Directory_User.Records.Organization" ExpressionBinding="Workflow_Directory_User:Directory_User" Expression="C#:user:for (int i = 0; i &lt; user.Records.Count; i++)
{
    for (int j = 0; j &lt; user.Records.Count &amp;&amp; i != j ; j++)
    {
        if (user.Records[i].StartDate != default
            &amp;&amp; user.Records[j].StartDate != default)
        {
            if ((user.Records[i].EndDate == null) &amp;&amp; (user.Records[j].EndDate == null))
              || ((user.Records[i].EndDate == null) &amp;&amp; (user.Records[j].EndDate != null) &amp;&amp; (user.Records[j].EndDate &gt; user.Records[i].StartDate))
              || ((user.Records[j].EndDate == null) &amp;&amp; (user.Records[i].EndDate != null) &amp;&amp; (user.Records[i].EndDate &gt;= user.Records[j].StartDate))
              || ((user.Records[i].EndDate != null) &amp;&amp; (user.Records[j].EndDate != null) &amp;&amp; (user.Records[i].StartDate &lt;= user.Records[j].EndDate) &amp;&amp; (user.Records[i].EndDate &gt;= user.Records[j].StartDate))
            {
                return false;
            }
        }
    }
}
return true;" Message_L1="A user cannot have more than one position simultaneously.">    <PointCut Activity=... ></AssertValueAspect>

Properties

Property	Type	Description
Binding required	String	Binding whose difference with ExpressionBinding defines the property to be validated by the aspect.
Identifier required	String	Unique identifier of the aspect.
Expression optional	String	C# expression returning a boolean, false to invalidate the property value.
ExpressionBinding optional	String	Binding: - Defines the variable type used in the potential expressions specified in the aspect; - Whose difference with Binding defines the property involved in the aspect NOTE: Required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
IfExpression optional	String	Expression that conditions the aspect execution. See the Expressions topic for additional information.
Message_L1 optional	String	Message in language 1 (up to 16) to be displayed when the property is invalidated by the condition specified in Expression.
Priority default value: 0	Int32	Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. NOTE: The priority can be a negative value.

Child Element: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked aspect. See the Aspects topic for additional information.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Type	Description
Activity required	Int64	Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Enumeration	Identifier of the activity state that triggers the aspect.
Mode default value: 0	PointCutMode	Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before — the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After — the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Assert Value Required Aspect

Checks whether a given property has a non-null value.

Examples

The following example makes sure that the contract start date is specified for any new worker. The pointcuts define when the value assertion must happen.

<AssertValueRequiredAspect Identifier="Directory_UserRecord_ValueRequired_ContractStartDate" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Binding="Workflow_Directory_User:Directory_User.Records.ContractStartDate" Message_L1="The contract start date is required">
    <PointCut Activity="Directory_User_NewInternal:Request" ActivityState="ActionWithRefine-Executed" />    <PointCut Activity="Directory_User_NewInternal:Review" ActivityState="ReviewWithFeedback-Approved" TemplateTransformation="NewInternalWorkflowIsReviewRequired" />    <PointCut Activity="Directory_User_NewExternal:Request" ActivityState="ActionWithRefine-Executed" />    <PointCut Activity="Directory_User_NewExternal:Review" ActivityState="ReviewWithFeedback-Approved" TemplateTransformation="NewExternalWorkflowIsReviewRequired" />  </AssertValueRequiredAspect>

Properties

Property	Details
Binding required	Type String Description Binding whose difference with ExpressionBinding defines the property to be validated by the aspect.
Identifier required	Type String Description Unique identifier of the aspect.
ExpressionBinding optional	Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
IfExpression optional	Type String Description Expression that conditions the aspect execution. See the Expressions topic for additional information.
Message_L1 optional	Type String Description Message in language 1 (up to 16) to be displayed when the property is empty.
Priority default value: 0	Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value.

Child Element: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked Aspects.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Details
Activity required	Type Int64 Description Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Type Enumeration Description Identifier of the activity state that triggers the aspect.
Mode default value: 0	Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Build Unique Value Aspect

Computes a unique value for a given property.

Examples

The following example generates bots' logins during their creation.

<BuildUniqueValueAspect Identifier="Directory_Bot_UniqueValue_Login" Binding="Workflow_Directory_Bot:Directory_Bot.Login" ExpressionBinding="Workflow_Directory_Bot:Directory_Bot" Expression="C#:wkf:return 'B' + string.Format(&quot;{0:D5}&quot;, new Random().Next(99000, 99999));" SqlCheckExpression="SELECT TOP 1 login FROM zz_directory_bot WHERE login=@VALUE" Priority="10" IterationsCount="10" SimulationExpression="C#:wkf:return &quot;99999&quot;;">
    <PointCut Activity="Directory_Bot_Create:Request" ActivityState="Action-Executed" Mode="After" /></BuildUniqueValueAspect>

Properties

Property	Details
Binding required	Type String Description Binding whose difference with ExpressionBinding defines the property to be computed.
Identifier required	Type String Description Unique identifier of the aspect.
Expression optional	Type String Description C# expression that computes the unique value. Note: the computation can be configured in SQL instead of C# via SqlBuildExpression. Decide whether to use either Expression or SqlBuildExpression, not both.
ExpressionBinding optional	Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
HistorizeBinding optional	Type String Description Binding that stores all the old values computed by the aspect.
HistorizeSeparator default value: �	Type String Description Defines the character used as a separator in the HistorizeBinding property.
IfExpression optional	Type String Description Expression that conditions the aspect execution. See the Expressions topic for additional information.
IterationsCount default value: 0	Type String Description Maximum number of computation attempts without finding a unique value. Note: a variable named iteration is available to use the attempt number in the expressions of the aspect and/or of the potential unicity check rules, for example to help manage homonyms. Hence, a custom variable cannot be declared with the name iteration.
Message_L1 default value:	Type String Description Message in language 1 (up to 16) to be displayed when the value generation failed, i.e. when IterationsCount is exceeded.
OnlyIfNew default value: false	Type String Description true to trigger the aspect only for the creation of new resources.
Priority default value: 0	Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value.
SimulationExpression optional	Type String Description Expression used instead of the Expression parameter when previewing the workflow result before its implementation.
SqlBuildExpression optional	Type String Description SQL command that computes the unique value. Note: the computation can be configured in C# instead of SQL via Expression. Decide whether to use either SqlBuildExpression or Expression, not both.
SqlCheckExpression optional	Type String Description SQL request that checks whether the value computed with the binding/expression is unique, i.e. not yet used by another resource.Note: required if zero unicity check rules are linked to the aspect.Warning: the SQL request must be efficient because a potential timeout may block the progress of the workflow. For example, when the database's state and indexes are not well known, prefer to use views rather than the whole tables, because views store way fewer elements than tables, which makes them faster to use in a request.

Child Element: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked Aspects.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Details
Activity required	Type Int64 Description Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Type Enumeration Description Identifier of the activity state that triggers the aspect.
Mode default value: 0	Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Child Element: UnicityCheckRule

A unicity check rule ensures that the expression computed by a BuildUniqueValueaspect for a given property is unique, i.e. not yet used by another resource, in a given entity type.

The comparison performed by these rules to check unicity can be configured in SQL instead of C# via the [SqlCheckExpression](() property of the aspect.

The value of the source binding/expression is computed based on the properties of the source resource which is the resource whose property we compute via the BuildUniqueValue aspect.

The rule compares the return value of the source binding/expression with the existing values of the target binding/expression in the target entity type.

For example, we need to generate an email address for any new user joining the company. We configure in a BuildUniqueValue aspect that users' emails are computed with {firstName}.{lastName}@{EmailDomain}.

Consider a new user called John Doe. We need to link to the aspect a unicity check rule that is going to compare the email core john.doe with the email cores of existing resources in a given entity type. Thus Identity Manager can ensure that the email core is unique, and finally build the unique email address.

Both source and target bindings/expressions must be consistent with the binding/expression used in the corresponding aspect which must not use a SqlCheckExpression.

One BuildUniqueValue aspect can be linked to many unicity check rules, but should not be linked to more than one rule per target entity type.

The unicity check rules linked to a same aspect are combined with the AND operator. It means that the aspect's iteration goes up when at least one of the rules detects non-unicity.

When creating or updating a unicity check rule, launch the Compute Correlation Keys Task before applying the role model and launching workflows.

For information: Identity Manager needs to store the correlation keys linked to the expressions defined in the unicity check rule, such as the return value, the entity type, etc. That's why the task mentioned above must be launched before launching any workflow using a unicity check rule.

Examples

Basic example

The following example checks the unicity of the login of a new user.

In order to be able to write the source and target bindings/expressions of the unicity check rule, you must understand the binding/expression of the corresponding BuildUniqueValue aspect:

<BuildUniqueValueAspect Identifier="Directory_UserRecord_UniqueValue_Login" Binding="Workflow_Directory_User:Directory_User.Records.Login" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Expression="C#:record:return (record.UserType?.LoginPrefix ?? &quot;U&quot;) + record.UserIdentifier;" IterationsCount="10" Priority="70" >  <PointCut ... /></ BuildUniqueValueAspect >

We want to check the unicity of the new user's login, compared with the logins of existing users:

<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_UserRecord" TargetBinding="Login" />

Here the source binding and expression are those from the aspect.

Multiple unicity checks

With the same aspect as the previous example, we might want to compare the login of the new user with the list of reserved logins too:

<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_UserRecord" TargetBinding="Login" /><UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_ReservedLogin" TargetBinding="Value" />

Sophisticated example

The following example checks the unicity of the email address of a new user.

In order to be able to write the source and target bindings/expressions of the unicity check rule, you must understand the binding/expression of the corresponding BuildUniqueValue aspect:

<BuildUniqueValueAspect Identifier="Directory_UserRecord_UniqueValue_Email" Binding="Workflow_Directory_User:Directory_User.Records.Email" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Priority="80"

// We want an email address such as {firstName}.{lastName}@{EmailDomain}.

Expression="C#:record:var firstName = record.FirstName.Simplify()?.ToLowerInvariant();
var lastName = record.LastName.Simplify()?.ToLowerInvariant();
if (string.IsNullOrEmpty(firstName) || string.IsNullOrEmpty(lastName))
{
  // Missing data
  return null;
}

var result = firstName + &quot;.&quot; + lastName;

// If the email core, i.e. {firstName}.{lastName}, is already used, then we try with {firstName}.{lastName}2, etc.
if (iteration &gt; 0)
{
  result += iteration.ToString();
}

result = result + '@' + record.Subsidiary?.EmailDomain;
return result;" IterationsCount="10" />

We want to include in the unicity check only the email's core firstName.lastName without the @EmailDomain part. This is why the source expression starts like the aspect's expression but does not add the domain part, and the target expression removes the domain part from existing values:

<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Email"

    SourceBinding="Workflow_Directory_User:Directory_User.Records"

    // The source expression is similar to the one from the aspect, but we check the unicity of the email core only, not the whole email address.

    SourceExpression="C#:record:var firstName = record.FirstName.Simplify()?.ToLowerInvariant();
var lastName = record.LastName.Simplify()?.ToLowerInvariant();
if (string.IsNullOrEmpty(firstName) || string.IsNullOrEmpty(lastName))
{
    // Missing data
    return null;
}

var result = firstName + &quot;.&quot; + lastName;
if (iteration &gt; 0)
{
    result += iteration.ToString();
}

return result;"

    TargetEntityType="Directory_UserRecord"
    TargetExpression="C#:record:
if(string.IsNullOrEmpty(record.Email))
{
    return null;
}

var result = record.Email;

// Delete the domain to keep only the email core
var index = result.IndexOf('@');
if(index &gt;= 0)
{
    result = result.Substring(0, index);
}
return result;" />

Property	Details
SourceBinding optional	Type Int64 Description Binding property (from the source entity type specified in the corresponding workflow) whose value is to be compared with the existing values of the target binding/expression. Note: when not specified, the unicity check rule uses the binding from the aspect.
SourceExpression optional	Type String Description Binding expression (based on properties from the source entity type specified in the corresponding workflow) whose value is to be compared with the existing values of the target binding/expression. See the Expressions topic for additional information. Note: when not specified, the unicity check rule uses the expression from the aspect.
TargetBinding optional	Type Int64 Description Binding property (from the target entity type) whose values corresponding to existing resources are to be compared with the value of the source binding/expression.
TargetEntityType required	Type Int64 Description Identifier of the entity type for which the rule checks the property's unicity.
TargetExpression optional	Type String Description Binding expression (based on properties from the target entity type) whose values corresponding to existing resources are to be compared with the value of the source binding/expression. See the Expressions topic for additional information.

Aspects

An aspect is a modularization of a concern that cuts across multiple work flows. Identity Manager uses aspects to perform some specific actions at given workflow steps.

For example, an aspect can assert a given user's input is valid.

• Add Change Aspect

  Modifies a given property value.

• Assert Value Aspect

  Checks whether the value of a given property satisfies a given condition.

• Assert Value Required Aspect

  Checks whether a given property has a non-null value.

• Build Unique Value Aspect

  Computes a unique value for a given property.

• Invoke Script Aspect

  Executes a customized script.

• Invoke Workflow Aspect

  Launches a workflow.

• Notification Aspect

  Sends a notification email to one or several users.

Invoke Script Aspect

Runs a tailored script asynchronously, independent of the workflow event, necessitating the creation and execution of a job using an InvokeAspectsTask task.

Examples

The following example executes the script aspect.ps1 on the local agent, when creating a new user.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<InvokeScriptAspect Identifier="Directory_User_InvokeScript" Agent="Local" ScriptFile="C:/identitymanagerDemo/Conf/InvokeAspects/aspect.ps1">
<PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
<PointCut Activity="Directory_User_StartExternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
</InvokeScriptAspect>
<Job Identifier="InvokeAspects" DisplayName_L1="00: Invoke Aspects" Agent="Local">
<InvokeAspectsTask Agent="Local" DisplayName_L1="Execute Powershell for aspects" OutputPath="C:/identitymanagerDemo/Temp" OpenIdClient="Job" />
</Job>

Properties

Property	Type	Description
Identifier required	String	Unique identifier of the aspect.
Agent optional	String	Agent on which the script will be launched.
ExpressionBinding optional	String	Binding defines the variable type used in the potential expressions specified in the aspect. The difference with Binding defines the property involved in the aspect. NOTE: It is required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
IfExpression optional	String	Expression that conditions the aspect execution. See the C# utility functions topic for additional information.
Priority default value: 0	Int32	Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. NOTE: The priority can be a negative value.
ScriptFile optional	String	Path of the script file to be executed by the aspect.

ChildElement: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked aspect. See the Aspects topic for additional information.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Type	Description
Activity required	Int64	Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Enumeration	Identifier of the activity state that triggers the aspect.
Mode default value: 0	PointCutMode	Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before — The aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After — The aspect will be executed on exit from the specified activity state, regardless of the transition used.

Invoke Workflow Aspect

Launches a workflow.

Examples

The following example launches the workflow Directory_User_VehicleRequest when a vehicle is requested for a new internal user.

<InvokeWorkflowAspect Identifier="Directory_User_VehicleRequest" ExpressionBinding="Workflow_Directory_User:Directory_User" IfExpression="C#:person:return person.Vehicle_Requested;" Workflow="Directory_User_VehicleRequest">
    <PointCut Activity="Directory_User_NewInternal:Persist" ActivityState="Persist-Invoked" Mode="After" /></InvokeWorkflowAspect>

Properties

Property	Details
Identifier required	Type String Description Unique identifier of the aspect.
Workflow required	Type String Description Identifier of the workflow to be launched.
ExpressionBinding optional	Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
IfExpression optional	Type String Description Expression that conditions the aspect execution. See the Expressions topic for additional information.
Priority default value: 0	Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value.

Child Element: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked Aspects.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Details
Activity required	Type Int64 Description Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Type Enumeration Description Identifier of the activity state that triggers the aspect.
Mode default value: 0	Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Notification Aspect

Sends a notification email to one or several users.

Examples

The following example sends a notification email based on the template Notification_Directory_Guest.cshtml and the subject computed by SubjectExpression_L1, which both use data from Workflow_Directory_Guest:Directory_Guest, and on the styles from Notification_Directory_Guest.css.

<NotificationAspect Identifier="Notification_Directory_Guest" ExpressionBinding="Workflow_Directory_Guest:Directory_Guest" RazorFile_L1="./Templates/Notification_Directory_Guest.cshtml" CssFile="./Templates/Notification_Directory_Guest.css" SubjectExpression_L1="C#:guest:return &quot;Validating data for guest: &quot; + guest.FirstName + guest.LastName;">
    <PointCut Activity="Directory_Guest_AdvancedStart:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />    <Recipient Type="Binding" Binding="Directory_Guest:Mail" /></NotificationAspect>

The notification will be sent after the Request activity of the Directory_Guest_AdvancedStart workflow is executed.
The notification will be sent to all email addresses defined by Directory_Guest:Mail.

Properties

Property	Details
Identifier required	Type String Description Unique identifier of the aspect.
Binding optional	Type String Description Binding whose difference with ExpressionBinding defines the property that corresponds to identities' email addresses, when Type is set to Binding.
CssFile optional	Type String Description Path to the css file that defines the styles for the email. Note: the path must be relative to the configuration folder, and the file must be inside it.
ExpressionBinding optional	Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one.
Priority default value: 0	Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value.
RazorFile_L1 optional	Type String Description Path to the Razor cshtml file that defines the email's body template in language 1 (up to 16). Note: the path must be relative to the configuration folder, and the file must be inside it.
SubjectExpression_L1 optional	Type String Description C# expression that defines the email's subject in language 1 (up to 16). The expression's variable type is defined in ExpressionBinding.

Child Element: PointCut

A pointcut is a mechanism telling Identity Manager when to execute the linked Aspects.

The position of the pointcut is specified by an activity state and a mode (before or after).

Property	Details
Activity required	Type Int64 Description Identifier of the activity whose specified state triggers the aspect.
ActivityState required	Type Enumeration Description Identifier of the activity state that triggers the aspect.
Mode default value: 0	Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used.

Child Element: Recipient

A recipient defines one or several identities who will receive a notification from NotificationAspect.

Examples

The following example sends a notification email to the actors of the next step of the workflow.

<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css">  <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
  <Recipient Type="Actor" />
</NotificationAspect>

The following example sends a notification email to the performers of the Request activity of the Directory_User_StartInternal workflow when the state is Executed.

<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css">  <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
  <Recipient Type="Performer" Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" />
</NotificationAspect>

The following example sends a notification email to the email address, stored in Mail, of the user(s) from Directory_User targeted by the workflow, so here the new user created by the Directory_User_StartInternal workflow.

<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css">  <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
  <Recipient Type="Binding" Binding="Directory_User:Mail" />
</NotificationAspect>

The following example sends a notification email to all identities whose email addresses are defined as {lastName}@company.com.

<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css">  <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
  <Recipient Type="Expression" Expression="C#:user:return user.LastName+"@company.com";" />
</NotificationAspect>

The following example sends a notification to all identities with a profile that includes the right permission.

<NotificationAspect Identifier="Directory_User_New" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Directory/User/Directory-User-Notification-New.cshtml" CssFile="Notifications.css">  <PointCut Activity="Directory_User_NewInternal:Persist" ActivityState="Persist-Invoked" Mode="After" />  <PointCut Activity="Directory_User_NewExternal:Persist" ActivityState="Persist-Invoked" Mode="After" />
  <Recipient Type="Profile" />
</NotificationAspect>

Knowing that we also have:
<Profile Identifier="Workforce/Notifications/Directory_User_New" DisplayName_L1="Workforce/Notifications/New User" IsComponent="true" /><AccessControlRule Profile="Workforce/Notifications/Directory_User_New" EntityType="Directory_User" Identifier="Composite_Notifications_Directory_User_New*" DisplayName_L1="Composite_Notifications_Directory_User_New*">
  <Entry Permission="/Custom/WorkflowsNotifications/Directory_User_NewInternal/Persist/Invoked" />  <Entry Permission="/Custom/WorkflowsNotifications/Directory_User_NewExternal/Persist/Invoked" />
</AccessControlRule>

Property	Details
Activity optional	Type Int64 Description Identifier of the activity whose last performers are to be notified, when Type is set to Performer. Note: must be set together with ActivityState.
ActivityState optional	Type Enumeration Description Identifier of the activity state whose last performers are to be notified, when Type is set to Performer. Note: must be set together with Activity.
Binding optional	Type Int64 Description Binding of the property that represents the notification's recipients, when Type is set to Binding.
EmailAddresses optional	Type String Description Email addresses of the notification's recipients, when Type is set to Hardcoded.
Expression optional	Type String Description C# expression that returns the email addresses of the notification's recipients, as strings or IEnumerable<string>, when Type is set to Expression. The expression's variable type is defined in ExpressionBinding in the associated NotificationAspect. See the Expressions topic for additional information.
IsCC default value: false	Type Boolean Description true to send the notification email to the recipient(s) as a carbon copy (CC).
Type required	Type RecipientType Description Type of recipients for the email notification. Actor: the identities with the permissions to act on the next step of the workflow specified in the pointcut. Performer: the actors of a past workflow step specified in Activity and ActivityState. Binding: the identities whose email addresses are designated by the property specified in Binding. Hardcoded: the identities whose email addresses are specified explicitly in EmailAddresses. Expression: the identities whose email addresses match the C# expression specified in Expression. Profile: the identities with the permission /Custom/WorkflowsNotifications/{workflow_identifier}/ {activity_identifier}/{activityTemplateState_shortIdentifier}.

Forms

Workflows use forms to collect input data through the UI. A form is a set of fields, configured with controls. A control can define a field to fill, a fields set, call an existing form, etc. depending on its output type.

Here is a list of forms:

• Workflow Add and End Record Entity Form

  Displays a form to define the end date of an existing record, and replace it with a new record at said date, by duplicating and adjusting the old record.

• Workflow Add Record Entity Form

  Displays a form to add a new record for an existing resource, by duplicating and adjusting an existing record.

• Workflow Create Entity Form

  Displays a form to create a new resource, without a record.

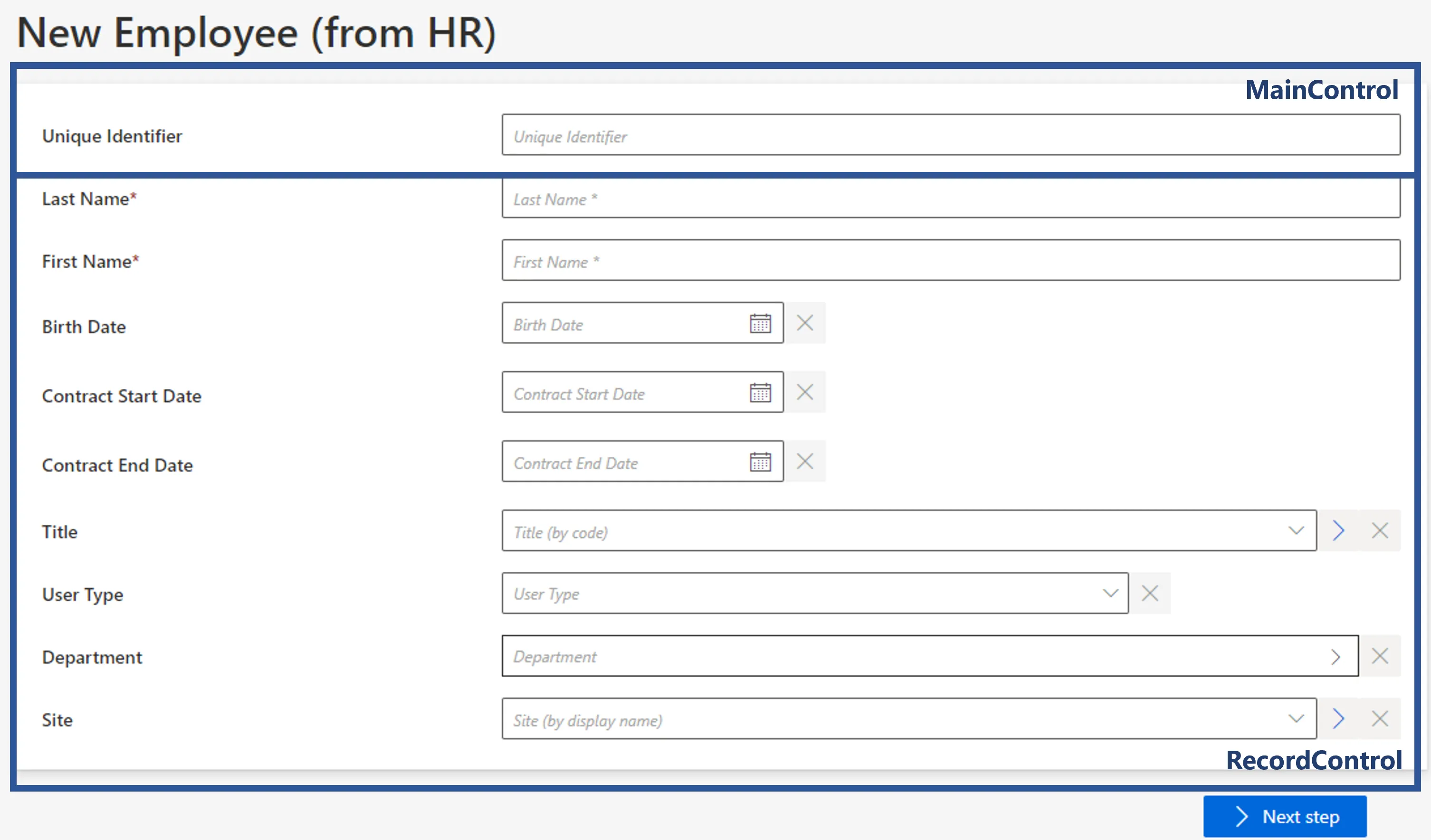

• Workflow Create Record Entity Form

  Displays a form to create a new resource with a record.

• Workflow Create Several Records Entity Form

  Displays a form to create a new resource with one or several records.

• Workflow Edit Entity Form

  Displays a form to update or delete an existing resource, without a record.

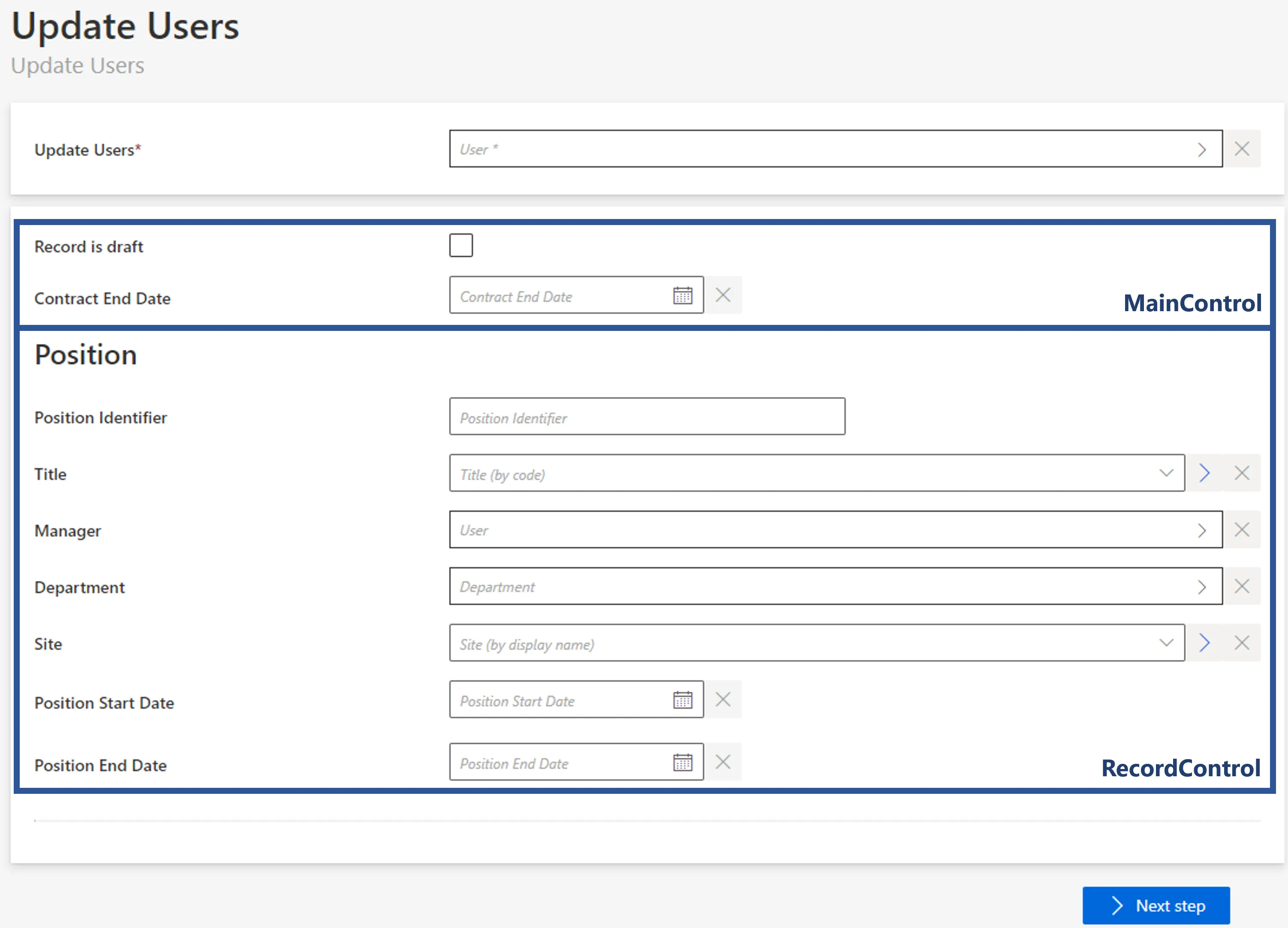

• Workflow Update Record Entities Form

  Displays a form to update data for several resources simultaneously.

• Workflow Update Record Entity Form

  Displays a form to select an existing record and update it.

• Workflow Update Several Records Entity Form

  Displays a form to create, update or delete one or several records.

Workflow Add and End Record Entity Form

Displays a form to define the end date of an existing record, and replace it with a new record at said date, by duplicating and adjusting the old record.

Examples

The following example is a form to update a position.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowAddAndEndRecordEntityForm Identifier="Workflow_Directory_User_ChangePosition" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_ChangePosition:Request" FormTitle_L1="Schedule a Job Change">
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" />
    <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" />
    <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main" />
    <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" />
</WorkflowAddAndEndRecordEntityForm>
With the following form for the resource data's content and summary:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User">
    <Control Binding="Identifier" />
    <Control Binding="IsDraft" />
</Form>
And with the following form for the record data's content and summary, and for the data that groups records together:
<Form Identifier="Workflow_Directory_User_ChangePosition_Base" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="New Position Dates" OutputType="LayoutFieldset">
        <Control Binding="StartDate" />
        <Control Binding="EndDate" InputType="Date" />
    </Control>
    <Control DisplayName_L1="New Position" OutputType="LayoutFieldset">
        <Control Binding="Title" />
        <Control Binding="Organization" />
        <Control Binding="Manager" DefaultValueBinding="Organization.Manager" />
        <Control Binding="Site" DefaultValueBinding="Organization.Manager.MainRecord.Site" />
    </Control>
</Form>

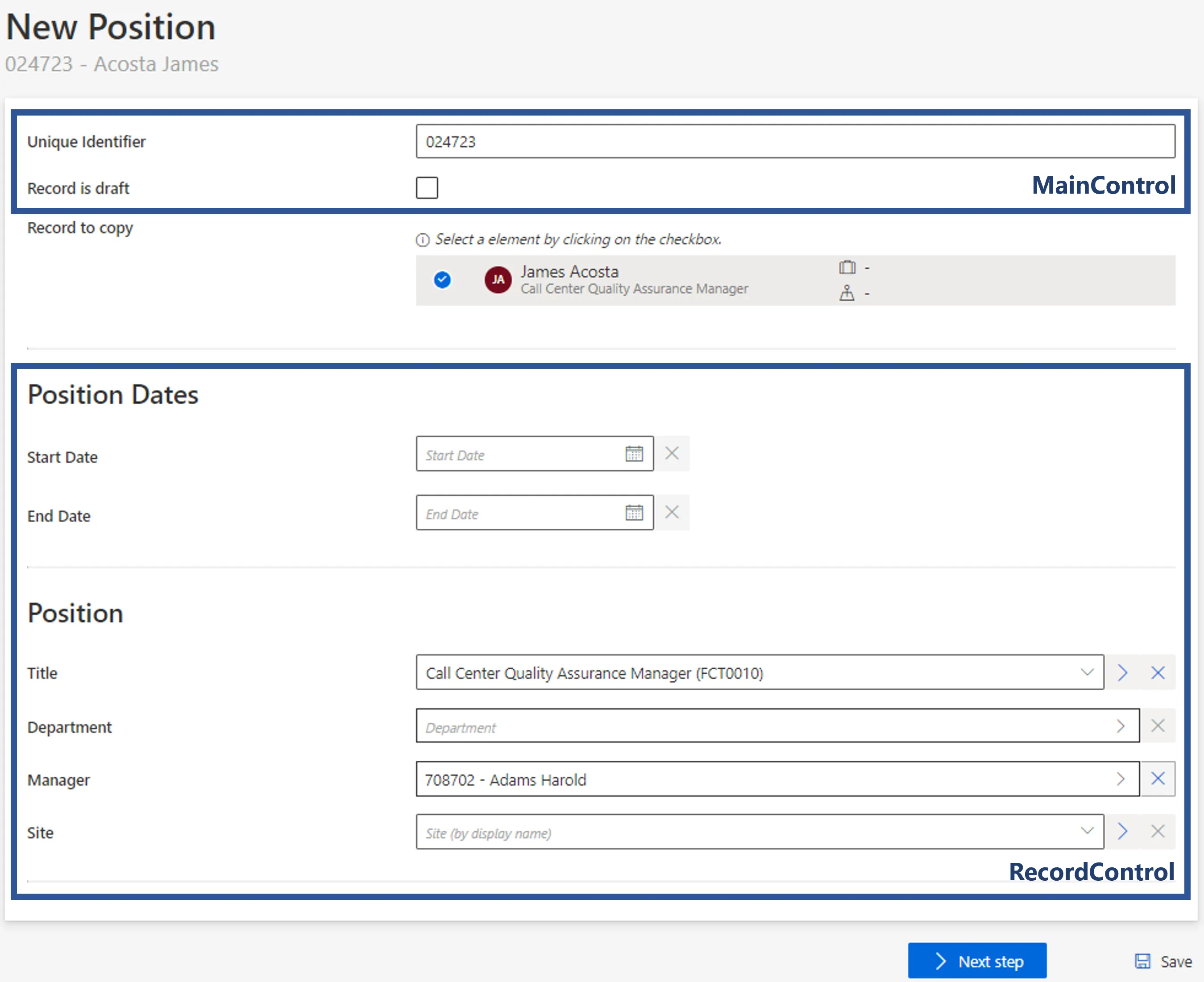

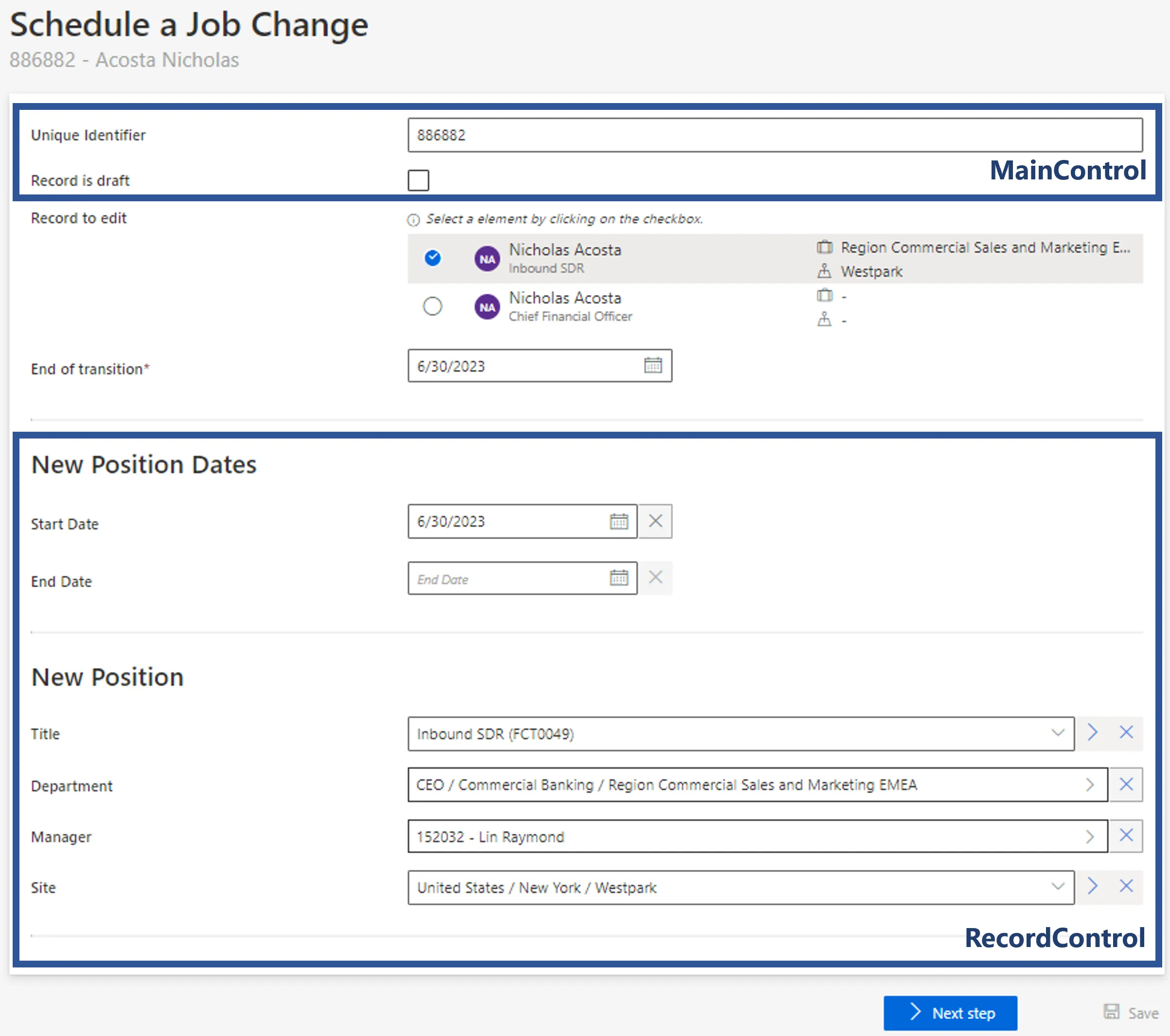

The contents of MainControl and RecordControl are visible during the workflow's execution:

The content of RecordUniqueItemControl is not visible. The user's records that have the same values for all the properties in RecordUniqueItemControl will be displayed, and potentially modified, as one.

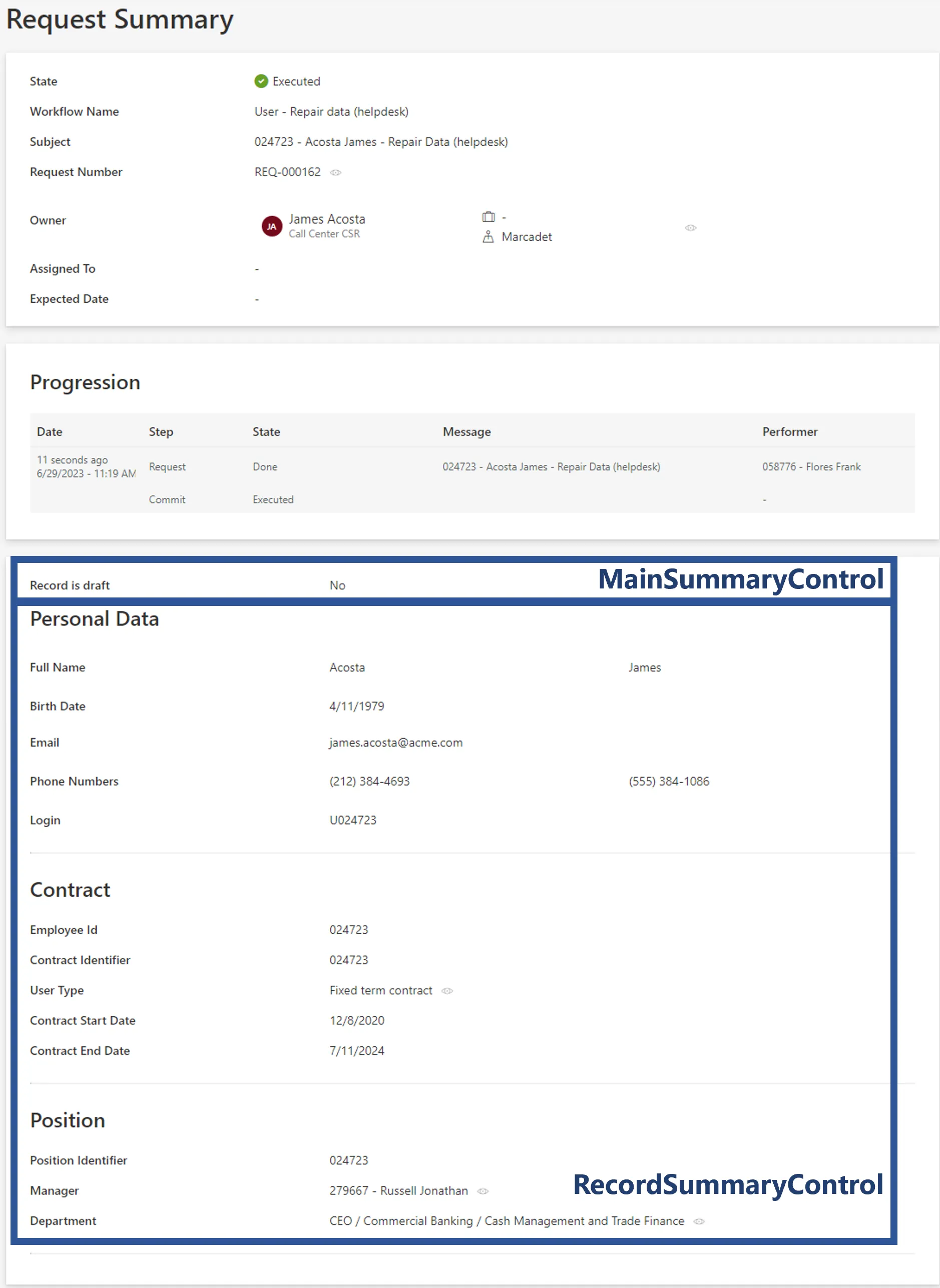

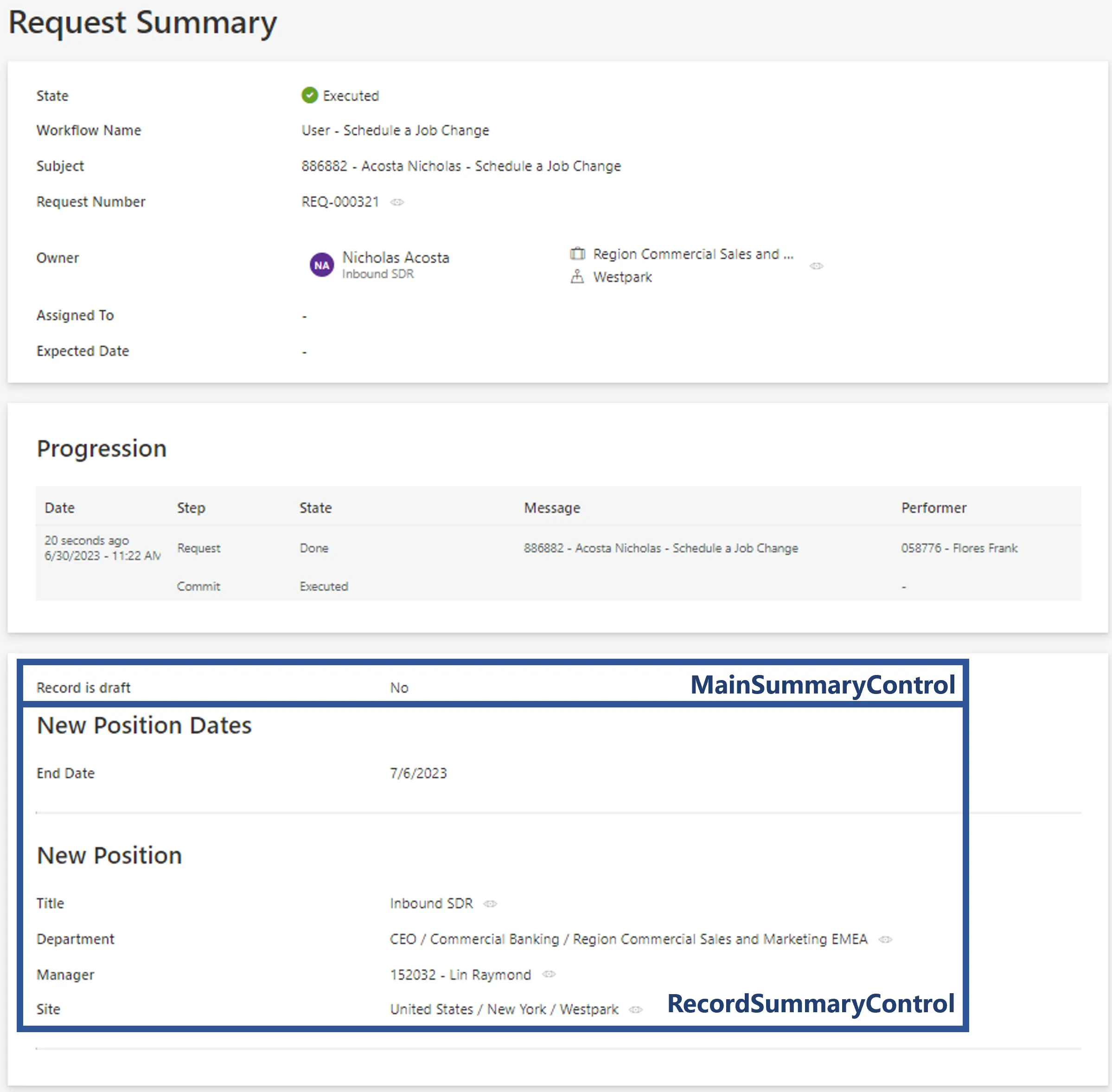

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: RecordUniqueItemControl	Set of fields that group records together. All records with the same data in RecordUniqueItemControl are displayed in the workflow as only one record, and they will potentially be modified together. When not specified, records will be grouped by the data from RecordControl.
Child Element: MainSummaryControl	Set of fields to sum up the data collected by MainControl after the workflow's execution.
Child Element: RecordSummaryControl	Set of fields to sum up the data collected by RecordControl after the workflow's execution.

Workflow Add Record Entity Form

Displays a form to add a new record for an existing resource, by duplicating and adjusting an existing record.

Examples

The following example is a form to request a computer.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowAddRecordEntityForm Identifier="Workflow_Directory_User_AddPosition" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_AddPosition:Request" FormTitle_L1="New Position" >
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Base" />
    <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Unique" />
    <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main" />
    <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Base" />
</WorkflowAddRecordEntityForm>
With the following form for the resource data's content and summary:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User">
    <Control Binding="Identifier" />
    <Control Binding="IsDraft" />
</Form>
And with the following form for the record data's content and summary:
<Form Identifier="Workflow_Directory_User_AddPosition_Base" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Position Dates" OutputType="LayoutFieldset">
        <Control Binding="StartDate" />
        <Control Binding="EndDate" InputType="Date" />
    </Control>
    <Control DisplayName_L1="Position" OutputType="LayoutFieldset">
        <Control Binding="Title" />
        <Control Binding="Organization" />
        <Control Binding="Manager" DefaultValueBinding="Organization.Manager" />
        <Control Binding="Site" DefaultValueBinding="Organization.Manager.MainRecord.Site" />
    </Control>
</Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_User_AddPosition_Unique" EntityType="Directory_UserRecord">
    <Control Binding="PositionIdentifier" />
</Form>

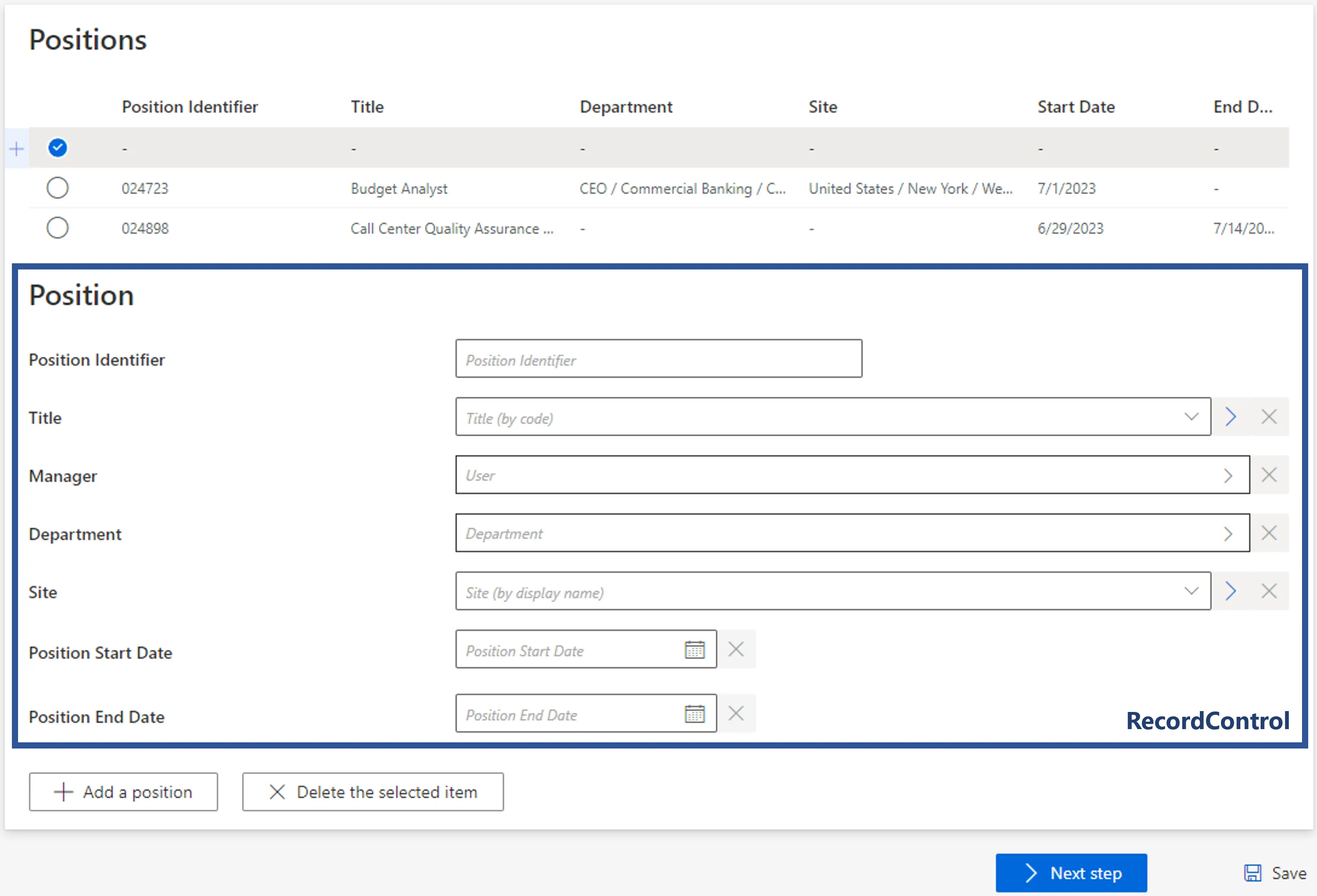

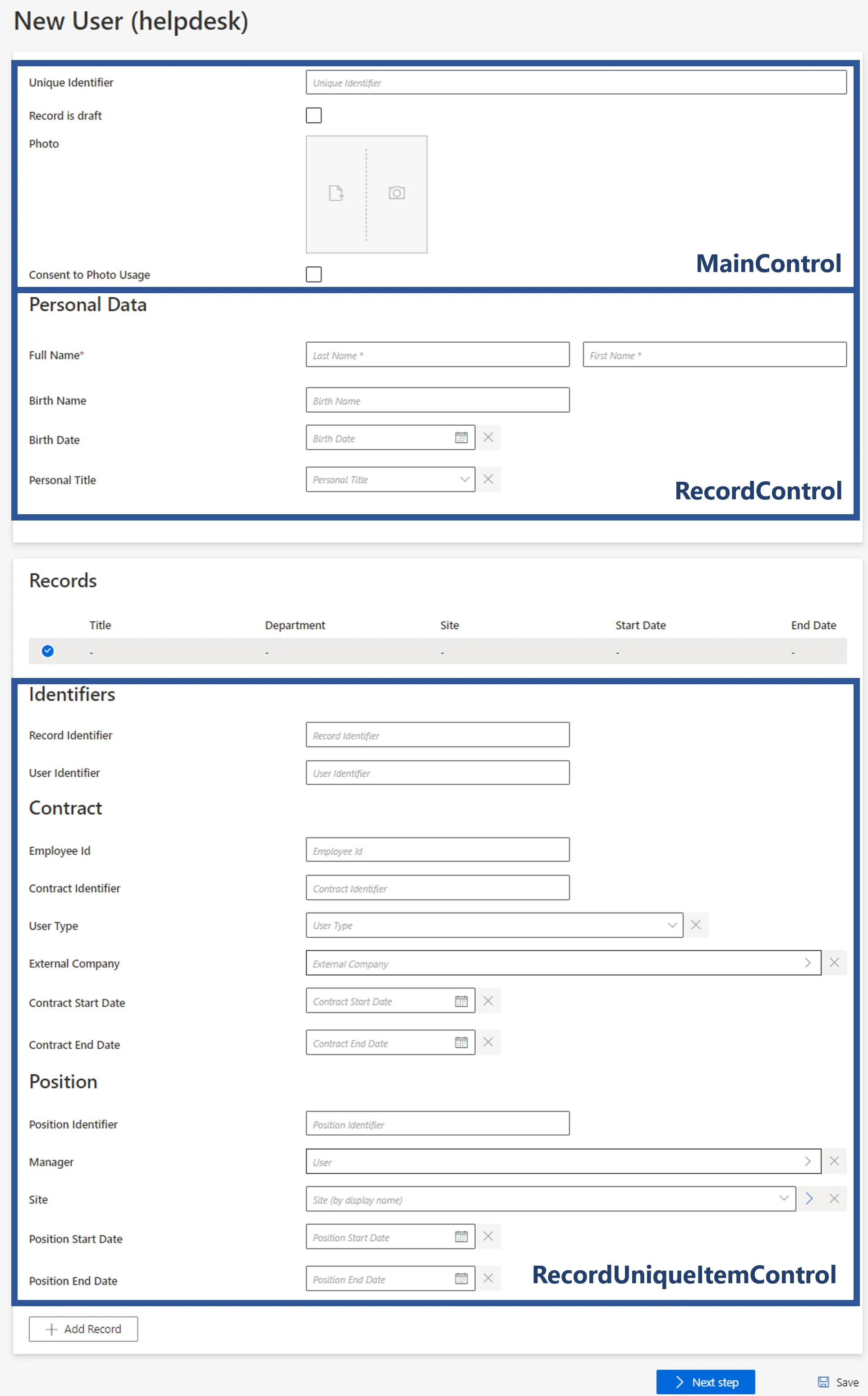

The contents of MainControl and RecordControl are visible during the workflow's execution:

The content of RecordUniqueItemControl is not visible. The user's records that have the same values for all the properties in RecordUniqueItemControl will be displayed, and potentially modified, as one.

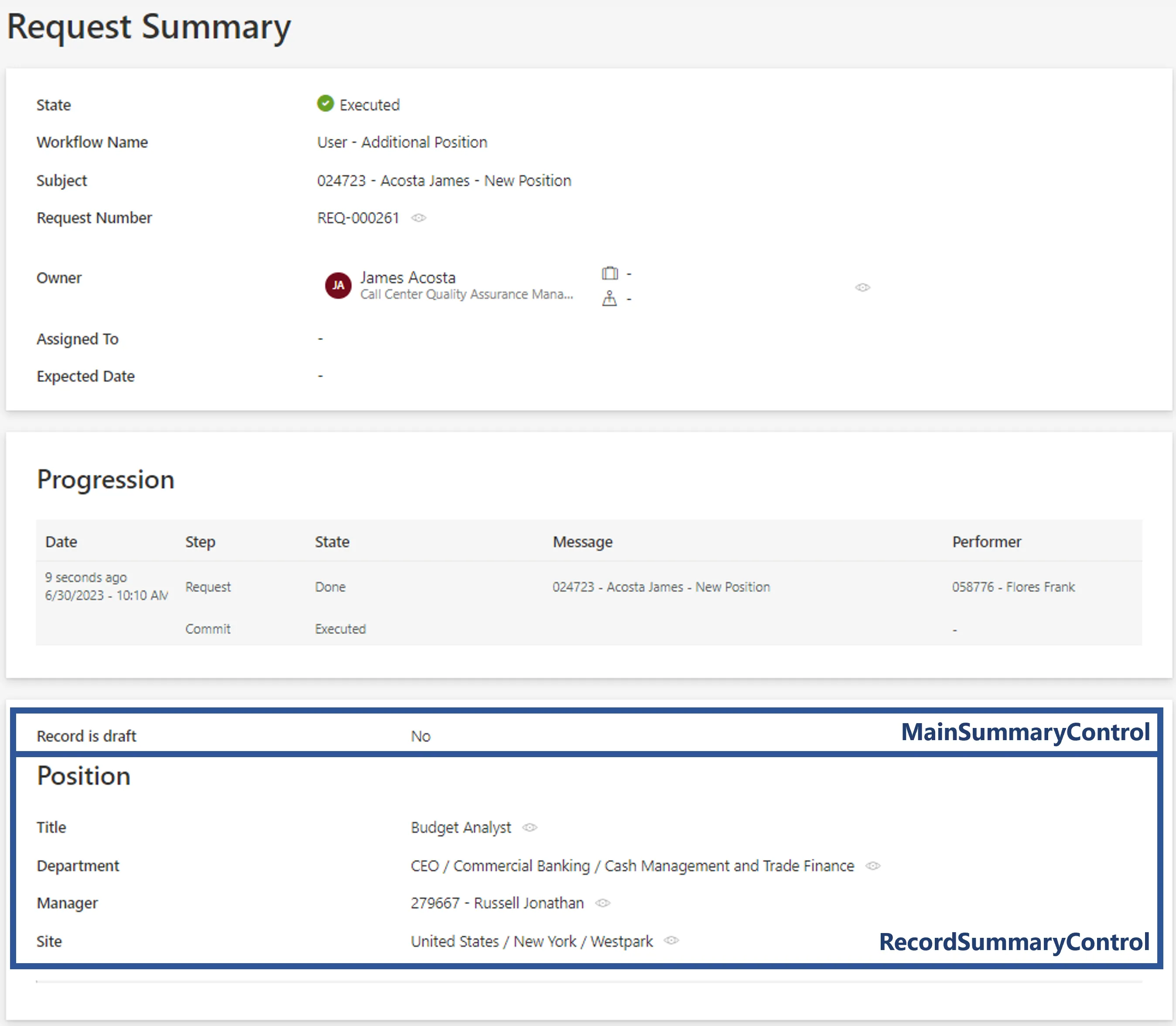

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: RecordUniqueItemControl	Set of fields that group records together. All records with the same data in RecordUniqueItemControl are displayed in the workflow as only one record, and they will potentially be modified together. When not specified, records will be grouped by the data from RecordControl.
Child Element: MainSummaryControl	Set of fields to sum up the data collected by MainControl after the workflow's execution.
Child Element: RecordSummaryControl	Set of fields to sum up the data collected by RecordControl after the workflow's execution.

Workflow Create Entity Form

Displays a form to create a new resource, without a record.

Examples

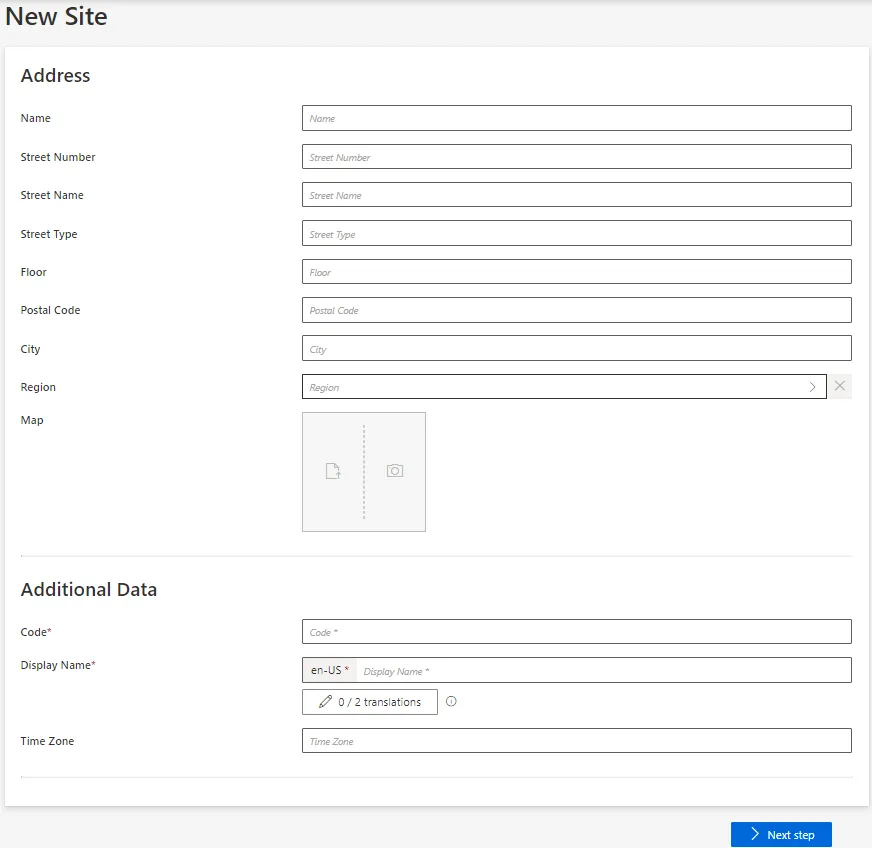

The following example is a form to create a new site.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowCreateEntityForm Identifier="Workflow_Directory_Site_Create" EntityType="Workflow_Directory_Site" MainProperty="Workflow_Directory_Site:Directory_Site" WorkflowRequestType="Self" Activity="Directory_Site_Create:Request" FormTitle_L1="New Site">
    <MainControl OutputType="TransformImport" EmbeddedForm="Base_Directory_Site" />
    <SummaryControl OutputType="TransformImport" EmbeddedForm="Summary_Directory_Site"/>
</WorkflowCreateEntityForm>
With the following form for the workflow's content:
<Form Identifier="Base_Directory_Site" EntityType="Directory_Site">
    <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address">
        <Control Binding="Name" />
        <Control Binding="StreetNumber" />
        <Control Binding="StreetName" />
        <Control Binding="StreetType" />
        <Control Binding="Floor" />
        <Control Binding="PostalCode" />
        <Control Binding="City" />
        <Control Binding="Region" />
        <Control Binding="Region.Country" IsReadOnly="true" />
        <Control Binding="Photo" OutputType="Image" />
    </Control>
    <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data">
        <Control Binding="Identifier" />
        <Control Binding="DisplayName" />
        <Control Binding="TimeZone" />
    </Control>
</Form>
And with the following form for the workflow's summary:
<Form Identifier="Summary_Directory_Site" EntityType="Directory_Site">
    <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address">
        <Control Binding="Name" />
        <Control Binding="StreetNumber" />
        <Control Binding="StreetName" />
        <Control Binding="StreetType" />
    </Control>
    <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data">
        <Control Binding="Identifier" />
        <Control Binding="DisplayName" />
    </Control>
</Form>

The content of MainControl is visible during the workflow's execution:

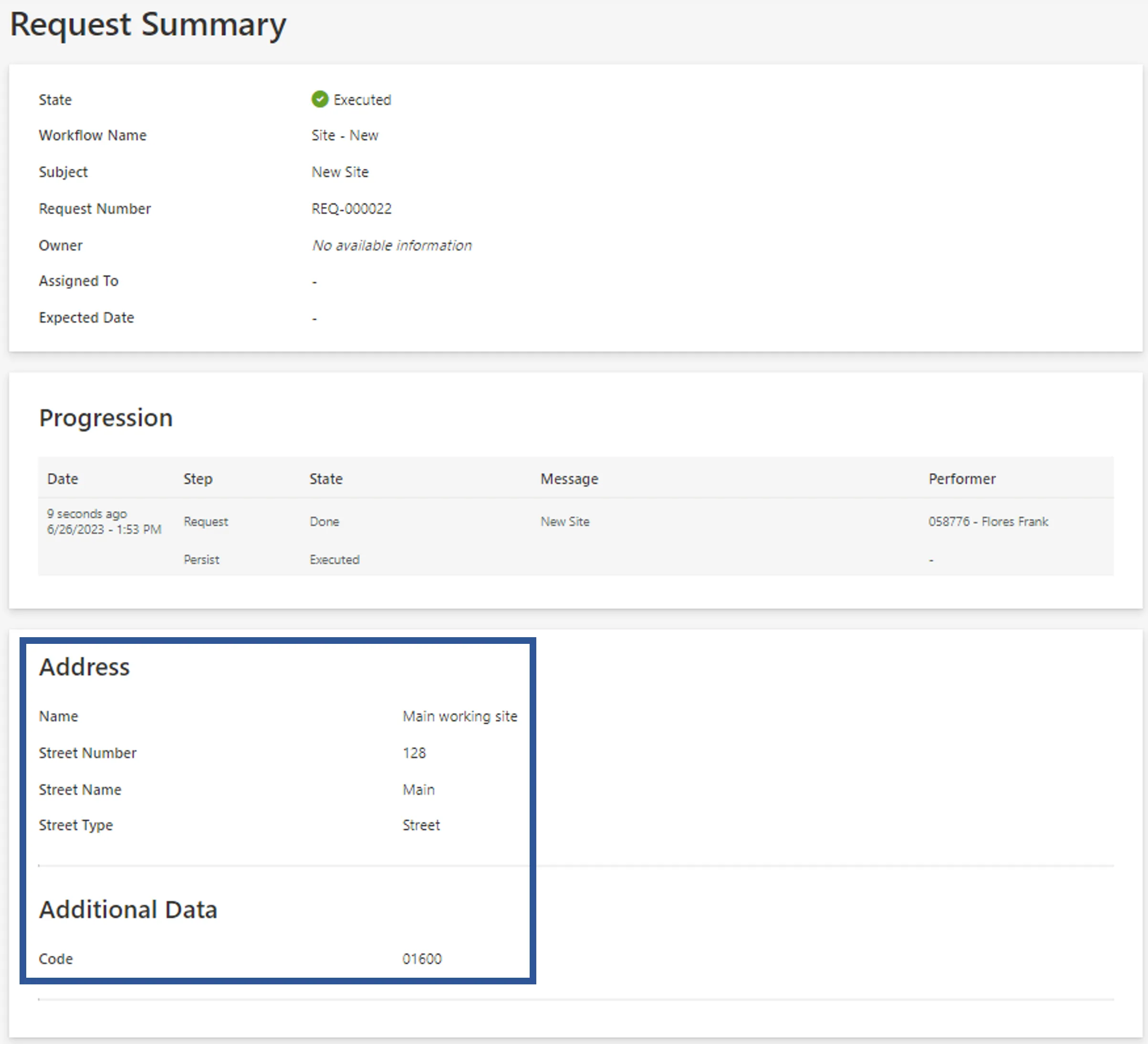

The content of SummaryControl is visible after the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: SummaryControl	Set of fields to sum up the collected data after the workflow's execution.

Workflow Create Record Entity Form

Displays a form to create a new resource with a record.

Examples

The following example is a form to create a new user from HR.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowCreateRecordEntityForm Identifier="Workflow_Directory_User_CreateFromHR" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_CreateFromHR:Request" FormTitle_L1="New Employee (from HR)">
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
    <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_HR_Base" />
    <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Summary_Directory_User_HR_Base"/>
</WorkflowCreateRecordEntityForm>
With the following form for the workflow's content and summary about resource data:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User">
    <Control DisplayName_L1="Resource Data" OutputType="LayoutFieldset" Name="ResourceData">
        <Control Binding="Identifier" />
    </Control>
</Form>
And with the following form for the workflow's content about record data:
<Form Identifier="Workflow_Directory_User_HR_Base" EntityType="Directory_UserRecord">
    <Control Binding="LastName" />
    <Control Binding="FirstName" />
    <Control Binding="BirthDate" />
    <Control Binding="ContractStartDate"/>
    <Control Binding="ContractEndDate" />
    <Control Binding="Title" />
    <Control Binding="UserType" />
    <Control Binding="Organization" />
    <Control Binding="Site" />
</Form>
And with the following form for the workflow's summary on record data:
<Form Identifier="Summary_Directory_User_HR_Base" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Record Data" OutputType="LayoutFieldset" Name="RecordData">
        <Control Binding="LastName" />
        <Control Binding="FirstName" />
        <Control Binding="ContractStartDate"/>
        <Control Binding="ContractEndDate" />
        <Control Binding="UserType" />
    </Control>
</Form>

The content of MainControl is visible during the workflow's execution:

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's execution.

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: MainSummaryControl	Set of fields to sum up the data collected by MainControl after the workflow's execution.
Child Element: RecordSummaryControl	Set of fields to sum up the data collected by RecordControl after the workflow's execution.

Workflow Create Several Records Entity Form

Displays a form to create a new resource with one or several records.

Examples

The following example is a form to request a computer.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowCreateSeveralRecordsEntityForm Identifier="Workflow_Helpdesk_Directory_User_New" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" RecordTable="Directory_UserRecord_Helpdesk" WorkflowRequestType="Helpdesk" Activity="Helpdesk_Directory_User_New:Request" FormTitle_L1="New User (helpdesk)" TableTitle_L1="Records" AddRowLabel_L1="Add Record" RemoveRowLabel_L1="Remove Record">
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" />
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Shared"/>
    <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" />
</WorkflowCreateSeveralRecordsEntityForm>
With the following form for the resource's data:
<Form Identifier="Workflow_Helpdesk_Directory_User_Base" EntityType="Directory_User">
    <Control Binding="Identifier" />
    <Control Binding="IsDraft" />
    <Control Binding="Photo" />
    <Control Binding="ConsentPhotoUsage" />
</Form>
And with the following form for the data shared with all records:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Shared" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" Name="Personal Data">
        <Control DisplayName_L1="Full Name" OutputType="LayoutRowset" Name="Full Name">
        <Control Binding="LastName" />
        <Control Binding="FirstName" />
        </Control>
        <Control Binding="BirthName" ColumnSize="4" />
        <Control Binding="BirthDate" />
        <Control Binding="Gender" ColumnSize="3" />
        <Control Binding="PersonalTitle" ColumnSize="3" />
    </Control>
</Form>
And with the following form for the data specific to each record:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Base" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Identifiers" OutputType="LayoutFieldset" Name="Identifiers">
        <Control Binding="RecordIdentifier" ColumnSize="4" />
        <Control Binding="UserIdentifier" ColumnSize="4" />
    </Control>
    <Control DisplayName_L1="Contract" OutputType="LayoutFieldset" Name="Contract">
        <Control Binding="EmployeeId" ColumnSize="4" />
        <Control Binding="ContractIdentifier" ColumnSize="4" />
        <Control Binding="UserType" />
        <Control Binding="ExternalCompany" />
        <Control Binding="ContractStartDate" />
        <Control Binding="ContractEndDate" />
    </Control>
    <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position">
        <Control Binding="PositionIdentifier" ColumnSize="4" />
        <Control Binding="JobTitle" />
        <Control Binding="Manager" />
        <Control Binding="Site" />
        <Control Binding="PositionStartDate" />
        <Control Binding="PositionEndDate" InputType="Date" />
        <Control Binding="IsMainPosition" />
    </Control>
</Form>

The contents of MainControl, RecordControl and RecordUniqueItemControl are visible during the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: RecordUniqueItemControl	Set of fields to collect data specific to each record.

Workflow Edit Entity Form

Displays a form to update or delete an existing resource, without a record.

Examples

The following example is a form to request a computer.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowEditEntityForm Identifier="Workflow_Directory_User_ComputerRequest" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" WorkflowRequestType="Self" Activity="Directory_User_ComputerRequest:Request" FormTitle_L1="Computer Request" RecordProperty="Directory_User:PC_Requested" HideRoles="true">
    <MainControl OutputType="TransformImport" EmbeddedForm="PC_Request" />
    <SummaryControl OutputType="TransformImport" EmbeddedForm="PC_Request" />
</WorkflowEditEntityForm>
With the following form for the workflow's content and summary:
<Form Identifier="PC_Request" EntityType="Directory_User">
    <Control Binding="PC_Modele" DisplayName_L1="Model if already known" />
</Form>

The content of MainControl is visible during the workflow's execution:

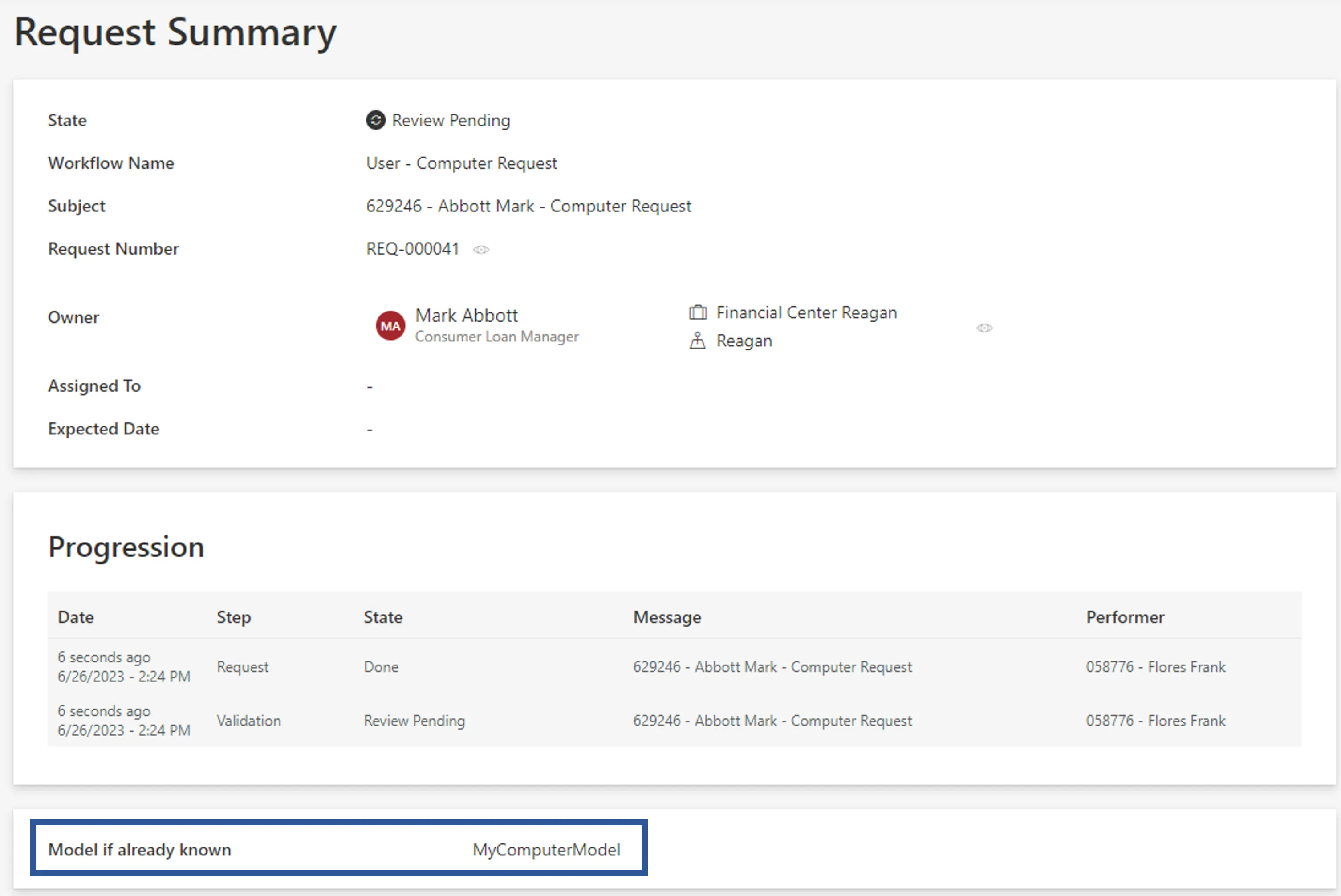

The content of SummaryControl is visible after the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: SummaryControl	Set of fields to sum up the collected data after the workflow's execution.

Workflow Update Record Entities Form

Displays a form to update data for several resources simultaneously.

Examples

The following example is a form to update users' positions in bulk.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowUpdateRecordEntitiesForm Identifier="Workflow_Directory_User_MassUpdate" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_MassUpdate:Request" HideRoles="false" FormTitle_L1="Update Users" >
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Main" />
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Base" />
    <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Unique" />
    <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Main" />
    <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Base" />
</WorkflowUpdateRecordEntitiesForm>
With the following form for the workflow's content and summary about resource data:
<Form Identifier="Workflow_Directory_UserRecord_MassUpdate_Main" EntityType="Directory_User">
    <Control Binding="IsDraft" />
</Form>
And with the following form for the workflow's content and summary about record data:
<Form Identifier="Workflow_Directory_UserRecord_MassUpdate_Base" EntityType="Directory_UserRecord">
        <Control Binding="ContractEndDate" InputType="Date" />
    <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position">
        <Control Binding="PositionIdentifier" ColumnSize="4" />
        <Control Binding="Title" />
        <Control Binding="Manager" />
        <Control Binding="Organization" />
        <Control Binding="Site" />
        <Control Binding="PositionStartDate" />
        <Control Binding="PositionEndDate" InputType="Date" />
    </Control>
</Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_User_AddPosition_Unique" EntityType="Directory_UserRecord">
    <Control Binding="PositionIdentifier" />
</Form>

The contents of MainControl and RecordControl are visible during the workflow's execution:

The content of RecordUniqueItemControl is not visible. The user's records that have the same values for all the properties in RecordUniqueItemControl will be modified as one.

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's execution:

Properties

Property	Details
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: RecordUniqueItemControl	Set of fields that group records together. All records with the same data in RecordUniqueItemControl are displayed in the workflow as only one record, and they will potentially be modified together. When not specified, records will be grouped by the data from RecordControl.
Child Element: MainSummaryControl	Set of fields to sum up the data collected by MainControl after the workflow's execution.
Child Element: RecordSummaryControl	Set of fields to sum up the data collected by RecordControl after the workflow's execution.

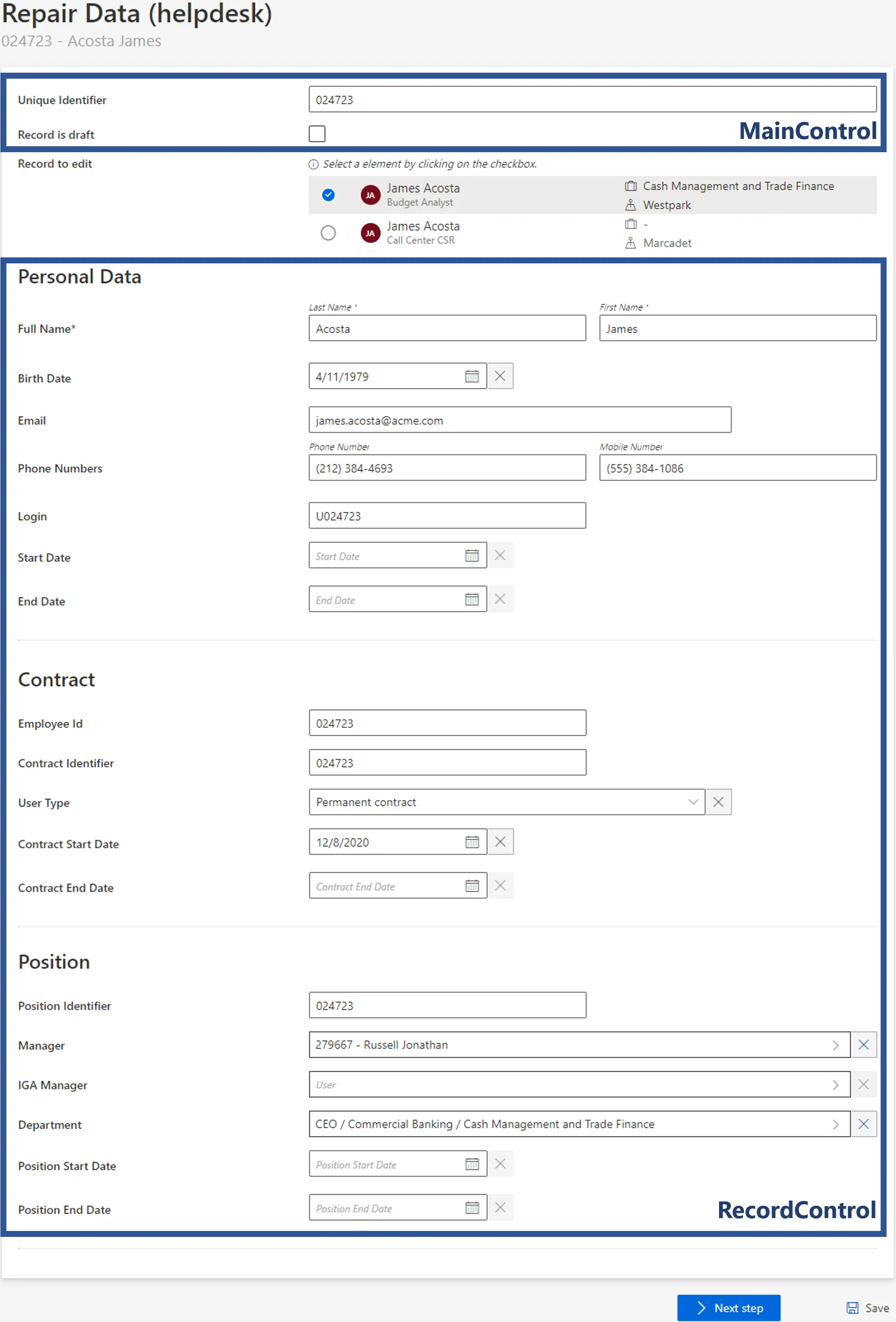

Workflow Update Record Entity Form

Displays a form to select an existing record and update it.

Examples

The following example is a form to update a user's record from helpdesk:

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowUpdateRecordEntityForm Identifier="Workflow_Helpdesk_Directory_User_FixRecord" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Helpdesk" Activity="Helpdesk_Directory_User_FixRecord:Request" FormTitle_L1="Repair Data (helpdesk)" >
  <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" />
  <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" />
  <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Unique" />
  <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" />
  <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" />
</WorkflowUpdateRecordEntityForm>
With the following form for the resource's data and summary:
<Form Identifier="Workflow_Helpdesk_Directory_User_Base" EntityType="Directory_User">
  <Control Binding="Identifier" />
  <Control Binding="IsDraft" />
</Form>
And with the following form for the data shared with all records and for the summary:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Base" EntityType="Directory_UserRecord">
  <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" Name="Personal Data">
    <Control DisplayName_L1="Full Name" OutputType="LayoutRowset" Name="Full Name">
      <Control Binding="LastName" />
      <Control Binding="FirstName" />
    </Control>
    <Control Binding="BirthDate" />
    <Control Binding="Gender" ColumnSize="3" />
    <Control Binding="Email" ColumnSize="6" />
    <Control DisplayName_L1="Phone Numbers" OutputType="LayoutRowset" Name="Phone Numbers">
      <Control Binding="PhoneNumber" />
      <Control Binding="MobileNumber" />
    </Control>
    <Control Binding="Login" ColumnSize="4" />
    <Control Binding="StartDate" />
    <Control Binding="EndDate" InputType="Date" />
  </Control>
  <Control DisplayName_L1="Contract" OutputType="LayoutFieldset" Name="Contract">
    <Control Binding="EmployeeId" ColumnSize="4" />
    <Control Binding="ContractIdentifier" ColumnSize="4" />
    <Control Binding="UserType" />
    <Control Binding="ContractStartDate" />
    <Control Binding="ContractEndDate" />
  </Control>
  <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position">
    <Control Binding="PositionIdentifier" ColumnSize="4" />
    <Control Binding="JobTitle" />
    <Control Binding="Manager" />
    <Control Binding="IGAManager" />
    <Control Binding="Organization" />
    <Control Binding="PositionStartDate" />
    <Control Binding="PositionEndDate" InputType="Date" />
  </Control>
</Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Unique" EntityType="Directory_UserRecord">
  <Control Binding="Id" />
</Form>

NOTE: WorkflowUpdateRecordEntity used in config Delete mode (IsDelete=True) will delete systematically the main resource and all the associated records.

The contents of MainControl and RecordControl are visible during the workflow's execution:

The content of RecordUniqueItemControl is not visible. The user's records that have the same values for all the properties in RecordUniqueItemControl will be displayed, and potentially modified, as one.

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's execution:

Properties

Property	Details
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data about the resource's record.
Child Element: RecordUniqueItemControl	Set of fields that group records together. All records with the same data in RecordUniqueItemControl are displayed in the workflow as only one record, and they will potentially be modified together. When not specified, records will be grouped by the data from RecordControl.
Child Element: MainSummaryControl	Set of fields to sum up the data collected by MainControl after the workflow's execution.
Child Element: RecordSummaryControl	Set of fields to sum up the data collected by RecordControl after the workflow's execution.

Workflow Update Several Records Entity Form

Displays a form to create, update or delete one or several records.

Examples

The following example is a form to create, update and/or delete one or several positions for a given user.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowUpdateSeveralRecordsEntityForm Identifier="Workflow_Directory_User_ManagePositions" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" RecordTable="Directory_UserRecord_ManagePositions" WorkflowRequestType="Self" Activity="Directory_User_ManagePositions:Request" FormTitle_L1="Manage Positions" TableTitle_L1="Positions" AddRowLabel_L1="Add Position" RemoveRowLabel_L1="Remove Position" RecordStartProperty="Directory_UserRecord:PositionStartDate" RecordEndProperty="Directory_UserRecord:PositionEndDate">
    <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Position_Main" />
    <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Base_New" />
    <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Unique" />
    <RecordSlaveUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Contract" />
    <RecordSlaveControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Base_Existing" />
</WorkflowUpdateSeveralRecordsEntityForm>
With the following form for the resource's data:
<Form Identifier="Workflow_Directory_User_Position_Main" EntityType="Directory_User">
    <Control Binding="Identifier" />
    <Control Binding="IsDraft" />
</Form>
And with the following form for the data shared with all records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Contract" EntityType="Directory_UserRecord">
    <Control Binding="EmployeeId" ColumnSize="4" />
    <Control Binding="ContractIdentifier" ColumnSize="4" />
    <Control Binding="UserType" />
    <Control Binding="ContractStartDate" />
    <Control Binding="ContractEndDate" />
</Form>
And with the following form for the data used to update existing records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Base_Existing" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position">
        <Control Binding="PositionIdentifier" ColumnSize="4" />
        <Control Binding="Manager" />
        <Control Binding="IGAManager" />
        <Control Binding="Organization" />
        <Control Binding="Site" />
        <Control Binding="PositionStartDate" />
        <Control Binding="PositionEndDate" InputType="Date" />
    </Control>
</Form>
And with the following form for the data used to add new records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Base_New" EntityType="Directory_UserRecord">
    <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position">
        <Control Binding="PositionIdentifier" ColumnSize="4" />
        <Control Binding="Title" />
        <Control Binding="Manager" />
        <Control Binding="IGAManager" />
        <Control Binding="Organization" />
        <Control Binding="Site" />
        <Control Binding="PositionStartDate" />
        <Control Binding="PositionEndDate" InputType="Date" />
    </Control>
</Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_UserRecord_Position_Unique" EntityType="Directory_UserRecord">
    <Control Binding="PositionIdentifier" />
</Form>

The contents of MainControl, RecordControl, RecordSlaveUniqueItemControl and RecordSlaveControl are visible during the workflow's execution:

When adding a new position, we decide to make Title available, in addition to the fields used to update existing records:

The content of RecordUniqueItemControl is not visible. The user's records that have the same values for all the properties in RecordUniqueItemControl will be displayed, and potentially modified, as one.

Properties

Property	Details
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: RecordControl	Set of fields to collect data when adding new records.
Child Element: RecordUniqueItemControl	Set of fields that group records together. All records with the same data in RecordUniqueItemControl are displayed in the workflow as only one record, and they will potentially be modified together. When not specified, records will be grouped by the data from RecordControl.
Child Element: RecordSlaveUniqueItemControl	Set of fields to collect the data shared with all the resource's records, for example contract information when managing positions.
Child Element: RecordSlaveControl	Set of fields to collect data when updating existing records.

Homonym Entity Link

This entity is used to configure the homonym workflow.

Examples

<HomonymEntityLink FormEntityType="Referentiel_UserRecord" Identifier="Homonym_Referentiel_UserRecord"/>

In this example the homonym is linked to a Form and it will be applied for the Binding included in the Control where the homonym is located. Read more about how to configure Workflow Homonym .

<Form Identifier="Workflow_Referentiel_User_AdvancedStartInternal_Base" EntityType="Referentiel_UserRecord">    <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" HomonymEntityLink="Homonym_Referentiel_UserRecord">        <Control DisplayName_L1="Full Name" OutputType="LayoutRowset">            <Control Binding="LastName" IsRequired="true" />            <Control Binding="FirstName" IsRequired="true" />        </Control>    </Control></Form>

Properties

Property	Details
FormEntityType required	Type Int64 Description In a Form, an Entity Type is defined and the Binding of this Form will be loaded from this EntityType. The FormEntityType property represents this EntityType.
Identifier required	Type String Description Unique identifier of the HomonymEntityLink.

Child Element: Filter

Defines combination of property comparison to use to find homonyms.

Properties

Property	Details
ComparisonProperty1 optional	Type Int64 Description Defines the property used to compare with the form control Property. It should not be defined if it the same as the property in the attribute Property. Going from 1 to 5.
Expression1 optional	Type String Description Defines the C# expression to apply on the homonymy form controls. The result of the expression evaluation will be compared with the corresponding ComparisonProperty using the defined Operator. If the ComparisonProperty is a computed property, no need to define the expression if it is the same as the one for the computed property. It will be automatically used when finding homonyms. Going from 1 to 5. See the C# utility functions topic for additional information.
Operator1 default value: 2	Type QueryComparisonOperator Description Defines the operator to use to compare between the ComparisonProperty and the Property or the Expression evaluation result. By default the Equal operator is used. Going from 1 to 5. All possible values: 0 - Auto: The Operator is calculated by the engine according to the type of element. 1 - NotEqual: finds the elements that are not equal to the desired value. 2 - Equal: finds the elements that are strictly equal to the desired value. 3 - Contain: finds the elements that contain the desired value. 4 - StartWith: finds the elements that start with the desired value. 5 - EndWith: finds the elements that end with the desired value. 6 - NotContain: finds the elements that do not contain the desired value. 7 - NotStartWith: finds the elements that do not start with the desired value. 8 - NotEndWith: finds the elements that do not end with the desired value. 9 - GreaterThan: finds the elements that are greater than the desired value. 10 - LessThan: finds the elements that are less than the desired value. 11 - GreaterThanOrEqual: finds the elements that are greater than or equal to the desired value. 12 - LessThanOrEqual: finds the elements that are less than or equal to the desired value. *- Flexible: The Flexible operators transform the desired value according to the FlexibleComparisonExpression defined in the EntityProperty then search. The flexible operators are: 13 - FlexibleEqual 14 - FlexibleContain 15 - FlexibleStartWith 16 - FlexibleEndWith
Property1 optional	Type Int64 Description Defines the form control property to use to compare with ComparisonOperator using the defined Operator. Going from 1 to 5.

Workflows

• Aspects
• Forms
• Homonym Entity Link
• Workflow

Workflow

In Identity Manager, a workflow is a set of elemental units called activities that are stored as a model to describe a real-world process. A workflow provides a mechanism for automating multi-step processes across the application. It can be depicted as a sequence of operations, declared as work of a person or group, an organization of staff, or one or more simple or complex mechanisms.

Examples

The following example declares a simple workflow called Directory_User_StartInternal that involves resources from the entity type Directory_User.

    <Workflow Identifier="Directory_User_StartInternal" DisplayName_L1="User - New Employee" VariablesType="Workflow_Directory_User">
        <Activity ... />        ...
    </Workflow>

Properties

Property	Details
DisplayName_L1 required	Type String Description Workflow' name displayed in the UI. This column is used for the first language.
Identifier required	Type String Description Unique identifier of the workflow.
IdentifierPrefix optional	Type String Description Workflow's identifier prefix, used to prefix the workflow's activity instances.
VariablesType required	Type Int64 Description Entity type of the resources involved by the workflow. Must follow the naming convention Workflow_<EntityType>.

Child Element: Activity

In Identity Manager, an activity is a elemental unit used to model a workflow's steps, such as the request of new records, the mailing of notifications to users about pending approvals, or the approval/decline of modifications. A workflow is made of a series of successive activities.

Examples

The following workflow is made of four activities to add a new worker in the system.

<Workflow Identifier="Directory_User_StartInternal" DisplayName_L1="User - New Employee" VariablesType="Workflow_Directory_User">
    <Activity Identifier="Request"  DisplayName_L1="Request" Template="ActionWithRefine" />
    <Activity Identifier="PersistDraft"  DisplayName_L1="Draft Creation" Template="PersistOnlyResources" WorkflowOverviewDisable="1"/>
    <Activity Identifier="Review"  DisplayName_L1="Review" Template="ReviewWithFeedback" />
    <Activity Identifier="Persist"  DisplayName_L1="Commit" Template="Persist" WorkflowOverviewDisable="1"/>  </Workflow>

Properties

Property	Details
ArgumentBlockProvisioning default value: false	Type Boolean Description true to block provisioning orders (argument used only for an activity following the template Persist or PersistOnlyResources).
ArgumentCalledWorkflow optional	Type Int64 Description Workflow to call (argument used only for an activity following the template ContinueWith).
DisplayName_L1 required	Type String Description Activity's name to display in the UI. This column is used for the first language.
Identifier required	Type String Description Unique identifier of the activity.
Template required	Type Enumeration Description Identifier of the activity template. All possible values: - Action: awaits user modifications without another user's intervention. - ActionWithRefine: awaits user modifications with the possibility to delegate the action to another user. - Review: awaits user approval without another user's intervention. - ReviewWithFeedback: awaits user approval with the possibility of getting feedback from another user before taking the action. - Persist: saves the workflow's collected data to the repository and triggers dependant processes (i.e. provisioning). - PersistOnlyResources: saves the workflow's collected data to the repository and without triggering dependant processes (i.e. provisioning). - ContinueWith: Gets the previous activities of the workflow and continues starting from a given activity of another workflow.
WorkflowOverviewDisable default value: false	Type Boolean Description true to disable the activity's appearance on the Workflow Overview screen.
