Install the Server

Usercube Server can be installed on the same workstation as the database or on a separate workstation. If you are installing Usercube within the SaaS offering, this section is moot. You can skip directly to Set up End-User Authentication.

Please make sure that the server requirements are met before going further.

Server Working Directory

In Create a Working Directory, the server executable has been extracted to the working directory as Usercube-Server.exe and Usercube-Server.dll and will enable a user or IIS to run the Usercube Server.

Set up the License Key

The license key provided by Usercube must be set up in the appsetting.json > License attribute.

Create an IIS Website

It is recommended to run the Usercube Server as an IIS website.

To install the Usercube Server as a Windows service, please jump to [Install the Server as a Windows Service].

Adding the Usercube Server as an IIS website can be achieved with the Internet Information Services (IIS) Manager which can be launched with the INETMGR.MSC command. You need to have an IIS 10.0 or greater.

An IIS website must be created using the Microsoft guide and the following parameters:

1. Site name: Usercube<Organization> is the recommended naming convention.

2. Physical path: /<working directory>/Runtime

3. Type: http

4. IP address: All unassigned

5. Port & Hostname: To access the Usercube Server and the UI. Use the hostname and port that has been reserved for Usercube.

During installation, the following information guides some of your choices:

The Usercube Server uses an in-process hosting model.
Usercube Server's web.config can be found in the Runtime folder.
The Usercube Server uses .Net.

After creation, the following settings are recommended:

Application Pool > Usercube<Organization> > Advanced Settings > General > Start Mode set to AlwaysRunning;
Application Pool > Usercube<Organization> > Advanced Settings > Process Model > Idle Time-out (minutes) set to 0 and Load User Profile set to True;
Application Pool > Usercube<Organization> > Recycling > Regular time intervals set to 0.

Recycling the application pool creates a discontinuation in the connection between server and agent, which can disrupt some of Usercube's features such as the job scheduler. IIS already recycles the application pool at each setting change, thus NETWRIX recommends not using periodic recycling.

The following is mandatory:

Application Pool > Usercube<Organization> > Advanced Settings > General > .NET CLR Version > No Managed Code

To sum up IIS settings:

IIS Settings

An SSL Certificate should also be set to the IIS Server to perform HTTPS communication with end-users.

Hosting Bundle

You need to install the dotnet hosting bundle (version 8.0 or higher) to be able to run dotnet application.

Select a Server Identity

The Usercube Server, through the IIS Website, should be assigned a service account with the relevant permissions.

Create the service account

This section requires using an Active Directory account with sufficient privileges to create service accounts on the domain.

Log on to a Windows server in the target domain environment. You should use an account with the necessary permissions to create new domain accounts.

The target domain is the domain where SQL Server is installed.
Access the Active Directory User and Computers tool with the command dsa.mc.
Select the target domain.
Click Users.
From the users list, right-click to select New > User.
Choose a mnemonic First Name for the Usercube Server. Example: UsercubeContosoServer.
Remember for later, the down-level logon name in the format DOMAIN/userName. Example: CONTOSO/identitymanagerContosoServer.
Click Next.
Choose a password. Remember it for later.
Check User cannot change password.
Check Password never expires.

This newly created service account is a domain account and will be used as an IIS identity.

You can go further and use Managed Service Account to avoid dealing with the service account password update yourself and let Windows worry about it. This feature requires installing Usercube on Windows Server 2016 or later, and using an Active Directory with a forest level set to Windows Server 2016 or later.

Set an IIS identity

The following implies that a custom service account has already been created for the Usercube Server.

Open the IIS Manager (INETMGR.MSC).
Open the Application Pools node underneath the machine node.
Select the Usercube/<Organization> application pool.
Right-click and select Advanced Settings.
In the Process Model section, on the Identity list item, click on the three dots to open the Application Pool Identity dialog.
Select the Custom Account radio button and click on Set.
Enter the previously created Service Account credentials:
- User name in the format DOMAIN/userName that you have previously written down.
- Password, previously remembered.
Click OK. You're all set.

The Usercube Server IIS site will now use this identity to access the database and the working directory.

Set the Server Permissions

Set the database permissions

The service account used by the Server to access the database needs the following database-level roles in SQL Server:

public
dbowner

And the following server-level role:

Administer bulk operations

This guide will show you how to perform these operations using SQL Server Management Studio.

Open SQL Server Management Studio (SSMS).
Log in to access the server on which runs the Usercube Database with an account member of the sysadmin or securityadmin server-level role.
Expand the Security node.
Expand the Login node.
Look for the Usercube service account in the list.
If you cannot find the service account:
- From the Login node, right-click and select New > Login.
- On the General page, enter the service account login name in the down-level logon format, such as CONTOSO/identitymanagerContosoServer. If you're not sure about the correct spelling of your service account or domain, you can search for it using the search window. From the Login node, right-click and select New login > Login name > Search.
- Then, choose eitherWindows authentication if you chose to connect the server to the database with a Windows service account (Integrated Security=SSPI in the connection string) or a SQL Server authentication for a SQL Server account (if you set up the connection string with a login/password). In the SQL case, fill in the same password in the form as in the connection string. You should now see the newly created login in the Login list.
From the Login node, right-click the newly created login and select Properties.
Go to the Server Roles page on the left.
Make sure public is checked.
Go to User Mapping.
Make sure Usercube/<Organization/> is checked (top panel), as well as db_owner and public (bottom panel).

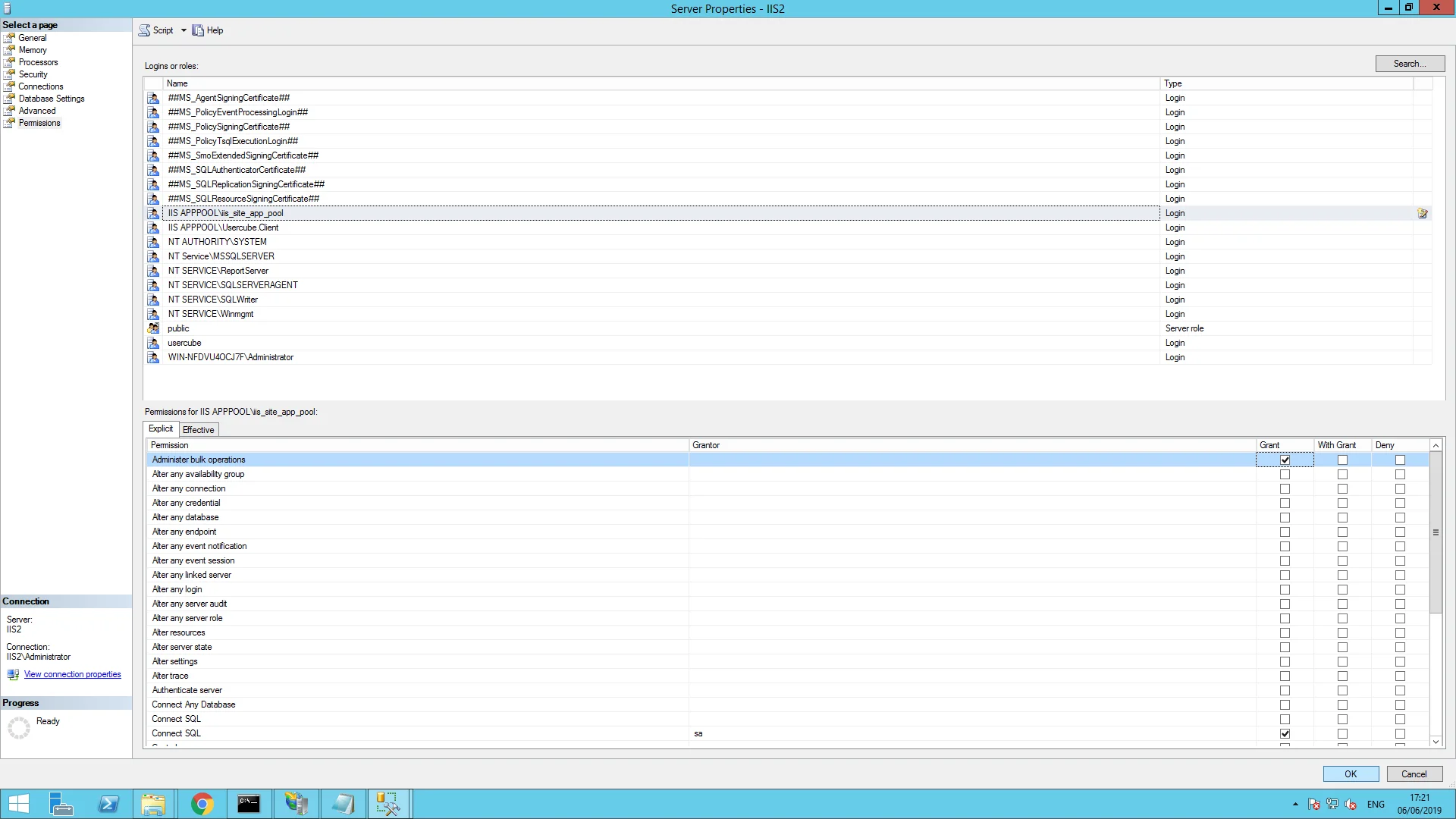

Right-click the Server root node and select Properties.
In the Permissions tab, select the service account or group name set up or found in Step 6 or 7.
Grant the Administer bulk operations permission.
Confirm with OK.

Usercube Server now has the required permissions to access the database.

Set the working directory permissions

The Usercube Server needs specific permissions on the working directory to run, read synchronization output, and write provisioning orders.

Up to four folders have to be considered:

The working directory
The runtime directory, usually C:/identitymanager<Organization>/Runtime
The data collection directory, usually C:/identitymanager<Organization>/Temp
The provisioning orders directory, usually C:/identitymanager<Organization>/Temp (same as for the data collection directory).

The following steps can be performed for each of the relevant directories.

First, let's check what permissions the service account already has.

Go to the working directory parent folder.
Right-click the working directory.
Select Properties.
Select Security.

From there, you have two choices.

The Usercube Server service account that was chosen in the previous step:

Already has or belongs to a group that already has the needed permissions. There is nothing more to do.
Is missing one of the needed permissions:
1. Click on Edit.
2. Click on Add.
3. In the Enter the object names to select textbox, enter the service account name in the down-level logon format, such as CONTOSO/identitymanagerContosoServer.
4. Click OK.
5. Select the newly added user name in the Group or user names panel at the top of the window.
6. Check the Allow column for the relevant permissions. Check the Deny column for the others.
7. Apply OK.

The working directory permissions are all set.

The same steps have to be performed on the runtime, the data collection and the provisioning orders directories.

Encryption and Authentication Key Pairs

The Usercube Server requires an RSA-2048 encryption key pair to perform various encryption operations, such as source, configuration, or log file encryptions. Usercube's Identity Server also needs an RSA-2048 authentication key pair for end-user authentication purposes.

These certificates don't need to be integrated into the target organization's Public Key Infrastructure (PKI) and don't require an expiration date. They're only relevant to specific Usercube temporary data and can be changed at any time.

Each RSA key pair, as in an X.509 public key certificate and a private key, can be stored one of two ways:

As a PKCS #12 archive (also called Personal Information Exchange file or .pfx file) stored in the Server's host file system. The file contains both the public key certificate and the private key.
As a certificate from a Windows' certificate store identified by SubjectDistinguishedName or by Thumbprint. The Windows certificate also contains both the public key certificate and the private key. This is the recommended method.

The key pairs can be generated with tools such as OpenSSL or Microsoft's New-SelfSignedCertificateandpvk2pfx tool.

Here's an example showing how to generate a PKCS #12 archive (UsercubeContoso.pfx) bundling a public key certificate (usercubecontoso.cert) and an RSA-2048 private key (usercubecontoso.key) with OpenSSL, with a 50-year expiration date:

openssl req -x509 -newkey rsa:2048 -keyout usercubecontoso.key -out usercubecontoso.cert -days 18250

openssl pkcs12 -export -out UsercubeContoso.pfx -inkey usercubecontoso.key -in usercubecontoso.cert

Public key certificates can also be bought from trusted certificate providers and bundled with a private key into a PKCS #12 archive using step 2 in the frame above.

Generate and use an encryption key pair

This is the key pair used to perform various encryption operations, such as source, configuration, or log file encryptions.

Generate a key pair using the OpenSSL method.
Store the key pair as a .pfx file or use the Windows certificate store (recommended) .
Link the generated certificate to Usercube (see appsettings.json > EncryptionCertificate).

Generate and use an identity server key pair

This is the key pair used by the Identity Server for end-user authentication purposes.

Generate a key pair using the OpenSSL method.
Store the key pair as a .pfx file or use the Windows certificate store (recommended).
Link the generated certificate to Usercube (see appsettings.json > IdentityServer).

Certificate as a plain file

The following parameters are used to link the file to Usercube in the IdentityServer section.

PKCS #12 archive can be password protected, hence the X509KeyFilePassword attribute.

Storing a .pfx file password in plain text in a production environment is strongly discouraged. The password should always be encrypted using the Usercube-Protect-CertificatePassword tool.

    appsettings.json

{ ... "IdentityServer": { "X509KeyFilePath": "./identitymanagerContoso.pfx", "X509KeyFilePassword":
"eff@�%fmel/" } ... }

Certificate in the certificate store

The certificate can be stored in the certificate store instead of the file system. This is the recommended method.

    appsettings.json
{
...
"IdentityServer": {
"X509SubjectDistinguishedName":"UsercubeContoso",
"X509StoreLocation": "LocalMachine",
"X509StoreName": "AuthRoot"
}
...
}

Connect the Server to the Database

Now that the Usercube Server has been provided with a service account with the right permissions, let's finalize the setup.

The connection between the Server and the Database requires choosing an authentication method: Windows Authentication or SQL Server authentication. Windows authentication will require the IIS identity to be set to the custom Windows service account used to log in to the Usercube's Windows Server session. SQL authentication will work with both the built-in app pool identity and a custom service account. This authentication method will write the login and password directly in the connection string.

Runtime/appsettings.json is a technical configuration file that enables you to set up the connection between the Server and the Database through the ConnectionString attribute.

The connection string is set up in the Runtime/appsettings.json configuration file which can be edited with any text editor, such as Notepad++.

If the SQL Server is hosted on Azure, you should use the AzureCredentials setting before going further.

In theRuntime/appsettings.json file, find or write the ConnectionString attributes following the examples shown below:

The first example sets a connection string using the Windows authentication (Integrated Security=SSPI) to connect, on a local SQL Server system (source=.), to the UsercubeContoso database created in Install the Database.

The service account used by the Server to access the Database is either:

A Windows account if the connection string was set up using Integrated Security=SSPI.
A SQL Server account if the connection string was set up with a login/password.

appsettings.json

{
...
"ConnectionString": "data source=.;Database=UsercubeContoso;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;"
...
}

The second example sets a connection string using the SQL Server authentication. CONTOSO/identitymanagerContosoServer has been set as the Usercube Server IIS website identity.

appsettings.json

{
...
"ConnectionString": "data source=.;Database=Usercube;User Id=CONTOSO/identitymanagerContosoServer;Password=myPassword;Min Pool Size=10;encrypt=false;"
...
}

SQL Server authentication stores plain text credentials in the configuration file. This is strongly discouraged. To avoid storing plain text credentials, you should always strive to use Windows authentication or encrypt sensitive setting values such as the connection string.

SSL Certificate

The Usercube Server requires the use of an SSL Certificate trusted by all the target end-users' browsers. The standard setup is to use a certificate signed by the target organization's PKI root Certificate Authority and import the certificate into the end-user's Windows Store.

This can be achieved using the Microsoft Management Console (MMC).

Open the MMC (Start > Run > MMC).
Click on File > Add/Remove Snap In.
Double-click on Certificates.
Click on Computer Account.
Click on Local Computer > Finish.
Click OK.

The Snap-in window closes.
Go to Certificates > Personal > Certificates.
Click +.
Right-click Certificates.
Go to All Tasks > Import.
Click Next.
Click Browse.
Browse to the SSL Certificate you want to use and click Next.
Select Automatically select the certificate store based on the type of certificate.
Click Finish and OK.

The certificate is now visible in IIS > Server Certificates.

DNS

Your organization's DNS needs to be updated according to the requirements indicated in Hostname and DNS.

Test Your Installation

Make sure the IIS site is running.
Go to the following URL with a browser: <hostname>:<port>/hc with the hostname and port set up in Create an IIS website.
The Usercube Server is trying to access the Database. If it succeeds, the message "Healthy" should be displayed in the browser.

Configure the Starting Mode in IIS (optional)

This step is important if the scheduler is enabled. IIS starts the Usercube Server only if an incoming http request is made on the server and the scheduler is not launched until the Usercube Server is started. Because of that, you need to carefully set up the starting mode of IIS to force the starting of the Usercube Server.

The Usercube Server warm up is done using the <applicationInitialization> element in the web.config file, the configuration is described here: https://docs.microsoft.com/en-us/iis/get-started/whats-new-in-iis-8/iis-80-application-initialization

You need to:

Enable the Application Initialization feature
Modify the applicationHost.config file to set the startMode of the application pool as AlwaysRunning. You also need to set the preloadEnabled of your application set to true. It is advised to backup the applicationHost.config file when doing this step to prevent mistakes
Double check that the following section is set in your web.config file, in the section system.webServer:

<applicationInitialization doAppInitAfterRestart="true">
  <add initializationPage="/" />
</applicationInitialization>

Once done, you need to check that the configured jobs are launched via the Usercube's scheduler without having to manually issue a request on the Usercube Server.

If this is not correctly configured, any restart of your IIS or application pool could prevent jobs from being launched.

Set up End-User Authentication

The next step consists in setting up one or more authentication methods for end-users. You may choose one or several external authentication providers among the following:

Everything you need to know about setting up authentication is provided in the Technical Configuration Guide.

What's Next?

Install the Agent is the next step of the process.

Application Settings

This section describes the settings available in the server's appsettings.json file, located in the server's working directory or in environment variables.

JSON files can contain any additional information that you might find useful. See the example below.

For example, in order to store the agent's address, we can add:
appsettings.json

"UsercubeAgent": {
  "Url": "http://localhost:1234"
}
As Usercube does not know any object named UsercubeAgent, its content will be ignored, but it can still be used to store information for human use.

The appsettings set allows the following attributes and sections:

Name	Details
ApplicationUri required	Type String Description URI of the server to use in log messages, to communicate with the server in tasks, to allow certain redirect URIs. Note: must be the same as the agent's `appsettings.json`'s `ApplicationUri`. Example`appsettings.json { � "ApplicationUri": "usercubeserver.contoso.com:5000" }`
EncryptionCertificate required	Type [EncryptionCertificate] Description Settings to configure the encryption of specific files.
License required	Type String Description License key of the server. Example`appsettings.json { � "License": "{"LicensedTo":"Demo","ValidTo":"20120905","IdentityQuota":"10000","Signature":"�"}" }`
Agents optional	Type Agent List Description List of agents' settings used to work on several environments. Info: this way, each agent's URI/URL is configured without altering the database. Example`appsettings.json { � "Agents": { "Local": { "Uri": "http://localhost:5010" }, � } }`
AppDisplay optional	Type AppDisplay Description Settings to override the application display XML configuration. Info: useful to change the application's theme and name without redeploying the whole configuration.
ApplicationInsights optional	Type ApplicationInsights Description Settings to plug to and configure the AppInsights monitoring tool.
DataProtection optional	Type DataProtection Description Settings to configure the encryption used for the authentication cookies and the anti-forgery tokens. Info: data protection can be configured to share the keys between several instances of Usercube's server, for example when deployed in a cluster where the servers do not have the same machine id.
InstallationDirectoryPath default value: Usercube-Server.exe	Type String Description Path of the installation directory. Info: used to read other configuration files. Example`appsettings.json { � "InstallationDirectoryPath": "C://identitymanagerContoso/Runtime" }`
MailSettings optional	Type MailSettings Description Settings to configure the email service.
NotUseAgent default value: false	Type Boolean Description `True` to disable the use of the agent. Example`appsettings.json { � "NotUseAgent": true }`
OpenIdClients optional	Type OpenIdClient List Description List of hashed secrets used to override the plain-text secrets from the OpenIdClient XML configuration. Info: this way, Usercube stores only hashed secrets, for security purposes. Note: each environment must have its own secret, distinct from the others. Example`appsettings.json { � "OpenIdClients": { "Job": { "HashedSecret": "K7gNU3sdo+OL0wNhqoVWhr3g6s1xYv72ol/pe/Unols" }, "PowerBI": { "HashedSecret": "7b8N2NWka5alDrjM7rFqf7+xqq9LIcT5jSoQ+1Ci2V0" } } }`
PowerBISettings optional	Type PowerBISettings Description Settings to configure the API used by Power BI to access Usercube data.
Serilog optional	Type Serilog Description Settings to configure the logging service, complying to the Logger properties and structure. Example`appsettings.json { � "Serilog": { "WriteTo": [ "Console" ], "MinimumLevel": { "Default": "Error", "Override": { "Usercube": "Information" } } } }`
Swagger optional	Type Swagger Description Enabling Swagger enables visualizing and interacting with the API's resources without having any of the implementation logic in place. Info: it is automatically generated from Usercube's API, with the visual documentation making it easy for back-end implementation and client-side consumption.
TempFolderPath default value: ../Temp	Type String Description Path to the temporary folder which contains: - `ExportOutput`: directory storing data exported from connectors. - `JobLogs`: directory storing task instance logs. - `Reports`: directory storing generated reports. - `Packages`: directory storing the downloaded package logos. - `PolicySimulations`: directory storing the files generated by policy simulations. - `ProvisioningCache.txt`: file storing the clustered provisioning cache. Note: when enabled, this file can be used to coordinate the API cache among clusters. - `CorrelationCache.txt` - `RiskCache.txt` - `ExpressionCache.txt` - `scheduler.lock` - `connector.txt` - `container.reset.txt`: file acting as a reset command for Usercube's server, i.e. any change to this file triggers the reset service, thus reloading all the services instantiated by the server. Note: this path can be overridden by ResetSettings > FilepathResetService. - `Mails`: directory storing the email messages. Note: this path can be overridden by ResetSettings > PickupDirectory. - `Deployment` Note: these elements can be removed, but make sure to restart the server after doing so. Example`appsettings.json { � "TempFolderPath": "../Temp" }`
WorkFolderPath default value: ../Work	Type String Description Path of the work folder which contains: - `Collect`: directory storing the CSV source files exported by connectors. - `ProvisioningOrders`: directory storing the orders generated by the server. - `FulfillPowerShell`: PowerShell provisioner's working directory. - `FulfillRobotFramework`: Robot Framework's provisioner working directory. - `ExportCookies`: directory storing the cookies used for incremental export. - `Synchronization`: directory storing the agent's data collection results. - `Upload`: directory storing the uploaded media like uploaded pictures, before they are inserted into the database. - `appsettings.connection.json` Note: these elements must not be removed, because doing so may disrupt Usercube's execution after restarting. Example`appsettings.json { � "WorkFolderPath": "../Work" }`

Swagger

Name	Details
Enabled required	Type Boolean Description `True` to enable Swagger. Example`appsettings.json { � "Swagger": { "Enabled": false }, }`

EncryptionCertificate

This information can be set one of two ways:

As a Public Key Cryptography Standards (PKCS) #12 archive (also called Personal Information Exchange file or .pfx file) stored in the Agent's host file system. The archive contains both the public key certificate and the private key.
As a certificate from a Windows' certificate store identified by SubjectDistinguishedName or by Thumbprint. The Windows certificate also contains both the public key certificate and the private key.

NETWRIX recommends using Windows' certificate store.

On the other hand, the PFX file takes priority over Windows' certificate, which means that when File is specified then the PFX certificate is used, even if the options for Windows' certificate are specified too.

In both ways, missing and/or incorrect settings trigger an error and no certificate is loaded.

As a PFX file

For example:

{
    ...
    "EncryptionCertificate": {
        "File": "C:/identitymanagerAgentContoso/contoso.pfx",
        "Password": "oarjr6r9f00"
     }
 }

The archive is set using the following attributes:

Name	Details
File required	Type String Description PKCS #12 archive path on the host file system.
Password optional	Type String Description PKCS #12 archive password.

Storing a .pfx file password in plain text in a production environment is strongly discouraged. It should always be encrypted using the Usercube-Protect-CertificatePassword tool.

The archive is set using the following attributes:

Name	Details
File required	Type String Description PKCS #12 archive path on the host file system.
Password optional	Type String Description PKCS #12 archive password. Info: storing a `.pfx` file's password in plain text in a production environment is strongly discouraged. It should always be encrypted using the `Usercube-Protect-CertificatePassword.exe` tool.

As a Certificate in the Windows Store

For example:

 {
    ...
    "EncryptionCertificate": {
         "DistinguishedName":"UsercubeContoso",
         "StoreLocation": "LocalMachine",
         "StoreName": "AuthRoot"
     }
 }

The Windows certificate is set using these attributes:

Name	Details
DistinguishedName optional	Type String Description SubjectDistinguishedName of the store certificate. Note: required when `Thumbprint` is not specified.
Thumbprint optional	Type String Description Thumbprint of the store certificate. Note: required when `DistinguishedName` is not specified.
StoreLocation required	Type String Description Location of the relevant Windows certificate store: `LocalMachine` or `CurrentUser`.
StoreName required	Type String Description Name of the relevant Windows certificate store.

Using Azure Key Vault

If the certificate is saved in Azure Key Vault, we must define the certificate identifier and the Vault connection.

"EncryptionCertificate": {
    "CertificateAzureKeyVault": "<CertificateIdentifier>"
}

Disabling file encryption

The encryption of specific files can be disabled via the following attribute:

Name	Details
EncryptFile default value: true	Type Boolean Description `True` to encrypt specific files such as logs or temporary files. Example`appsettings.json { � EncryptionCertificate": { "EncryptFile": false } }`

MailSettings

For example:

appsettings.json

{
  ...
  "MailSettings": {
    "FromAddress": "no-reply@acme.com",
    "PickupDirectory": "C:/identitymanagerDemo/Temp/Mails",
    "UseSpecifiedPickupDirectory": true,
    "UseDefaultCredentials": false,
    "SecureSocketOption": "StartTlsWhenAvailable"
  }
}

Name	Details
FromAddress required	Type String Description Email address used as sender for Usercube's emails.
AllowedDomains optional	Type String Description List of allowed domains, separated by `;`.
CatchAllAddress optional	Type String Description Email address to be used as catchAll.
CatchAllCCAddress optional	Type String Description Email address to be used as CC catchAll.
Enabled default value: true	Type Boolean Description `True` to activate Usercube's email services.
EnableSsl default value: false	Type Boolean `DEPRECATED`: EnableSsl won't be supported in the future. Please specify a `SecureSocketOption` instead. To keep the same behavior as EnableSsl: `True`, use the setting `SecureSocketOption`: `StartTls`. Description `True` to encrypt communication with the SMTP server. Note: to be used only when `UseSpecifiedPickupDirectory` is set to `false`.
SecureSocketOption default value: Auto	Type String Description Specifies the encryption strategy to connect to the SMTP server. If set, this takes priority over `EnableSsl`. `None`: No SSL or TLS encryption should be used. `Auto`: Allow the mail service to decide which SSL or TLS options to use (default). If the server does not support SSL or TLS, then the connection will not be encrypted. `SslOnConnect`: The connection should use SSL or TLS encryption immediately. `StartTls`: Elevates the connection to use TLS encryption immediately after reading the greeting and capabilities of the server. If the server does not support the STARTTLS extension, then the connection will fail and a NotSupportedException will be thrown. `StartTlsWhenAvailable`: Elevates the connection to use TLS encryption immediately after reading the greeting and capabilities of the server, but only if the server supports the STARTTLS extension. Note: to be used only when `UseSpecifiedPickupDirectory` is set to `false`.
Host optional	Type String Description Name or IP address of the host used for SMTP transactions. Note: required when `UseSpecifiedPickupDirectory` is set to `false`.
Password optional	Type String Description Password to be used with the user name as credentials.
PickupDirectory optional	Type String Description Path of the folder where Usercube will save the email messages. Note: useful and required when `UseSpecifiedPickupDirectory` is set to `true`.
Port optional	Type String Description Port used for SMTP transactions. Note: required when `Host` is defined.
UseDefaultCredentials default value: false	Type Boolean Description `True` to use in requests the default credentials instead of those from `UserName` and `Password` here.
UserName optional	Type String Description User name to be used with the user name as credentials.
UseSpecifiedPickupDirectory default value: false	Type Boolean Description `True` to save email messages to the folder specified in `PickupDirectory` instead of sending them to their recipients through the host specified in `Host`. Note: required when `Host` is not defined.

ApplicationInsights

For example:

appsettings.json

{
  ...
  "ApplicationInsights": {
    "InstrumentationKey": "<AppInsights instance's key>"
  }
}

Name	Details
InstrumentationKey default value: null	Type String Description Key linked to the AppInsights instance to which the server's logs, requests, dependencies and performance are to be sent. See Microsoft's documentation to create an instrumentation key.

The logs sent to AppInsights are configured through the Logger properties.

PowerBISettings

For example:

appsettings.json

{
  "PowerBISettings": {
    "PageSize": 500
  }

}

Name	Details
PageSize default value: 1000	Type Int32 Description Size of the page containing the data returned by the API.

DataProtection

For example:

appsettings.json

{
  "DataProtection": {
    "KeysPath": "/home/DataProtection",
    "X509KeyFilePath": "../identitymanager.pfx",
    "X509KeyFilePassword": "secret"
  },
}

Name	Details
KeysPath default value: ../Work/DataProtection	Type String Description Path of the location where the keys' descriptions are stored.
X509KeyFilePath optional	Type String Description Path of the custom certificate used to protect the keys.
X509KeyFilePassword optional	Type String Description Password of the custom certificate used to protect the keys.

AppDisplay

For example:

appsettings.json

{
  ...
  "AppDisplay": {
    "PrimaryColor": "#01CDE9",
    "SecondaryColor": "#EA6E1A",
    "BannerColor": "#EA6E1A",
    "BannerTextColor": "#ffffff",
    "ApplicationNamePrefix": "QA - ",
    "ApplicationName": "USERCUBE"
  },
  ...
}

Name	Details
ApplicationName optional	Type String Description Name of the application, visible on the application's tabs.
ApplicationNamePrefix optional	Type String Description Prefix to be displayed before the application name.
BannerColor optional	Type String Description HEX code of the color for the banner, i.e. the header displaying logo and navigation bar.
BannerTextColor optional	Type String Description HEX code of the color for the banner's text.
PrimaryColor optional	Type String Description HEX code of the color for the highlighted buttons.
SecondaryColor optional	Type String Description HEX code of the color for the background of the authentication screen.

See more details on application display settings.

Server Configuration

Usercube Server's technical configuration includes settings on end-user authentication, database connection and some general-purpose settings.

Configuration Files

The Server configuration is included in the Server's appsettings set.

The appsettings set content can be written to appsettings.json in the Server's working directory or to environment variables. See the Architecture topic for additional information.

The server appsettings supported attributes and sections are described in the following sections:

Database Connection
End-User Authentication
General-Purpose Settings

See the Connection to the Database , End-User Authentication and Application Settings topics for additional information.

Secret and Certificate Management

All the certificates and secrets present in the settings can be loaded with an Azure Key Vault.

See the Azure Key Vault topic for additional information.

Default Configuration

The default behavior of the server configuration is outlined through an example.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

{
    "IdentityServer": {
        // Token signing certificate stored in a file
        "X509KeyFilePath": "<./identitymanagerContoso.pfx>",
        // Optional certificate password
        "X509KeyFilePassword": "<secret>"
    },
    "Authentication": {
        "RequireHttpsMetadata": false,
        "TestUserStore": {
            "Enabled": "<true>",
            "Password": "<secret>"
        },
        "AllowLocalLogin": true
    }
}

RSA Encryption

Usercube provides a few options to protect sensitive data via RSA encryption.

Overview

Sensitive data can be RSA encrypted by using Usercube's tools:

Usercube-Protect-X509JsonValue.exe to encrypt given values;
Usercube-Protect-X509JsonFile.exe to encrypt a whole file.

The file encryption tool should be used only on files that contain only plain text values, not already encrypted ones.

Once encrypted, sensitive values can be added to the appsettings.encrypted.json file. Usercube will read first the values from the encrypted appsettings file, before reading those from the usual non-encrypted appsettings file.

These methods require an X.509 public key certificate (the same for the encrypted appsettings file and the tools).

The value encryption tool can be used to encrypt specific values to be added to the encrypted appsettings file without having to encrypt the whole file again.

Focus on the Encrypted Appsettings File

The appsettings.encrypted.json file contains the appsettings.json file's sensitive setting values which are protected by RSA encryption.

This file follows the exact same structure as the server's configuration files.

Read the Encrypted File

Usercube can use an RSA decoding algorithm fed by a public-key certificate in order to read the encrypted application settings.

This requires the usual appsettings file(s) to have UseEncryptedAppsettings set to true. See below.

appsettings.json and/or appsettings.agent.json

{
    ...
    "EncryptionCertificate": {
        "File": "./identitymanager.pfx",
        "Password": "secret",
        "UseEncryptedAppsettings": true
    }
}

This way, values from the encrypted file take priority over the values from the non-encrypted appsettings files.

For example, if Password exists in both the encrypted file and the non-encrypted file, then the value from the encrypted file is used.

Server Working Directory​

Set up the License Key​

Create an IIS Website​

Hosting Bundle​

Select a Server Identity​

Create the service account​

Set an IIS identity​

Set the Server Permissions​

Set the database permissions​

Set the working directory permissions​

Encryption and Authentication Key Pairs​

Generate and use an encryption key pair​

Generate and use an identity server key pair​

Certificate as a plain file​

Certificate in the certificate store​

Connect the Server to the Database​

SSL Certificate​

DNS​

Test Your Installation​

Configure the Starting Mode in IIS (optional)​

Set up End-User Authentication​

What's Next?​

Application Settings

Swagger​

EncryptionCertificate​

As a PFX file​

As a Certificate in the Windows Store​

Using Azure Key Vault​

Disabling file encryption​

MailSettings​

ApplicationInsights​

PowerBISettings​

DataProtection​

AppDisplay​

Server Configuration

Configuration Files​

Secret and Certificate Management​

Default Configuration​

RSA Encryption

Overview​

Focus on the Encrypted Appsettings File​

Read the Encrypted File​

Server Working Directory

Set up the License Key

Create an IIS Website

Hosting Bundle

Select a Server Identity

Create the service account

Set an IIS identity

Set the Server Permissions

Set the database permissions

Set the working directory permissions

Encryption and Authentication Key Pairs

Generate and use an encryption key pair

Generate and use an identity server key pair

Certificate as a plain file

Certificate in the certificate store

Connect the Server to the Database

SSL Certificate

DNS

Test Your Installation

Configure the Starting Mode in IIS (optional)

Set up End-User Authentication

What's Next?

Swagger

EncryptionCertificate

As a PFX file

As a Certificate in the Windows Store

Using Azure Key Vault

Disabling file encryption

MailSettings

ApplicationInsights

PowerBISettings

DataProtection

AppDisplay

Configuration Files

Secret and Certificate Management

Default Configuration

Overview

Focus on the Encrypted Appsettings File

Read the Encrypted File
