Sql

This connector exports data from one of various Database Management Systems.

This page is about:

Package: Directory/Database/Generic SQL

Package: Directory/Database/Microsoft SQL Server

Package: Directory/Database/MySQL

Package: Directory/Database/ODBC

Package: Directory/Database/Oracle

Package: Directory/Database/PostgreSQL

Package: Directory/Database/SAP ASE

Overview

A database is a collection of relational data which represents some aspects of the real world. A database system is designed to be built and populated with data for a specific task.

A Database Management System (DBMS) is a software for storing and retrieving users' data while considering appropriate security measures.

Some popular DBMS systems are Microsoft SQL Server, MySQL, Oracle, PostgreSQL, etc.

The goal of this connector is to connect to a DBMS and execute a query in order to export a table.

Prerequisites

Implementing this connector requires:

the configuration of a DBMS system;

For example for Microsoft SQL Server 2017, see Microsoft's documentation for planning a SQL Server installation, the SQL Server installation guide and (optionally) downloading SQL Server Management Studio (SSMS).
creating a database MyDb with several tables and data so the user can query on the database, for testing purposes.

Export

This connector exports the content of any table from an SQL database and writes it to a CSV file.

Configuration

This process is configured through a connection in the UI and/or the XML configuration, and in the appsettings.agent.json > Connections section:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "<ConnectionIdentifier>": {
      ...
    }
  }
}

The identifier of the connection and thus the name of the subsection must:

be unique.
not begin with a digit.
not contain <, >, :, ", /, \, |, ?, * and _.

The following example configures the connection to Microsoft SQL Server and exports the table UC_Connectors from the database MyDb:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SqlExport": {
      "ConnectionString" : "data source=.;Database=MyDb;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;",
      "SqlCommand": "SELECT * FROM [MyDb].[dbo].[UC_Connectors]"
    }
  }
}

Setting attributes

Name	Details
ConnectionString required	Type String Description Connection string of the database. See the specific syntax.
Timeout optional	Type Int32 Description Time period (in seconds) after which the request attempt is terminated and an error is generated.

---	---
SqlCommand optional	Type String Description SQL request to be executed. Note: when not specified and `SqlFile` neither, then all the entity type mappings of this connector will be exported.
SqlFile optional	Type String Description Path of the file containing the SQL request to be executed. Note: ignored when `SqlCommand` is specified. Note: when not specified and `SqlFile` neither, then all the entity type mappings of this connector will be exported.
CsvEncoding default value: UTF-8	Type String Description Encoding of the file. See the list of available encodings.
ProviderClassFullName optional	Type String Description Invariant name to register the provider. Note: required when querying a DBMS other than Microsoft SQL Server.
ProviderDllName optional	Type String Description DLL, i.e. name and extension, to be loaded by the connector. Note: the DLL must be in the `Runtime` folder. Note: required when querying a DBMS other than Microsoft SQL Server.
IsolationLevel default value: ReadUncommitted	Type String Description Locking behavior of the transaction: `ReadUncommitted`; `ReadCommitted` - used for the databases that do not support the ReadUncommitted level, like Oracle databases.

Connect to other DBMS

Connect to a DBMS other than Microsoft SQL Server by proceeding as follows:

Download and extract the package.

For MySQL, download the package from MySql.Data.
Copy the DLL file (corresponding to the correct .Net version) to the Runtime folder.

For MySQL, the DLL is MySql.Data.dll.

Get the value required for ProviderClassFullName and ProviderDllName:

for a DBMS handled by Usercube's packages, by accessing the package page;

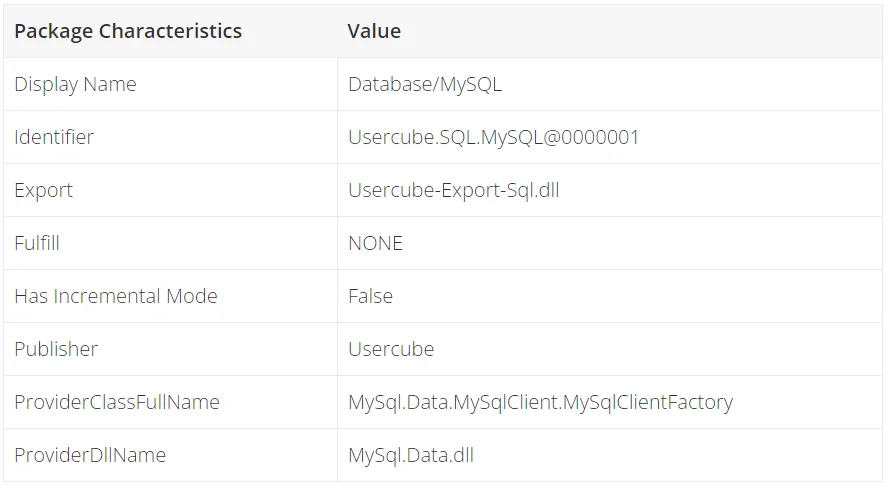

For MySQL:

for another DBMS, by accessing the DBMS' documentation for .Net and finding a class with Factory in its name.

If MySQL were not part of Usercube's packages, you would see MySqlClientFactory.

The Factory class must derive from DbProviderFactory. After verification, the ProviderClassFullName can be found in the Inheritance Hierarchy of the class.

For MySQL, here ProviderDllName is MySql.Data.dll and ProviderClassFullName is MySql.Data.MySqlClient.MySqlClientFactory.

Then the following example configures the connection to MySQL and exports the table UC_Connectors from the database MyDb (the SQL command is inside mySql.sql):

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SqlExport": {
      "ConnectionString" : "Server=localhost;Database=MyDb;Uid=root;Pwd=secret",
      "SqlFile": "C:/identitymanagerDemo/Conf/Sql/mySql.sql",
      "ProviderClassFullName": "MySql.Data.MySqlClient.MySqlClientFactory",
      "ProviderDllName": "MySql.Data.dll"
    }
  }
}

Another example for ODBC:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SqlExport": {
      "ConnectionString": "Driver=ODBC Driver 17 for SQL Server;Server={YOUR-PC}\\SQLEXPRESS;Database={Database Name};Hostname=Localhost;DBALIAS={Database Alias};trusted_connection=Yes",
      "ProviderClassFullName": "System.Data.Odbc.OdbcFactory",
      "ProviderDllName": "System.Data.Odbc.dll",
      "SqlCommand": "SELECT * FROM {Table Name}",
      "IsolationLevel": null
    }
  }
}

Output details

This connector is meant to generate to the ExportOutput folder one CSV file, named <connectionIdentifier>.csv whose columns correspond to the columns returned by the SQL query.

Fulfill

There are no fulfill capabilities for this connector.

Authentication

Password reset

This connector does not reset passwords.

Credential protection

Data protection can be ensured through:

RSA encryption, configured in the appsettings.encrypted.agent.json file;
an Azure Key Vault safe;

Attribute	Naming Convention for the Key in Azure Key Vault
ConnectionString	`Connections--<identifier>--ConnectionString`
SqlCommand	`Connections--<identifier>--SqlCommand`
SqlFile	`Connections--<identifier>--SqlFile`
CsvEncoding	`Connections--<identifier>--CsvEncoding`
ProviderClassFullName	`Connections--<identifier>--ProviderClassFullName`
ProviderDllName	`Connections--<identifier>--ProviderDllName`
Timeout	`Connections--<identifier>--Timeout`

CyberArk is not available for this connector.

Sql Server Entitlements

This connector exports entitlements from Microsoft SQL Server.

This page is about Database/Microsoft SQL Server Entitlements.

Package: Database/Microsoft SQL Server Entitlements

Overview

Usercube can manage permissions within Microsoft SQL Server, by exporting the server's and databases' principals, i.e. entities that can request Microsoft SQL Server's resources.

SQL Server supports three types of principals:

logins at the server level;
users at the database level;
roles (if any) at either level.

Every principal includes a security identifier (SID).

Prerequisites

Implementing this connector requires:

the configuration of a Microsoft SQL Server system;

For example, for Microsoft SQL Server 2017, see Microsoft's documentation for planning a SQL Server installation, the SQL Server installation guide and (optionally) downloading SQL Server Management Studio (SSMS);
understanding the concept of principals, roles and permissions;

A little help on that with:

Principals (Database Engine);

Create a Login;

Server-Level Roles;

Create a Database User;

Database-Level Roles;

Permissions (Database Engine);

Permissions Hierarchy (Database Engine).
a ConnectionString with a Login to connect to the SQL Server, where either the login has the sysadmin role, or:
- the login has the securityadmin role, in order to export server principals;
- each database to export has a database user attached to the login with at least one role among db_accessadmin, db_owner and db_securityadmin, in order to export database principals.
Securables can also be defined manually for both the server and database principals, but this is more complicated and hence not recommended.

Export

This connector exports from one or several databases to CSV files the following tables:

sys.server_principals;
sys.server_role_members;
sys.database_principals;
sys.database_role_members.

This connector exports only in complete mode.

Configuration

This process is configured through a connection in the UI and/or the XML configuration, and in the appsettings.agent.json > Connections section:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "<ConnectionIdentifier>": {
      ...
    }
  }
}

The identifier of the connection and thus the name of the subsection must:

be unique.
not begin with a digit.
not contain <, >, :, ", /, \, |, ?, * and _.

The following example connects Usercube to Microsoft SQL Server and exports the principals from the databases UsercubeDemo and AdventureWorks2017:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SqlServerEntitlementsExport": {
      "ConnectionString": "data source=.;Database=Usercube;Integrated Security=SSPI;Min Pool Size=10;encrypt=false;",
      "Databases": [ "UsercubeDemo", "AdventureWorks2017" ]
    }
  }
}

Setting attributes

Name	Details
ConnectionString required	Type String Description Connection string of the database. See the specific syntax.
Timeout optional	Type Int32 Description Time period (in seconds) after which the request attempt is terminated and an error is generated.

---	---
Databases optional	Type String List Description List of databases to be exported. Note: when not specified, all databases from the SQL Server are exported.

Output details

This connector is meant to generate to the ExportOutput folder the following CSV files:

<connectionIdentifier>_serverPrincipals.csv;
<connectionIdentifier>_serverRoleMembers.csv;
<connectionIdentifier>_databasePrincipals.csv;
<connectionIdentifier>_databaseRoleMembers.csv.

For example, if the connection identifier is SqlServerEntitlementsExport, then the file names are SqlServerEntitlementsExport_serverPrincipals.csv, etc.

The output files' columns are the columns returned by the SQL query.

Fulfill

There are no fulfill capabilities for this connector.

Authentication

Password reset

This connector does not reset passwords.

Credential protection

Data protection can be ensured through:

RSA encryption, configured in the appsettings.encrypted.agent.json file;
an Azure Key Vault safe;

Attribute	Naming Convention for the Key in Azure Key Vault
ConnectionString	`Connections--<identifier>--ConnectionString`
Timeout	`Connections--<identifier>--Timeout`

CyberArk is not available for this connector.

Generic SQL

Exports data from a SQL database.

Package Characteristics	Value
Display Name	Database/Generic SQL
Identifier	Usercube.SQL@0000001
Export	Usercube-Export-Sql.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube

When creating a connection to a database which is not handled by Usercube's packages, you'll need to fill in the ProviderDllName and ProviderClassFullName properties of the SQL connector using the procedure given in the example.

MySQL

Export data from a MySQL database.

Package Characteristics	Value
Display Name	Database/MySQL
Identifier	Usercube.SQL.MySQL@0000001
Export	Usercube-Export-Sql.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube
ProviderClassFullName	MySql.Data.MySqlClient.MySqlClientFactory
ProviderDllName	MySql.Data.dll

To use this package, MySql.Data.dll needs to be downloaded from the MySQL website (selecting the .NET & Mono operating system) and copied to the Runtime folder.

You can click on the Archives tab to find other versions.

Oracle Database

Export data from an Oracle database.

Package Characteristics	Value
Display Name	Database/Oracle
Identifier	Usercube.SQL.Oracle@0000001
Export	Usercube-Export-Sql.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube
ProviderClassFullName	Oracle.ManagedDataAccess.Client.OracleClientFactory
ProviderDllName	Oracle.ManagedDataAccess.Core

For this package, the default isolation level is ReadCommitted.

To use this package, Oracle.ManagedDataAccess.Core needs to be downloaded from the Oracle website (selecting the ODP.NET release) and copied to the Runtime folder.

NOTE: The DLL in the "Oracle.ManagedDataAccess" package isn't compatible with .NET 8

PostgreSQL

Export data from a PostgreSQL database.

Package Characteristics	Value
Display Name	Database/PostgreSQL
Identifier	Usercube.SQL.PostgreSQL@0000001
Export	Usercube-Export-Sql.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube
ProviderClassFullName	Npgsql.NpgsqlFactory
ProviderDllName	Npgsql.dll

SQL Server Entitlements

Exports SQL Server Entitlements

Package Characteristics	Value
Display Name	Database/SQL Server Entitlements
Identifier	Usercube.SQL.SQLServerEntitlements@0000001
Export	Usercube-Export-SqlServerEntitlements.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube

SQL Server

Export data from a SQL Server database.

Package Characteristics	Value
Display Name	Database/SQL Server
Identifier	Usercube.SQL.SQLServer@0000001
Export	Usercube-Export-Sql.dll
Fulfill	NONE
Has Incremental Mode	False
Publisher	Usercube
