References: Format for the EntityPropertyMapping

This page lists all available formats for entity properties, in order to help you manage said formats when exporting and fulfilling resources from/to external systems.

The attribute Format can be defined in an EntityPropertyMapping to indicate the format of the data in the external system. It will allow Usercube to correctly convert the data to its own format during the export and fulfillment processes.

Available Formats

Active Directory / LDAP / OpenLDAP

Format	Corresponding Property Type	Note
Bit:<PropertyIdentifier>:<Bit>	String/Int16/Int32/Int64	When provisioning a bitmask property, for example userAccountControl, the format must contain the identifier of the property and the bit to be provisioned, for example bit:userAccountControl:2. See more details.
Bool	Bool
Byte	Byte
Bytes/Binary	Bytes/Binary
Concat:separator	String	Mono-valued attribute that may contain multiple values separated by a <separator> (example: extensionAttribute15 which requires using concat:;)
DateTime/1601Date	DateTime	Classic LDAP Dates and Generalized DateTimes
Double	Double
Guid	Guid	32 digits Guid (example: c076e361fa5f428e833939a449ce2db3)
Int16	Int16
Int32	Int32
Int64	Int64/ForeignKey/Option	Some attributes are stored as long integers (Int64) even though their name implies that they hold dates, like accountExpires and pwdLastSet attributes.
MultivaluedText	String	Multi-valued attribute flattened to a string containing values separated by a \n. Its provisioning with a scalar rule requires a specific sorting, see the focus under this table. See more details.
RDN	String	Relative Distinguished Name
SID	String	Security Identifiers

Focus on Bit

Some systems use bitmask properties, i.e. properties containing a set of boolean flags represented by individual bits.

Scalar properties are provisioned by scalar rules, usually changing the whole value of the property. For bitmask properties, changing the whole value often requires an unnecessarily complex expression. Hence, a bitmask property should be modified one bit at a time (bit provisioning). In order to change only one flag without altering the others, a bitmask property must be completed by one fictitious property for each bit to be modified.

Then scalar rules can be created for each single-bit property individually.

In a given resource type, there should be scalar rules either for the bitmask property, or for the single-bit "sub-properties", not both.

For example, we choose to create a property bit_userAccountControl_2 to represent the second bit of userAccountControl.

XML configuration looks like the following:

<EntityType ... >
  <Property Identifier="userAccountControl" DisplayName_L1="userAccountControl" TargetColumnIndex="15" Type="String" />
  <Property Identifier="userAccountControlBit2" DisplayName_L1="userAccountControl second bit" TargetColumnIndex="61" Type="String" />
  ...
</EntityType>
<EntityTypeMapping ... >
  <Property Identifier="userAccountControl" ConnectionColumn="userAccountControl" />
  <Property Identifier="userAccountControlBit2" ConnectionColumn="bit_userAccountControl_2" Format="bit:userAccountControl:2" />
  ...
</EntityTypeMapping>

When creating a property of bit format:

• through the UI, there is no need filling the connection column field, because it will be filled automatically once the format fields are filled. A manual value for connection column would be overridden.
• through XML configuration, the connection column must be specified manually but there are no additional requirements.

Focus on MultivaluedText

To provision a MultivaluedText property, the associated scalar rule's source object must return a string, where the values are separated by a \n. Most of the time, the value of the source object is computed with an expression.

The order of the values within the property is important, because Usercube will use the results of the synchronization and of the computation of the scalar rule's expression. Usercube compares both results to compute the Verified provisioning state if they are found equal. Regarding that fact, if the scalar rule's expression does not compute the MultivaluedText with the values in the same order as Usercube's synchronization, the property will never be Verified.

NETWRIX recommends, in the scalar rule's expression, ordering the elements before joining them into a string with myList.OrderBy(e => e, StringComparer.OrdinalIgnoreCase), where myList is the list of values.

For example, the scalar rule's C# expression for a MultivaluedText can look like:

<ScalarRule Property="displayName" Expression="var myList = new string[]
{
    &quot;SMTP:aemiliee.bulot@contoso.com&quot;,
    &quot;smtp:aemiliee.bulott@contoso.com&quot;,
    &quot;smtp:aemiliee.bulot_contoso.com@example.mail.onmicrosoft.com&quot;,
};

return String.Join(&quot;\n&quot;, myList.OrderBy(e => e, StringComparer.OrdinalIgnoreCase));" />

ServiceNow

Format	Corresponding Property Type	Description
Bool	Bool
Byte	Byte
Bytes/Binary	Bytes/Binary
DateTime or Date	DateTime	Date in ServiceNow format
Double	Double
Guid	Guid	32 digits Guid (example: c076e361fa5f428e833939a449ce2db3)
Int16	Int16
Int32	Int32
Int64	Int64/ForeignKey/Option

Example

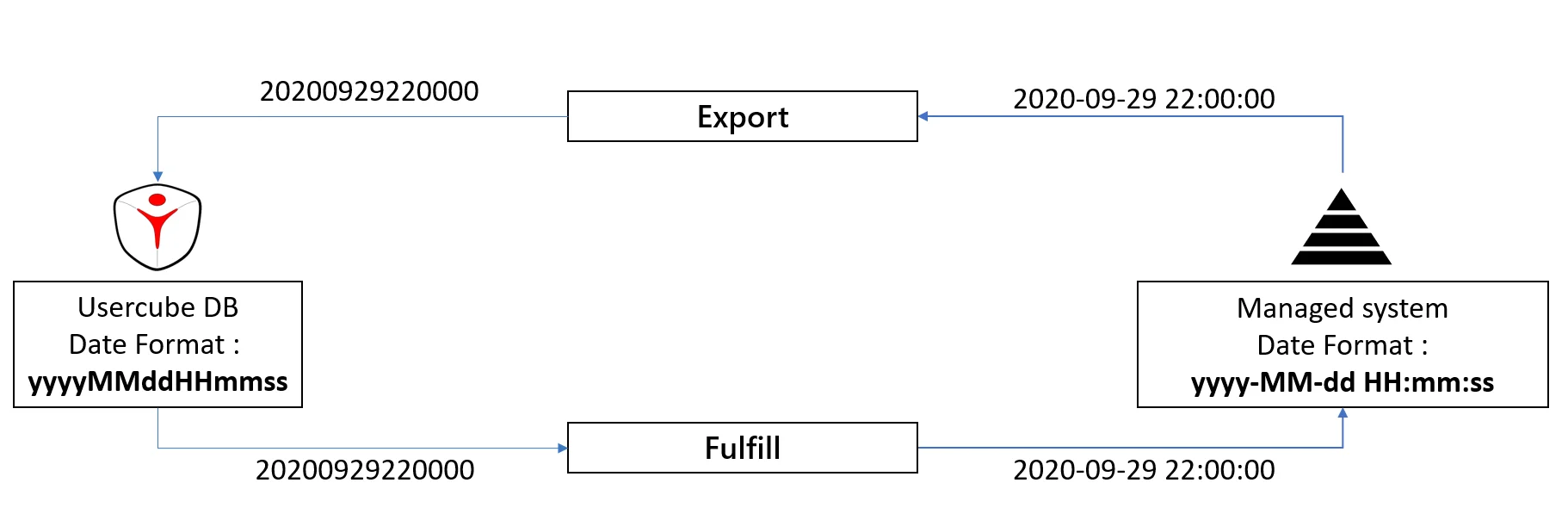

In this example, we will export and fulfill the start date of an employee in a ServiceNow instance.

We define an EntityProperty called u_startdate with the TypeDateTime to display it as a date in the UI.

ServiceNow Connector.xml
...
<EntityType Identifier="ServiceNow_User" DisplayName_L1="ServiceNow User" DisplayName_L2="Utilisateur ServiceNow">   <Property Identifier="u_startdate" DisplayName_L1="Start Date" TargetColumnIndex="1" Type="DateTime"/></EntityType>...

To correctly export the start date from ServiceNow, we transform the string received into a string that is readable as a date by Usercube. To do so, we must declare in the EntityTypeMapping that we will not receive a simple string, but a string formatted as a DateTime.

ServiceNow Connector.xml
...
<EntityTypeMapping Identifier="ServiceNow_User" Connector="ServiceNow" ConnectionTable="ServiceNowExportFulfillment_user">   <Property Identifier="u_startdate" ConnectionColumn="u_startdate" Format="DateTime" /></EntityTypeMapping>...

This allows the export of the attribute u_startdate as a date in Usercube's format.

The fulfillment will use the same format defined in the EntityTypeMapping through the Binding declared in the ResourceType.
