CreateUpdateDeleteAccessControlRules
Generates execution rights for the create, update, delete workflows.
Some prerequisites are necessary to be able to launch this scaffolding. A entity type must be created with the following naming convention: "Worfklow_" + idenfitier type entity. Three workflows must be created with the following names:
- entity type identifier + "_Create";
- entity type identifier + "_Update";
- entity type identifier + "_Delete";
The scaffolding generates the following scaffoldings:
- ViewAccessControlRules: Generates the permissions to view an entity type's resources.
Examples
<CreateUpdateDeleteAccessControlRules Profile="Administrator" EntityType="Directory_UserType"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
| Profile required | Type String Description Identifier of the profile involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<AccessControlRule Identifier="Administrator_Directory_UserType_Custom_Workflows_Directory_UserType" DisplayName_L1="Administrator_Directory_UserType_Custom_Workflows_Directory_UserType" EntityType="Workflow_Directory_UserType" Profile="Administrator"> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_UserType_Create/Request/ActionPending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_UserType_Delete/Request/ActionPending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_UserType_Update/Request/ActionPending" /></AccessControlRule>
Workflows
-
CreateUpdateDeleteAccessControlRules
Generates execution rights for the create, update, delete workflows.- #### UpdateResourcesAccessControlRules -
WorkflowAccessControlRules
Generates the permissions to access the task page and visualize the workflows to be executed for a given entity type and profile.- #### WorkflowConfigurationControlRules -
WorkflowOverviewControlRules
Generates the permissions to access the workflow supervision page.
UpdateResourcesAccessControlRules
Examples
<UpdateResourcesAccessControlRules EntityType="HR_Person" Profile="Administrator"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
| Profile required | Type String Description Identifier of the profile involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<AccessControlRule Identifier="Administrator_HR_Person_Custom_Workflows_HR_Person" DisplayName_L1="Administrator_HR_Person_Custom_Workflows_HR_Person" EntityType="Workflow_HR_Person" Profile="Administrator"> <Entry CanExecute="true" Permission="/Custom/Workflows/HR_Person_UpdateResources/Request/ActionPending" /></AccessControlRule>
WorkflowAccessControlRules
Generates the rights to access the task page and visualize the different workflows to be executed for a given entity type and profile.
Gives access to a shortcut on the dashboard and on the top bar to access this page.
Top bar shortcut:
DashBoard shortcut:
Examples
<WorkflowAccessControlRules Profile="Administrator" EntityType="Workflow_Directory_User"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
| Profile required | Type String Description Identifier of the profile involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/ReviewWorkflowDelegate_AccessControlRules_Workflow_Directory_User" DisplayName_L1="Workforce/Self/Update My Permissions (review) - WorkflowDelegate_AccessControl - Workflow for User" DisplayName_L2="Administrator - Droit_Transfert_WorkflowsWorkflow_Directory_User" EntityType="Workflow_Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_Guest_AdvancedStart/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_Guest_AdvancedStart/Review/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_ComputerRequest/Execution/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_ComputerRequest/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_ComputerRequest/Review/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_ManageContracts/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_ManagePositions/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_MobileRequest/Execution/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_MobileRequest/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_MobileRequest/Review/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_NewExternal/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_NewInternal/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_NewInternal/Review/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_Reactivate/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_Suspend/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_UpdatePersonalData/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_UpdateResources/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_VehiculeRequest/Execution/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_VehiculeRequest/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Directory_User_VehiculeRequest/Review/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Helpdesk_Directory_User_Delete/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Helpdesk_Directory_User_FixRecord/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Helpdesk_Directory_User_New/Request/RefinePending" /> <Entry CanExecute="true" Permission="/Custom/Workflows/Self_ResourcesUpdate/Review/RefinePending" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/ReviewWorkflow_AccessControlRules_Workflow_Directory_User" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Workflow_AccessControl - Workflow for User" DisplayName_L2="Administrator - Droit_Global_WorkflowsWorkflow_Directory_User" EntityType="Workflow_Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_ActivityTemplateState" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Workflow Supervision" DisplayName_L2="Administrator - Supervision des Workflows" EntityType="ActivityTemplateState" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/ActivityTemplateState/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_Application_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_Application" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_Bot_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_Bot" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_Guest_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_Guest" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_Organization_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_Organization" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_PresenceState_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_PresenceState" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_UserRecord_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_UserRecord" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Directory_User_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_UserActivityInstance_ActivityInstance" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Workflow_AccessControl - " DisplayName_L2="Administrator - Droit_Global_Workflows" EntityType="ActivityInstance" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_UserActivityInstance_Resource" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Workflow_AccessControl - " DisplayName_L2="Administrator - Droit_Global_Workflows" EntityType="Resource" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_UserActivityInstance_WorkflowInstance" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Workflow_AccessControl - " DisplayName_L2="Administrator - Droit_Global_Workflows" EntityType="WorkflowInstance" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /></AccessControlRule><AccessControlRule Identifier="Workforce/Self/Self_ResourcesUpdate/Review_Workflow_Directory_User_Workflow_AccessControlRules" DisplayName_L1="Workforce/Self/Update My Permissions (review) - Review Provisioning" DisplayName_L2="Administrator - Revue du Provisioning" EntityType="Workflow_Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/UserActivityInstance/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Query" /></AccessControlRule>
WorkflowConfigurationControlRules
Examples
<WorkflowConfigurationControlRules Profile="Administrator"/>
Properties
| Property | Details |
|---|---|
| Profile required | Type String Description Identifier of the profile involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<AccessControlRule Identifier="Administrator_Workflow_CreateUpdateDelete" DisplayName_L1="Administrator_Workflow" DisplayName_L2="Administrator_Workflow" EntityType="Workflow" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/Workflow/Create" /> <Entry CanExecute="true" Permission="/Workflows/Workflow/Delete" /> <Entry CanExecute="true" Permission="/Workflows/Workflow/Update" /></AccessControlRule>
WorkflowOverviewControlRules
Generates the rights to access the workflow supervision page.
Gives access to a shortcut on the dashboard to access this page.
Examples
<WorkflowOverviewControlRules Profile="Administrator" EntityType="Directory_User"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
| Profile required | Type String Description Identifier of the profile involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<AccessControlRule Identifier="HR_ActivityTemplateState" DisplayName_L1="Main/Administrator - Workflow Supervision" DisplayName_L2="M�tier/RH - Supervision des Workflows" EntityType="ActivityTemplateState" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/ActivityTemplateState/Query" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_Application_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_Application" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_Bot_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_Bot" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_Guest_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_Guest" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_Organization_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_Organization" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_PresenceState_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_PresenceState" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Directory_UserRecord_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Directory_UserRecord" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_AssignedCompositeRole" DisplayName_L1="Main/Administrator - Workflow SupervisionAssignedCompositeRole" DisplayName_L2="M�tier/RH - Supervision des WorkflowsAssignedCompositeRole" EntityType="AssignedCompositeRole" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_AssignedResourceNavigation" DisplayName_L1="Main/Administrator - Workflow SupervisionAssignedResourceNavigation" DisplayName_L2="M�tier/RH - Supervision des WorkflowsAssignedResourceNavigation" EntityType="AssignedResourceNavigation" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_AssignedResourceScalar" DisplayName_L1="Main/Administrator - Workflow SupervisionAssignedResourceScalar" DisplayName_L2="M�tier/RH - Supervision des WorkflowsAssignedResourceScalar" EntityType="AssignedResourceScalar" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_AssignedResourceType" DisplayName_L1="Main/Administrator - Workflow SupervisionAssignedResourceType" DisplayName_L2="M�tier/RH - Supervision des WorkflowsAssignedResourceType" EntityType="AssignedResourceType" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_AssignedSingleRole" DisplayName_L1="Main/Administrator - Workflow SupervisionAssignedSingleRole" DisplayName_L2="M�tier/RH - Supervision des WorkflowsAssignedSingleRole" EntityType="AssignedSingleRole" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_Category" DisplayName_L1="Main/Administrator - Workflow SupervisionCategory" DisplayName_L2="M�tier/RH - Supervision des WorkflowsCategory" EntityType="Category" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_WorkflowSuperVision_Workflow_Directory_User" DisplayName_L1="Main/Administrator - Workflow Supervision" DisplayName_L2="M�tier/RH - Supervision des Workflows" EntityType="Workflow_Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Custom/Workflows/Supervise/Workflow_Directory_User" /> <Entry CanExecute="true" Permission="/Workflows/HistorizedResourceFileByWorkflowInstanceIdQuery/Query" /> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule><AccessControlRule Identifier="HR_Workflow_Directory_User_Workflows_WorkflowInstance_Supervise" DisplayName_L1="Main/Administrator - Review Provisioning" DisplayName_L2="M�tier/RH - Revue du Provisioning" EntityType="Workflow_Directory_User" Profile="Administrator"> <Entry CanExecute="true" Permission="/Workflows/WorkflowInstance/Supervise" /></AccessControlRule>
CreateUpdateDeleteMenus
Creates creation, update and delete menus for an entity. Read these menuItems again on the main menuItems of the entity with the following naming rule: "Search_" + Identifier of entity type. if this menuItem does not exist, create it in the database.
The workflows for adding, deleting and modifying the entity must be created beforehand. For this scaffolding, the names of these 3 workflows must comply with the following standard:
- entity type identifier + "_Create"
- entity type identifier + "_Update"
- entity type identifier + "_Delete"
Examples
<CreateUpdateDeleteMenus EntityType="Directory_Country"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<MenuItem Identifier="Search_Directory_Country" DisplayName_L1="Country" DisplayName_L2="Pays"> <MenuItem Identifier="Search_Directory_Country_Create" DisplayName_L1="New" DisplayName_L2="Cr�er" IconCode="Add" Workflow="Directory_Country_Create" /></MenuItem><MenuItem Identifier="View_Directory_Country" DisplayName_L1="Country" DisplayName_L2="Pays"> <MenuItem Identifier="View_Directory_Country_Update" DisplayName_L1="Update" DisplayName_L2="Modifier" IconCode="Edit" Workflow="Directory_Country_Update" /> <MenuItem Identifier="View_Directory_Country_Delete" DisplayName_L1="Delete" DisplayName_L2="Supprimer" IconCode="Cancel" Workflow="Directory_Country_Delete" /></MenuItem>
CreateUpdateDeleteWorkflows
Examples
<CreateUpdateDeleteWorkflows EntityType="Directory_Country"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<Workflow Identifier="Directory_Country_Create" DisplayName_L1="Country - New" DisplayName_L2="Pays - Cr�er" VariablesType="Workflow_Directory_Country"> <Activity Identifier="Request" DisplayName_L1="Request" DisplayName_L2="Demande" Template="Action" /> <Activity Identifier="Persist" DisplayName_L1="Persist" DisplayName_L2="Enregistrement" Template="Persist" /></Workflow><Workflow Identifier="Directory_Country_Delete" DisplayName_L1="Country - Delete" DisplayName_L2="Pays - Supprimer" VariablesType="Workflow_Directory_Country"> <Activity Identifier="Request" DisplayName_L1="Request" DisplayName_L2="Demande" Template="Action" /> <Activity Identifier="Persist" DisplayName_L1="Persist" DisplayName_L2="Enregistrement" Template="Persist" /></Workflow><Workflow Identifier="Directory_Country_Update" DisplayName_L1="Country - Update" DisplayName_L2="Pays - Modifier" VariablesType="Workflow_Directory_Country"> <Activity Identifier="Request" DisplayName_L1="Request" DisplayName_L2="Demande" Template="Action" /> <Activity Identifier="Persist" DisplayName_L1="Persist" DisplayName_L2="Enregistrement" Template="Persist" /></Workflow>
Workflows
-
CreateUpdateDeleteMenus
Creates creation, update and delete menus for an entity.- #### CreateUpdateDeleteWorkflows -
UpdateResourcesMenus
-
UpdateResourcesWorkflows
-
WorkflowActorsNotification
-
WorkflowEntityType
Creates an entity that will be the source of all workflows that manipulate the given entity.- #### WorkflowEntityTypeDisplayEntityType -
WorkflowEntityTypeDisplayTable
Creates the display table of the workflow entity of the starting entity.- #### WorkflowEntityTypeSearchBar Creates the search bar of the workflow entity of the starting entity.- #### WorkflowPerformerNotification
UpdateResourcesMenus
Examples
<UpdateResourcesMenus EntityType="HR_Person"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<MenuItem Identifier="View_HR_Person" DisplayName_L1="HR - User" DisplayName_L2="RH - Collaborateur"> <MenuItem Identifier="View_HR_Person_UpdateResources" DisplayName_L1="Modify Permissions" DisplayName_L2="Demander des droits" IconCode="Edit" Workflow="HR_Person_UpdateResources" /></MenuItem>
UpdateResourcesWorkflows
Examples
<UpdateResourcesWorkflows EntityType="HR_Person"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<Workflow Identifier="HR_Person_UpdateResources" DisplayName_L1="HR - User - Modify Permissions" DisplayName_L2="RH - Collaborateur - Demander des droits" VariablesType="Workflow_HR_Person"> <Activity Identifier="Request" DisplayName_L1="Request" DisplayName_L2="Demande" Template="Action" /> <Activity Identifier="Persist" DisplayName_L1="Persist" DisplayName_L2="Ecriture" Template="Persist" /></Workflow>
WorkflowActorsNotification
Examples
<WorkflowActorsNotification Workflow="Directory_User_StartInternal"/>
Properties
| Property | Details |
|---|---|
| Workflow optional | Type String Description Identifier of the workflow involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<NotificationAspect Identifier="ActorsNotification_Directory_User_StartInternal" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="<div><div style="font-family:'Segoe UI','-apple-system','BlinkMacSystemFont','Roboto','Arial',sans-serif; color:#212121; font-size:14px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background-color:white; border-bottom:solid #eaeaea 1px"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:20px 24px 25px 24px; background:white"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td> <table border="0" cellpadding="0" cellspacing="0" class="x_logo" width="100%"> <tbody> <tr> <td valign="middle" style="vertical-align:middle"> <img data-imagetype="External" src="@(new System.Uri(Html.Context.ApplicationUri, "logo.webp").AbsoluteUri)" height="34" width="133"> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> <tr> <td class="x_hero" style="padding:0px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table" style="max-width:592px"> <tbody> <tr> <td> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <!-- HEADER START --> <table> <tbody> <tr> <td class="x_title" style="padding:0 0 24px 0; color:#212121; font-size:28px; font-weight:bold; letter-spacing:-0.04em; line-height:40px; word-break:break-word"> @(Html.Context.MessageSubject ?? "Request summary")
</td> </tr> <tr> <td class="x_message" style="padding:0 0 24px 0"> <div> <p>Hello,</p> <p>You have a new pending item that requires your attention</p> </div> </td> </tr> <tr> <td style="padding:0 0 24px 0"> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <table border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td align="center" bgcolor="#007acc" style="padding:8px 12px; border-radius:2px"> <a href="@(new System.Uri(Html.Context.ApplicationUri, $"workflow-management/review/{Html.Context.WorkflowInstanceIdentifier}").AbsoluteUri)" target="_blank" rel="noopener noreferrer" data-auth="NotApplicable" class="x_mobile-button x_btn-primary" style="font-weight:500; font-size:14px; text-decoration:none; padding:0px; display:inline-block; color:#ffffff"> View task
</a> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> <!-- HEADER END --> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> </tr> <tr> <td class="x_mobile-hide" style="background:#f8f8f8"></td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:24px 24px 8px 24px; max-width:592px"> <table border="0" width="100%" cellpadding="0" cellspacing="0" class="x_responsive-table" style="vertical-align:middle; background-color:white"> <tbody> <tr> <td style="padding:16px 24px 24px 24px"> @Html.WorkflowSummary(string.Empty, Model.InternalDisplayName)
@Html.MessageBody(new { style = "box-sizing: border-box; color: #74787E; font-family: Arial, 'Helvetica Neue', Helvetica, sans-serif;" })
</td> </tr> </tbody> </table> </td> </tr> <tr> <td style="padding:24px 24px 24px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td style="color:#666666; font-size:12px; line-height:18px"> This email is automatically generated by usercube. Please do not reply.
</td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background:#f8f8f8"></td> </tr> </tbody> </table></div></div>" RazorFile_L2="<div><div style="font-family:'Segoe UI','-apple-system','BlinkMacSystemFont','Roboto','Arial',sans-serif; color:#212121; font-size:14px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background-color:white; border-bottom:solid #eaeaea 1px"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:20px 24px 25px 24px; background:white"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td> <table border="0" cellpadding="0" cellspacing="0" class="x_logo" width="100%"> <tbody> <tr> <td valign="middle" style="vertical-align:middle"> <img data-imagetype="External" src="@(new System.Uri(Html.Context.ApplicationUri, "logo.webp").AbsoluteUri)" height="34" width="133"> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> <tr> <td class="x_hero" style="padding:0px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table" style="max-width:592px"> <tbody> <tr> <td> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <!-- HEADER START --> <table> <tbody> <tr> <td class="x_title" style="padding:0 0 24px 0; color:#212121; font-size:28px; font-weight:bold; letter-spacing:-0.04em; line-height:40px; word-break:break-word"> @(Html.Context.MessageSubject ?? "R�sum� de la demande")
</td> </tr> <tr> <td class="x_message" style="padding:0 0 24px 0"> <div> <p>Bonjour,</p> <p>Vous avez un nouvel �l�ment en attente qui n�cessite votre attention</p> </div> </td> </tr> <tr> <td style="padding:0 0 24px 0"> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <table border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td align="center" bgcolor="#007acc" style="padding:8px 12px; border-radius:2px"> <a href="@(new System.Uri(Html.Context.ApplicationUri, $"workflow-management/review/{Html.Context.WorkflowInstanceIdentifier}").AbsoluteUri)" target="_blank" rel="noopener noreferrer" data-auth="NotApplicable" class="x_mobile-button x_btn-primary" style="font-weight:500; font-size:14px; text-decoration:none; padding:0px; display:inline-block; color:#ffffff"> Consulter la t�che
</a> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> <!-- HEADER END --> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> </tr> <tr> <td class="x_mobile-hide" style="background:#f8f8f8"></td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:24px 24px 8px 24px; max-width:592px"> <table border="0" width="100%" cellpadding="0" cellspacing="0" class="x_responsive-table" style="vertical-align:middle; background-color:white"> <tbody> <tr> <td style="padding:16px 24px 24px 24px"> @Html.WorkflowSummaryFR(string.Empty, Model.InternalDisplayName)
@Html.MessageBody(new { style = "box-sizing: border-box; color: #74787E; font-family: Arial, 'Helvetica Neue', Helvetica, sans-serif;" })
</td> </tr> </tbody> </table> </td> </tr> <tr> <td style="padding:24px 24px 24px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td style="color:#666666; font-size:12px; line-height:18px"> This email is automatically generated by usercube. Please do not reply.
</td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background:#f8f8f8"></td> </tr> </tbody> </table></div></div>" CssFile="@media only screen and (max-width: 620px) {
table[class=body] h1 {
font-size: 28px !important;
margin-bottom: 10px !important;
}
table[class=body] p,
table[class=body] ul,
table[class=body] ol,
table[class=body] td,
table[class=body] span,
table[class=body] a {
font-size: 16px !important;
}
table[class=body] .wrapper,
table[class=body] .article {
padding: 10px !important;
}
table[class=body] .content {
padding: 0 !important;
}
table[class=body] .container {
padding: 0 !important;
width: 100% !important;
}
table[class=body] .main {
border-left-width: 0 !important;
border-radius: 0 !important;
border-right-width: 0 !important;
}
table[class=body] .btn table {
width: 100% !important;
}
table[class=body] .btn a {
width: 100% !important;
}
table[class=body] .img-responsive {
height: auto !important;
max-width: 100% !important;
width: auto !important;
}
}
/* -------------------------------------
PRESERVE THESE STYLES IN THE HEAD
------------------------------------- */
@media all {
.ExternalClass {
width: 100%;
}
.ExternalClass,
.ExternalClass p,
.ExternalClass span,
.ExternalClass font,
.ExternalClass td,
.ExternalClass div {
line-height: 100%;
}
.apple-link a {
color: inherit !important;
font-family: inherit !important;
font-size: inherit !important;
font-weight: inherit !important;
line-height: inherit !important;
text-decoration: none !important;
}
.btn-primary table td:hover {
background-color: #34495e !important;
}
.btn-primary a:hover {
background-color: #34495e !important;
border-color: #34495e !important;
}
}
body {
background-color: #f6f6f6;
font-family: sans-serif;
-webkit-font-smoothing: antialiased;
font-size: 14px;
line-height: 1.4;
margin: 0;
padding: 0;
-ms-text-size-adjust: 100%;
-webkit-text-size-adjust: 100%;
}
"> <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" /> <Recipient Type="Actor" /></NotificationAspect>
WorkflowEntityType
Creates an entity that will be the source of all workflows that manipulate the given entity. Also create the association between this new entity and the starting entity.
Examples
<WorkflowEntityType EntityType="Directory_Country"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<EntityType Identifier="Directory_Country" DisplayName_L1="Country" DisplayName_L2="Pays"> <Property Identifier="Workflows" DisplayName_L1="Workflows" DisplayName_L2="Workflows" Type="ForeignKey" /></EntityType><EntityType Identifier="Workflow_Directory_Country" DisplayName_L1="Workflow for Country" DisplayName_L2="Pays"> <Property Identifier="Directory_Country" DisplayName_L1="Country" DisplayName_L10="Country" DisplayName_L11="Country" DisplayName_L12="Country" DisplayName_L13="Country" DisplayName_L14="Country" DisplayName_L15="Country" DisplayName_L16="Country" DisplayName_L2="Pays" DisplayName_L3="Country" DisplayName_L4="Country" DisplayName_L5="Country" DisplayName_L6="Country" DisplayName_L7="Country" DisplayName_L8="Country" DisplayName_L9="Country" TargetColumnIndex="128" Type="ForeignKey" /></EntityType><EntityAssociation Identifier="Workflow_Directory_Country_Directory_Country" IsProperty2Collection="true" Property1="Workflow_Directory_Country:Directory_Country" Property2="Directory_Country:Workflows" /><WorkflowEntityTypeDisplayEntityType Id="29" EntityType="Directory_Country" />
WorkflowEntityTypeDisplayEntityType
Examples
<WorkflowEntityTypeDisplayEntityType EntityType="Directory_Country"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<DisplayEntityType Identifier="Workflow_Directory_Country" />
WorkflowEntityTypeDisplayTable
Creates the display table of the workflow entity of the starting entity.
The starting entity must have a Display table and create the workflow entity type to be able to launch this scaffolding.
Examples
<WorkflowEntityTypeDisplayTable EntityType="Directory_User"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<Tile Identifier="Workflow_Directory_User_Tile1" DisplayName_L1="User: first/last name" EntityType="Workflow_Directory_User" TileDesignElement="picture-text"> <Item Binding="Directory_User.MainRecord.FirstName" LineDisplayOrderIndicator="1" LineNumber="2" /> <Item Binding="Directory_User.MainRecord.LastName" LineDisplayOrderIndicator="2" LineNumber="2" /> <Item Binding="Directory_User.MainRecord.Title.DisplayName" LineNumber="3" /> <Item Binding="Directory_User.Id" LineNumber="5" /> <Item Binding="Directory_User.PhotoTag" LineNumber="6" /></Tile><Tile Identifier="Workflow_Directory_User_Tile2" DisplayName_L1="User: dep/loc" EntityType="Workflow_Directory_User" TileDesignElement="inline data-icon"> <Item Binding="Directory_User.MainRecord.Organization.DisplayName" LineNumber="1" /> <Item Binding="Directory_User.MainRecord.Site.DisplayName" LineNumber="2" /></Tile><DisplayTable Identifier="Workflow_Directory_User" DisplayTableDesignElement="list" EntityType="Workflow_Directory_User" IsEntityTypeDefault="true"> <Column ColumnSize="6" DefaultSortPriority="1" IsDisplayInSummaryView="true" SortBinding="Directory_User.MainRecord.LastName" Tile="Workflow_Directory_User_Tile1" /> <Column ColumnSize="3" IsDisplayInSummaryView="true" SortBinding="Directory_User.MainRecord.FirstName" Tile="Workflow_Directory_User_Tile2" /></DisplayTable>
WorkflowEntityTypeSearchBar
Creates the search bar of the workflow entity of the starting entity.
The starting entity must have a search bar and create the workflow entity type to be able to launch this scaffolding.
Examples
<WorkflowEntityTypeSearchBar EntityType="Directory_User"/>
Properties
| Property | Details |
|---|---|
| EntityType required | Type String Description Identifier of the entity type involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<SearchBar EntityType="Workflow_Directory_User" SearchBarDesignElement="Inline"> <Criterion Binding1="Directory_User.Identifier" ColumnSize="2" InputType="Auto" PlaceHolderText_L1="Identifier" PlaceHolderText_L2="Identifier" /> <Criterion Binding1="Directory_User.PhoneticFirstLastName" Binding2="Directory_User.PhoneticLastFirstName" Binding3="Directory_User.MainRecord.LastName" ColumnSize="2" InputType="Auto" Operator="FlexibleStartWith" PlaceHolderText_L1="Name" PlaceHolderText_L2="Nom" /> <Criterion Binding1="Directory_User.MainRecord.Organization" ColumnSize="2" InputType="Auto" PlaceHolderText_L1="Department" PlaceHolderText_L2="D�partement" /> <Criterion Binding1="Directory_User.PresenceState" ColumnSize="2" DefaultValue="-101;-102" InputType="ComboboxMultiSelection" Operator="Equal" /> <Criterion Binding1="Directory_User.MainRecord.Site" ColumnSize="2" InputType="Auto" IsVisibleInAdvancedView="true" PlaceHolderText_L1="Site" PlaceHolderText_L2="Site" /> <Criterion Binding1="Directory_User.MainRecord.Subsidiary" ColumnSize="2" InputType="Auto" IsVisibleInAdvancedView="true" PlaceHolderText_L1="Subsidiary" PlaceHolderText_L2="Filiale" /> <Criterion Binding1="Directory_User.MainRecord.Title" ColumnSize="2" InputType="Auto" IsVisibleInAdvancedView="true" PlaceHolderText_L1="Title" PlaceHolderText_L2="Fonction" /> <Criterion Binding1="Directory_User.MainRecord.UserType" ColumnSize="2" InputType="Auto" IsVisibleInAdvancedView="true" PlaceHolderText_L1="User Type" PlaceHolderText_L2="Type de collaborateur" /></SearchBar>
WorkflowPerformerNotification
Examples
<WorkflowPerformerNotification Workflow="Directory_User_ChangeName"/>
Properties
| Property | Details |
|---|---|
| Workflow optional | Type String Description Identifier of the workflow involved in the scaffolding. |
Generated XML
Our example generates the following configuration:
<NotificationAspect Identifier="PerformerNotification_Directory_User_ChangeName" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="<div> <div style="font-family:'Segoe UI','-apple-system','BlinkMacSystemFont','Roboto','Arial',sans-serif; color:#212121; font-size:14px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background-color:white; border-bottom:solid #eaeaea 1px"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:20px 24px 25px 24px; background:white"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td> <table border="0" cellpadding="0" cellspacing="0" class="x_logo" width="100%"> <tbody> <tr> <td valign="middle" style="vertical-align:middle"> <img data-imagetype="External" src="@(new System.Uri(Html.Context.ApplicationUri, "logo.webp").AbsoluteUri)" height="34" width="133"> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> <tr> <td class="x_hero" style="padding:0px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table" style="max-width:592px"> <tbody> <tr> <td> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <!-- HEADER START --> <table> <tbody> <tr> <td class="x_title" style="padding:0 0 24px 0; color:#212121; font-size:28px; font-weight:bold; letter-spacing:-0.04em; line-height:40px; word-break:break-word"> @(Html.Context.MessageSubject ?? "Request summary")
</td> </tr> <tr> <td class="x_message" style="padding:0 0 24px 0"> <div> <p>Hello,</p> <p>Your request has been taken into account</p> </div> </td> </tr> <tr> <td style="padding:0 0 24px 0"> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <table border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td align="center" bgcolor="#007acc" style="padding:8px 12px; border-radius:2px"> <a href="@(Html.Context.ApplicationUri.AbsoluteUri)" target="_blank" rel="noopener noreferrer" data-auth="NotApplicable" class="x_mobile-button x_btn-primary" style="font-weight:500; font-size:14px; text-decoration:none; padding:0px; display:inline-block; color:#ffffff"> Connect to Usercube
</a> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> <!-- HEADER END --> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> </tr> <tr> <td class="x_mobile-hide" style="background:#f8f8f8"></td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:24px 24px 8px 24px; max-width:592px"> <table border="0" width="100%" cellpadding="0" cellspacing="0" class="x_responsive-table" style="vertical-align:middle; background-color:white"> <tbody> <tr> <td style="padding:16px 24px 24px 24px"> @Html.WorkflowSummary(string.Empty, Model.InternalDisplayName)
</td> </tr> </tbody> </table> </td> </tr> <tr> <td style="padding:24px 24px 24px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td style="color:#666666; font-size:12px; line-height:18px"> This email is automatically generated by usercube. Please do not reply.
</td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background:#f8f8f8"></td> </tr> </tbody> </table> </div></div>" RazorFile_L2="<div> <div style="font-family:'Segoe UI','-apple-system','BlinkMacSystemFont','Roboto','Arial',sans-serif; color:#212121; font-size:14px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background-color:white; border-bottom:solid #eaeaea 1px"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:20px 24px 25px 24px; background:white"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td> <table border="0" cellpadding="0" cellspacing="0" class="x_logo" width="100%"> <tbody> <tr> <td valign="middle" style="vertical-align:middle"> <img data-imagetype="External" src="@(new System.Uri(Html.Context.ApplicationUri, "logo.webp").AbsoluteUri)" height="34" width="133"> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> <tr> <td class="x_hero" style="padding:0px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table" style="max-width:592px"> <tbody> <tr> <td> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <!-- HEADER START --> <table> <tbody> <tr> <td class="x_title" style="padding:0 0 24px 0; color:#212121; font-size:28px; font-weight:bold; letter-spacing:-0.04em; line-height:40px; word-break:break-word"> @(Html.Context.MessageSubject ?? "Request summary")
</td> </tr> <tr> <td class="x_message" style="padding:0 0 24px 0"> <div> <p>Bonjour,</p> <p>Votre demande a bien �t� prise en compte</p> </div> </td> </tr> <tr> <td style="padding:0 0 24px 0"> <table width="100%" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td> <table border="0" cellspacing="0" cellpadding="0"> <tbody> <tr> <td align="center" bgcolor="#007acc" style="padding:8px 12px; border-radius:2px"> <a href="@(Html.Context.ApplicationUri.AbsoluteUri)" target="_blank" rel="noopener noreferrer" data-auth="NotApplicable" class="x_mobile-button x_btn-primary" style="font-weight:500; font-size:14px; text-decoration:none; padding:0px; display:inline-block; color:#ffffff"> Je me connecte � Usercube
</a> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> <!-- HEADER END --> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background-color:white; border-bottom:solid #eaeaea 1px"> </td> </tr> <tr> <td class="x_mobile-hide" style="background:#f8f8f8"></td> <td class="x_content" width="640" style="padding:0px; max-width:640px; background:#f8f8f8"> <table border="0" cellpadding="0" cellspacing="0" width="100%"> <tbody> <tr> <td style="padding:24px 24px 8px 24px; max-width:592px"> <table border="0" width="100%" cellpadding="0" cellspacing="0" class="x_responsive-table" style="vertical-align:middle; background-color:white"> <tbody> <tr> <td style="padding:16px 24px 24px 24px"> @Html.WorkflowSummaryFR(string.Empty, Model.InternalDisplayName)
</td> </tr> </tbody> </table> </td> </tr> <tr> <td style="padding:24px 24px 24px 24px"> <table border="0" cellpadding="0" cellspacing="0" width="100%" class="x_responsive-table"> <tbody> <tr> <td style="color:#666666; font-size:12px; line-height:18px"> This email is automatically generated by usercube. Please do not reply.
</td> </tr> </tbody> </table> </td> </tr> </tbody> </table> </td> <td class="x_mobile-hide" style="background:#f8f8f8"></td> </tr> </tbody> </table> </div></div>" CssFile="@media only screen and (max-width: 620px) {
table[class=body] h1 {
font-size: 28px !important;
margin-bottom: 10px !important;
}
table[class=body] p,
table[class=body] ul,
table[class=body] ol,
table[class=body] td,
table[class=body] span,
table[class=body] a {
font-size: 16px !important;
}
table[class=body] .wrapper,
table[class=body] .article {
padding: 10px !important;
}
table[class=body] .content {
padding: 0 !important;
}
table[class=body] .container {
padding: 0 !important;
width: 100% !important;
}
table[class=body] .main {
border-left-width: 0 !important;
border-radius: 0 !important;
border-right-width: 0 !important;
}
table[class=body] .btn table {
width: 100% !important;
}
table[class=body] .btn a {
width: 100% !important;
}
table[class=body] .img-responsive {
height: auto !important;
max-width: 100% !important;
width: auto !important;
}
}
/* -------------------------------------
PRESERVE THESE STYLES IN THE HEAD
------------------------------------- */
@media all {
.ExternalClass {
width: 100%;
}
.ExternalClass,
.ExternalClass p,
.ExternalClass span,
.ExternalClass font,
.ExternalClass td,
.ExternalClass div {
line-height: 100%;
}
.apple-link a {
color: inherit !important;
font-family: inherit !important;
font-size: inherit !important;
font-weight: inherit !important;
line-height: inherit !important;
text-decoration: none !important;
}
.btn-primary table td:hover {
background-color: #34495e !important;
}
.btn-primary a:hover {
background-color: #34495e !important;
border-color: #34495e !important;
}
}
body {
background-color: #f6f6f6;
font-family: sans-serif;
-webkit-font-smoothing: antialiased;
font-size: 14px;
line-height: 1.4;
margin: 0;
padding: 0;
-ms-text-size-adjust: 100%;
-webkit-text-size-adjust: 100%;
}
"> <PointCut Activity="Directory_User_ChangeName:Request" ActivityState="ActionWithRefine-Executed" /> <Recipient Activity="Directory_User_ChangeName:Request" ActivityState="ActionWithRefine-Executed" Type="Performer" /> </NotificationAspect>
AddChangeAspect
Modifies a given property value.
Examples
The following example computes a new value for the property IsDraft from the Directory_User
entity type. The new value is always true. The pointcuts define when the value change must happen.
<AddChangeAspect Identifier="Directory_UserRecord_AddChange_IsDraft" Binding="Workflow_Directory_User:Directory_User.IsDraft" ExpressionBinding="Workflow_Directory_User:Directory_User" Expression="C#:record:return true;">
<PointCut Activity="Directory_User_NewInternal:PersistDraft" ActivityState="PersistOnlyResources-Invoked" Mode="Before" TemplateTransformation="NewInternalWorkflowIsReviewRequired" /> <PointCut Activity="Directory_User_NewExternal:PersistDraft" ActivityState="PersistOnlyResources-Invoked" Mode="Before" TemplateTransformation="NewExternalWorkflowIsReviewRequired" /></AddChangeAspect>
Accept Null Value
The following example computes a new value for the Card property in users' records, considering
null as a value. Instead of being ignored, a null value returned by Expression will replace
the old value.
<AddChangeAspect Identifier="AddChangeAspect_Self_PersonRecord_Card" Binding="Workflow_Person:Person.PersonRecords.Card" AcceptNullValueExpression="C#:record:return true;" ExpressionBinding="Workflow_Person:Person.PersonRecords" Expression="C#:record:
if(!string.IsNullOrEmpty(record.Card))
{
return record.Card;
}
return null;" > <PointCut Activity="Self_DataUpdate:Request" ActivityState="Action-Executed" Mode="After" /></AddChangeAspect>
Properties
| Property | Details |
|---|---|
| Binding required | Type String Description Binding whose difference with ExpressionBinding defines the property to be changed. |
| Identifier required | Type String Description Unique identifier of the aspect. |
| AcceptNullValueExpression optional | Type String Description C# expression returning a boolean, true to consider null for the new value returned by Expression. By default, null values are ignored. |
| Expression optional | Type String Description C# expression returning a new value for the property to be changed. Note: this property can also be defined by a binding via ExpressionBinding. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| IfExpression optional | Type String Description Expression that conditions the aspect execution. See more details on C# expressions. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
Child Element: PointCut

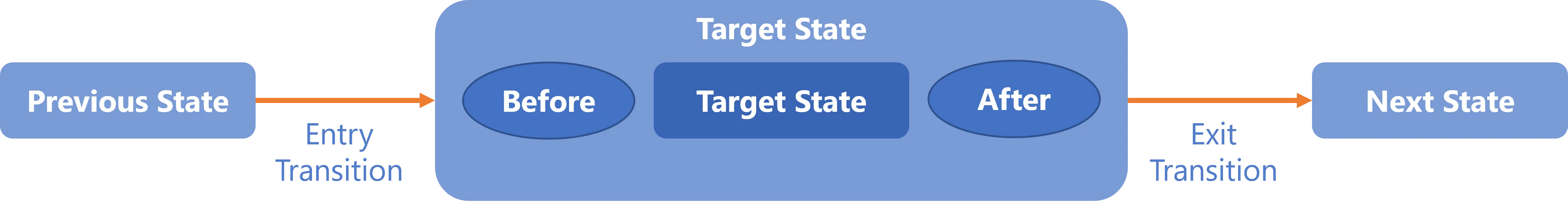

A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
AssertValueAspect
Checks whether the value of a given property satisfies a given condition.
Examples
The following example makes sure that, when creating a new employee, the contract end date is after the contract start date. The pointcuts define when the value assertion must happen.
Code attributes enclosed with <> need to be replaced with a custom value before entering the
script in the command line.
<AssertValueAspect Identifier="Directory_User_NewInternal_CheckDates" Binding="Workflow_Directory_User:Directory_User.Records.ContractEndDate" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Expression="C#:record: return ( ((Nullable<DateTime>) record.ContractStartDate).HasValue && ((Nullable<DateTime>) record.ContractEndDate).HasValue) ? record.ContractStartDate < record.ContractEndDate : true;" Message_L1="Contract's end date must be after contract's start date."> <PointCut Activity="Directory_User_NewInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="Before" /> <PointCut Activity="Directory_User_NewInternal:Review" ActivityState="ReviewWithFeedback-Approved" Mode="Before" /></AssertValueAspect>
Assert a multi-valued object
When asserting a multi-valued object, said object must not be called through a binding that goes back and forth between entities.
For example, to manage records, using the ExpressionBinding set to
<Workflow_Directory_User:Directory_User>. Records and the Expression using C#:record:return
record.Directory_User.Records... will not work.
Instead, the ExpressionBinding should be set to <Workflow_Directory_User:Directory_User> and the
Expression should use C#:user:return user.Records.
The following example makes sure that a user's positions do not overlap.
Code attributes enclosed with <> need to be replaced with a custom value before entering the
script in the command line.
<AssertValueAspect Identifier="RecordsOverlapCheck" Binding="Workflow_Directory_User:Directory_User.Records.Organization" ExpressionBinding="Workflow_Directory_User:Directory_User" Expression="C#:user:for (int i = 0; i < user.Records.Count; i++)
{
for (int j = 0; j < user.Records.Count && i != j ; j++)
{
if (user.Records[i].StartDate != default
&& user.Records[j].StartDate != default)
{
if ((user.Records[i].EndDate == null) && (user.Records[j].EndDate == null))
|| ((user.Records[i].EndDate == null) && (user.Records[j].EndDate != null) && (user.Records[j].EndDate > user.Records[i].StartDate))
|| ((user.Records[j].EndDate == null) && (user.Records[i].EndDate != null) && (user.Records[i].EndDate >= user.Records[j].StartDate))
|| ((user.Records[i].EndDate != null) && (user.Records[j].EndDate != null) && (user.Records[i].StartDate <= user.Records[j].EndDate) && (user.Records[i].EndDate >= user.Records[j].StartDate))
{
return false;
}
}
}
}
return true;" Message_L1="A user cannot have more than one position simultaneously."> <PointCut Activity=... ></AssertValueAspect>
Properties
| Property | Type | Description |
|---|---|---|
| Binding required | String | Binding whose difference with ExpressionBinding defines the property to be validated by the aspect. |
| Identifier required | String | Unique identifier of the aspect. |
| Expression optional | String | C# expression returning a boolean, false to invalidate the property value. |
| ExpressionBinding optional | String | Binding: - Defines the variable type used in the potential expressions specified in the aspect; - Whose difference with Binding defines the property involved in the aspect NOTE: Required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| IfExpression optional | String | Expression that conditions the aspect execution. See the Expressions topic for additional information. |
| Message_L1 optional | String | Message in language 1 (up to 16) to be displayed when the property is invalidated by the condition specified in Expression. |
| Priority default value: 0 | Int32 | Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. NOTE: The priority can be a negative value. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect. See the Aspects topic for additional information.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Type | Description |
|---|---|---|
| Activity required | Int64 | Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Enumeration | Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | PointCutMode | Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before — the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After — the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
AssertValueRequiredAspect
Checks whether a given property has a non-null value.
Examples
The following example makes sure that the contract start date is specified for any new worker. The pointcuts define when the value assertion must happen.
<AssertValueRequiredAspect Identifier="Directory_UserRecord_ValueRequired_ContractStartDate" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Binding="Workflow_Directory_User:Directory_User.Records.ContractStartDate" Message_L1="The contract start date is required">
<PointCut Activity="Directory_User_NewInternal:Request" ActivityState="ActionWithRefine-Executed" /> <PointCut Activity="Directory_User_NewInternal:Review" ActivityState="ReviewWithFeedback-Approved" TemplateTransformation="NewInternalWorkflowIsReviewRequired" /> <PointCut Activity="Directory_User_NewExternal:Request" ActivityState="ActionWithRefine-Executed" /> <PointCut Activity="Directory_User_NewExternal:Review" ActivityState="ReviewWithFeedback-Approved" TemplateTransformation="NewExternalWorkflowIsReviewRequired" /> </AssertValueRequiredAspect>
Properties
| Property | Details |
|---|---|
| Binding required | Type String Description Binding whose difference with ExpressionBinding defines the property to be validated by the aspect. |
| Identifier required | Type String Description Unique identifier of the aspect. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| IfExpression optional | Type String Description Expression that conditions the aspect execution. See more details on C# expressions. |
| Message_L1 optional | Type String Description Message in language 1 (up to 16) to be displayed when the property is empty. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
BuildUniqueValueAspect
Computes a unique value for a given property.
Examples
The following example generates bots' logins during their creation.
<BuildUniqueValueAspect Identifier="Directory_Bot_UniqueValue_Login" Binding="Workflow_Directory_Bot:Directory_Bot.Login" ExpressionBinding="Workflow_Directory_Bot:Directory_Bot" Expression="C#:wkf:return 'B' + string.Format("{0:D5}", new Random().Next(99000, 99999));" SqlCheckExpression="SELECT TOP 1 login FROM zz_directory_bot WHERE login=@VALUE" Priority="10" IterationsCount="10" SimulationExpression="C#:wkf:return "99999";">
<PointCut Activity="Directory_Bot_Create:Request" ActivityState="Action-Executed" Mode="After" /></BuildUniqueValueAspect>
Properties
| Property | Details |
|---|---|
| Binding required | Type String Description Binding whose difference with ExpressionBinding defines the property to be computed. |
| Identifier required | Type String Description Unique identifier of the aspect. |
| Expression optional | Type String Description C# expression that computes the unique value. Note: the computation can be configured in SQL instead of C# via SqlBuildExpression. Decide whether to use either Expression or SqlBuildExpression, not both. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| HistorizeBinding optional | Type String Description Binding that stores all the old values computed by the aspect. |
| HistorizeSeparator default value: � | Type String Description Defines the character used as a separator in the HistorizeBinding property. |
| IfExpression optional | Type String Description Expression that conditions the aspect execution. See more details on C# expressions. |
| IterationsCount default value: 0 | Type String Description Maximum number of computation attempts without finding a unique value. Note: a variable named iteration is available to use the attempt number in the expressions of the aspect and/or of the potential unicity check rules, for example to help manage homonyms. Hence, a custom variable cannot be declared with the name iteration. |
| Message_L1 default value: | Type String Description Message in language 1 (up to 16) to be displayed when the value generation failed, i.e. when IterationsCount is exceeded. |
| OnlyIfNew default value: false | Type String Description true to trigger the aspect only for the creation of new resources. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
| SimulationExpression optional | Type String Description Expression used instead of the Expression parameter when previewing the workflow result before its implementation. |
| SqlBuildExpression optional | Type String Description SQL command that computes the unique value. Note: the computation can be configured in C# instead of SQL via Expression. Decide whether to use either SqlBuildExpression or Expression, not both. |
| SqlCheckExpression optional | Type String Description SQL request that checks whether the value computed with the binding/expression is unique, i.e. not yet used by another resource.Note: required if zero unicity check rules are linked to the aspect.Warning: the SQL request must be efficient because a potential timeout may block the progress of the workflow. For example, when the database's state and indexes are not well known, prefer to use views rather than the whole tables, because views store way fewer elements than tables, which makes them faster to use in a request. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
Child Element: UnicityCheckRule
A unicity check rule ensures that the expression computed by a BuildUniqueValueaspect for a given
property is unique, i.e. not yet used by another resource, in a given entity type.
The comparison performed by these rules to check unicity can be configured in SQL instead of C# via
the SqlCheckExpression property of the aspect.
The value of the source binding/expression is computed based on the properties of the source
resource which is the resource whose property we compute via the BuildUniqueValue aspect.
The rule compares the return value of the source binding/expression with the existing values of the target binding/expression in the target entity type.
For example, we need to generate an email address for any new user joining the company. We configure in a
BuildUniqueValueaspect that users' emails are computed with{firstName}.{lastName}@{EmailDomain}.Consider a new user called John Doe. We need to link to the aspect a unicity check rule that is going to compare the email core
john.doewith the email cores of existing resources in a given entity type. Thus Usercube can ensure that the email core is unique, and finally build the unique email address.
Both source and target bindings/expressions must be consistent with the binding/expression used in
the corresponding aspect which must not use a SqlCheckExpression.
One BuildUniqueValue aspect can be linked to many unicity check rules, but should not be linked to
more than one rule per target entity type.
The unicity check rules linked to a same aspect are combined with the AND operator. It means that the aspect's iteration goes up when at least one of the rules detects non-unicity.
When creating or updating a unicity check rule, launch the
ComputeCorrelationKeysTaskbefore
applying the role model and launching workflows.
For information: Usercube needs to store the correlation keys linked to the expressions defined in the unicity check rule, such as the return value, the entity type, etc. That's why the task mentioned above must be launched before launching any workflow using a unicity check rule.
Examples
Basic example
The following example checks the unicity of the login of a new user.
In order to be able to write the source and target bindings/expressions of the unicity check rule, you must understand the binding/expression of the corresponding
BuildUniqueValueaspect:
<BuildUniqueValueAspect Identifier="Directory_UserRecord_UniqueValue_Login" Binding="Workflow_Directory_User:Directory_User.Records.Login" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Expression="C#:record:return (record.UserType?.LoginPrefix ?? "U") + record.UserIdentifier;" IterationsCount="10" Priority="70" > <PointCut ... /></ BuildUniqueValueAspect >
We want to check the unicity of the new user's login, compared with the logins of existing users:
<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_UserRecord" TargetBinding="Login" />
Here the source binding and expression are those from the aspect.
Multiple unicity checks
With the same aspect as the previous example, we might want to compare the login of the new user with the list of reserved logins too:
<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_UserRecord" TargetBinding="Login" /><UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Login" TargetEntityType="Directory_ReservedLogin" TargetBinding="Value" />
Sophisticated example
The following example checks the unicity of the email address of a new user.
In order to be able to write the source and target bindings/expressions of the unicity check rule, you must understand the binding/expression of the corresponding
BuildUniqueValueaspect:
<BuildUniqueValueAspect Identifier="Directory_UserRecord_UniqueValue_Email" Binding="Workflow_Directory_User:Directory_User.Records.Email" ExpressionBinding="Workflow_Directory_User:Directory_User.Records" Priority="80"
// We want an email address such as {firstName}.{lastName}@{EmailDomain}.
Expression="C#:record:var firstName = record.FirstName.Simplify()?.ToLowerInvariant();
var lastName = record.LastName.Simplify()?.ToLowerInvariant();
if (string.IsNullOrEmpty(firstName) || string.IsNullOrEmpty(lastName))
{
// Missing data
return null;
}
var result = firstName + "." + lastName;
// If the email core, i.e. {firstName}.{lastName}, is already used, then we try with {firstName}.{lastName}2, etc.
if (iteration > 0)
{
result += iteration.ToString();
}
result = result + '@' + record.Subsidiary?.EmailDomain;
return result;" IterationsCount="10" />
We want to include in the unicity check only the email's core firstName.lastName without the
@EmailDomain part. This is why the source expression starts like the aspect's expression but does
not add the domain part, and the target expression removes the domain part from existing values:
<UnicityCheck Aspect="Directory_UserRecord_UniqueValue_Email"
SourceBinding="Workflow_Directory_User:Directory_User.Records"
// The source expression is similar to the one from the aspect, but we check the unicity of the email core only, not the whole email address.
SourceExpression="C#:record:var firstName = record.FirstName.Simplify()?.ToLowerInvariant();
var lastName = record.LastName.Simplify()?.ToLowerInvariant();
if (string.IsNullOrEmpty(firstName) || string.IsNullOrEmpty(lastName))
{
// Missing data
return null;
}
var result = firstName + "." + lastName;
if (iteration > 0)
{
result += iteration.ToString();
}
return result;"
TargetEntityType="Directory_UserRecord"
TargetExpression="C#:record:
if(string.IsNullOrEmpty(record.Email))
{
return null;
}
var result = record.Email;
// Delete the domain to keep only the email core
var index = result.IndexOf('@');
if(index >= 0)
{
result = result.Substring(0, index);
}
return result;" />
| Property | Details |
|---|---|
| SourceBinding optional | Type Int64 Description Binding property (from the source entity type specified in the corresponding workflow) whose value is to be compared with the existing values of the target binding/expression. Note: when not specified, the unicity check rule uses the binding from the aspect. |
| SourceExpression optional | Type String Description Binding expression (based on properties from the source entity type specified in the corresponding workflow) whose value is to be compared with the existing values of the target binding/expression. See more details on C# expressions. Note: when not specified, the unicity check rule uses the expression from the aspect. |
| TargetBinding optional | Type Int64 Description Binding property (from the target entity type) whose values corresponding to existing resources are to be compared with the value of the source binding/expression. |
| TargetEntityType required | Type Int64 Description Identifier of the entity type for which the rule checks the property's unicity. |
| TargetExpression optional | Type String Description Binding expression (based on properties from the target entity type) whose values corresponding to existing resources are to be compared with the value of the source binding/expression. See more details on C# expressions. |
Aspects
An aspect is a modularization of a concern that cuts across multiple workflows. Usercube uses aspects to perform some specific actions at given workflow steps.
For example, an aspect can assert a given user's input is valid.
-
AddChangeAspect
Modifies a given property value.- #### AssertValueAspect Checks whether the value of a given property satisfies a given condition.- #### AssertValueRequiredAspect Checks whether a given property has a non-null value.- #### BuildUniqueValueAspect Computes a unique value for a given property.- #### InvokeScriptAspect Executes a customized script.- #### InvokeWorkflowAspect Launches a workflow.- #### NotificationAspect Sends a notification email to one or several users.
InvokeScriptAspect
Executes a customized script.
Examples
The following example executes the script aspect.ps1 on the local agent, when creating a new user.
<InvokeScriptAspect Identifier="Directory_User_InvokeScript" Agent="Local" ScriptFile="C:/identitymanager/Conf/InvokeAspects/aspect.ps1">
<PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" /> <PointCut Activity="Directory_User_StartExternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" /></InvokeScriptAspect>
Properties
| Property | Details |
|---|---|
| Identifier required | Type String Description Unique identifier of the aspect. |
| Agent optional | Type String Description Agent on which the script will be launched. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| IfExpression optional | Type String Description Expression that conditions the aspect execution. See more details on C# expressions. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
| ScriptFile optional | Type String Description Path of the script file to be executed by the aspect. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
InvokeWorkflowAspect
Launches a workflow.
Examples
The following example launches the workflow Directory_User_VehicleRequest when a vehicle is
requested for a new internal user.
<InvokeWorkflowAspect Identifier="Directory_User_VehicleRequest" ExpressionBinding="Workflow_Directory_User:Directory_User" IfExpression="C#:person:return person.Vehicle_Requested;" Workflow="Directory_User_VehicleRequest">
<PointCut Activity="Directory_User_NewInternal:Persist" ActivityState="Persist-Invoked" Mode="After" /></InvokeWorkflowAspect>
Properties
| Property | Details |
|---|---|
| Identifier required | Type String Description Unique identifier of the aspect. |
| Workflow required | Type String Description Identifier of the workflow to be launched. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| IfExpression optional | Type String Description Expression that conditions the aspect execution. See more details on C# expressions. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
NotificationAspect
Sends a notification email to one or several users.
Examples
The following example sends a notification email based on the template
Notification_Directory_Guest.cshtml and the subject computed by SubjectExpression_L1, which both
use data from Workflow_Directory_Guest:Directory_Guest, and on the styles from
Notification_Directory_Guest.css.
<NotificationAspect Identifier="Notification_Directory_Guest" ExpressionBinding="Workflow_Directory_Guest:Directory_Guest" RazorFile_L1="./Templates/Notification_Directory_Guest.cshtml" CssFile="./Templates/Notification_Directory_Guest.css" SubjectExpression_L1="C#:guest:return "Validating data for guest: " + guest.FirstName + guest.LastName;">
<PointCut Activity="Directory_Guest_AdvancedStart:Request" ActivityState="ActionWithRefine-Executed" Mode="After" /> <Recipient Type="Binding" Binding="Directory_Guest:Mail" /></NotificationAspect>
The notification will be sent after the Request activity of the Directory_Guest_AdvancedStart
workflow is executed. See pointcuts for more details.
The notification will be sent to all email addresses defined by Directory_Guest:Mail. See
recipients for more details.
Properties
| Property | Details |
|---|---|
| Identifier required | Type String Description Unique identifier of the aspect. |
| Binding optional | Type String Description Binding whose difference with ExpressionBinding defines the property that corresponds to identities' email addresses, when Type is set to Binding. |
| CssFile optional | Type String Description Path to the css file that defines the styles for the email. Note: the path must be relative to the configuration folder, and the file must be inside it. |
| ExpressionBinding optional | Type String Description Binding: - that defines the variable type used in the potential expressions specified in the aspect; - whose difference with Binding defines the property involved in the aspect. Note: required when handling the property of multi-valued objects, for example records, to make sure to modify the property in all records and not only in one. |
| Priority default value: 0 | Type Int32 Description Execution priority among all aspects. At a given activity state, the aspect with the highest priority will be triggered first. Note: the priority can be a negative value. |
| RazorFile_L1 optional | Type String Description Path to the Razor cshtml file that defines the email's body template in language 1 (up to 16). Note: the path must be relative to the configuration folder, and the file must be inside it. |
| SubjectExpression_L1 optional | Type String Description C# expression that defines the email's subject in language 1 (up to 16). The expression's variable type is defined in ExpressionBinding. |
Child Element: PointCut
A pointcut is a mechanism telling Usercube when to execute the linked aspect.
The position of the pointcut is specified by an activity state and a mode (before or after).
| Property | Details |
|---|---|
| Activity required | Type Int64 Description Identifier of the activity whose specified state triggers the aspect. |
| ActivityState required | Type Enumeration Description Identifier of the activity state that triggers the aspect. |
| Mode default value: 0 | Type PointCutMode Description Mode defining when exactly the aspect is triggered around the specified workflow's activity state. 0 - Before: the aspect will be executed on entry to the specified activity state, regardless of the transition used. 1 - After: the aspect will be executed on exit from the specified activity state, regardless of the transition used. |
Child Element: Recipient
A recipient defines one or several identities who will receive a notification from
NotificationAspect.
Examples
The following example sends a notification email to the actors of the next step of the workflow.
<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css"> <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
<Recipient Type="Actor" />
</NotificationAspect>
The following example sends a notification email to the performers of the Request activity of the
Directory_User_StartInternal workflow when the state is Executed.
<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css"> <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
<Recipient Type="Performer" Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" />
</NotificationAspect>
The following example sends a notification email to the email address, stored in Mail, of the
user(s) from Directory_User targeted by the workflow, so here the new user created by the
Directory_User_StartInternal workflow.
<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css"> <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
<Recipient Type="Binding" Binding="Directory_User:Mail" />
</NotificationAspect>
The following example sends a notification email to all identities whose email addresses are defined
as {lastName}@company.com.
<NotificationAspect Identifier="Notification_Directory_User" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Template/Notification_Directory_User.cshtml" CssFile="Template/Notification_Directory_User.css"> <PointCut Activity="Directory_User_StartInternal:Request" ActivityState="ActionWithRefine-Executed" Mode="After" />
<Recipient Type="Expression" Expression="C#:user:return user.LastName+"@company.com";" />
</NotificationAspect>
The following example sends a notification to all identities with a profile that includes the right permission.
<NotificationAspect Identifier="Directory_User_New" ExpressionBinding="Workflow_Directory_User:Directory_User" RazorFile_L1="Directory/User/Directory-User-Notification-New.cshtml" CssFile="Notifications.css"> <PointCut Activity="Directory_User_NewInternal:Persist" ActivityState="Persist-Invoked" Mode="After" /> <PointCut Activity="Directory_User_NewExternal:Persist" ActivityState="Persist-Invoked" Mode="After" />
<Recipient Type="Profile" />
</NotificationAspect>
Knowing that we also have:
<Profile Identifier="Workforce/Notifications/Directory_User_New" DisplayName_L1="Workforce/Notifications/New User" IsComponent="true" /><AccessControlRule Profile="Workforce/Notifications/Directory_User_New" EntityType="Directory_User" Identifier="Composite_Notifications_Directory_User_New*" DisplayName_L1="Composite_Notifications_Directory_User_New*">
<Entry Permission="/Custom/WorkflowsNotifications/Directory_User_NewInternal/Persist/Invoked" /> <Entry Permission="/Custom/WorkflowsNotifications/Directory_User_NewExternal/Persist/Invoked" />
</AccessControlRule>
| Property | Details |
|---|---|
| Activity optional | Type Int64 Description Identifier of the activity whose last performers are to be notified, when Type is set to Performer. Note: must be set together with ActivityState. |
| ActivityState optional | Type Enumeration Description Identifier of the activity state whose last performers are to be notified, when Type is set to Performer. Note: must be set together with Activity. |
| Binding optional | Type Int64 Description Binding of the property that represents the notification's recipients, when Type is set to Binding. |
| EmailAddresses optional | Type String Description Email addresses of the notification's recipients, when Type is set to Hardcoded. |
| Expression optional | Type String Description C# expression that returns the email addresses of the notification's recipients, as strings or IEnumerable<string>, when Type is set to Expression. The expression's variable type is defined in ExpressionBinding in the associated NotificationAspect. See more details on C# expressions. |
| IsCC default value: false | Type Boolean Description true to send the notification email to the recipient(s) as a carbon copy (CC). |
| Type required | Type RecipientType Description Type of recipients for the email notification. Actor: the identities with the permissions to act on the next step of the workflow specified in the pointcut. Performer: the actors of a past workflow step specified in Activity and ActivityState. Binding: the identities whose email addresses are designated by the property specified in Binding. Hardcoded: the identities whose email addresses are specified explicitly in EmailAddresses. Expression: the identities whose email addresses match the C# expression specified in Expression. Profile: the identities with the permission /Custom/WorkflowsNotifications/{workflow_identifier}/ {activity_identifier}/{activityTemplateState_shortIdentifier}. |
Forms
Workflows use forms to collect input data through the UI. A form is a set of fields, configured with controls. A control can define a field to fill, a fields set, call an existing form, etc. depending on its output type.
-
WorkflowAddAndEndRecordEntityForm
Displays a form to define the end date of an existing record, and replace it with a new record at said date, by duplicating and adjusting the old record.- #### WorkflowAddRecordEntityForm Displays a form to add a new record for an existing resource, by duplicating and adjusting an existing record.- #### WorkflowCreateEntityForm Displays a form to create a new resource, without a record.- #### WorkflowCreateRecordEntityForm Displays a form to create a new resource with a record.- #### WorkflowCreateSeveralRecordsEntityForm Displays a form to create a new resource with one or several records.- #### WorkflowEditEntityForm Displays a form to update or delete an existing resource, without a record.- #### WorkflowUpdateRecordEntitiesForm Displays a form to update data for several resources simultaneously.- #### WorkflowUpdateRecordEntityForm Displays a form to select an existing record and update it.- #### WorkflowUpdateSeveralRecordsEntityForm Displays a form to create, update or delete one or several records.
WorkflowAddAndEndRecordEntityForm
Displays a form to define the end date of an existing record, and replace it with a new record at said date, by duplicating and adjusting the old record.
Examples
The following example is a form to update a position.
<WorkflowAddAndEndRecordEntityForm Identifier="Workflow_Directory_User_ChangePosition" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_ChangePosition:Request" FormTitle_L1="Schedule a Job Change"> <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" /> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" /> <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main" /> <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_ChangePosition_Base" /></WorkflowAddAndEndRecordEntityForm>
With the following form for the resource data's content and summary:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User"> <Control Binding="Identifier" /> <Control Binding="IsDraft" /></Form>
And with the following form for the record data's content and summary, and for the data that groups records together:
<Form Identifier="Workflow_Directory_User_ChangePosition_Base" EntityType="Directory_UserRecord"> <Control DisplayName_L1="New Position Dates" OutputType="LayoutFieldset"> <Control Binding="StartDate" /> <Control Binding="EndDate" InputType="Date" /> </Control> <Control DisplayName_L1="New Position" OutputType="LayoutFieldset"> <Control Binding="Title" /> <Control Binding="Organization" /> <Control Binding="Manager" DefaultValueBinding="Organization.Manager" /> <Control Binding="Site" DefaultValueBinding="Organization.Manager.MainRecord.Site" /> </Control></Form>

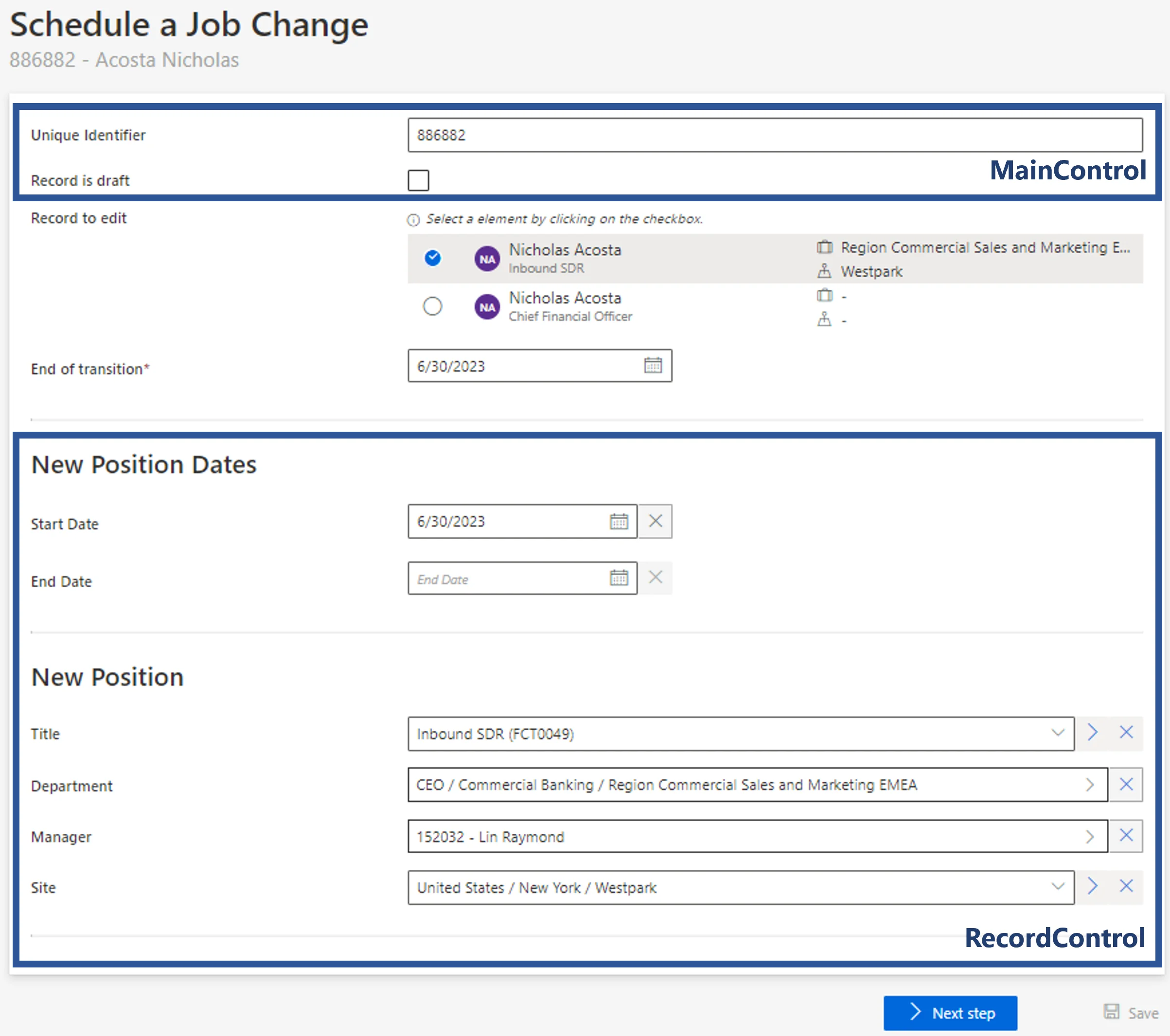

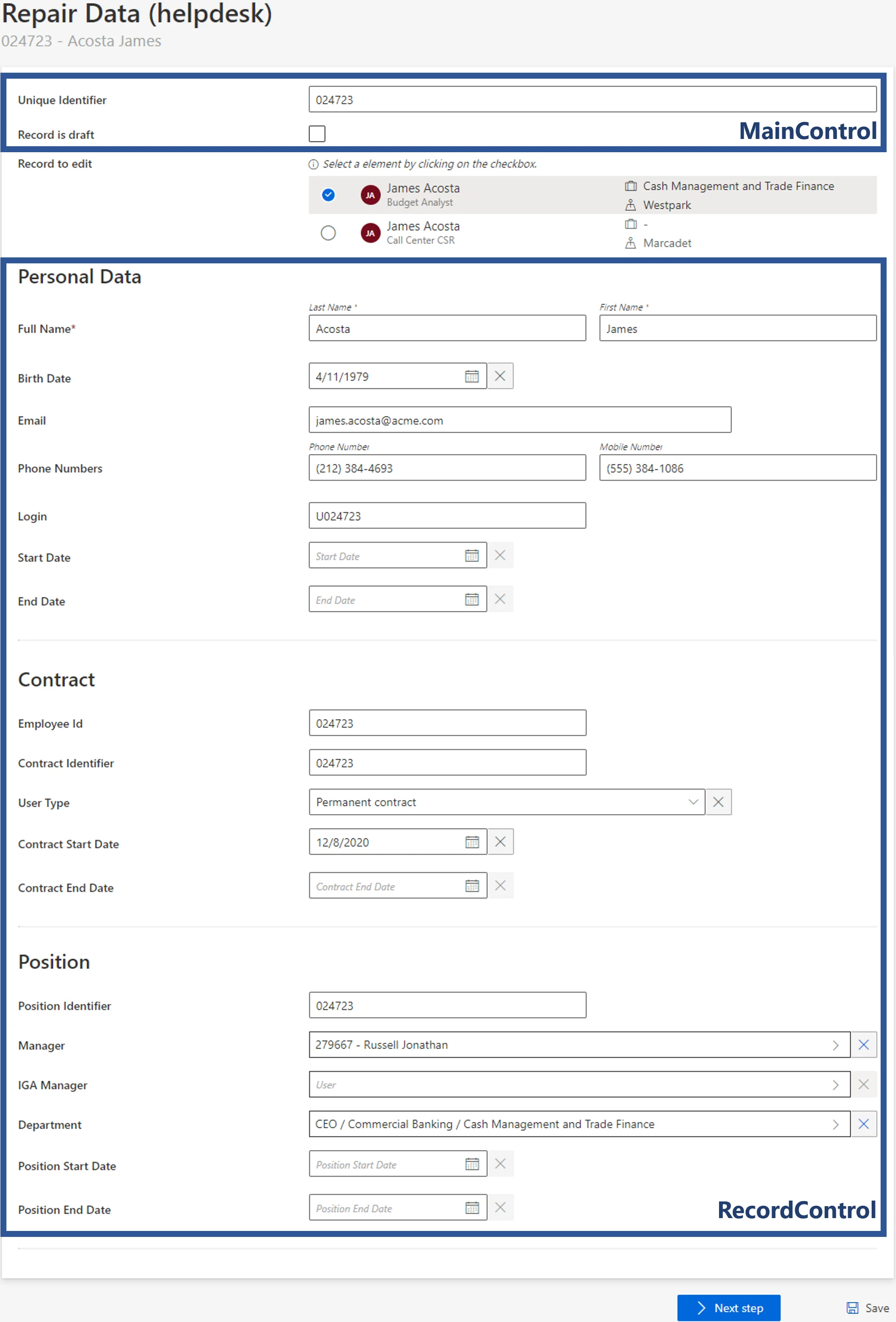

The contents of MainControl and RecordControl are visible during the workflow's execution:
The content of RecordUniqueItemControl is not visible. The user's records that have the same
values for all the properties in RecordUniqueItemControl will be displayed, and potentially
modified, as one.

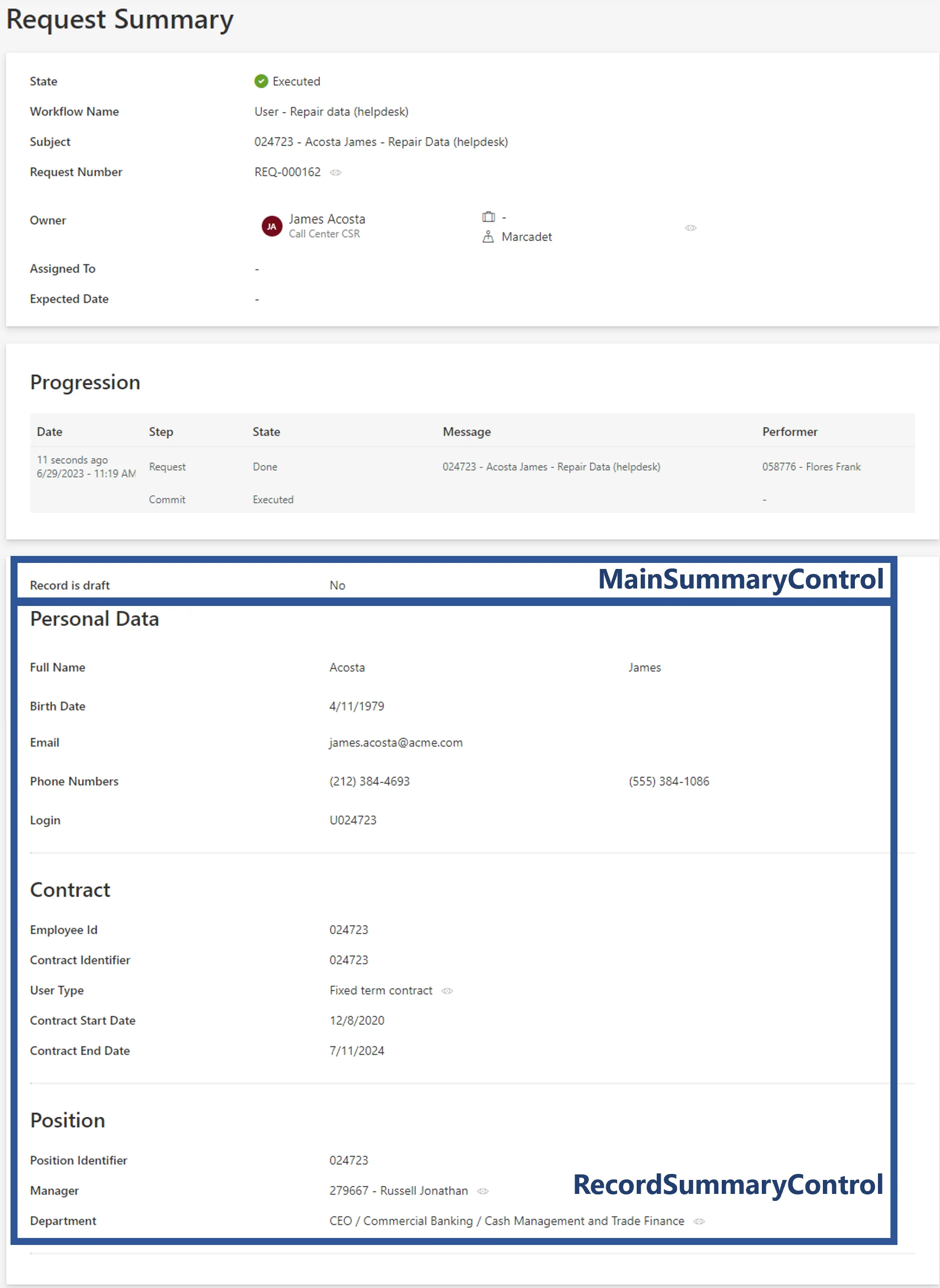

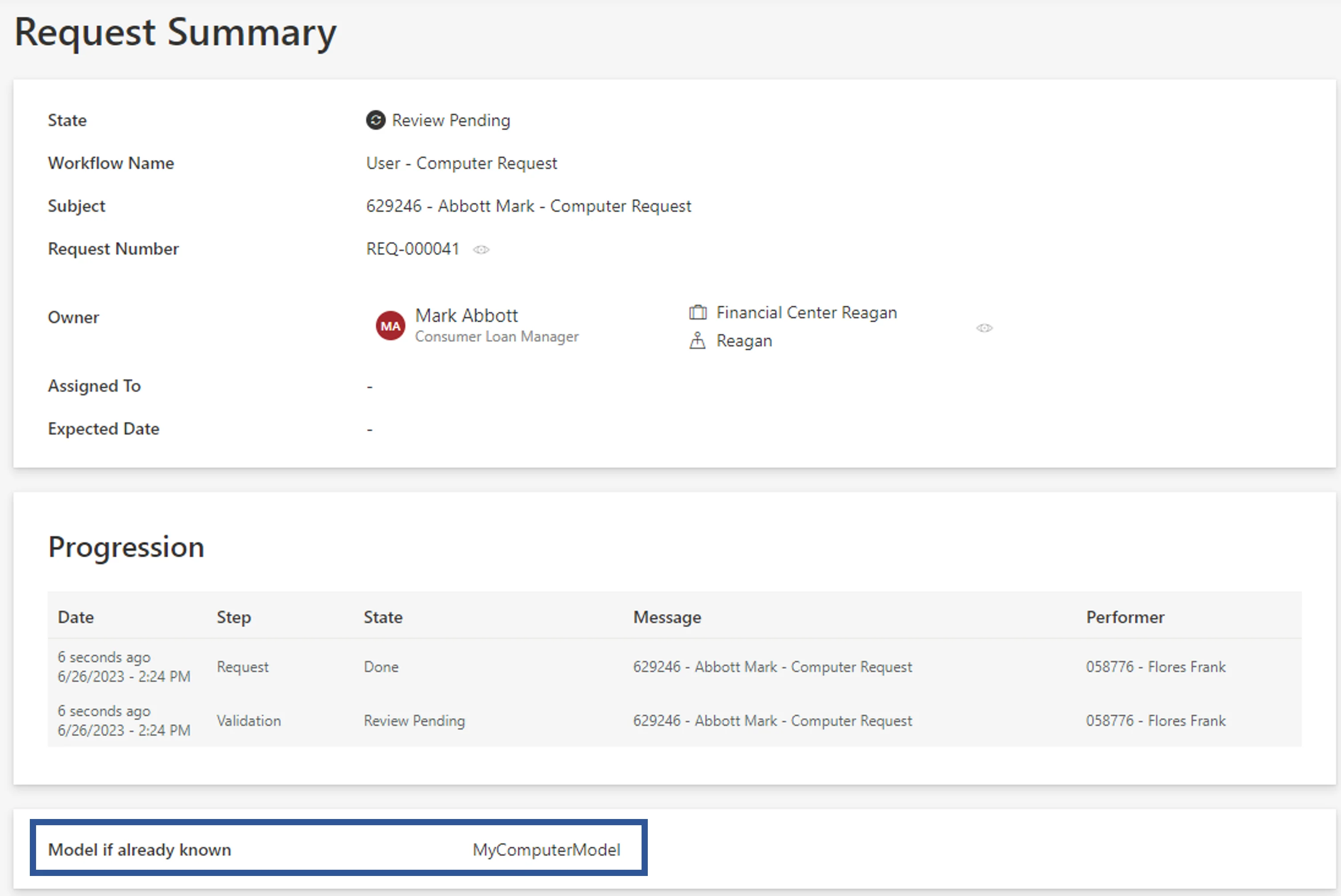

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's
execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data about the resource's record.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields that group records together. All records with the same data in
RecordUniqueItemControl are displayed in the workflow as only one record, and they will
potentially be modified together. When not specified, records will be grouped by the data from
RecordControl.
| Property | Details |
|---|
Child Element: MainSummaryControl
Set of fields to sum up the data collected by MainControl after the workflow's execution.
| Property | Details |
|---|
Child Element: RecordSummaryControl
Set of fields to sum up the data collected by RecordControl after the workflow's execution.
| Property | Details |
|---|
WorkflowAddRecordEntityForm
Displays a form to add a new record for an existing resource, by duplicating and adjusting an existing record.
Examples
The following example is a form to request a computer.
<WorkflowAddRecordEntityForm Identifier="Workflow_Directory_User_AddPosition" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_AddPosition:Request" FormTitle_L1="New Position" > <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Base" /> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Unique" /> <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main" /> <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Base" /></WorkflowAddRecordEntityForm>
With the following form for the resource data's content and summary:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User"> <Control Binding="Identifier" /> <Control Binding="IsDraft" /></Form>
And with the following form for the record data's content and summary:
<Form Identifier="Workflow_Directory_User_AddPosition_Base" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Position Dates" OutputType="LayoutFieldset"> <Control Binding="StartDate" /> <Control Binding="EndDate" InputType="Date" /> </Control> <Control DisplayName_L1="Position" OutputType="LayoutFieldset"> <Control Binding="Title" /> <Control Binding="Organization" /> <Control Binding="Manager" DefaultValueBinding="Organization.Manager" /> <Control Binding="Site" DefaultValueBinding="Organization.Manager.MainRecord.Site" /> </Control></Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_User_AddPosition_Unique" EntityType="Directory_UserRecord"> <Control Binding="PositionIdentifier" /></Form>

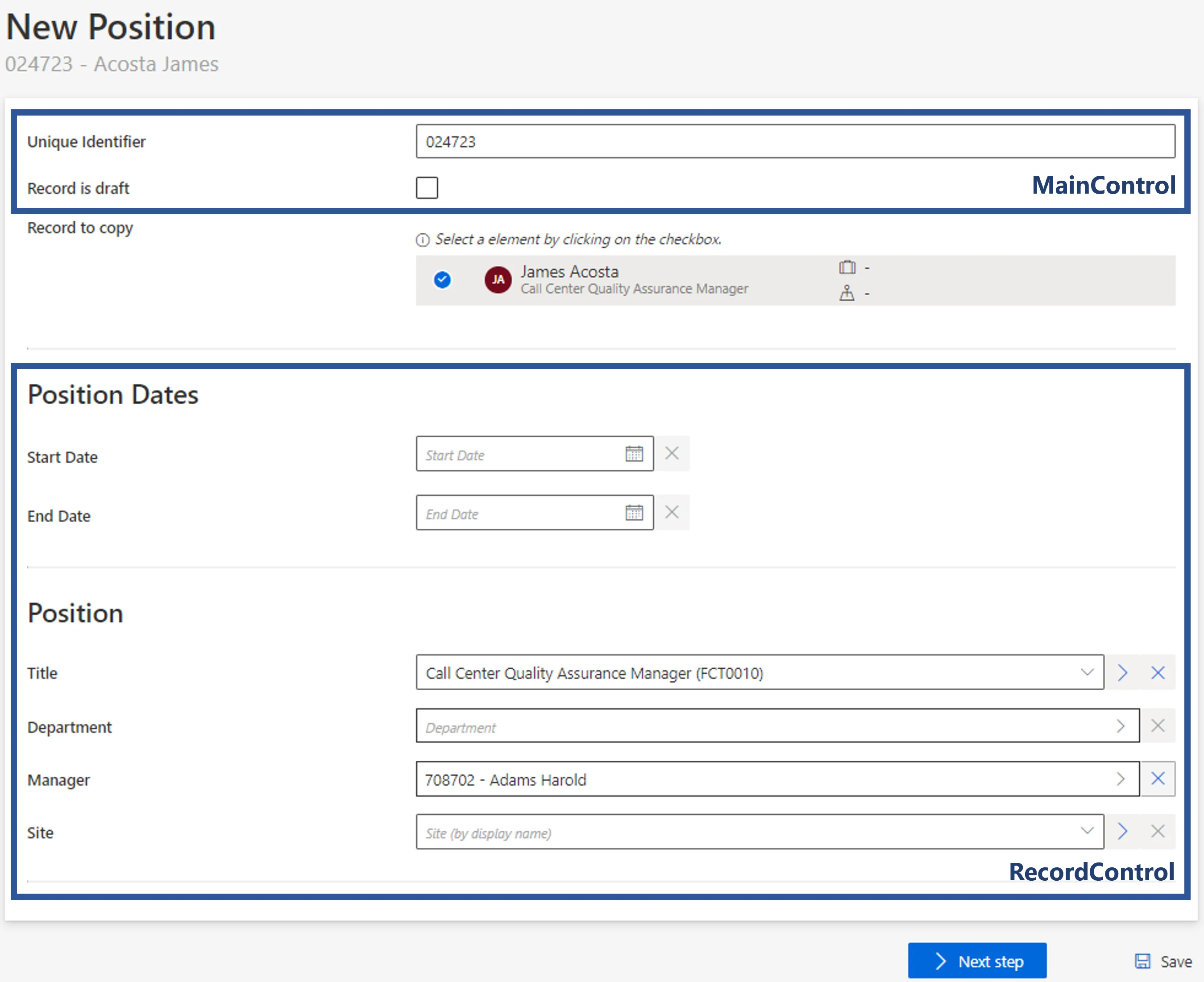

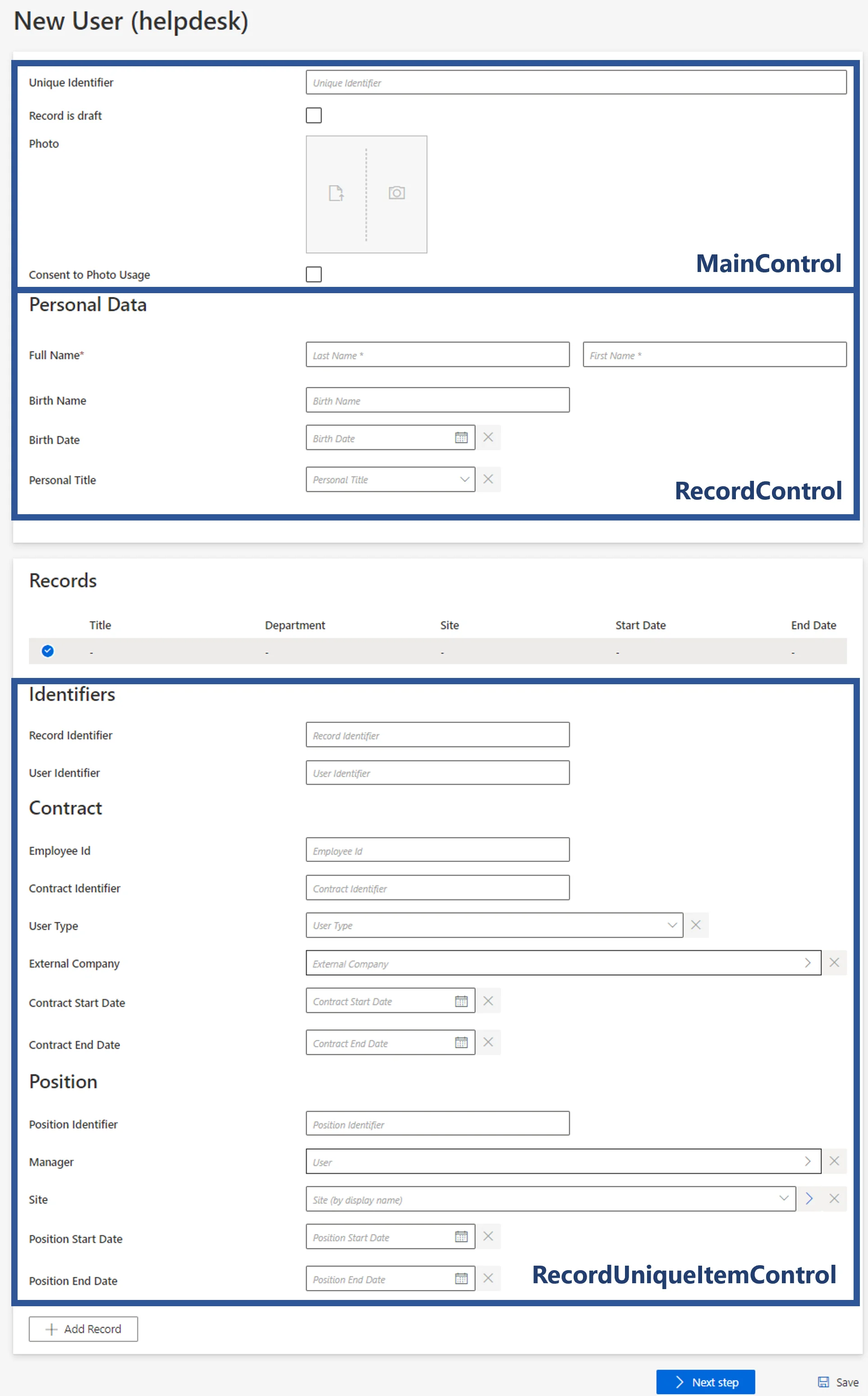

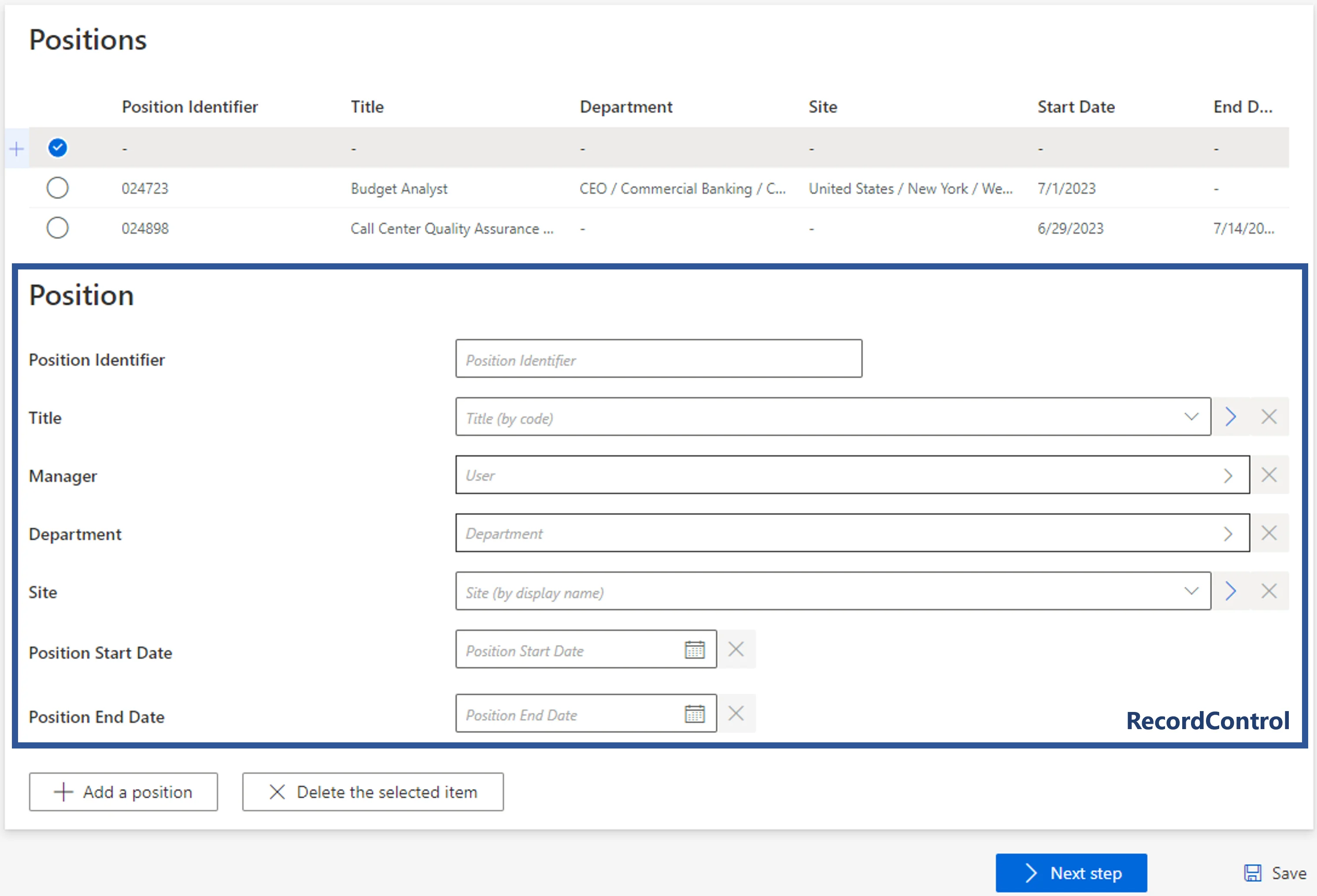

The contents of MainControl and RecordControl are visible during the workflow's execution:
The content of RecordUniqueItemControl is not visible. The user's records that have the same
values for all the properties in RecordUniqueItemControl will be displayed, and potentially
modified, as one.

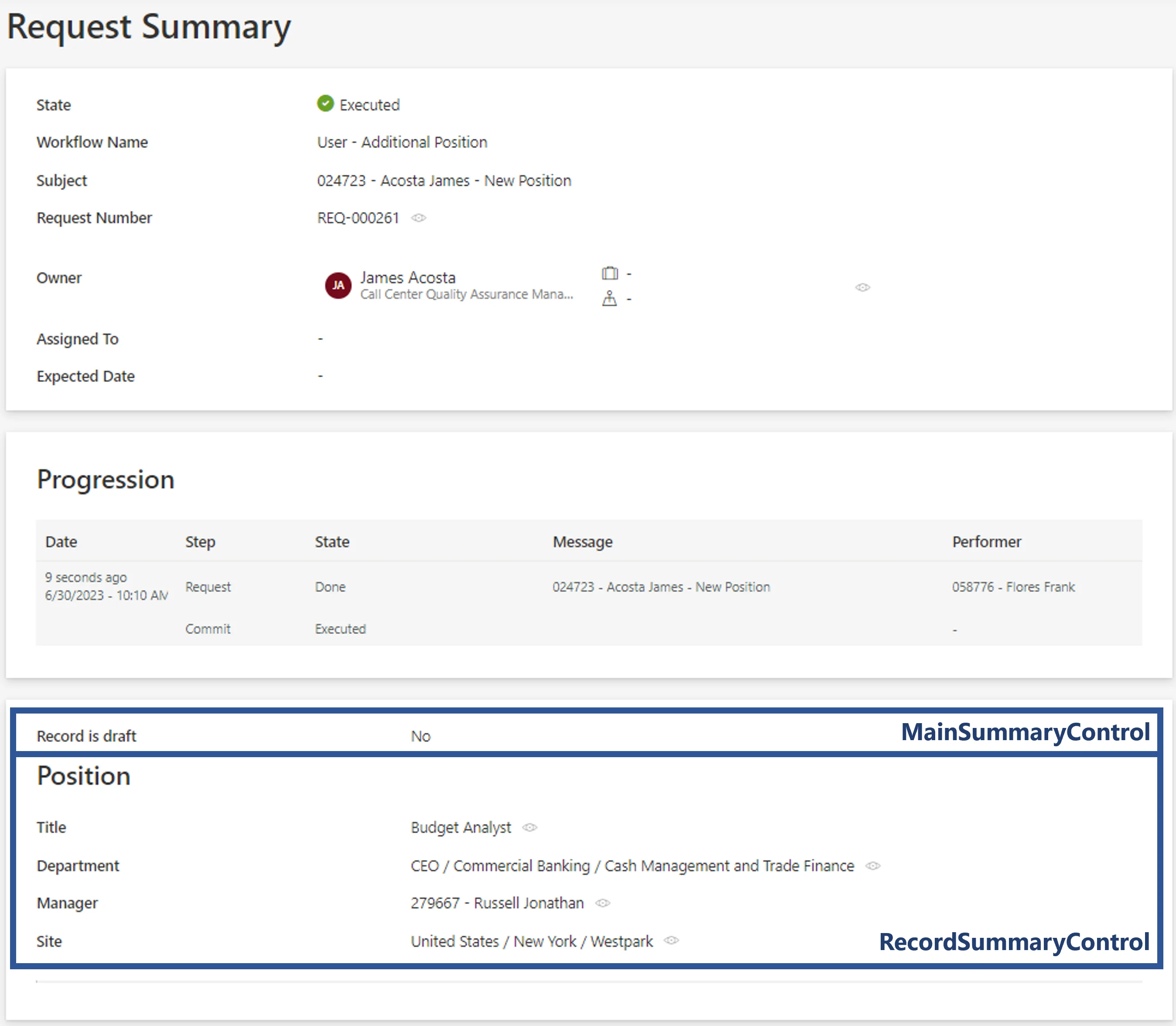

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's
execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data about the resource's record.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields that group records together. All records with the same data in
RecordUniqueItemControl are displayed in the workflow as only one record, and they will
potentially be modified together. When not specified, records will be grouped by the data from
RecordControl.
| Property | Details |
|---|
Child Element: MainSummaryControl
Set of fields to sum up the data collected by MainControl after the workflow's execution.
| Property | Details |
|---|
Child Element: RecordSummaryControl
Set of fields to sum up the data collected by RecordControl after the workflow's execution.
| Property | Details |
|---|
Workflow Create Entity Form
Displays a form to create a new resource, without a record.
Examples
The following example is a form to create a new site.
Code attributes enclosed with <> need to be replaced with a custom value before entering the
script in the command line.
<WorkflowCreateEntityForm Identifier="Workflow_Directory_Site_Create" EntityType="Workflow_Directory_Site" MainProperty="Workflow_Directory_Site:Directory_Site" WorkflowRequestType="Self" Activity="Directory_Site_Create:Request" FormTitle_L1="New Site"> <MainControl OutputType="TransformImport" EmbeddedForm="Base_Directory_Site" /> <SummaryControl OutputType="TransformImport" EmbeddedForm="Summary_Directory_Site"/></WorkflowCreateEntityForm>

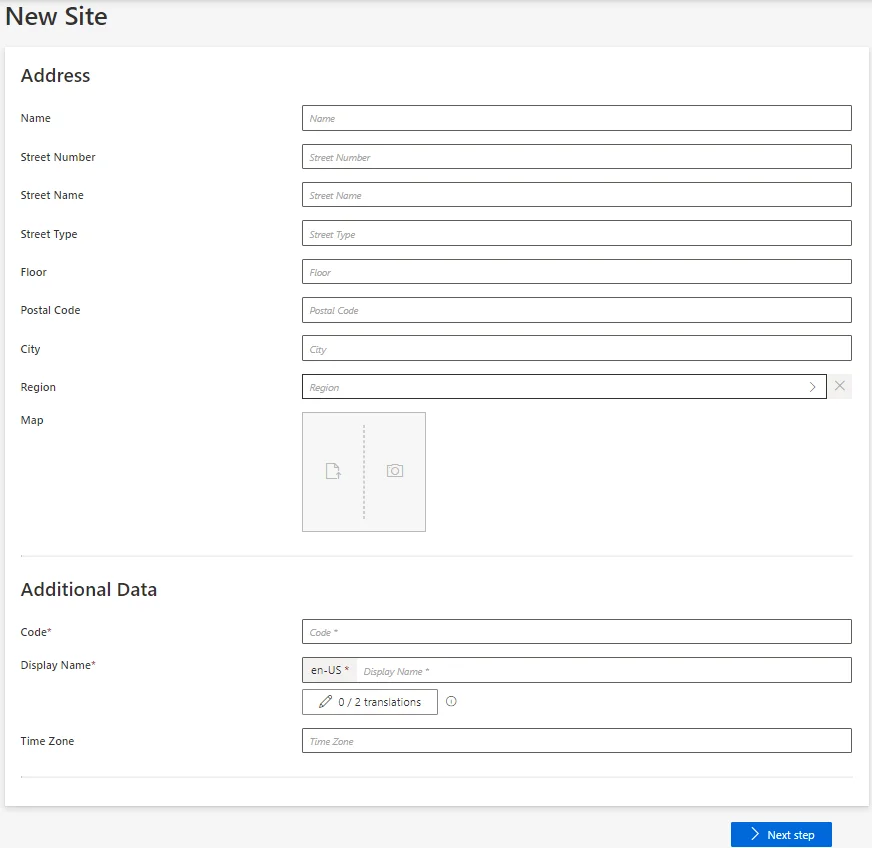

With the following form for the workflow's content:
<Form Identifier="Base_Directory_Site" EntityType="Directory_Site"> <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address"> <Control Binding="Name" /> <Control Binding="StreetNumber" /> <Control Binding="StreetName" /> <Control Binding="StreetType" /> <Control Binding="Floor" /> <Control Binding="PostalCode" /> <Control Binding="City" /> <Control Binding="Region" /> <Control Binding="Region.Country" IsReadOnly="true" /> <Control Binding="Photo" OutputType="Image" /> </Control> <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data"> <Control Binding="Identifier" /> <Control Binding="DisplayName" /> <Control Binding="TimeZone" /> </Control></Form>
And with the following form for the workflow's summary:
<Form Identifier="Summary_Directory_Site" EntityType="Directory_Site"> <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address"> <Control Binding="Name" /> <Control Binding="StreetNumber" /> <Control Binding="StreetName" /> <Control Binding="StreetType" /> </Control> <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data"> <Control Binding="Identifier" /> <Control Binding="DisplayName" /> </Control></Form>
The content of MainControl is visible during the workflow's execution:

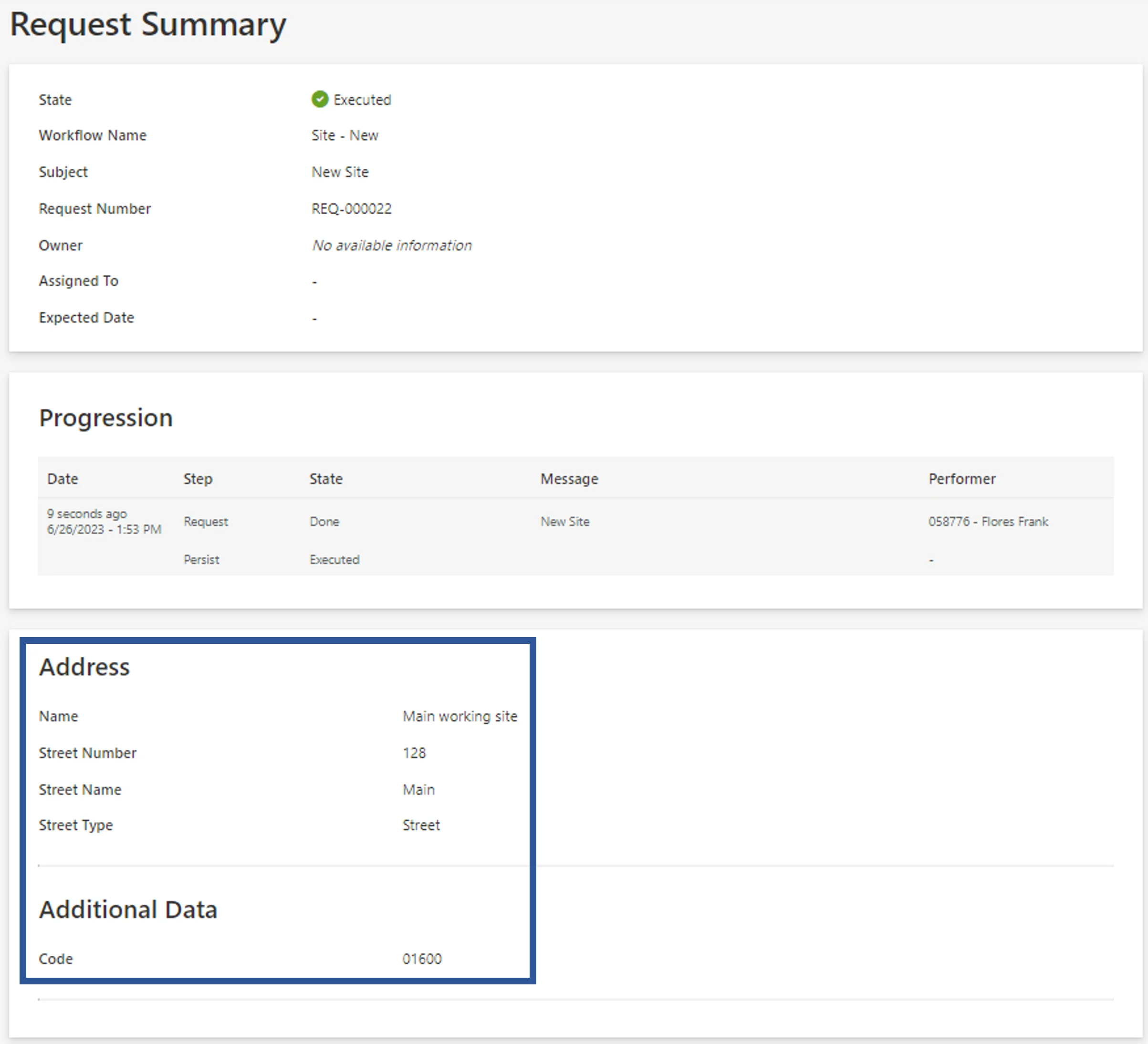

The content of SummaryControl is visible after the workflow's execution:
Properties
| Property | Description |
|---|---|
| Child Element: MainControl | Set of fields to collect data about the main resource. |
| Child Element: SummaryControl | Set of fields to sum up the collected data after the workflow's execution. |
WorkflowCreateRecordEntityForm
Displays a form to create a new resource with a record.
Examples
The following example is a form to create a new user from HR.
Code attributes enclosed with <> need to be replaced with a custom value before entering the
script in the command line.
<WorkflowCreateRecordEntityForm Identifier="Workflow_Directory_User_CreateFromHR" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_CreateFromHR:Request" FormTitle_L1="New Employee (from HR)">
<MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
<MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Main"/>
<RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_HR_Base" />
<RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Summary_Directory_User_HR_Base"/>
</WorkflowCreateRecordEntityForm>
With the following form for the workflow's content and summary about resource data:
<Form Identifier="Workflow_Directory_User_Main" EntityType="Directory_User">
<Control DisplayName_L1="Resource Data" OutputType="LayoutFieldset" Name="ResourceData">
<Control Binding="Identifier" />
</Control>
</Form>
And with the following form for the workflow's content about record data:
<Form Identifier="Workflow_Directory_User_HR_Base" EntityType="Directory_UserRecord">
<Control Binding="LastName" />
<Control Binding="FirstName" />
<Control Binding="BirthDate" />
<Control Binding="ContractStartDate"/>
<Control Binding="ContractEndDate" />
<Control Binding="Title" />
<Control Binding="UserType" />
<Control Binding="Organization" />
<Control Binding="Site" />
</Form>
And with the following form for the workflow's summary on record data:
<Form Identifier="Summary_Directory_User_HR_Base" EntityType="Directory_UserRecord">
<Control DisplayName_L1="Record Data" OutputType="LayoutFieldset" Name="RecordData">
<Control Binding="LastName" />
<Control Binding="FirstName" />
<Control Binding="ContractStartDate"/>
<Control Binding="ContractEndDate" />
<Control Binding="UserType" />
</Control>
</Form>
The content of MainControl is visible during the workflow's execution:

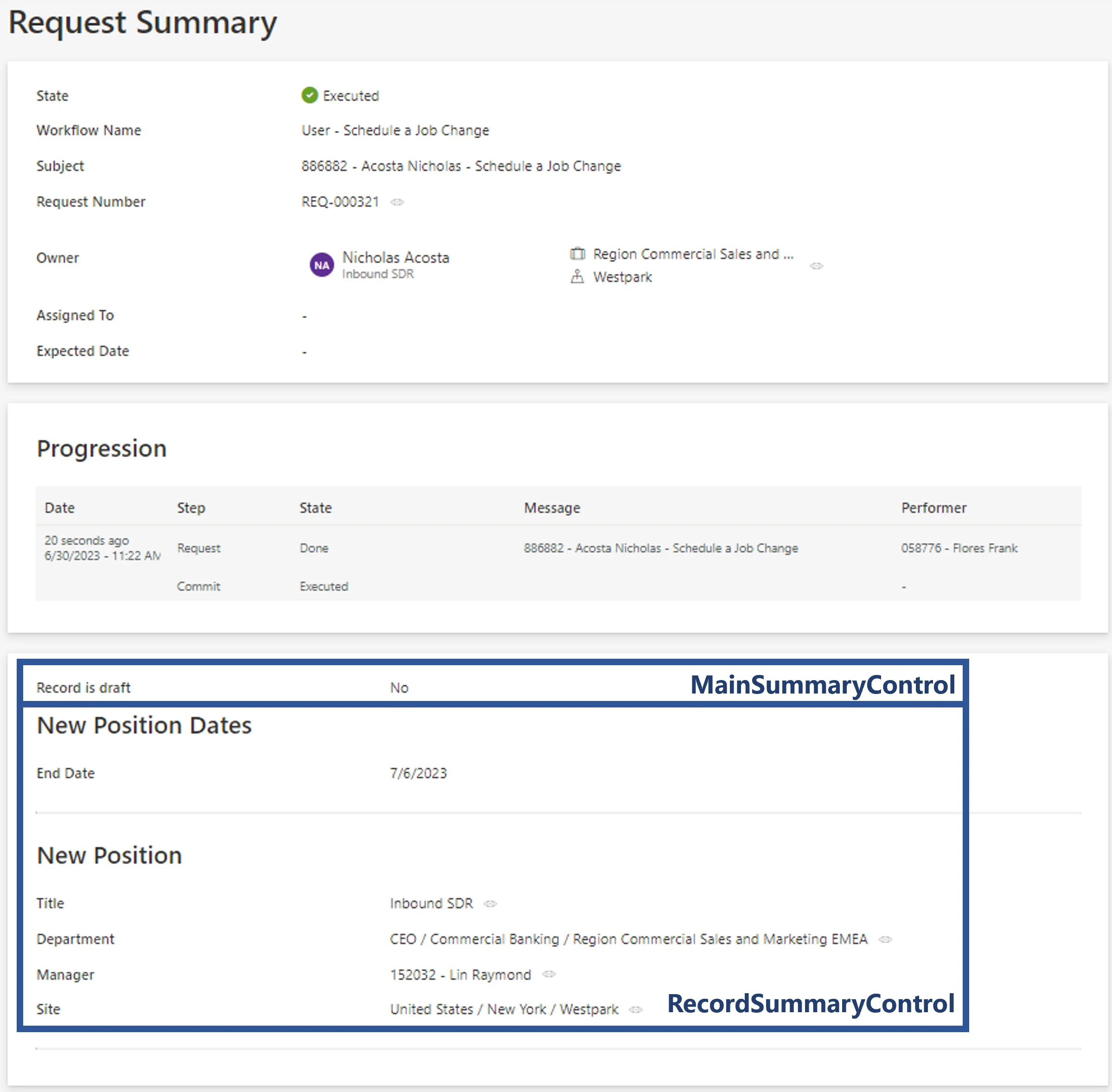

The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's
execution.
Properties
| Property | Description |
|---|---|
| Child Element: MainControl | Set of fields to collect data about the main resource. |
| Child Element: RecordControl | Set of fields to collect data about the resource's record. |
| Child Element: MainSummaryControl | Set of fields to sum up the data collected by MainControl after the workflow's execution. |
| Child Element: RecordSummaryControl | Set of fields to sum up the data collected by RecordControl after the workflow's execution. |
WorkflowCreateSeveralRecordsEntityForm
Displays a form to create a new resource with one or several records.
Examples
The following example is a form to request a computer.
<WorkflowCreateSeveralRecordsEntityForm Identifier="Workflow_Helpdesk_Directory_User_New" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" RecordTable="Directory_UserRecord_Helpdesk" WorkflowRequestType="Helpdesk" Activity="Helpdesk_Directory_User_New:Request" FormTitle_L1="New User (helpdesk)" TableTitle_L1="Records" AddRowLabel_L1="Add Record" RemoveRowLabel_L1="Remove Record"> <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" /> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Shared"/> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" /></WorkflowCreateSeveralRecordsEntityForm>
With the following form for the resource's data:
<Form Identifier="Workflow_Helpdesk_Directory_User_Base" EntityType="Directory_User"> <Control Binding="Identifier" /> <Control Binding="IsDraft" /> <Control Binding="Photo" /> <Control Binding="ConsentPhotoUsage" /></Form>
And with the following form for the data shared with all records:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Shared" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" Name="Personal Data"> <Control DisplayName_L1="Full Name" OutputType="LayoutRowset" Name="Full Name"> <Control Binding="LastName" /> <Control Binding="FirstName" /> </Control> <Control Binding="BirthName" ColumnSize="4" /> <Control Binding="BirthDate" /> <Control Binding="Gender" ColumnSize="3" /> <Control Binding="PersonalTitle" ColumnSize="3" /> </Control></Form>
And with the following form for the data specific to each record:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Base" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Identifiers" OutputType="LayoutFieldset" Name="Identifiers"> <Control Binding="RecordIdentifier" ColumnSize="4" /> <Control Binding="UserIdentifier" ColumnSize="4" /> </Control> <Control DisplayName_L1="Contract" OutputType="LayoutFieldset" Name="Contract"> <Control Binding="EmployeeId" ColumnSize="4" /> <Control Binding="ContractIdentifier" ColumnSize="4" /> <Control Binding="UserType" /> <Control Binding="ExternalCompany" /> <Control Binding="ContractStartDate" /> <Control Binding="ContractEndDate" /> </Control> <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position"> <Control Binding="PositionIdentifier" ColumnSize="4" /> <Control Binding="JobTitle" /> <Control Binding="Manager" /> <Control Binding="Site" /> <Control Binding="PositionStartDate" /> <Control Binding="PositionEndDate" InputType="Date" /> <Control Binding="IsMainPosition" /> </Control></Form>
The contents of MainControl, RecordControl and RecordUniqueItemControl are visible during the
workflow's execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data shared between all the resource's records.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields to collect data specific to each record.
| Property | Details |
|---|
WorkflowEditEntityForm
Displays a form to update or delete an existing resource, without a record.
Examples
The following example is a form to request a computer.
<WorkflowEditEntityForm Identifier="Workflow_Directory_User_ComputerRequest" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" WorkflowRequestType="Self" Activity="Directory_User_ComputerRequest:Request" FormTitle_L1="Computer Request" RecordProperty="Directory_User:PC_Requested" HideRoles="true"> <MainControl OutputType="TransformImport" EmbeddedForm="PC_Request" /> <SummaryControl OutputType="TransformImport" EmbeddedForm="PC_Request" /></WorkflowEditEntityForm>
With the following form for the workflow's content and summary:
<Form Identifier="PC_Request" EntityType="Directory_User"> <Control Binding="PC_Modele" DisplayName_L1="Model if already known" /></Form>
The content of MainControl is visible during the workflow's execution:
The content of SummaryControl is visible after the workflow's execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: SummaryControl
Set of fields to sum up the collected data after the workflow's execution.
| Property | Details |
|---|
WorkflowUpdateRecordEntitiesForm
Displays a form to update data for several resources simultaneously.
Examples
The following example is a form to update users' positions in bulk.
<WorkflowUpdateRecordEntitiesForm Identifier="Workflow_Directory_User_MassUpdate" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Self" Activity="Directory_User_MassUpdate:Request" HideRoles="false" FormTitle_L1="Update Users" > <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Main" /> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Base" /> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_AddPosition_Unique" /> <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Main" /> <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_MassUpdate_Base" /></WorkflowUpdateRecordEntitiesForm>
With the following form for the workflow's content and summary about resource data:
<Form Identifier="Workflow_Directory_UserRecord_MassUpdate_Main" EntityType="Directory_User"> <Control Binding="IsDraft" /></Form>
And with the following form for the workflow's content and summary about record data:
<Form Identifier="Workflow_Directory_UserRecord_MassUpdate_Base" EntityType="Directory_UserRecord"> <Control Binding="ContractEndDate" InputType="Date" /> <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position"> <Control Binding="PositionIdentifier" ColumnSize="4" /> <Control Binding="Title" /> <Control Binding="Manager" /> <Control Binding="Organization" /> <Control Binding="Site" /> <Control Binding="PositionStartDate" /> <Control Binding="PositionEndDate" InputType="Date" /> </Control></Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_User_AddPosition_Unique" EntityType="Directory_UserRecord"> <Control Binding="PositionIdentifier" /></Form>

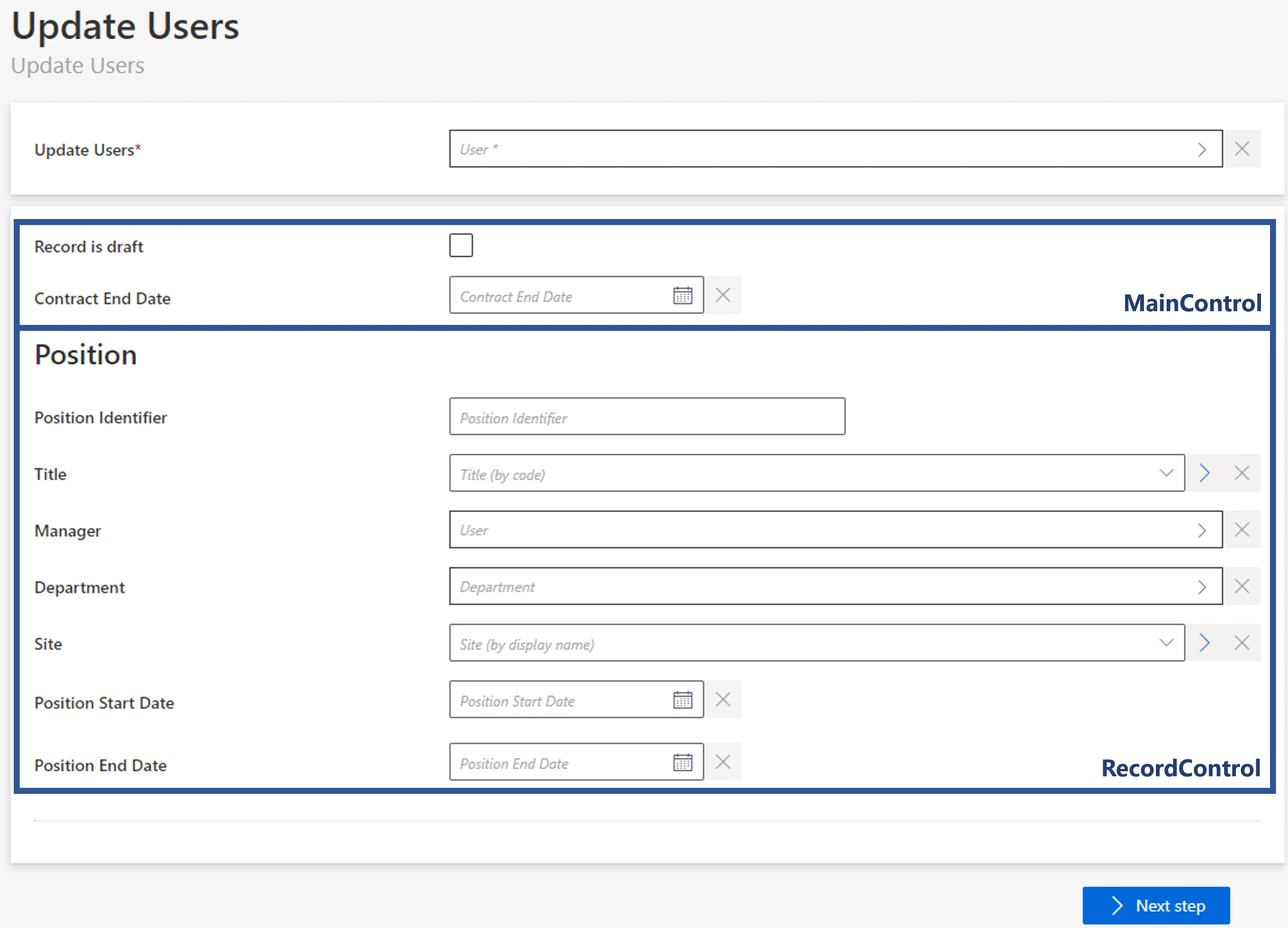

The contents of MainControl and RecordControl are visible during the workflow's execution:
The content of RecordUniqueItemControl is not visible. The user's records that have the same
values for all the properties in RecordUniqueItemControl will be modified as one.
The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's
execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data about the resource's record.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields that group records together. All records with the same data in
RecordUniqueItemControl are displayed in the workflow as only one record, and they will
potentially be modified together. When not specified, records will be grouped by the data from
RecordControl.
| Property | Details |
|---|
Child Element: MainSummaryControl
Set of fields to sum up the data collected by MainControl after the workflow's execution.
| Property | Details |
|---|
Child Element: RecordSummaryControl
Set of fields to sum up the data collected by RecordControl after the workflow's execution.
| Property | Details |
|---|
WorkflowUpdateRecordEntityForm
Displays a form to select an existing record and update it.
Examples
The following example is a form to update a user's record from helpdesk.
<WorkflowUpdateRecordEntityForm Identifier="Workflow_Helpdesk_Directory_User_FixRecord" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" WorkflowRequestType="Helpdesk" Activity="Helpdesk_Directory_User_FixRecord:Request" FormTitle_L1="Repair Data (helpdesk)" > <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" /> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" /> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Unique" /> <MainSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_User_Base" /> <RecordSummaryControl OutputType="TransformImport" EmbeddedForm="Workflow_Helpdesk_Directory_UserRecord_Base" /></WorkflowUpdateRecordEntityForm>
With the following form for the resource's data and summary:
<Form Identifier="Workflow_Helpdesk_Directory_User_Base" EntityType="Directory_User"> <Control Binding="Identifier" /> <Control Binding="IsDraft" /></Form>
And with the following form for the data shared with all records and for the summary:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Base" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" Name="Personal Data"> <Control DisplayName_L1="Full Name" OutputType="LayoutRowset" Name="Full Name"> <Control Binding="LastName" /> <Control Binding="FirstName" /> </Control> <Control Binding="BirthDate" /> <Control Binding="Gender" ColumnSize="3" /> <Control Binding="Email" ColumnSize="6" /> <Control DisplayName_L1="Phone Numbers" OutputType="LayoutRowset" Name="Phone Numbers"> <Control Binding="PhoneNumber" /> <Control Binding="MobileNumber" /> </Control> <Control Binding="Login" ColumnSize="4" /> <Control Binding="StartDate" /> <Control Binding="EndDate" InputType="Date" /> </Control> <Control DisplayName_L1="Contract" OutputType="LayoutFieldset" Name="Contract"> <Control Binding="EmployeeId" ColumnSize="4" /> <Control Binding="ContractIdentifier" ColumnSize="4" /> <Control Binding="UserType" /> <Control Binding="ContractStartDate" /> <Control Binding="ContractEndDate" /> </Control> <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position"> <Control Binding="PositionIdentifier" ColumnSize="4" /> <Control Binding="JobTitle" /> <Control Binding="Manager" /> <Control Binding="IGAManager" /> <Control Binding="Organization" /> <Control Binding="PositionStartDate" /> <Control Binding="PositionEndDate" InputType="Date" /> </Control></Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Helpdesk_Directory_UserRecord_Unique" EntityType="Directory_UserRecord"> <Control Binding="Id" /></Form>
The contents of MainControl and RecordControl are visible during the workflow's execution:
The content of RecordUniqueItemControl is not visible. The user's records that have the same
values for all the properties in RecordUniqueItemControl will be displayed, and potentially
modified, as one.
The contents of MainSummaryControl and RecordSummaryControl are visible after the workflow's
execution:
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data about the resource's record.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields that group records together. All records with the same data in
RecordUniqueItemControl are displayed in the workflow as only one record, and they will
potentially be modified together. When not specified, records will be grouped by the data from
RecordControl.
| Property | Details |
|---|
Child Element: MainSummaryControl
Set of fields to sum up the data collected by MainControl after the workflow's execution.
| Property | Details |
|---|
Child Element: RecordSummaryControl
Set of fields to sum up the data collected by RecordControl after the workflow's execution.
| Property | Details |
|---|
WorkflowUpdateSeveralRecordsEntityForm
Displays a form to create, update or delete one or several records.
Examples
The following example is a form to create, update and/or delete one or several positions for a given user.
<WorkflowUpdateSeveralRecordsEntityForm Identifier="Workflow_Directory_User_ManagePositions" EntityType="Workflow_Directory_User" MainProperty="Workflow_Directory_User:Directory_User" RecordProperty="Directory_User:Records" RecordTable="Directory_UserRecord_ManagePositions" WorkflowRequestType="Self" Activity="Directory_User_ManagePositions:Request" FormTitle_L1="Manage Positions" TableTitle_L1="Positions" AddRowLabel_L1="Add Position" RemoveRowLabel_L1="Remove Position" RecordStartProperty="Directory_UserRecord:PositionStartDate" RecordEndProperty="Directory_UserRecord:PositionEndDate"> <MainControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_User_Position_Main" /> <RecordControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Base_New" /> <RecordUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Unique" /> <RecordSlaveUniqueItemControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Contract" /> <RecordSlaveControl OutputType="TransformImport" EmbeddedForm="Workflow_Directory_UserRecord_Position_Base_Existing" /></WorkflowUpdateSeveralRecordsEntityForm>
With the following form for the resource's data:
<Form Identifier="Workflow_Directory_User_Position_Main" EntityType="Directory_User"> <Control Binding="Identifier" /> <Control Binding="IsDraft" /></Form>
And with the following form for the data shared with all records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Contract" EntityType="Directory_UserRecord"> <Control Binding="EmployeeId" ColumnSize="4" /> <Control Binding="ContractIdentifier" ColumnSize="4" /> <Control Binding="UserType" /> <Control Binding="ContractStartDate" /> <Control Binding="ContractEndDate" /></Form>
And with the following form for the data used to update existing records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Base_Existing" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position"> <Control Binding="PositionIdentifier" ColumnSize="4" /> <Control Binding="Manager" /> <Control Binding="IGAManager" /> <Control Binding="Organization" /> <Control Binding="Site" /> <Control Binding="PositionStartDate" /> <Control Binding="PositionEndDate" InputType="Date" /> </Control></Form>
And with the following form for the data used to add new records:
<Form Identifier="Workflow_Directory_UserRecord_Position_Base_New" EntityType="Directory_UserRecord"> <Control DisplayName_L1="Position" OutputType="LayoutFieldset" Name="Position"> <Control Binding="PositionIdentifier" ColumnSize="4" />
<Control Binding="Title" />
<Control Binding="Manager" /> <Control Binding="IGAManager" /> <Control Binding="Organization" /> <Control Binding="Site" /> <Control Binding="PositionStartDate" /> <Control Binding="PositionEndDate" InputType="Date" /> </Control></Form>
And with the following form for the data that groups records together:
<Form Identifier="Workflow_Directory_UserRecord_Position_Unique" EntityType="Directory_UserRecord"> <Control Binding="PositionIdentifier" /></Form>

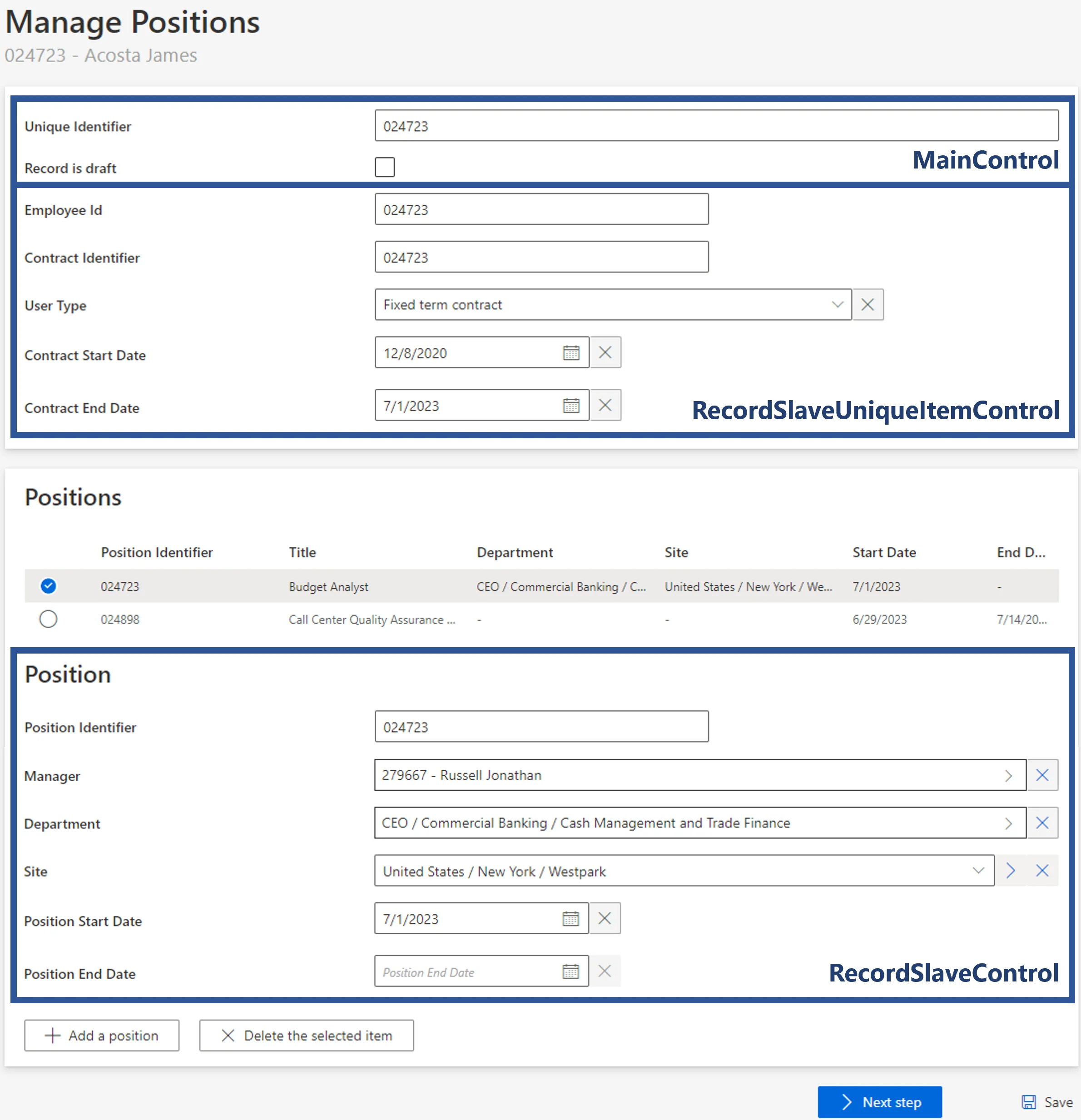

The contents of MainControl, RecordControl, RecordSlaveUniqueItemControl and
RecordSlaveControl are visible during the workflow's execution:
When adding a new position, we decide to make Title available, in addition to the fields used to
update existing records:
The content of RecordUniqueItemControl is not visible. The user's records that have the same
values for all the properties in RecordUniqueItemControl will be displayed, and potentially
modified, as one.
Properties
| Property | Details |
|---|
Child Element: MainControl
Set of fields to collect data about the main resource.
| Property | Details |
|---|
Child Element: RecordControl
Set of fields to collect data when adding new records.
| Property | Details |
|---|
Child Element: RecordUniqueItemControl
Set of fields that group records together. All records with the same data in
RecordUniqueItemControl are displayed in the workflow as only one record, and they will
potentially be modified together. When not specified, records will be grouped by the data from
RecordControl.
| Property | Details |
|---|
Child Element: RecordSlaveUniqueItemControl
Set of fields to collect the data shared with all the resource's records, for example contract information when managing positions.
| Property | Details |
|---|
Child Element: RecordSlaveControl
Set of fields to collect data when updating existing records.
| Property | Details |
|---|
HomonymEntityLink
This entity is used to configure the homonym workflow.
Examples
<HomonymEntityLink FormEntityType="Referentiel_UserRecord" Identifier="Homonym_Referentiel_UserRecord"/>
In this example the homonym is linked to a Control and it will be applied for the Binding included in the Control where the homonym is located. Read more about how to configure homonym filters.
<Form Identifier="Workflow_Referentiel_User_AdvancedStartInternal_Base" EntityType="Referentiel_UserRecord"> <Control DisplayName_L1="Personal Data" OutputType="LayoutFieldset" HomonymEntityLink="Homonym_Referentiel_UserRecord"> <Control DisplayName_L1="Full Name" OutputType="LayoutRowset"> <Control Binding="LastName" IsRequired="true" /> <Control Binding="FirstName" IsRequired="true" /> </Control> </Control></Form>
Properties
| Property | Details |
|---|---|
| FormEntityType required | Type Int64 Description In a Form, an EntityType is defined and the Binding of this Form will be loaded from this EntityType. The FormEntityType property represents this EntityType. |
| Identifier required | Type String Description Unique identifier of the HomonymEntityLink. |
Child Element: Filter
Defines combination of property comparison to use to find homonyms.
Properties
| Property | Details |
|---|---|
| ComparisonProperty1 optional | Type Int64 Description Defines the property used to compare with the form control Property. It should not be defined if it the same as the property in the attribute Property. Going from 1 to 5. |
| Expression1 optional | Type String Description Defines the C# expression to apply on the homonymy form controls. The result of the expression evaluation will be compared with the corresponding ComparisonProperty using the defined Operator. If the ComparisonProperty is a computed property, no need to define the expression if it is the same as the one for the computed property. It will be automatically used when finding homonyms. Going from 1 to 5. See more details on C# expressions. |
| Operator1 default value: 2 | Type QueryComparisonOperator Description Defines the operator to use to compare between the ComparisonProperty and the Property or the Expression evaluation result. By default the Equal operator is used. Going from 1 to 5. All possible values: 0 - Auto: The Operator is calculated by the engine according to the type of element. 1 - NotEqual: finds the elements that are not equal to the desired value. 2 - Equal: finds the elements that are strictly equal to the desired value. 3 - Contain: finds the elements that contain the desired value. 4 - StartWith: finds the elements that start with the desired value. 5 - EndWith: finds the elements that end with the desired value. 6 - NotContain: finds the elements that do not contain the desired value. 7 - NotStartWith: finds the elements that do not start with the desired value. 8 - NotEndWith: finds the elements that do not end with the desired value. 9 - GreaterThan: finds the elements that are greater than the desired value. 10 - LessThan: finds the elements that are less than the desired value. 11 - GreaterThanOrEqual: finds the elements that are greater than or equal to the desired value. 12 - LessThanOrEqual: finds the elements that are less than or equal to the desired value. *- Flexible: The Flexible operators transform the desired value according to the FlexibleComparisonExpression defined in the EntityProperty then search. The flexible operators are: 13 - FlexibleEqual 14 - FlexibleContain 15 - FlexibleStartWith 16 - FlexibleEndWith |
| Property1 optional | Type Int64 Description Defines the form control property to use to compare with ComparisonOperator using the defined Operator. Going from 1 to 5. |
Workflows
Workflow
In Usercube, a workflow is a set of elemental units called activities that are stored as a model to describe a real-world process. A workflow provides a mechanism for automating multi-step processes across the application. It can be depicted as a sequence of operations, declared as work of a person or group, an organization of staff, or one or more simple or complex mechanisms.
Examples
The following example declares a simple workflow called Directory_User_StartInternal that involves
resources from the entity type Directory_User.
<Workflow Identifier="Directory_User_StartInternal" DisplayName_L1="User - New Employee" VariablesType="Workflow_Directory_User">
<Activity ... /> ...
</Workflow>
Properties
| Property | Details |
|---|---|
| DisplayName_L1 required | Type String Description Workflow' name displayed in the UI. This column is used for the first language. |
| Identifier required | Type String Description Unique identifier of the workflow. |
| IdentifierPrefix optional | Type String Description Workflow's identifier prefix, used to prefix the workflow's activity instances. |
| VariablesType required | Type Int64 Description Entity type of the resources involved by the workflow. Must follow the naming convention Workflow_<EntityType>. |
Child Element: Activity
In Usercube, an activity is a elemental unit used to model a workflow's steps, such as the request of new records, the mailing of notifications to users about pending approvals, or the approval/decline of modifications. A workflow is made of a series of successive activities.
Examples
The following workflow is made of four activities to add a new worker in the system.
<Workflow Identifier="Directory_User_StartInternal" DisplayName_L1="User - New Employee" VariablesType="Workflow_Directory_User">
<Activity Identifier="Request" DisplayName_L1="Request" Template="ActionWithRefine" />
<Activity Identifier="PersistDraft" DisplayName_L1="Draft Creation" Template="PersistOnlyResources" WorkflowOverviewDisable="1"/>
<Activity Identifier="Review" DisplayName_L1="Review" Template="ReviewWithFeedback" />
<Activity Identifier="Persist" DisplayName_L1="Commit" Template="Persist" WorkflowOverviewDisable="1"/> </Workflow>
Properties
| Property | Details |
|---|---|
| ArgumentBlockProvisioning default value: false | Type Boolean Description true to block provisioning orders (argument used only for an activity following the template Persist or PersistOnlyResources). |
| ArgumentCalledWorkflow optional | Type Int64 Description Workflow to call (argument used only for an activity following the template ContinueWith). |
| DisplayName_L1 required | Type String Description Activity's name to display in the UI. This column is used for the first language. |
| Identifier required | Type String Description Unique identifier of the activity. |
| Template required | Type Enumeration Description Identifier of the activity template. All possible values: - Action: awaits user modifications without another user's intervention. - ActionWithRefine: awaits user modifications with the possibility to delegate the action to another user. - Review: awaits user approval without another user's intervention. - ReviewWithFeedback: awaits user approval with the possibility of getting feedback from another user before taking the action. - Persist: saves the workflow's collected data to the repository and triggers dependant processes (i.e. provisioning). - PersistOnlyResources: saves the workflow's collected data to the repository and without triggering dependant processes (i.e. provisioning). - ContinueWith: Gets the previous activities of the workflow and continues starting from a given activity of another workflow. |
| WorkflowOverviewDisable default value: false | Type Boolean Description true to disable the activity's appearance on the Workflow Overview screen. |
