End-User Authentication

Overview

Before end-users can connect to Usercube through the UI, they will have to authenticate.

Usercube supports seven authentication methods organized into two categories: Internal methods and External methods.

It is highly recommended that you use an External method. Internal methods are mostly used for debug, test and development purposes.

Internal methods

The Internal methods use Usercube Server's internal authentication server. They rely on one of these Identity Server User Stores:

Test User Store, used in development environments.
Active Directory User Store, using an Active Directory to authenticate.

External methods

External methods use external authentication providers.

Usercube supports five types of external authentication providers. Four are based on different flavors of the OAuth 2.0 protocol. The last one is integrated with Windows.

Using more than one provider

For each authentication method, one or several authentication providers can be set up. If several authentication providers are set up, end-users will be prompted to choose their preferred method of authentication.

authent_1

Internal Method & Test Mode Form

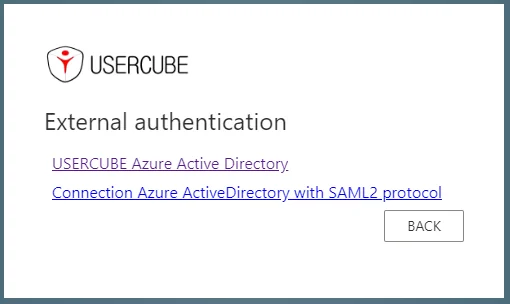

authent_2

External Method Prompt

Identity Server RSA Key Pair

A public key certificate and a private key are used to handle encrypted communication with external authentication providers. This is used, for example, by the Usercube Server to retrieve the provider's signing key. It is mandatory to validate JWT tokens in an OAuth-flavor scenario.

This information can be set one of two ways:

As a PKCS #12 archive (also called .pfx file) stored in the Agent's host file system. The archive contains both the public key certificate and the private key.
As a certificate from a Windows' certificate store identified by SubjectDistinguishedName or by Thumbprint. The Windows certificate also contains both the public key certificate and the private key.

PFX file

The archive is set using the following attributes on the appsettings > IdentityServer section (see Configuration):

X509KeyFilePath is the PKCS #12 archive path on the Agent's host file system.
X509KeyFilePassword (optional) is the PKCS #12 archive password.

Example

"IdentityServer": \{ "X509KeyFilePath": "C:/identitymanagerAgentContoso/contoso.pfx",
"X509KeyFilePassword": "oarjr6r9f00" \}

Certificate

The certificate from a Windows certificate store is set up using these attributes on the appsettings > IdentityServer section (see Configuration):

Name	Details
X509SubjectDistinguishedName optional (if Thumbprint is non-empty)	Sets the store certificate's SubjectDistinguishedName.
X509Thumbprint optional (if DistinguishedName is non-empty)	Sets the store certificate's Thumbprint.
X509StoreLocation required	Sets the Relevant Windows certificate store's location: `LocalMachine` or `CurrentUser`.
X509StoreName required	Sets the relevant Windows certificate store's name.

Example

"IdentityServer": \{
"X509SubjectDistinguishedName":"UsercubeContoso",
"X509StoreLocation": "LocalMachine",
"X509StoreName": "AuthRoot"
\}

Usercube Server won't start if the PKCS #12 archive set up during this step is identical to the one provided with the SDK. Users must provide their own certificate. Self-signed certificates are accepted as valid.

Configuration Section Description

Authentication is set up using the following two sections of the Server's appsettings set.

IdentityServer
Authentication

{ "IdentityServer":{ ... }, "Authentication":{ ... } }

The ```authentication``` section mostly fits the following pattern:

                    ```

"Authentication":\{
    `<Authentication Protocol 1>`:\{
          `<Authentication Provider 1>`:\{
                  ...
          \},
          ....,
          `<Authentication Provider n>`:\{
                  ...
          \},
    \},
    `<Authentication Protocol 2>`:\{
          `<Authentication Provider 1>`:\{
                  ...
          \},
          ....,
          `<Authentication Provider n>`:\{
                  ...
          \},
    \}
\}

Several authentication providers can be defined (here above, <Authentication Provider 1> to <Authentication Provider n>), using one or several authentication protocols (here above, <Authentication Protocol 1> and <Authentication Protocol 2>).

Most of the authentication providers need the user to choose an AuthenticationScheme. It is a string that will be used to uniquely identify this authentication method in Usercube. Its goal is to enable Usercube's testers to identify which authentication method is used in the logs or in the code, with a mnemonic name. Any name can be used as long as all AuthenticationSchemes are different.

This guide doesn't cover how to set up authorizations within Usercube. Authorization for an end-user to access Usercube resources relies on assigning roles to profiles. Identity credentials used for authentication must be linked to these profiles in the applicative configuration.

Authentication-related settings are set through the following sections of the appsettings set:

IdentityServer
Authentication

IdentityServer

This is the general-purpose authentication settings section.

The IdentityServer section allows the following attributes:

Name	Details
Enabled default value: true	Type Boolean Description Enables or disables the Identity Server.
AllowWindowsAuthentication default value: false	Type Boolean Description Allows Windows authentication. Will work only when the Active Directory User Store is enabled.
ShowPII default value: false	Type Boolean Description Sets whether or not PII is shown in logs. For security reasons, this setting should be used sparingly.
ValidationKeys optional	Type String Array Description Allows the definition of public certificate paths for token validation.
IssuerURI optional	Sets the unique name of this server instance.
PostLogoutRedirectUri optional	Sets a specific URI to which the user will be redirected after a successful logout.
PublicOrigin optional	Sets the origin name for this Usercube Server instance. Useful if end-users authenticate through a proxy server.
X509File required	Is the PKCS #12 archive path on the Agent's host file system (see Identity Server RSA Key Pair).
X509KeyFilePassword optional	Is the PKCS #12 archive password (see Identity Server RSA Key Pair).
X509SubjectDistinguishedName optional	Sets the store certificate's SubjectDistinguishedName (see Identity Server RSA Key Pair).
X509Thumbprint optional	Sets the store certificate's Thumbprint (see Identity Server RSA Key Pair).
X509StoreLocation required	Sets the relevant Windows certificate store's location (see Identity Server RSA Key Pair).
X509StoreName required	Sets the relevant Windows certificate store's name (see Identity Server RSA Key Pair).

Authentication

This section contains specific settings for each configuration method.

At the root, the following properties can be used:

Name	Details
Enabled default value: true	Type Boolean Description Enables or disables authentication.
RequireHttpsMetadata default value: true	Type Boolean Description Specifies whether HTTPS is required for the discovery endpoint.
AllowLocalLogin required	Type Boolean Description If `true`, a Login Form replaces Windows Authentication.
CookieLifeTime default value: 8	Type Int Description Maximum duration (in hours) after which the session expires automatically.
LifeTimeSliding default value: 10	Type Int Description Duration (in minutes) after which the session expires automatically, if no action is taken during this time.

Then, a subsection for every authentication method is used. Supported subsections are:

OpenId
OAuth
WsFederation
SAML2
ActiveDirectoryUserStore
TestUserStore

Set Up Integrated Windows Authentication (IWA)

This authentication method can be used to authenticate users within an Active Directory domain using their respective domain account.

This authentication is silent: when an end-user tries to access Usercube, the browser retrieves identity credentials from the Windows session where the user is logged in and sends them to the domain controller for authentication. The domain controller confirms the user's identity and validates it for Usercube. The end-user doesn't have to input any credentials.

If Integrated Windows Authentication is used, internal methods have to be disabled with the "AllowLocalLogin":false setting.

Requirements

Setting up this authentication method requires the following:

Usercube runs as an Internet Information Services (IIS) website.
Windows Authentication is enabled on Windows server.
Windows Authentication is enabled for the Usercube IIS website.

Configuration

Integrated Windows Authentication is configured using the following sections:

Set the IdentityServer > AllowWindowsAuthentication attribute to true.
Set the Authentication > AllowLocalLogin attribute to false.

The following example sets up Windows Authentication. Windows Server and IIS requirements have been checked.
    appsettings.json

... "IdentityServer":\{ "AllowWindowsAuthentication":"true", \}, "Authentication":\{
"AllowLocalLogin":"false", \} ...

Set Up an Open ID Connect Provider

One or several Open ID Connect authentication providers can be set up under the authentication > OpenId section.

Overview

Multiple providers

One or several Open ID Connect authentication providers can be set up.

Registration process

Using an Open ID Connect authentication requires the Usercube Server to be registered to the provider. A ClientID and a ClientSecret are issued as a result of the registration process. They both allow Usercube to identify itself to the authentication provider. Here is an example of registering Usercube to an Microsoft Entra ID (formerly Microsoft Azure AD) used as Open ID Connect provider.

Callback URL

The target Open ID Connect provider needs to be aware of the URI where to send the authentication token if the authentication succeeds. Depending on the provider, it is called a callback URL, a callback path, an authorization callback URL, or a redirect URI.

During the registration process, the provider will ask for the URL.

Usercube's callback URL for Open ID Connect is <usercube-server-address>/signin-oidc where <usercube-server-address> is the address of your Usercube Server such as https://identitymanager.contoso.com.

Authority

An Open ID Connect provider is identified by its Authority, according to the Open ID Connect specifications.

NameClaimType

To authorize an end-user, Usercube Server retrieves a specific claim (a key-value pair, transmitted through the OIDC-issued JWT token) returned by the provider and looks for a resource that matches this claim's value. The comparison is carried out according to the resource and property set as the end-user's identity in the applicative configuration.

The name of the claim that is retrieved for this purpose defaults to sub which is one of the standard Claim names for the Open ID Connect protocol. However, some providers might not fill the sub value with meaningful data, or use non-standard Claim names.

For this reason, the name of the claim that is retrieved by Usercube for authorization purposes can be set up according to the provider's specifics.

See the NameClaimType configuration attribute below.

Users should be able to get a list of the claim names used by their authentication providers from their providers' portal website, documentation or administrators.

For example, the following claim provides no meaningful sub value.

\{ "name": "John Doe", "preferred_username": "john.doe@contoso.com", "sub": "11v7ert42azerttyZD6d4"
\}

Using the following applicative configuration setting that sets Ad_Entry:userPrincipalName as the value to be matched against a claim in order to identify a user's profile, the preferred_username NameClaimType should be used.

`<SelectUserByIdentityQueryHandlerSetting ResourceIdentityProperty="AD_Entry:userPrincipalName" ... />`

Configuration

First, the Open ID Connect method must be enabled.

Under the OpenId section:

Name	Details
Enabled required	Type Boolean Description Enables or disables the OpenId connection.

For each Open ID Connect provider to integrate, a new section is added under the OpenID subsection. Any section name can be used. This section name is only used as a means for the user to find the authentication method in the configuration files.

Under the new subsection, the following parameters are used to configure the authentication method:

Name	Details
AuthenticationScheme required	Is the unique identifier of this authentication method within Usercube. Any string value can be used, unique among all authentication methods.
DisplayName optional	Is the provider display name. Chosen by the user, it is used in the UI to identify the authentication method.
ClientId required	Is the Client ID issued during the registration of Usercube to the chosen Open ID Connect provider.
ClientSecret required	Is the Client Secret issued during the registration of Usercube to the chosen Open ID Connect provider.
Authority required	This URL identifies the Open ID Connect provider for Usercube according to the Open ID Connect specifications. It can be retrieved from the target Open ID Connect provider documentation. For example, Microsoft's documentation indicates the Microsoft Identity Platform Open ID Connect authority.
NameClaimType optional	Sets the type of the claim that will be retrieved by Usercube to identify the end-user. The retrieved claim will be compared against the resource and property set as the end-user's identity in the applicative configuration.
Scopes optional	Sets the list of the requested scopes. By default, the requested scopes are: `openid`, `profile` and `email`.
SaveTokens default value: false	Type Boolean Description Only for Okta providers. Set to `true if authentication uses an Okta provider. For more information about Okta configuration, see Okta.
MetadataAddress optional	URL address of a copy of the metadata, used when the authority metadata cannot be accessed from the Usercube server, for example because of a firewall.
RequireHttpsMetadata default value: true	Type Boolean Description By default the authority metadata must use HTTPS. Set to `false to use a simple HTTP metadata, in case a local copy of the metadata is used or for test environment.
ResponseMode optional	Type String Description Response mode for OpenIdConnect. - `Query` - `FormPost` - `Fragment` See OpenId documentation.
ResponseType optional	Type String Description Response type for OpenIdConnect. - `Code` - `CodeIdToken` - `CodeIdTokenToken` - `CodeToken` - `IdToken` - `IdTokenToken` - `None` - `Token` See examples in the OpenId documentation.

Example

This example configures an OpenId Connect authority located at https://login.microsoftonline.com/bbd35166-7c13-49f3-8041-9551f2847b69.

This authentication provider is identified within the appsettings.jsonOpenId Connect providers list as OpenId1.

Within Usercube, it will be identified with the authentication scheme AzureOIDC.

It will be displayed as Connection Microsoft Entra ID with OIDC protocol in the UI external login prompt.

\{ "Authentication": \{ ... "OpenId": \{ "Enabled": "True", "OpenId1": \{ "AuthenticationScheme":
"AzureOIDC", "DisplayName": "Connection Microsoft Entra ID with OIDC protocol", "ClientId":
"6779ef20e75817b79602", "ClientSecret":
"5ef0234c039c725e21ffc727a60c44895a39dce1c81ae36dc5d002feae82c1c0 ", "Authority":
"https://login.microsoftonline.com/bbd35166-7c13-49f3-8041-9551f2847b69", "NameClaimType":
"preferred_username", "Scopes": ["openid", "profile"] \} \} \} \}

Set Up an OAuth Provider

One or several OAuth authentication providers can be set up under the authentication > OAuth section.

Overview

Multiple providers

One or several OAuth authentication providers can be set up.

Registration process

Using an OAuth authentication requires Usercube Server to be registered to the provider. A ClientID and a ClientSecret are issued as a result of the registration process. They both allow Usercube to identify itself to the authentication provider.

Callback URL

The target OAuth provider needs to be aware of the URI where to send the authentication token if the authentication succeeds. Depending on the provider, it is called a callback URL, a callback path, an authorization callback URL, or a redirect URI.

During the registration process, the provider will ask for the URL.

Usercube's callback URL for OAuth is <usercube-server-address>/<callback-path> where <usercube-server-address> is the address of your Usercube Server such as https://identitymanager.contoso.com and <callback-path> can be set up to any value chosen by the user using the CallbackPath configuration attribute. The only constraint is to make sure the CallbackPath value in Usercube's configuration is the same as in the OAuth provider registration screen for Usercube.

Configuration

First, the OAuth method must be enabled under the authentication > OAuth section.

Name	Details
Enabled required	Type Boolean Description Enables or disables the OAuth connection.

Then, users must create a new section per OAuth provider. Users are free to choose any section name. Its sole purpose is for users to find the authentication method in the configuration files.

Each section is configured with the following settings:

Name	Details
AuthenticationScheme required	Is the unique identifier of this authentication method within Usercube. Any string value can be used, unique among all authentication methods.
DisplayName optional	Is the provider display name. Chosen by the user, it is used in the UI to identify the authentication method.
ClientId required	Is the Client ID issued to Usercube during the registration process.
ClientSecret required	Is the Client Secret issued to Usercube during the registration process.
ClaimsIssuer required	Is a unique identifier that will mark claims issued by this OAuth provider for Usercube. This mark is used for debugging, monitoring, or security purposes in situations where multiple OAuth providers are involved. It's still useful if only one provider is used. Any string value can be used. Convention dictates that it is a URL shaped value such as `https://accounts.google.com`.
AuthorizationEndpoint required	Is the provider's Authorization Endpoint URI. This is where the end-user's browser is redirected to start the authentication process. Usually ends with `/auth` or `/authorize`. This information must be retrieved from the provider's portal.
TokenEndpoint required	Is the provider's Token Endpoint URI. This is where the client sends token requests, using an authorization code obtained during the authentication process. This information must be retrieved from the provider's portal.
CallbackPath required	Sets the callback path where the client is redirected after a successful authentication. Any string value can be used as long as it is reported to the provider during the registration process.
SaveTokens default value: false	Type Boolean Description Only for Okta providers. Set to `true if authentication uses an Okta provider. For more information about Okta configuration, see Okta.
Scope optional	Sets the list of the requested scopes.

Example

The following example configures an OAuth-based authentication provider identified as OAuthContoso_Washington in the configuration file.

It will be displayed as Contoso OAuth Washington in the UI external login prompt, and uniquely identified within Usercube by the authentication scheme contoso_0987.

Usercube Server marks received claims using https://accounts.google.com as a claim issuer identifier.

/signin-oauth has been chosen as CallbackPath and set up as such in the OAuth provider's portal during Usercube's registration.

\{
"Authentication":
\{
...
"OAuth": \{
"Enabled": "True",
"OAuthContoso_Washington": \{
"AuthenticationScheme": "AzureOAuth",
"DisplayName": "Connection Microsoft Entra ID with OAuth protocol",
"ClientId": "6779ef20e75817b79602",
"ClientSecret": "5ef0234c039c725e21ffc727a60c44895a39dce1c81ae36dc5d002feae82c1c0 ",
"ClaimsIssuer": "https://accounts.google.com",
"AuthorizationEndpoint": "https://accounts.google.com/o/oauth2/v2/auth",
"TokenEndpoint": "https://oauth2.googleapis.com/token",
"CallbackPath": "/signin-oauth",
"Scopes": ["openid", "profile"]
\}
\}
\}
\}

Set Up a WS-Federation Provider

One or several WS-Federation authentication providers can be set up under the authentication > WsFederation subsection. Examples of WS-Federation providers include Active Directory Federation Services (ADFS) and Microsoft Entra ID (AAD).

Overview

Multiple providers

One or several WS-Federation authentication providers can be set up.

Registration process

Using a WS-Federation authentication requires Usercube Server to be registered to the provider. A Wtrealm value is set up during the registration process. The value can be generated by the provider, or set manually as a URL-shaped string value. This allows Usercube to identify itself to the authentication provider. Here are two examples of registration process:

with an Active Directory Federation Services provider
with an Microsoft Entra ID provider

Callback URL

The target WS-Federation provider needs to be aware of the URI where to send the authentication token if the authentication succeeds. Depending on the provider, it is called a callback URL, a callback path, an authorization callback URL, or a redirect URI.

During the registration process, the provider will ask for the URL.

Usercube's callback URL for WS-Federation is <usercube-server-address>/signin-wsfed where <usercube-server-address> is the address of your Usercube Server such as https://identitymanager.contoso.com.

Encryption algorithm

The nature of the encryption algorithm used for exchanging the sign-in key with the provider is automatically negotiated between Usercube Server and the authentication server. The most secure algorithm that both systems support is chosen.

Configuration

First, the WS-Federation must be enabled under the authentication > WsFederation section:

Name	Details
Enabled required	Type Boolean Description Enables or disables the WS-Federation authentication.

Then, users must create a new subsection per WS-Federation provider. They are free to choose any section name. Its sole purpose is for users to find the authentication method in the configuration files.

Each section is configured with the following settings:

Name	Details
MetadataAddress required	Identifies, for Usercube, the target WS-Federation server's metadata. This information is to be retrieved from the app registration process or directly from the WS-Federation provider. The value commonly ends with the path `/FederationMetadata/2007-06/FederationMetadata.xml`. - For Active Directory Federation Services, it is `https://<ADFS_SERVER>/federationmetadata/2007-06/federationmetadata.xml` with `<ADFS_SERVER>` the name of your ADFS server such `portal.contoso.com`. - For Microsoft Entra ID, it is also known as Federation Metadata Document. It is available in Usercube's registered app blade, in the endpoint panel, Federation Metadata Document value. It looks like `https://bbd35166-7c13-49f3-8041-9551f2847b69/FederationMetadata/2007-06/FederationMetadata.xml` with `bbd35166-7c13-49f3-8041-9551f2847b69` Microsoft Entra ID tenant id.
Wtrealm required	Identifies the Usercube app within the WS-Federation provider. This information is available directly at the authentication provider's portal. It is chosen during the registration process. - For Active Directory Federation Services, it is the value set as the `relying party WS-Federation Passive protocol URL` parameter during the registration of Usercube to the ADFS server. It usually looks like an URL such as `https://portal.contoso.com`. - For Microsoft Entra ID, this is the Application ID URI. It is available from Usercube's registered app blade > Expose an API > APP ID URI. It has been either chosen by the user or generated by the Microsoft Entra ID provider during the Expose an API > set > save step of the registration. Generated values look like `api://bbd35166-7c13-49f3-8041-9551f2847b69`.
DisplayName optional	Is the provider display name. Chosen by the user, it is used in the UI to identify the authentication method.
AuthenticationScheme required	Is the unique identifier of this authentication method within Usercube. Any string value can be used, unique among all authentication methods.

Example

This example configures a WS-Federation-based authentication provider identified as WsFederationContoso_LA in the configuration file.

Within Usercube, it will be identified with the authentication scheme WsFederationAAD.

It will be displayed as Connection Microsoft Entra ID with WS-Federation protocol in the UI external login prompt.

\{ "Authentication": \{ ... "WsFederation": \{ "Enabled": "True", "WsFederationContoso_LA": \{
"AuthenticationScheme": "WsFederationAAD", "DisplayName": "Connection Microsoft Entra ID with
WS-Federation protocol", "MetadataAddress":
"https://bbd35166-7c13-49f3-8041-9551f2847b69/FederationMetadata/2007-06/FederationMetadata.xml",
"Wtrealm": "api://bbd35166-7c13-49f3-8041-9551f2847b69" \} \} \} \}

Set Up SAML2 Authentication

One or several SAML2 authentication providers can be set up under the authentication > SAML2 section.

Usercube does not provide a signature for SAML2 authentication.

Overview

Multiple providers

One or several SAML2 authentication providers can be set up.

Registration process

Using a SAML2 authentication requires Usercube Server to be registered to the provider. An Entity ID URI value is set up for Usercube during the registration process. It is used as the prefix for scopes and as the value of the audience claim in access tokens. The value can be generated by the provider, or set manually as a URL-shaped string value. This allows Usercube to identify itself to the authentication provider.

Reply URL

The target SAML2 provider needs to be aware of the URI where to send the authentication token if the authentication succeeds. This URI is called Reply URL or Assertion Consumer Service (ACS) URL.

During the registration process, the provider will ask for the URL.

Usercube's Reply URL for SAML2 is <usercube-server-address>/Saml2/Acs where <usercube-server-address> is the address of your Usercube Server such as https://identitymanager.contoso.com.

Make sure to enter this exact URL which is treated case sensitively.

Configuration

First, the SAML2 method must be enabled under the authentication > SAML2 section.

Name	Details
Enabled required	Type Boolean Description Enables or disables SAML2 Authentication.

Then, users must create a new subsection per SAML2 provider. Users are free to choose any section name. Its sole purpose is for users to find the authentication method in the configuration files.

Each section is configured with the following settings:

Name	Details
MetaDataLocation required	Identifies, for Usercube, the target SAML2 server's metadata. This information is to be retrieved from the app registration process or directly from the SAML2 provider. The value commonly ends with the path `/FederationMetadata/2007-06/FederationMetadata.xml`.
IdentityProviderEntityID required	Is the Identity Provider Issuer (also known as provider Entity ID) that identifies the provider to Usercube. This information is to be retrieved from the provider's portal. For Microsoft Entra ID, it is the first line of metadata file.
DisplayName optional	Is the provider display name. Chosen by the user, it is used in the UI to identify the authentication method.
EntityIdAppliUriID required	Is Usercube's Entity ID issued during the registration process. Also referred to as an Identifier URI. For Microsoft Entra ID, it is set during the Expose an API > set > save step of the registration. Generated values look like `api://bbd35166-7c13-49f3-8041-9551f2847b69`.
NameIdFormat optional	Is the requested format of the subject's name identifier.
MinIncomingSigningAlgorithm optional	Is minimal signing algorithm to validate SAML2 response.
EncryptionCertificate optional	Type [EncryptionCertificate] Description Sets the location of the public key certificate and the private key used to handle input and output files encryption. Note: required to enable logout.

This example configures a SAML2-based authentication provider identified as SAMLConnection in the configuration file.

It will be displayed as Connection Azure ActiveDirectory with SAML2 protocol in the UI external login prompt.
\{
"Authentication":
\{
...
"SAML2": \{
"Enabled": true,
"SAMLConnection": \{
"DisplayName": "Connection Microsoft Entra ID with SAML2 protocol",
"EntityIdAppliUriID": "api://\{client-id\}",
"MetaDataLocation": "https://login.microsoftonline.com/\{tenant-id\}/federationmetadata/2007-06/federationmetadata.xml",
"IdentityProviderEntityID": "https://sts.windows.net/\{tenant-id\}/",
"EncryptionCertificate": \{
...
\}
\}
\}
\}
\}

EncryptionCertificate

This information can be set one of two ways:

As a Public Key Cryptography Standards (PKCS) #12 archive (also called Personal Information Exchange file or .pfx file) stored in the Agent's host file system. The archive contains both the public key certificate and the private key.
As a certificate from a Windows' certificate store identified by SubjectDistinguishedName or by Thumbprint. The Windows certificate also contains both the public key certificate and the private key.

NETWRIX recommends using Windows' certificate store.

On the other hand, the PFX file takes priority over Windows' certificate, which means that when File is specified then the PFX certificate is used, even if the options for Windows' certificate are specified too.

In both ways, missing and/or incorrect settings trigger an error and no certificate is loaded.

As a PFX file

For example:

\{
...
"EncryptionCertificate": \{
"File": "C:/identitymanagerAgentContoso/contoso.pfx",
"Password": "oarjr6r9f00"
\}
\}

The archive is set using the following attributes:

Name	Details
File required	Type String Description PKCS #12 archive path on the host file system.
Password optional	Type String Description PKCS #12 archive password.

Storing a .pfx file password in plain text in a production environment is strongly discouraged. It should always be encrypted using the Usercube-Protect-CertificatePassword tool.

The archive is set using the following attributes:

Name	Details
File required	Type String Description PKCS #12 archive path on the host file system.
Password optional	Type String Description PKCS #12 archive password. Info: storing a `.pfx` file's password in plain text in a production environment is strongly discouraged. It should always be encrypted using the `Usercube-Protect-CertificatePassword.exe` tool.

As a Certificate in the Windows Store

For example:

\{
...
"EncryptionCertificate": \{
"DistinguishedName":"UsercubeContoso",
"StoreLocation": "LocalMachine",
"StoreName": "AuthRoot"
\}
\}

The Windows certificate is set using these attributes:

Name	Details
DistinguishedName optional	Type String Description SubjectDistinguishedName of the store certificate. Note: required when `Thumbprint` is not specified.
Thumbprint optional	Type String Description Thumbprint of the store certificate. Note: required when `DistinguishedName` is not specified.
StoreLocation required	Type String Description Location of the relevant Windows certificate store: `LocalMachine` or `CurrentUser`.
StoreName required	Type String Description Name of the relevant Windows certificate store.

Using Azure Key Vault

If the certificate is saved in Azure Key Vault, we must define the certificate identifier and the Vault connection.

"EncryptionCertificate": \{
"CertificateAzureKeyVault": "`<CertificateIdentifier>`"
\}

Set Up Internal Methods

When Internal Methods is enabled, the end-user is prompted via a form to input a login and a password. The login to be used is defined within the applicative configuration's SelectUserByIdentityQueryHandlerSetting element.

First, the AllowLocalLogin parameter needs to be set to true in the Authentication section.

"Authentication": {
    "AllowLocalLogin":true
}

Then, Active Directory User Store or Test User Store can be enabled.

Active Directory User Store

The Active Directory User Store allows users to authenticate with a login and password that will be compared against the Active Directory content.

Several forests can be set up as identity providers for authentication. This allows, for example, the authentication of users that belong to different Active Directory forests.

It is configured under the Authentication > ActiveDirectoryUserStore section.

First, the ActiveDirectoryUserStore must be enabled.

"Authentication":{ "AllowLocalLogin":true, "ActiveDirectoryUserStore": { "Enabled": true ... } }

Name	Details
Enabled required	Type Boolean Description `True` to enable authentication via the Active Directory User Store.

In the same section, several authentication providers can be defined, each one based on an Active Directory forest.

For each forest, a new section is added under ActiveDirectoryUserStore. Any name may be chosen for the forest section as long as it is unique. Two forest sections can't be identical though.

"ActiveDirectoryUserStore": {
"Enabled": true,
"Forest1": {
"AuthenticationScheme": "...",
"Server": "...",
...
}
}

Under the new forest section, the following parameters are used to configure the authentication method.

The following example sets a single authentication method, based on the Forest1 forest. The domain controller is located at 127.168.0.1. If the user enters the login MyLogin, the resulting logon will be CONTOSO\paris\MyLogin. The Postfix won't be used as a Prefix is already provided.
"ActiveDirectoryUserStore": { "Enabled": true, "Forest1": { "AuthenticationScheme":
"ADUserStore_Forest1", "Server": "127.168.0.1", "Domain": "CONTOSO", "Prefix": "paris", "Postfix":
"usercube.contoso" } }
In the following example, if the user enters the login MyLogin, the resulting logon will be MyLogin@usercube.contoso.
"ActiveDirectoryUserStore": {
"Enabled": true,
"Forest1": {
"AuthenticationScheme": "ADUserStore_Forest1",
"Server": "127.168.0.1",
"Postfix": "usercube.contoso"
}
}
The following example enables authentication via the Active Directory User Store, for the Forest1 forest,by checking not only the password and account activation, but also whether the password is expired.
"ActiveDirectoryUserStore": { "Enabled": true, "Forest1": { "AuthenticationScheme":
"ADUserStore_Forest1", "Server": "127.168.0.1", "Domain": "CONTOSO", "FastBind": false ... } }

Name	Details
AuthenticationScheme required	Unique identifier of this authentication method within Usercube. Any string value can be used, unique among all authentication methods.
Server required	Identification of the domain controller that runs the Active Directory Domain Service against which the authentication is performed. Based on Microsoft's documentation, the format is defined either: - by a domain name - by an LDAP server name - or a dotted string representing the IP address of the LDAP server/Domain Controller (example: `98.20.33.2`). Optionally, this parameter may also include a port number, separated from the host by a colon (example: `98.20.33.2:4520`).
Domain optional	Identification of the Active Directory domain or sub-domain against which the authentication will be performed. It is a string used to complete the user's logon in an INet name fashion. The resulting logon will resemble `Domain\login`. The domain is used only if no postfix was provided. This parameter is ignored if the domain or the UPN suffix is already specified in the login. This is the case for a login that conforms to the format `domain\login` or `login@domain.com`.
FastBind default value: True	Type Boolean Description `True` to check a user's credentials by verifying only the password and account activation.
NoSigning default value: true	Type Boolean Description Enables or disables Kerberos encryption.
Prefix optional	Is a string used to complete the user's logon in an INet name fashion. The resulting logon will resemble `Prefix\login`. The Postfix isn't used if the domain or the UPN suffix is already specified in the login.
Postfix optional	Is used to complete the user's login in a principal name fashion. The Postfix corresponds to the User Principal Name (UPN) suffix. The resulting logon will resemble `login@Postfix`. The Postfix isn't used if the domain or the UPN suffix is already specified in the login, or if the Prefix is already provided.
Ssl default value: false	Type Boolean Description Enables or disables SSL for network communication between Usercube and the Active Directory.

Test User Store

A Test User Store can be set up under the authentication > TestUserStore section. It allows all users to authenticate with their login and the same password.

This should never be used in a production environment.

The following parameters are available under the authentication > TestUserStore section:

Name	Details
Enabled required	Type Boolean Description Enables or disables the OpenId Connection.
Password required	Is the password for all users to authenticate Usercube.

Example

\{ "Authentication": \{ "AllowLocalLogin":true ... "TestUserStore": \{ "Enabled": true, "Password":
"secret" \} \} \}

Here is an example using both `IdentityServer` and `Authentication` sections.

appsettings.json \{ ... "IdentityServer": \{ "X509KeyFilePath": "./identitymanagerContoso.pfx",
"X509KeyFilePassword": "secret" \}, "Authentication": \{ "RequireHttpsMetadata": false,
"TestUserStore": \{ "Enabled": "true", "Password": "secret" \}, "AllowLocalLogin": true \} ... \}

Overview​

Internal methods​

External methods​

Using more than one provider​

Internal Method & Test Mode Form​

External Method Prompt​

Identity Server RSA Key Pair​

PFX file​

Example​

Certificate​

Example​

Configuration Section Description​

IdentityServer​

Authentication​

Set Up Integrated Windows Authentication (IWA)​

Requirements​

Configuration​

Set Up an Open ID Connect Provider​

Overview​

Multiple providers​

Registration process​

Callback URL​

Authority​

NameClaimType​

Configuration​

Example​

Set Up an OAuth Provider​

Overview​

Multiple providers​

Registration process​

Callback URL​

Configuration​

Example​

Set Up a WS-Federation Provider​

Overview​

Multiple providers​

Registration process​

Callback URL​

Encryption algorithm​

Configuration​

Example​

Set Up SAML2 Authentication​

Overview​

Multiple providers​

Registration process​

Reply URL​

Configuration​

EncryptionCertificate​

As a PFX file​

As a Certificate in the Windows Store​

Using Azure Key Vault​

Set Up Internal Methods​

Active Directory User Store​

Test User Store​

Example​

Overview

Internal methods

External methods

Using more than one provider

Internal Method & Test Mode Form

External Method Prompt

Identity Server RSA Key Pair

PFX file

Example

Certificate

Example

Configuration Section Description

IdentityServer

Authentication

Set Up Integrated Windows Authentication (IWA)

Requirements

Configuration

Set Up an Open ID Connect Provider

Overview

Multiple providers

Registration process

Callback URL

Authority

NameClaimType

Configuration

Example

Set Up an OAuth Provider

Overview

Multiple providers

Registration process

Callback URL

Configuration

Example

Set Up a WS-Federation Provider

Overview

Multiple providers

Registration process

Callback URL

Encryption algorithm

Configuration

Example

Set Up SAML2 Authentication

Overview

Multiple providers

Registration process

Reply URL

Configuration

EncryptionCertificate

As a PFX file

As a Certificate in the Windows Store

Using Azure Key Vault

Set Up Internal Methods

Active Directory User Store

Test User Store

Example
