Endpoint Policy Manager Network Security Manager

Network Security Manager enables you to restrict processes to communicate with specific IP addresses or DNS addresses. This increases the security of applications (or browsers) so end-users (or anonymous users) on the endpoints cannot use programs to connect to unwanted network addresses.

Some examples of use are:

  • Ensuring your Quickbooks client application only connects to your Quickbooks server (and not some rogue server)
  • Ensuring specific browsers can only communicate with specifically named websites.
  • Ensuring a networking app, like Telnet or WinSCP or FileZilla can only communicate and transfer files to specifically named servers.

Getting started with Endpoint Policy Manager Network Security Manager​

RECOMMENDED: For an overview of this section, see this video: See Endpoint Policy Manager Network Security Manager - The Basics topic for additional information.

Pick an application you wish to restrict, like a browser (such as Edge, Firefox, PaleMoon, etc) or a networking application (like Telnet, WinSCP, etc.). Then pick the destinations you wish for that application to be restricted to.

In this example, we'll restrict the Edge browser to only be allowed to communicate with www.Netwrix.com. All other communication will be rejected.

Start out by creating a GPO and linking it over to where your computer objects are.

Then use Computer Configuration | Netwrix Endpoint Policy Manager | Desktop Automation Pak | Network Security Manager.

Creating a Global Settings Policy​

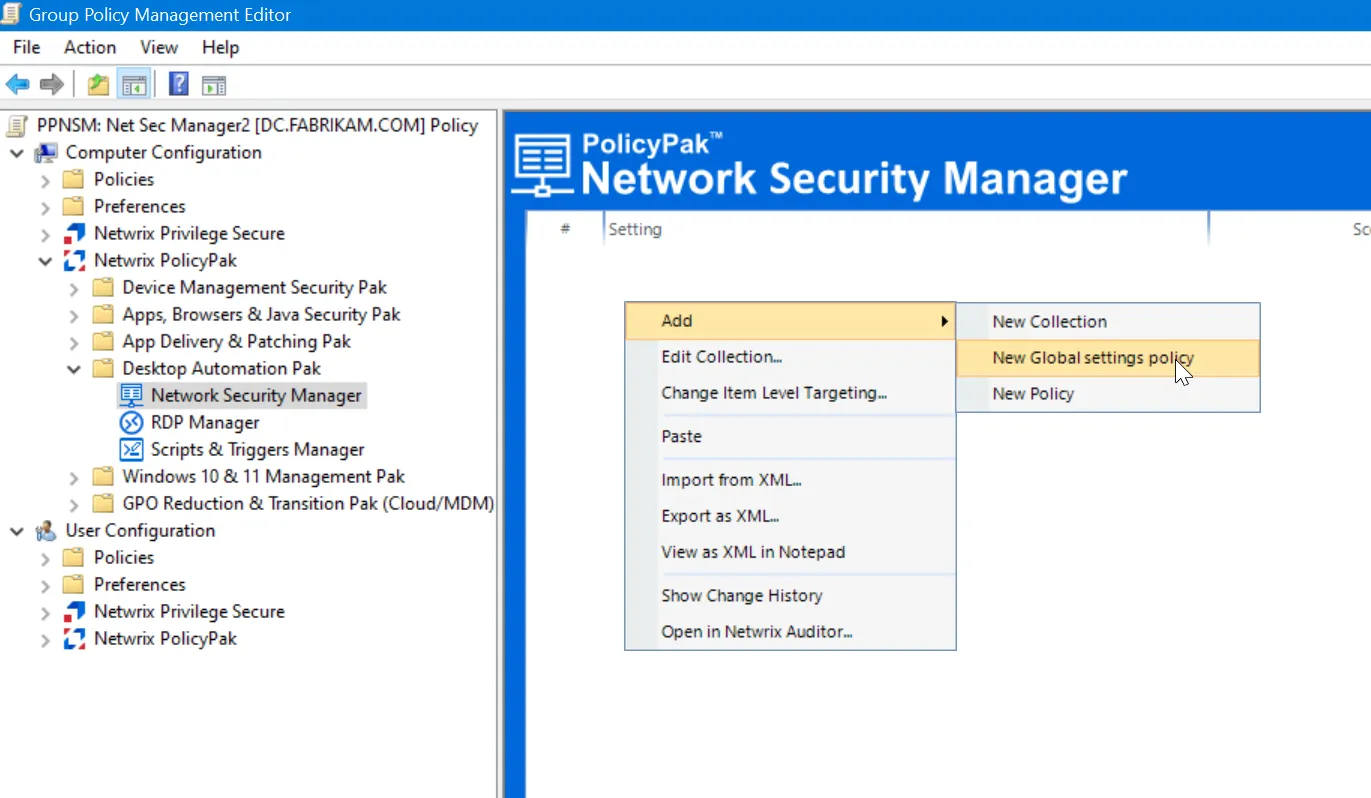

Your first stop is to create a New Global settings policy like what's seen here.

nsm01

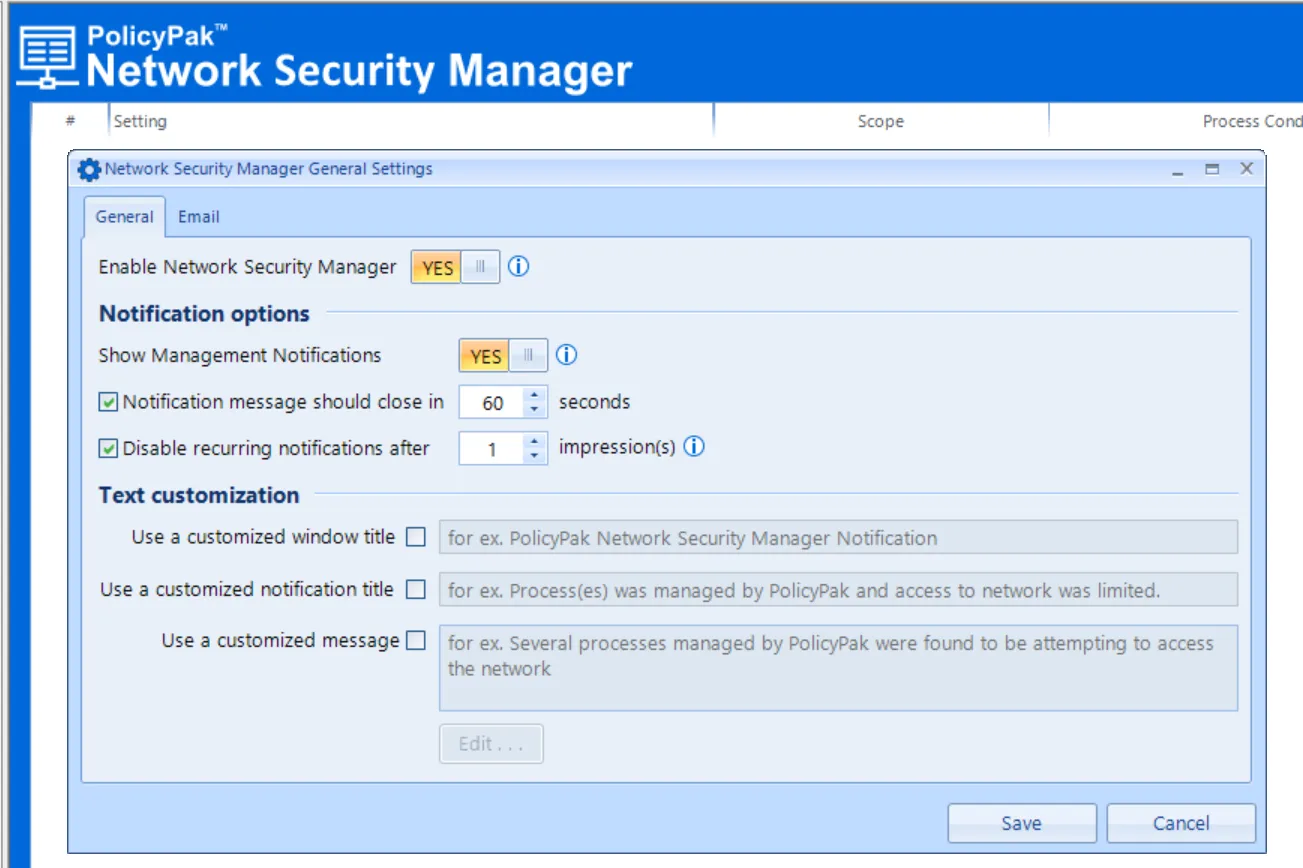

Once selected you can see your configurable options for the machines.

nsm02

  • Enable Network Security Manager – This is the master ON switch for the feature.
  • Show Management Notifications – You can choose to show if the processes are being managed by Endpoint Policy Manager Network Security Manager (or not)
  • Notification message should close in X seconds – Provides a countdown in seconds before the message is removed.
  • Disable recurring notifications after X impressions – Useful to set so the user can get the idea that there is control; but eventually you can tamp down the number of pop-ups.
  • Text Customization (Window Title, Notification Title, Customized Message) – Various settings to configure the dialog

Creating a Process Matching Policy​

Next you'll want to create a process matching policy. Again, in our examples, we'll match on Microsoft Edge.

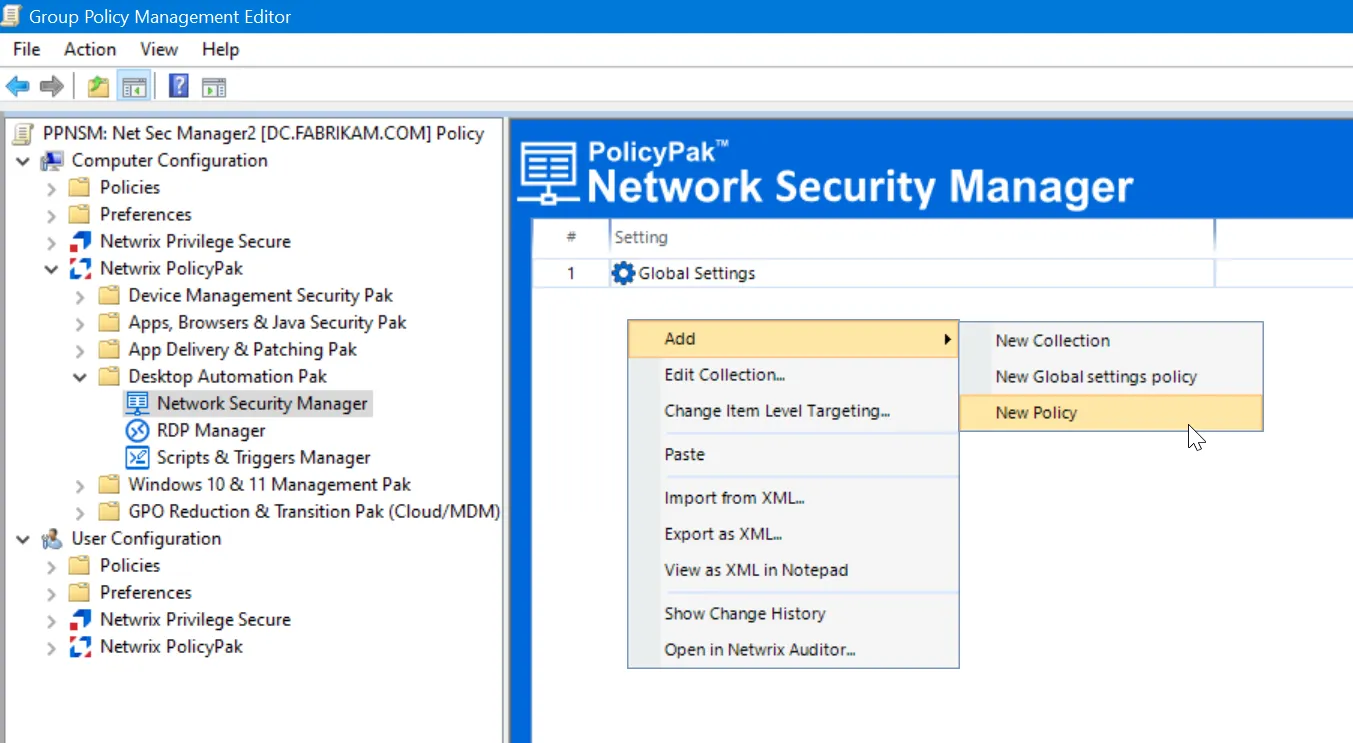

Create a New Policy like what's seen here.

nsm03

Next you'll want to match a specific application. You can do this via Simple or Combo rules. This example will use a Simple rule.

RECOMMENDED: For details about Simple and Combo rules, refer to the Endpoint Policy Manager Least Privilege Manager Manual (as they won't be repeated here).

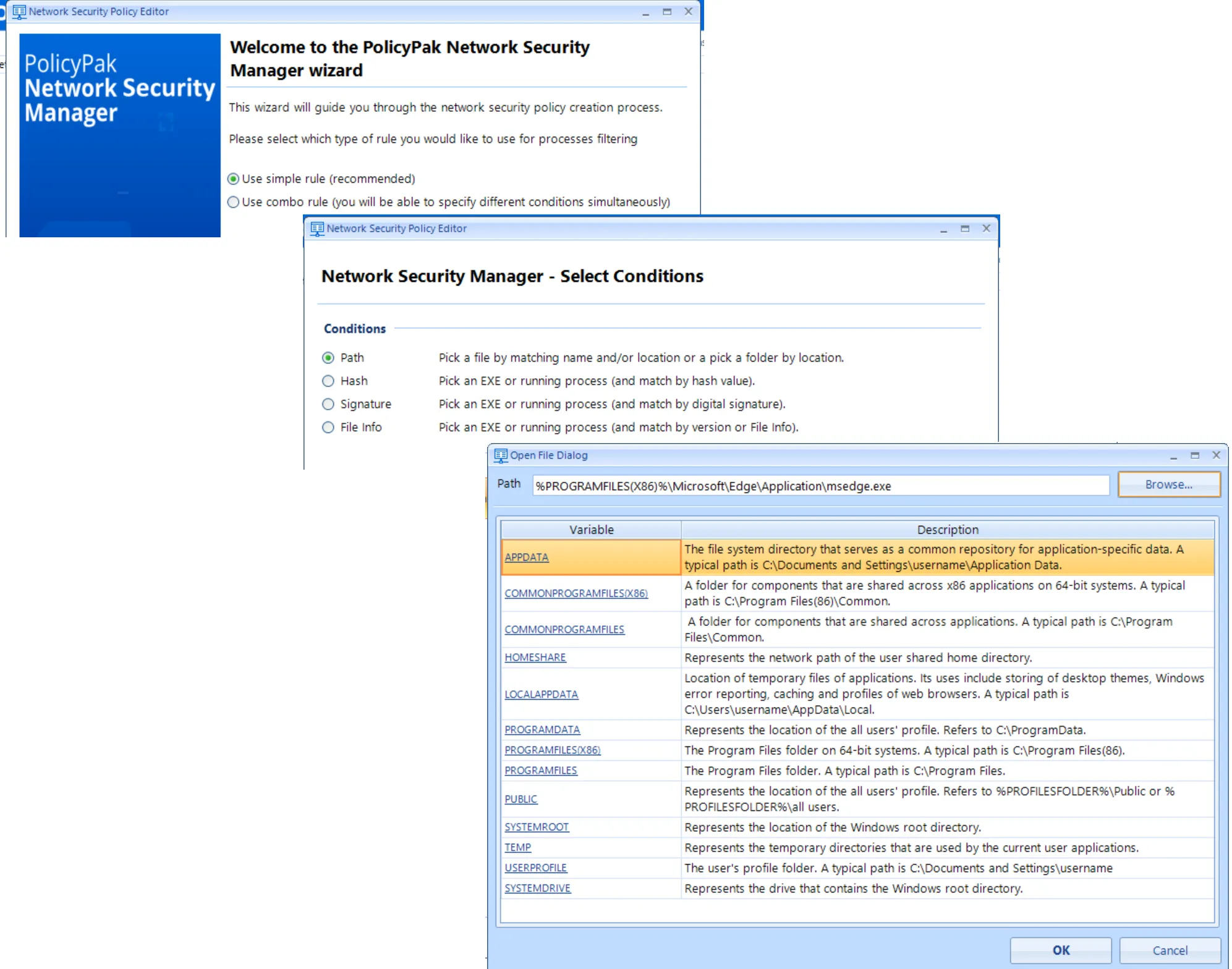

Specify the location for Microsoft Edge via Path rule which is C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe

nsm04

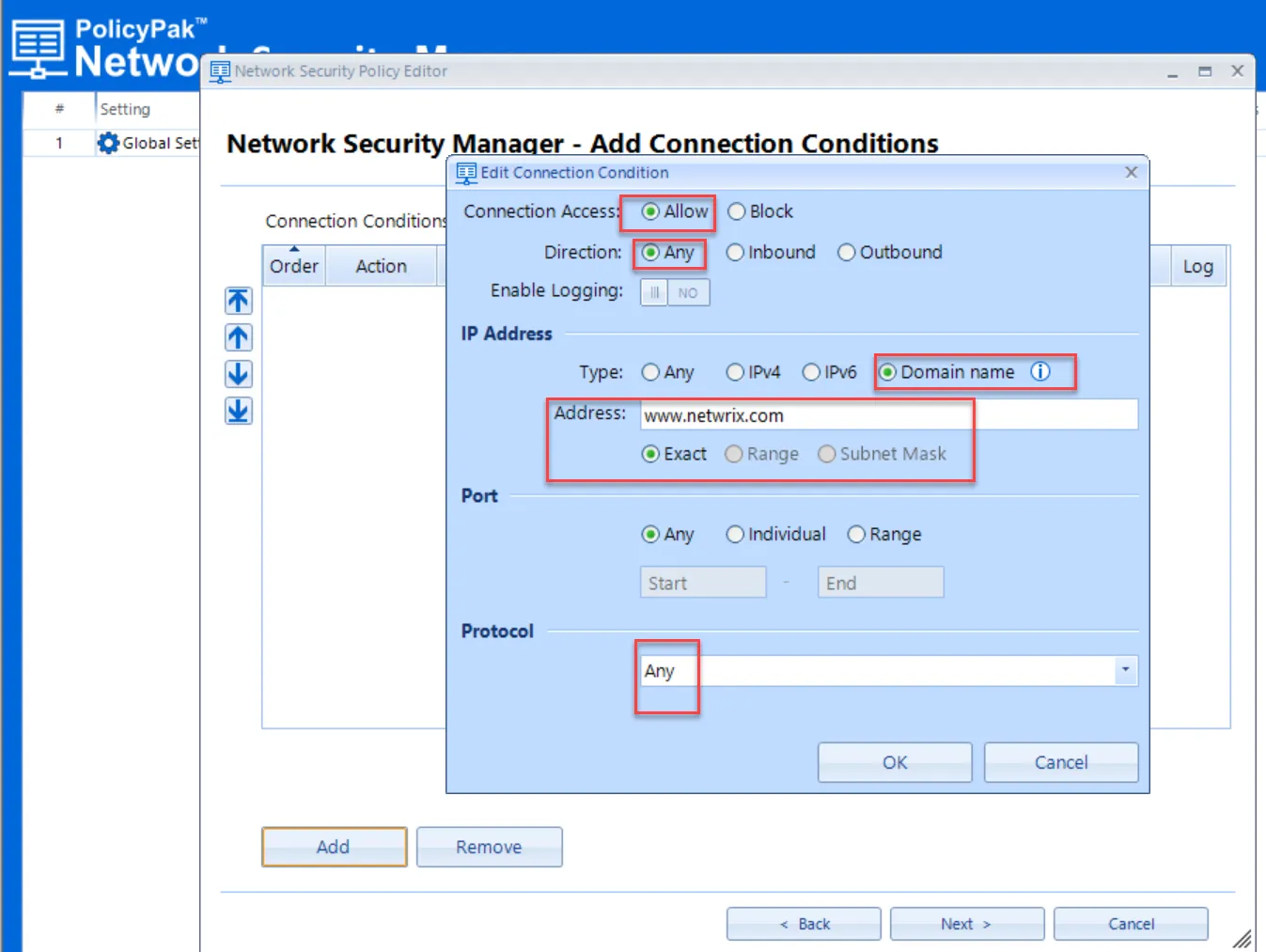

Then in the Add Connections Conditions dialog, specify the following values to Allow Any activity to www.Netwrix.com by Domain Name.

nsm05

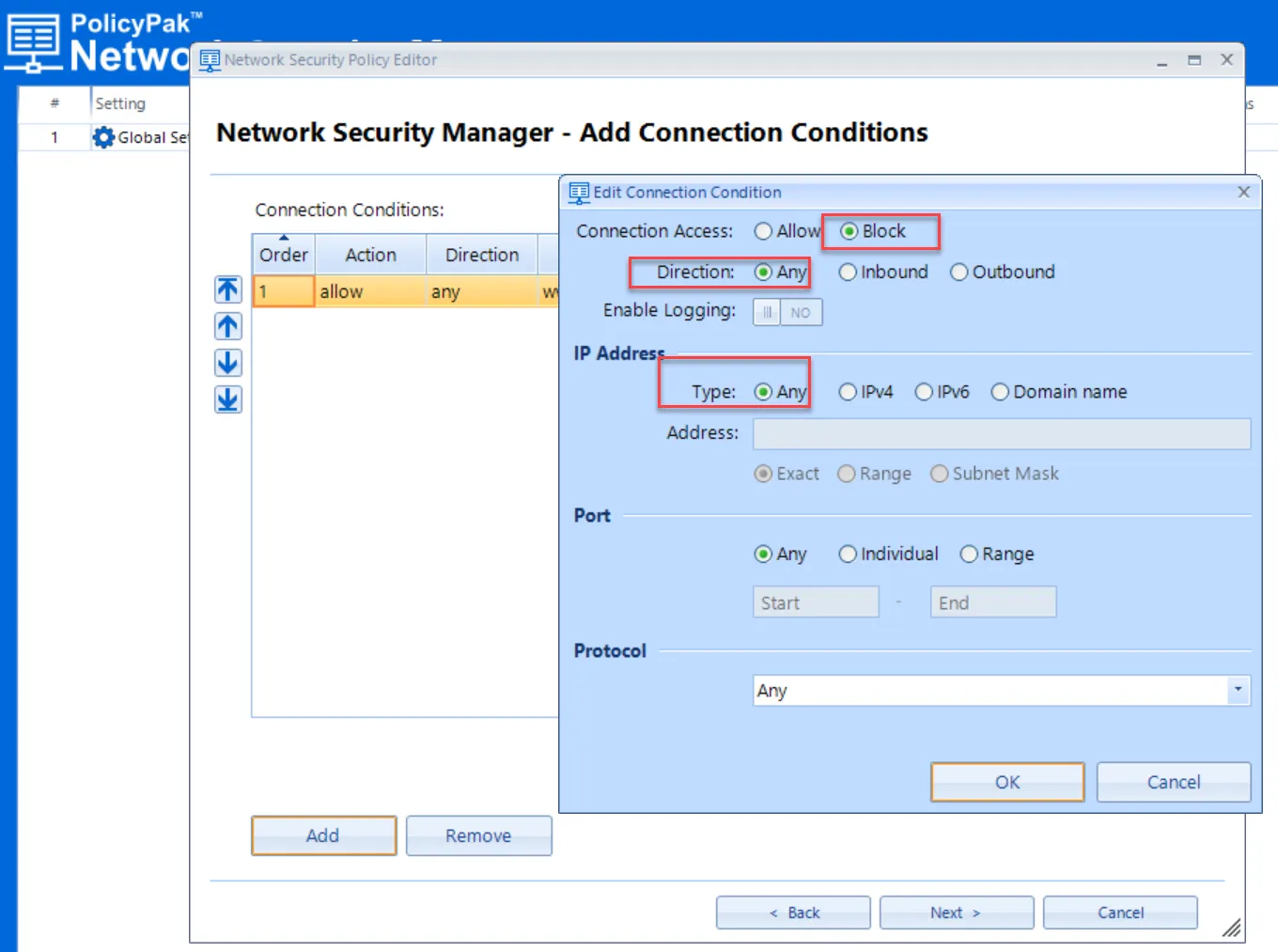

Then click Add and make policy #2 a Block policy which blocks everything else.

nsm06

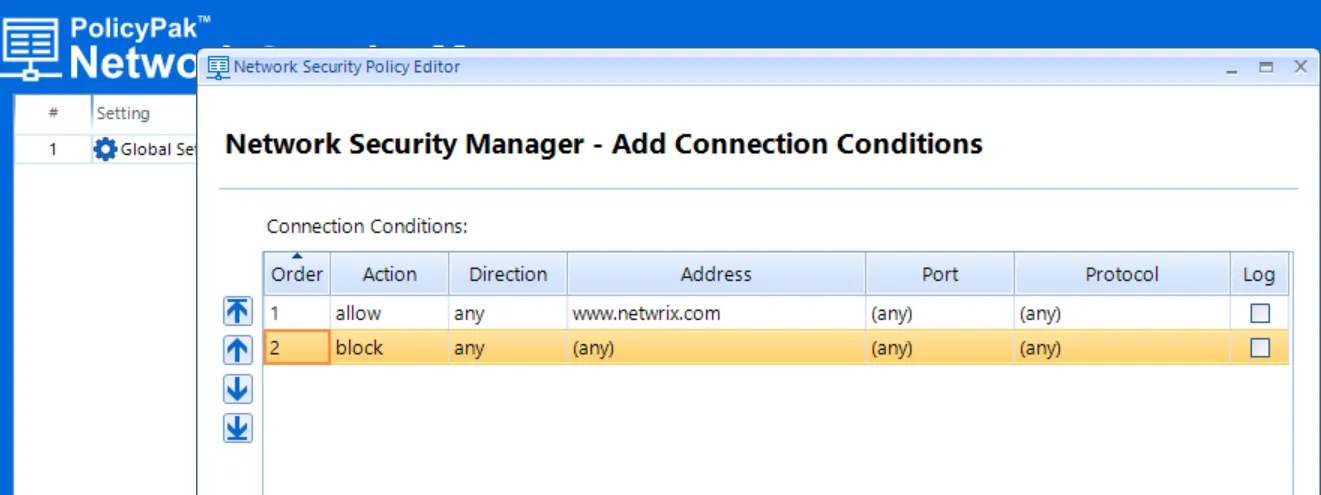

Results should look like this.

nsm07

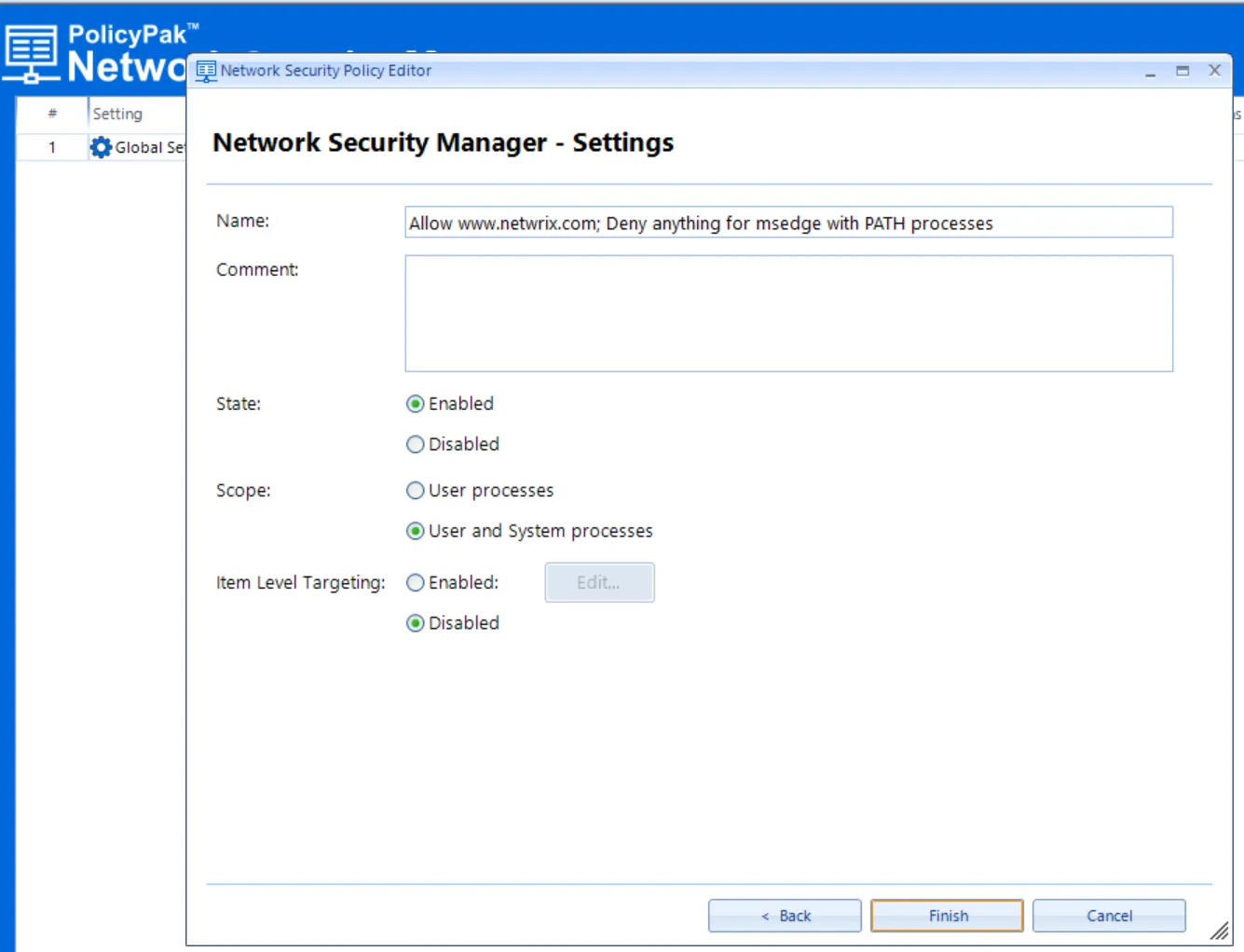

Click Next to continue. Accept the defaults on the final Wizard page and click Finish.

nsm08

Testing your Policy Out​

On your endpoint which has the Endpoint Policy Manager CSE installed and licensed, run GPupdate or reboot the machine to acquire the policies.

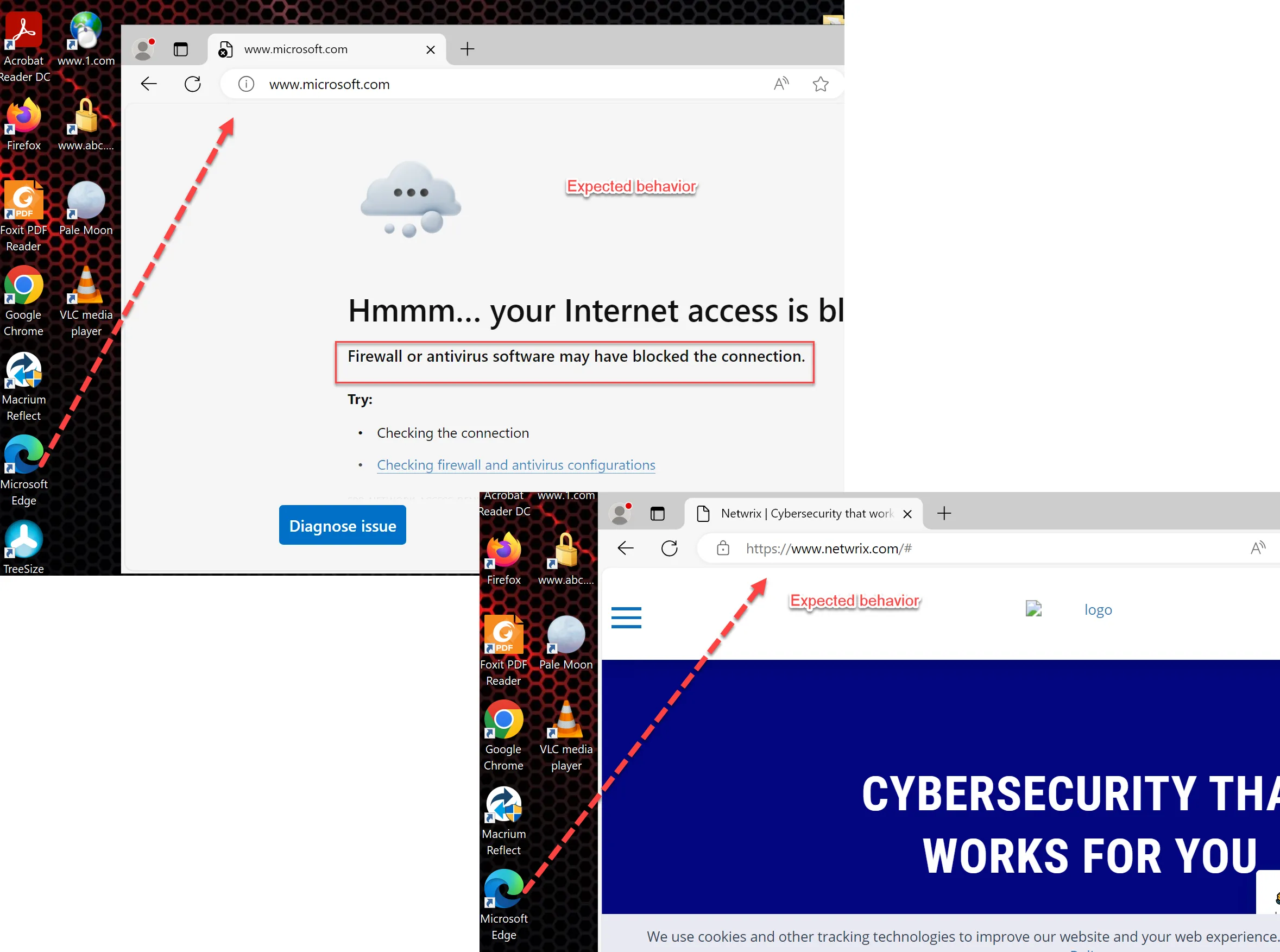

The results will be that when Edge is launched, end users cannot go to any network location, like Microsoft.com, but are restricted to the specific network location you specified, www.Netwrix.com.

nsm09

Auditing Events​

RECOMMENDED: See the Endpoint Policy Manager Network Security Manager - Auditing Events topic for additional information.

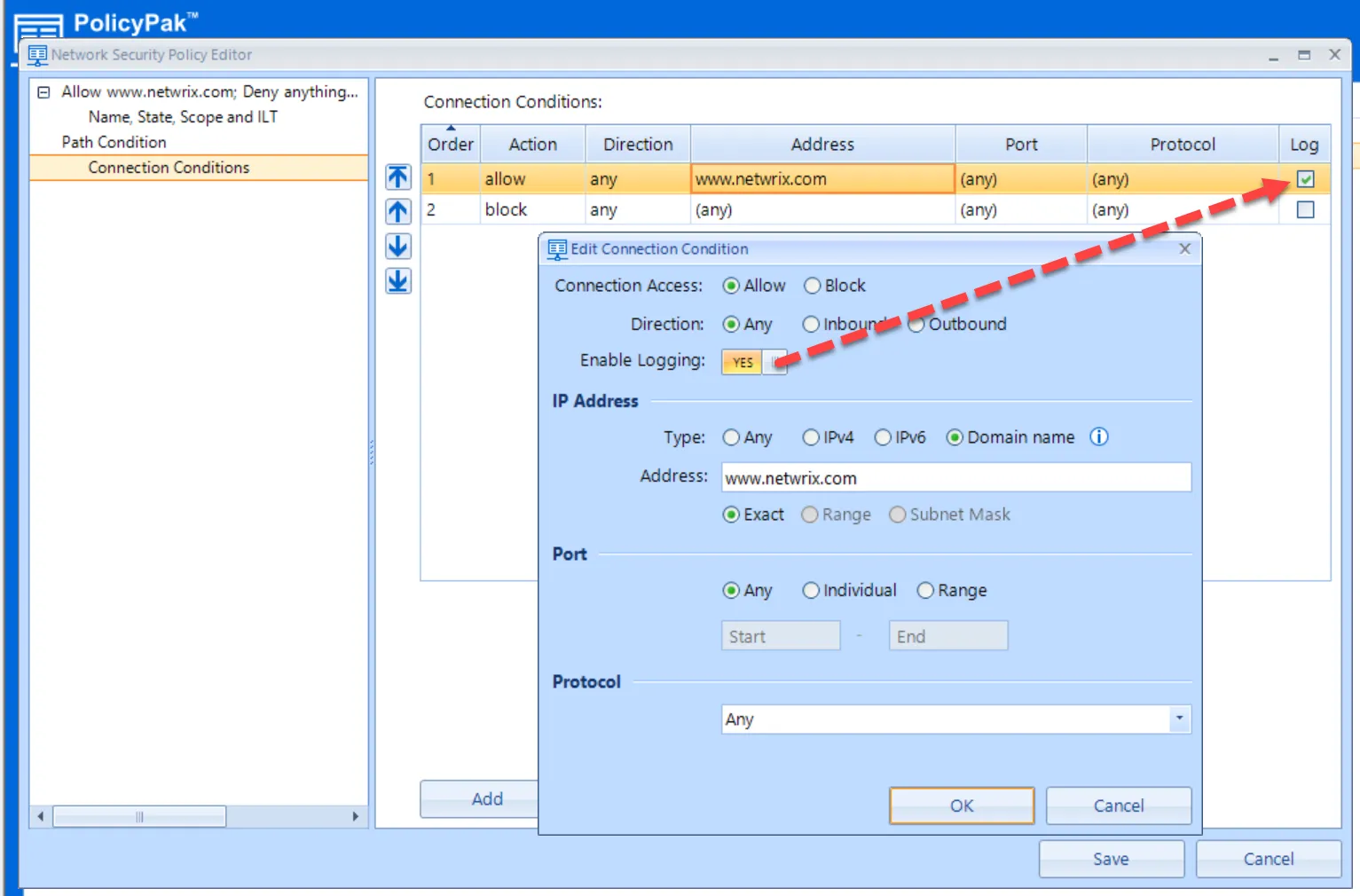

Auditing Events can be useful if you want to determine if your rules are working. Each rule may be individually enabled like what's seen here.

nsm10

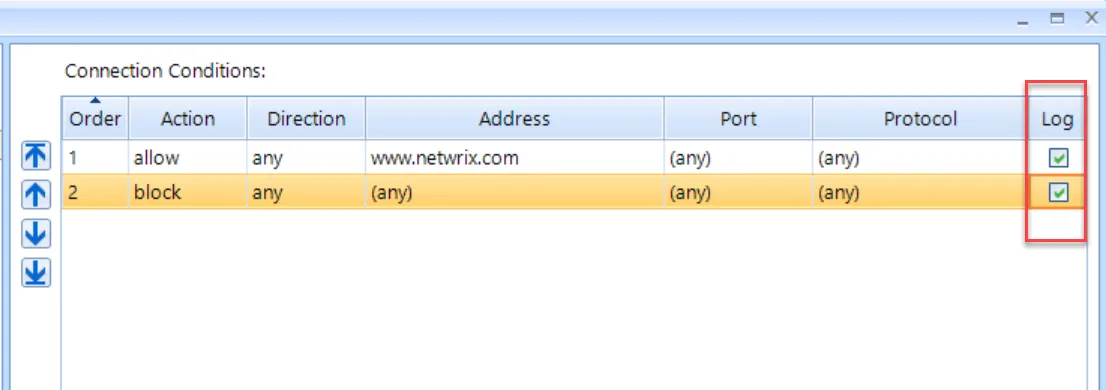

In this example I'll have both rules set to Log.

nsm11

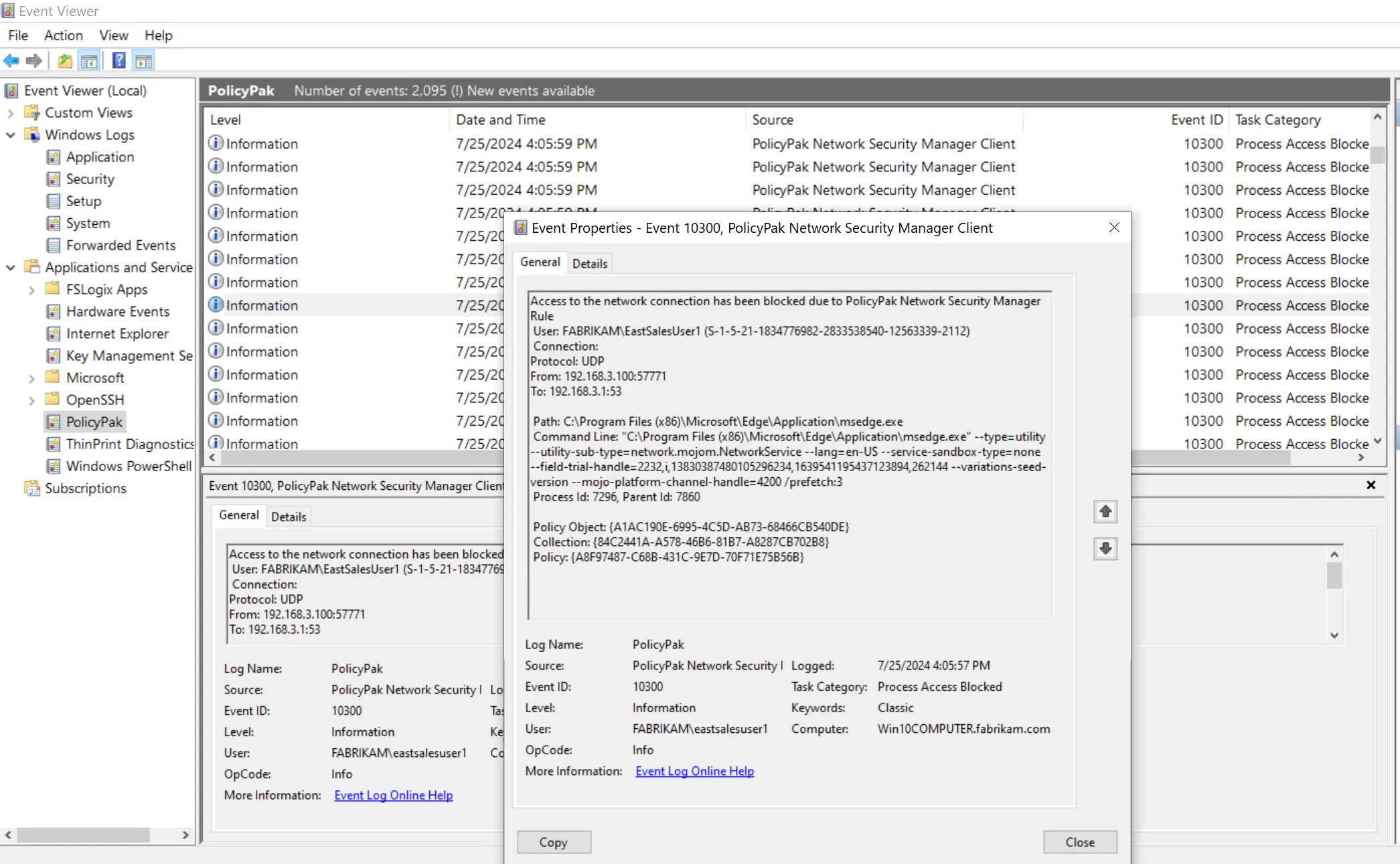

The results can be pretty noisy depending on the application. In this case whenever Edge is run you will get a myriad of Blocked events like what's seen here.

nsm12

You may wish to audit for blocks for a while then change gears to audit only for successes later to reduce the amount of noise.
