How do I configure the MMC snap-in to open GPOs in Netwrix Auditor?

For a video overview of this process see Endpoint Policy Manager and Netwrix Auditor - Setup Steps

NOTE: Only the latest Endpoint Policy Manager MMC console supports the Endpoint Policy Manager → Netwrix Auditor. Make sure to use the Endpoint Policy Manager download and install the latest MMC console.

Initial Setup for Netwrix Auditor​

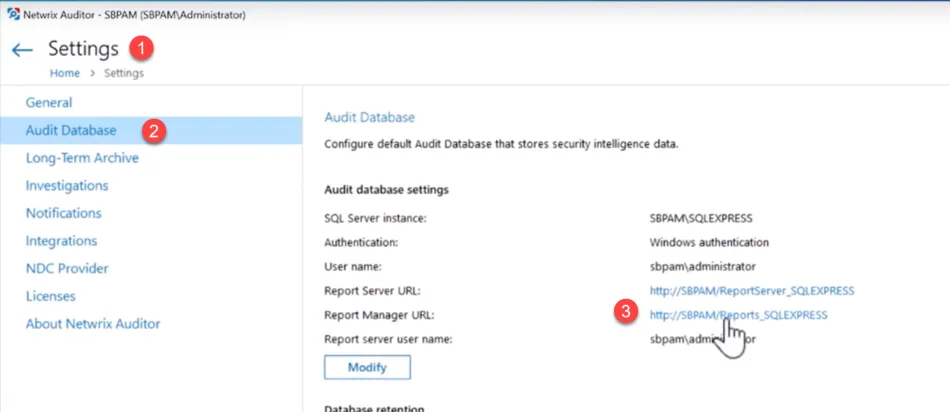

Step 1 – In Netwrix Auditor, determine where you Report Manager URL is. The item is found in Netwrix Auditor under Settings > Audit Database > Report Manager UR.

970_1_image-20231016154007-8_950x412

Step 2 – Click on the link to open up Report Manager in SQL Server Reporting Services (SSRS).

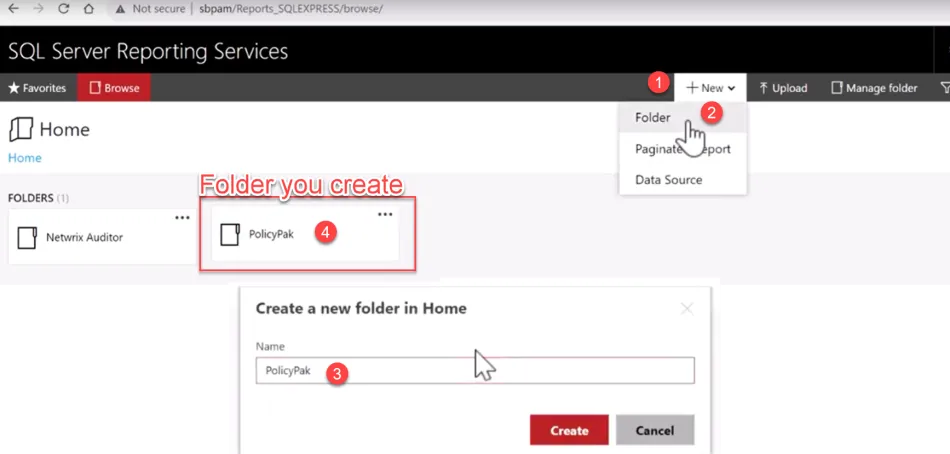

Step 3 – Create a new SSRS Folder and give it any name you like.

970_2_image-20231016154007-9_950x454

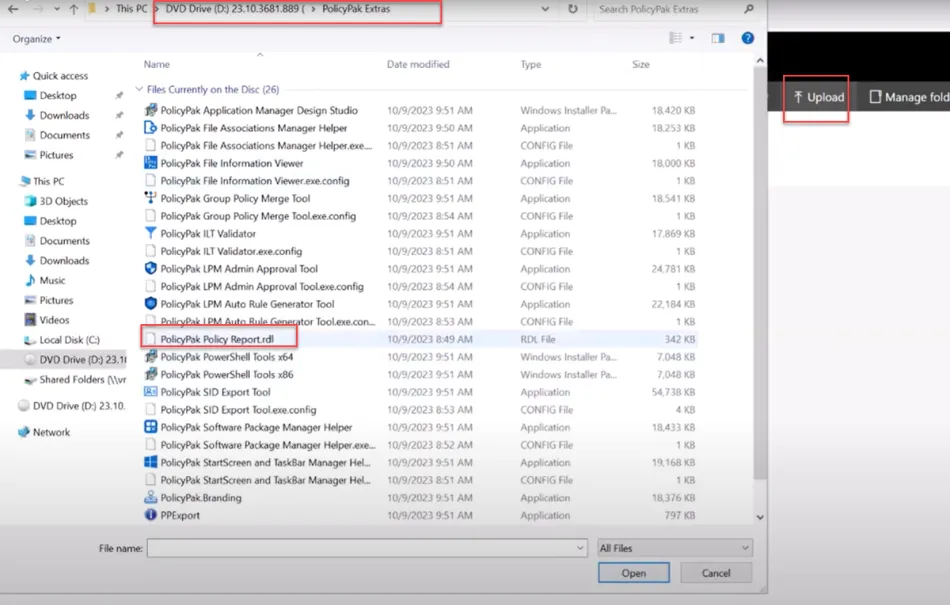

Step 4 – Enter the folder you just created then upload the .RDL file provided from the Endpoint Policy Manager Extras Folder.

970_3_image-20231016154007-10_950x605

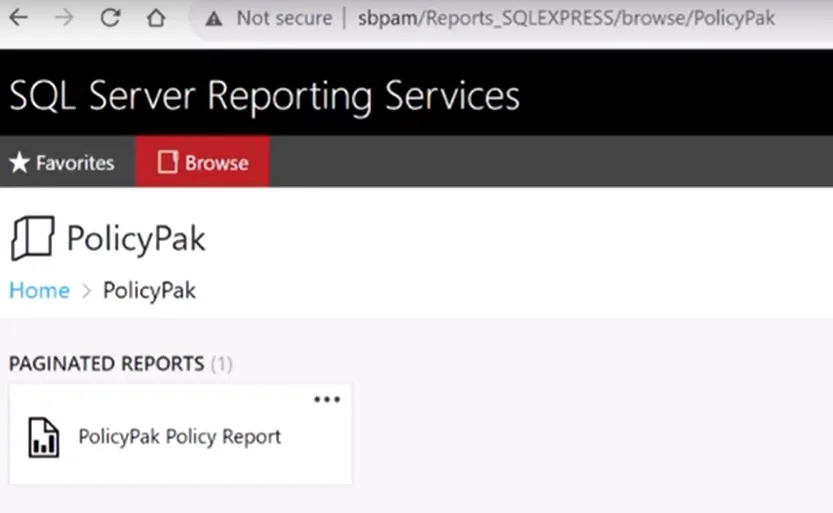

Step 5 – The result after the upload is shown below..

970_4_image-20231016154007-11

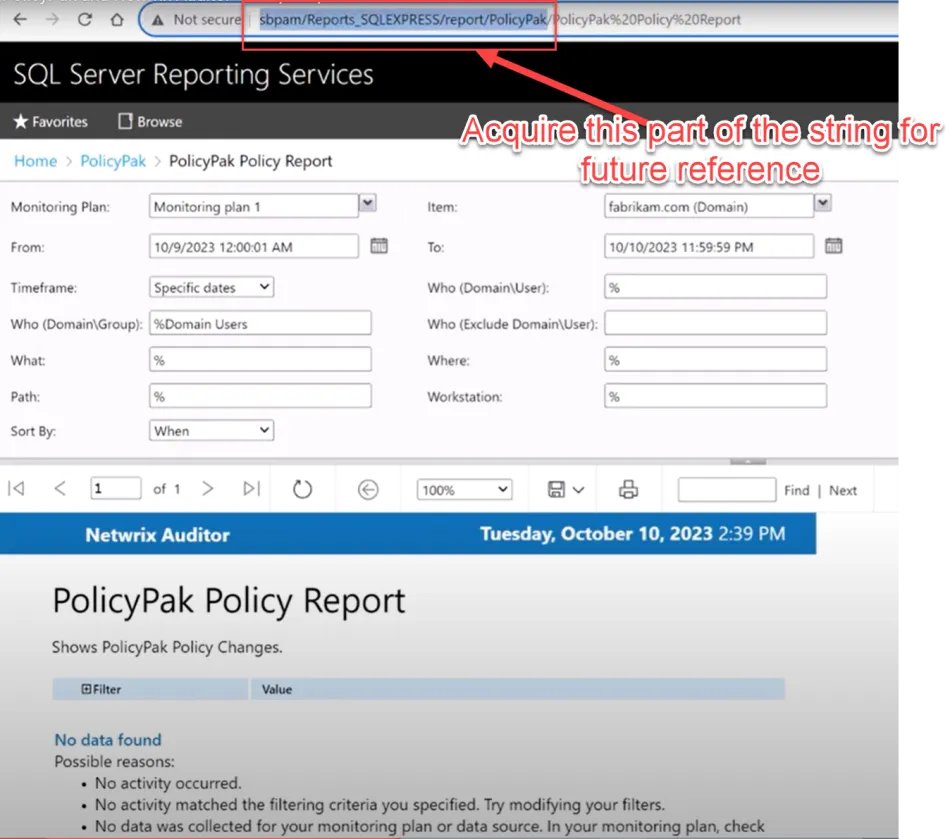

Step 6 – Click the report to get the reference string you'll use in future steps. This will contain the Netwrix Auditor server, up to and including the specific URL which expresses just before the report name.

970_5_image-20231016154007-12_950x839

As an example, the string should look like this: http://NetwrixAuditorServer/Reports_SQLEXPRESS/report/PolicyPak

Step 7 – Keep this string handy in Notepad or similar for thenext steps.

Using the PolicyPak MMC to Call Netwrix Auditor​

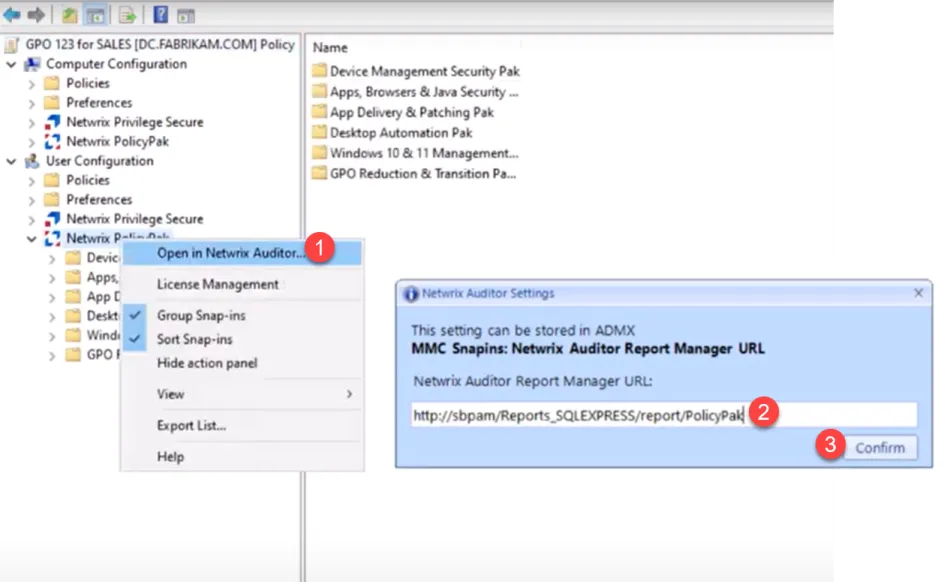

Step 1 – Use the latest Endpoint Policy Manager MMC to configure your management machine to use Netwrix Auditor . Left click on the Netwrix Endpoint Policy Manager node, then right-click to Open in Netwrix Auditor.  Input the string you collected earlier.

970_6_image-20231016154007-13_950x582

Optional Configuration: Use PolicyPak ADMX to configure the value automatically​

Step 1 – If you have many Endpoint Policy Manager administrators using the MMC snap-in and you wish to mass-configure this value, you may do so via the Endpoint Policy Manager ADMX Files.

Always use the latest Endpoint Policy Manager ADMX files, are available in the Endpoint Policy Manager download.

Please see Troubleshooting with ADMX files to begin using, or update the Endpoint Policy Manager ADMX settings

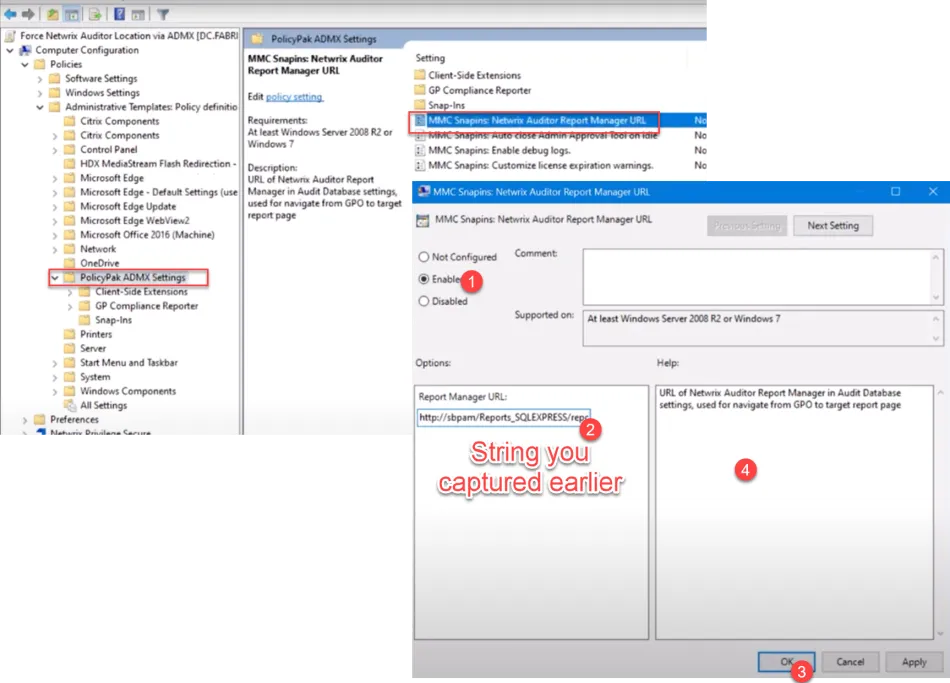

Step 2 – After the ADMX files are in place, create a Group Policy Object and target it for your MMC management stations.

NOTE: Endpoint Policy Manager CSE will ignore this policy because it is exclusively regarding the MMC snap-in.

970_7_image-20231016154007-14_950x683

Step 3 – Going forward, the ADMX setting will command the MMC snap-in and it will be unconfigurable.
