Device Manager

This manual is designed to be both an overview of what you can do with Endpoint Policy Manager Device Manager and a Quickstart guide for getting up and running quickly.

NOTE: You may ignore the standard or complete designations in the Endpoint Policy Manager Device Manager UI. Typically, Endpoint Policy Manager is sold in Enterprise or SaaS editions and in those configurations you get complete (meaning all the features).

Before reading this section, please ensure you have read Book 2: Installation Quick Start, which will help you learn to do the following:

  • Install the Admin MSI on your GPMC machine
  • Install the CSE on a test Windows machine
  • Set up a computer in Trial mode or Licensed mode
  • Set up a common OU structure

Optionally, this manual demonstrates how to use on-prem Active Directory and Group Policy to deploy Endpoint Policy Manager Device Manager directives. If you don't want to use Group Policy, see the MDM & UEM Tools topic to deploy directives for additional information.

NOTE: For an overview of Endpoint Policy Manager Device Manager see the Video Learning Center topic for additional information.

Endpoint Policy Manager Device Manager will manage USB and other removable media devices like CD-ROMs, DVD ROMs, and phones which plug in and have storage when attached to Windows.

For an overview of managing USB and other removeable media devices using Endpoint Policy Manager Device Manager, see the Instantly Put the smackdown on USB sticks and CD-ROMs topic for additional information.

The basic way to use Endpoint Policy Manager Device Manager is as follows:

  • Block end-users from accessing removable devices
  • Create a rule to specify which removable devices a user would need access rights to
  • Use On-Prem Group Policy to accept the Endpoint Policy Manager Device Manager policies created

Alternatively, export the Endpoint Policy Manager Device Manger rules and deliver them in one of these ways:

Then allow the client machine with the Endpoint Policy Manager client-side extension (CSE) to receive the directives and perform the work.

NOTE: If you use an MDM service or Endpoint Policy Manager cloud service, you can deliver Endpoint Policy Manager Device Privilege Manager settings even to non-domain-joined machines over the Internet.

Endpoint Policy Device Manager Components​

Endpoint Policy Managerhas the following components:

  • A Management Station — The Endpoint Policy Manager Admin Console MSI must be installed on the management station where you create GPOs. Once it’s installed, you’ll see the Endpoint Policy Manager Settings > Endpoint Policy Manager Device Privilege Manager node, as shown below.

  • The Endpoint Policy Manager CSE — This runs on the client (target) machine and is the same CSE for all Endpoint Policy Manager components (such as Least Privilege Manager, Device Manager, Application Settings Manager)

  • Windows Endpoints — In order to use these, they must be licensed for Endpoint Policy Manager Device Manager using one of the licensing methods

  • Also available is Endpoint Policy Manager Cloud when you purchase Enterprise or SaaS

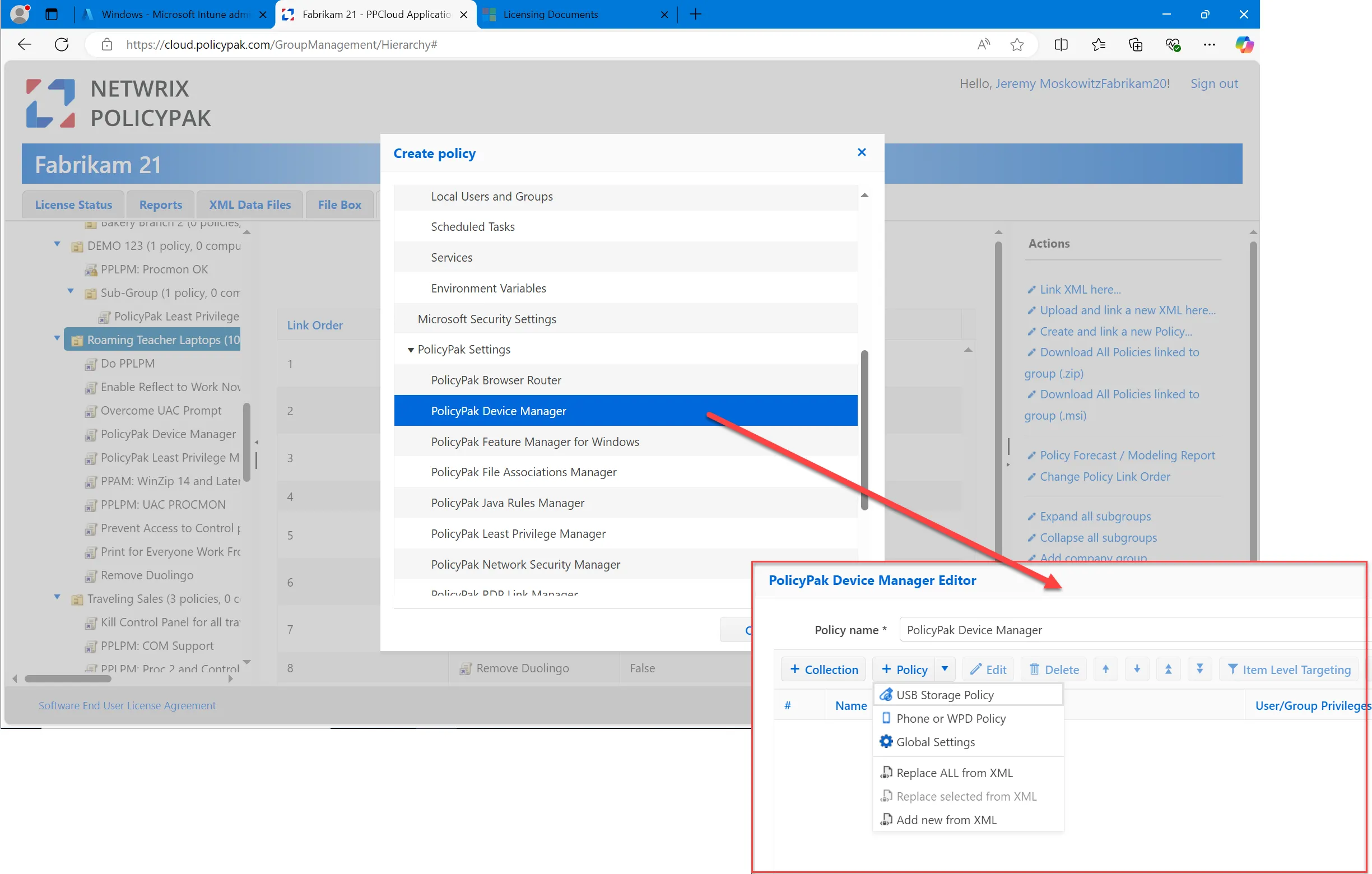

Endpoint Policy Manager Cloud enables you to create Endpoint Policy Manager Device Manager directives using the in-cloud editors and connect endpoints to get Endpoint Policy Manager Device Manager directives.

ppcloud

While this manual mostly demonstrates concepts using the Group Policy editor, nearly everything can be done using the Endpoint Policy Manager Cloud editors. Additionally, you can take on-prem MMC directives and upload them to Endpoint Policy Manager Cloud and take in-cloud directives and download them back as MMC directives.

Also, you may use Endpoint Policy Manager Device Manager with any management system you like such as SCCM, Intune, PDQ deploy or anything else. This is because Endpoint Policy Manager directives may be exported as XML and wrapped up using the Exporter tool. This A free utility that lets you take Endpoint Policy Manager Admin Templates Manager and our other products’ XML files and wrap them into a portable MSI file for deployment using Microsoft Endpoint Manager (SCCM and Intune) or your own systems management software.

The MDM & UEM Tools topic explains how to use the Endpoint Policy Manager Exporter to wrap up any Endpoint Policy Manager directives and deliver them using Microsoft Endpoint Manager (SCCM and Intune), KACE, your own MDM service, or Endpoint Policy Manager Cloud.

This topic will get you going with the concepts and results you’re looking for and then you may choose whatever delivery method makes sense for your organization.

Why you need Endpoint Policy Device Manager​

Microsoft makes it easy to turn off all access to USB sticks and other removable devices. With a simply GPO or MDM setting that can accomplished.

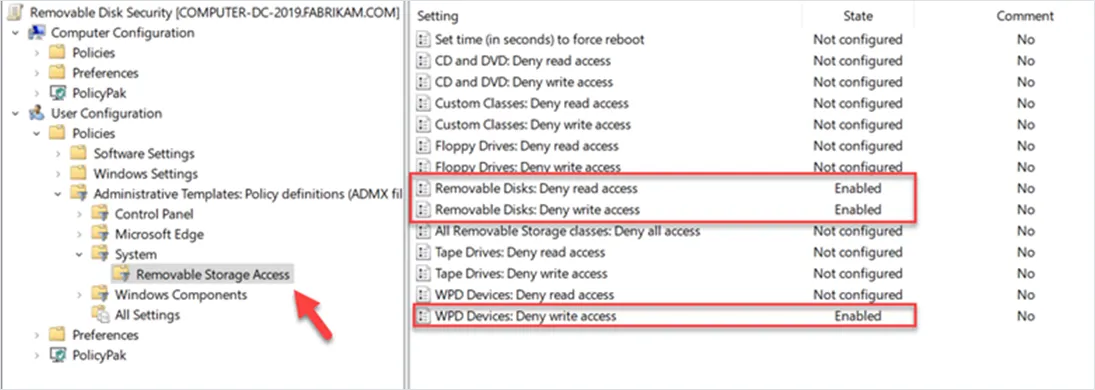

Here is exactly how to do that (without using Endpoint Policy Manager Device Manager) when using ADMX settings via GPOs.

device01

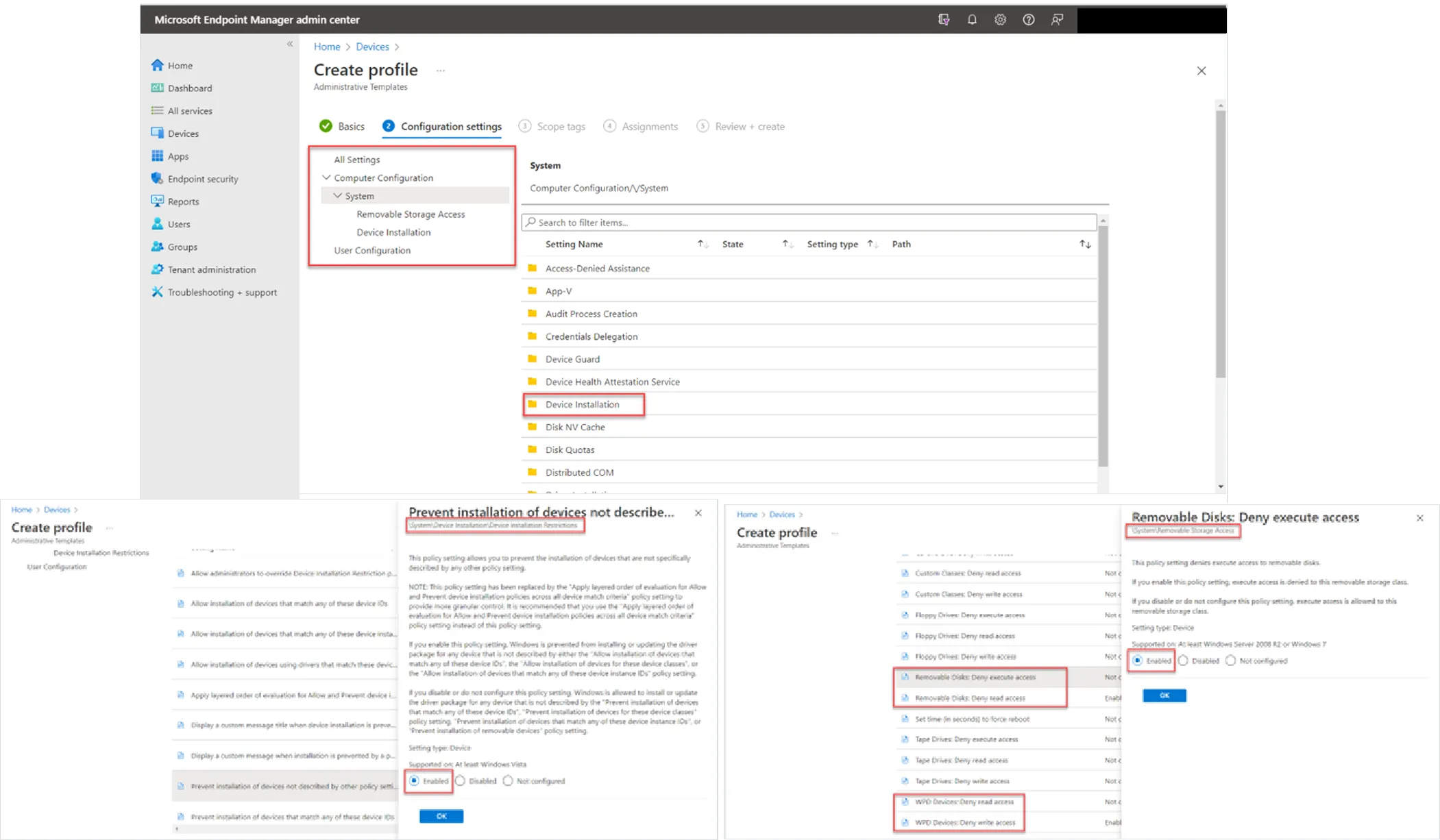

The same may be performed using and MDM service like Intune using similar settings.

device02

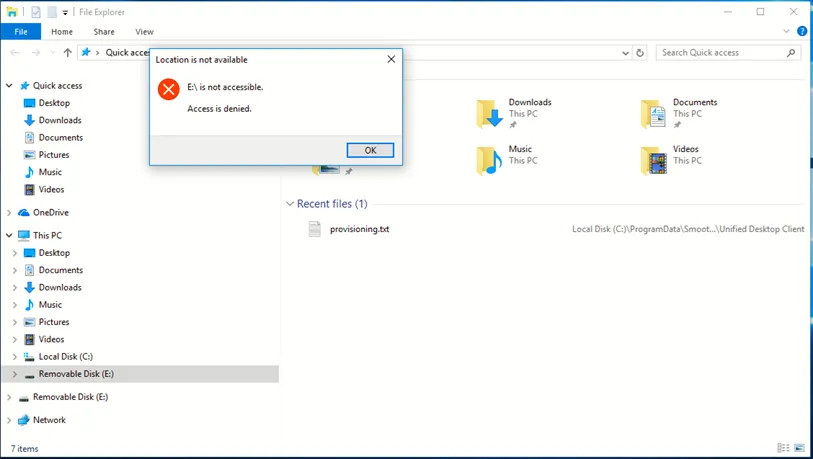

The result will be the same where Removable Devices will be stopped.

device03

In this way you can completely shut out all devices for all users for all times.

Unlike Microsoft policies, Endpoint Policy Manager Device Manager allows customized settings for USB and other removable devices (henceforth written as devices).

You can perform the following management on devices:

  • Which on-Prem Active Directory or Azure user can use devices
  • What access type those devices has (Read, Read/Write, Full)
  • Grant access to a device only if the device has Bitlocker on it
  • Specify specific device vendors, device IDs and device revisions
  • Specify specific serial numbers for devices

None of this is possible with the in-box settings with Microsoft GPOs or MDM policies (like Intune).

NOTE: Consider integrating with Netwrix Privilege Secure for Endpoints for additional features when managing devices:

  • Endpoint Policy Manager Device Manager only deals with aspects of removable data devices. For other device types, like Bluetooth, Serial Ports, printers and shares, consider Netwrix Endpoint Protector. See the Device Control topic in the User Manual section of the Netwrix Endpoint Protector documentation for additional information.
  • Endpoint Policy Manager Device Manager doesn't inspect the data as it goes by looking for patterns. That is, PolicyPak Device Manager is not a traditional "Data Loss Prevention" (DLP) product. For that functionality, consider Netwrix Endpoint Protector. See the Content Aware Protection topics in the Administration section of the Netwrix Endpoint Protector documentation for additional information.
  • Endpoint Policy Manager Device Manager isn't trying to protect against non-data devices like "RubberDucky" devices or similar devices which act as keyboards to perform malicious actions. For that functionality, consider Netwrix Endpoint Protector. See the Content Aware Protection topics in the Administration section of the Netwrix Endpoint Protector documentation for additional information.

To get started on device policies, create a link a GPO and link it to where your computers are. The examples use East Sales Desktops.

You may also use Endpoint Policy Manager Cloud to create these policies, or export your GPOs created in this example for use with an MDM service like Intune.
