How-to gain access of a remote computer using built-in Windows Remote Assistance application?

Enable remote computers to accept the incoming remote connection with Netwrix Endpoint Policy Manager (formerly PolicyPak)'s pre-configured PAK for Microsoft Remote Settings.

Setting up a GPO to allow remote assistance using Endpoint Policy Application Manager.​

In these steps, we will show steps for IT Administrators so they can Enable Remote Assistance for end-users computers.

Step 1 – Launch Group Policy Management Console.

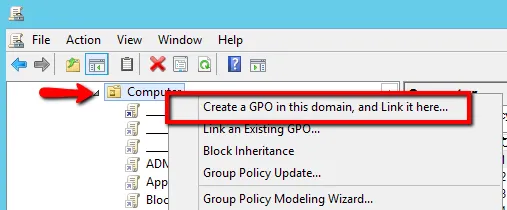

Step 2 – Right-click on a required OU and Create a new GPO.

686_1_image-20200330200931-1

Step 3 – Give the GPO a descriptive Name then click the OK button.

686_3_image-20200330200932-2

Step 4 – Right-click on the new GPO you just created, and select Edit option.

686_5_image-20200330200932-3

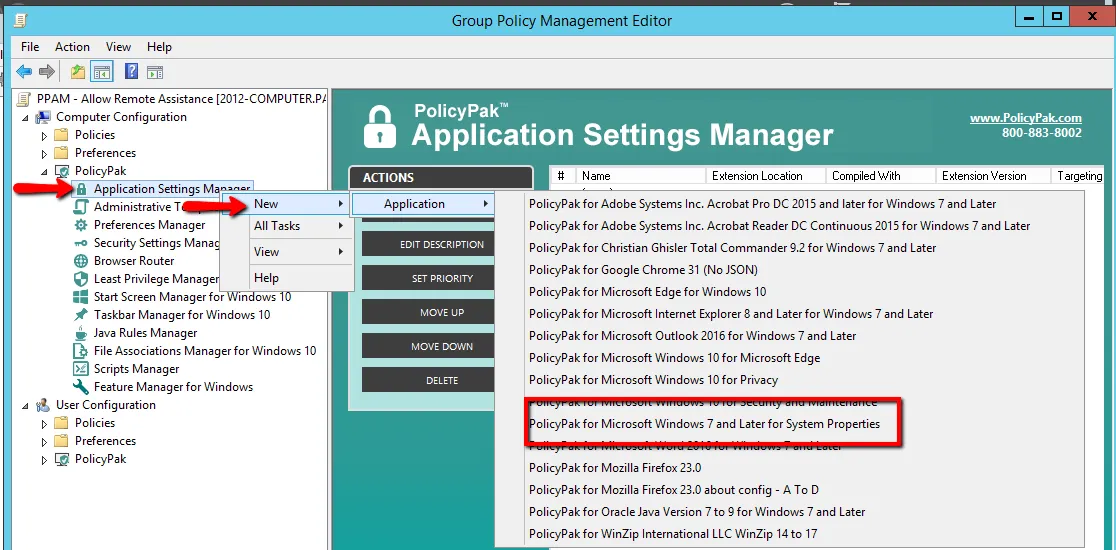

Step 5 – Expand the Endpoint Policy Manager node under Computer Configuration and select the pre-configured PAK named "Endpoint Policy Manager for Microsoft Windows 7 and Later for System Properties"

686_7_image-20200330200932-4

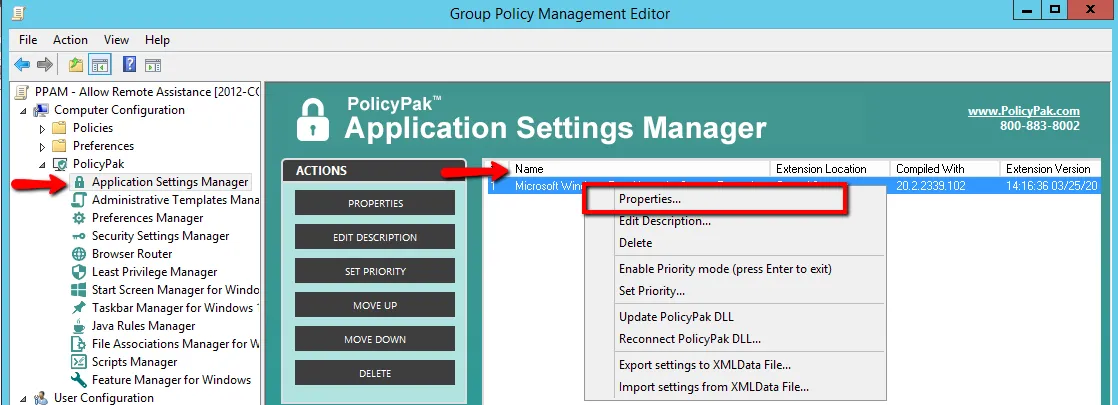

Step 6 – Right-click on the PAK entry and select the Properties option.

686_9_image-20200330200932-5

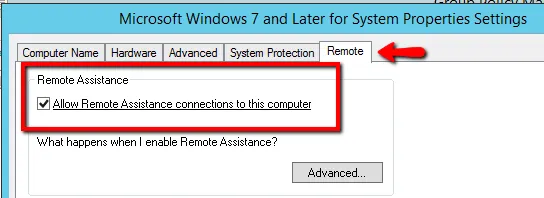

Step 7 – Select the Remote tab, and select the checkbox "Allow Remote Assistance connections to this computer" and then click the OK button.

NOTE: Make sure that the selection is underlined as shown in the screenshot.

686_11_image-20200330200932-6

Step 8 – Lastly, run GPUPDATE on end-users computers to apply the policy immediately, or wait for the policy to apply during the normal group policy refresh interval.

Additional Recommendations: Use Endpoint Policy Manager Scripts Manager and create two additional computer side policy items.

Step 1 – Set Firewall to Allow Remote Assistance:

Using Endpoint Policy Manager Scripts Manager you can execute the following script to open a Firewall for incoming remote assistance connections.

  • netsh advfirewall firewall set rule group="remote assistance" new enable=Yes

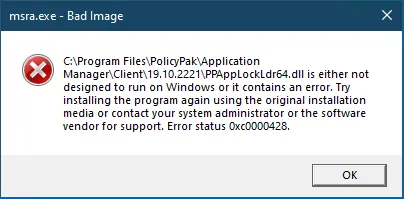

Step 2 – Proactively address possible issue with MSRA.EXE and PPAppLockdr64.dll:

686_13_image-20201016161058-2

Using Endpoint Policy Manager Scripts Manager you can execute the following script to configure custom Exploit Protection settings for Microsoft Remote Assistance (MSRA.EXE).

Set-ProcessMitigation -Name msra.exe -Enable DisableExtensionPoints

You can create two separate policy items:

686_14_image-20201016162349-4

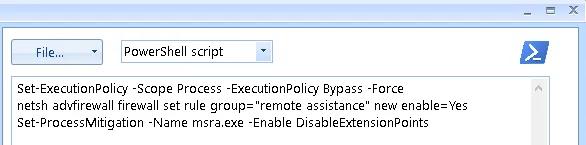

Or you can combine both policies in one if you prefer:

686_15_image-20201016162040-3

For more information on Endpoint Policy Manager Scripts Manager please consult the below reference articles.

Reference Article
