Extras Tab

Video: For a quick overview of how to manage certificates in IE using Endpoint Policy Manager Application Settings Manager see the following video: http://www.endpointpolicymanager.com/video/endpointpolicymanager-manage-ie-certificates.html.

The Extras tab in the IE AppSet enables you to do the following:

  • Set Menu bar icons
  • Set custom support page URL (versions of IE prior to IE 10)
  • Set custom title bar (versions of IE prior to IE 10)
  • Manage certificates

NOTE: Endpoint Policy Manager can only deploy binary/DER type certificates. If you need to convert an existing certificate to DER format, please see the section, "Exporting Certificates to the Binary-Encoded DER Format."

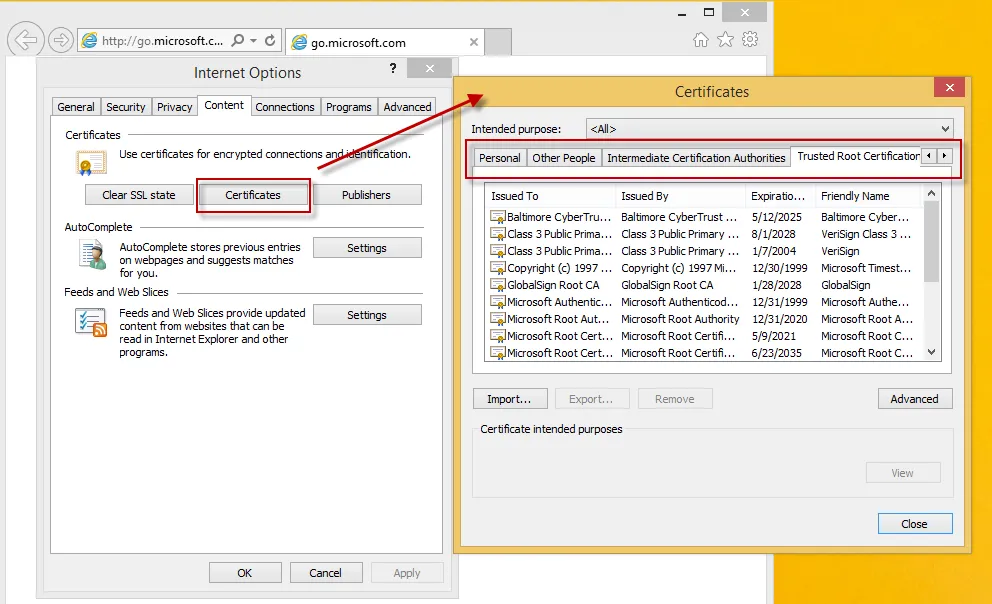

Examples of IE certificates are shown in Figure 29.

ie_appset_tab_by_tab_25

Figure 29. IE Certificates.

IE has the following locations to specify certificates:

  • Personal
  • Other people
  • Intermediate certification authorities
  • Trusted root certification authorities
  • Trusted publishers
  • Untrusted publishers

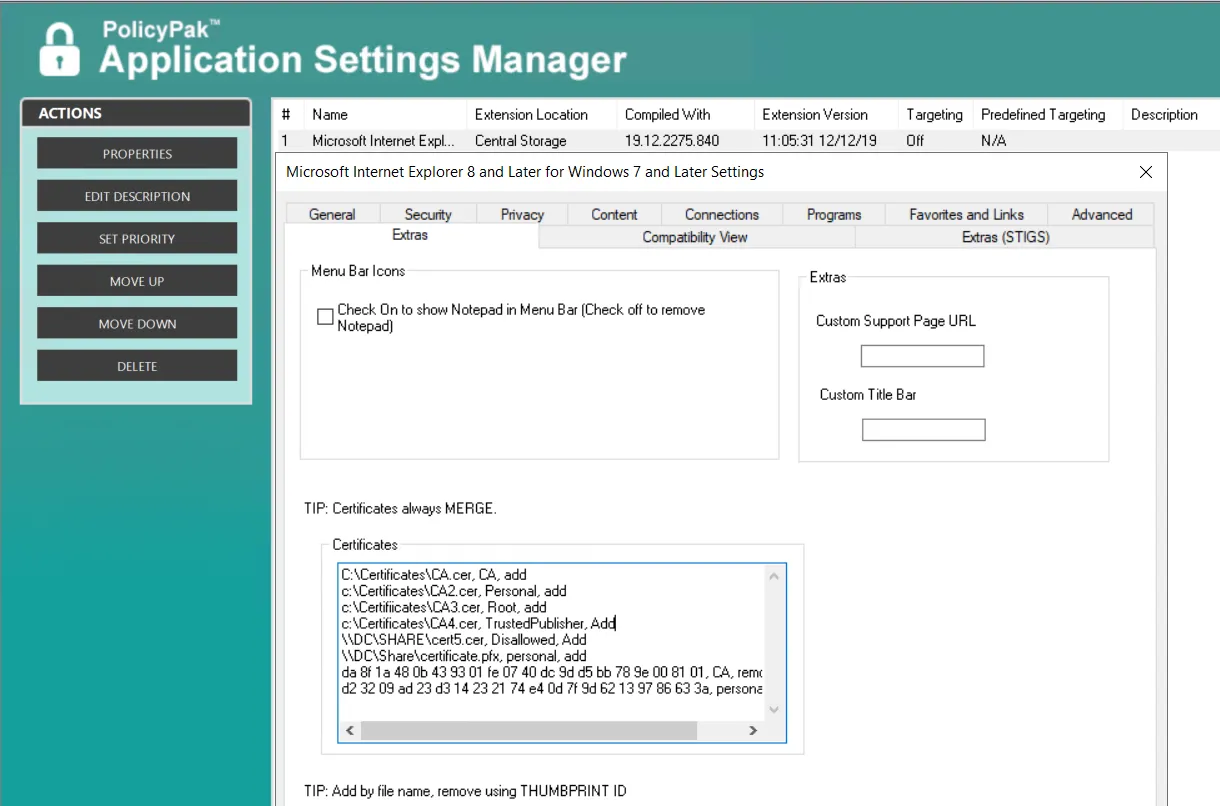

You can use the IE AppSet to add or remove certificates from those locations using the following format, as shown in Figure 30:

File Location, Certificate Store, add
or
Thumbprint, Certificate Store, remove

ie_appset_tab_by_tab_26

Figure 30. Adding or removing IE certificates.

Adding Certificates using the IE AppSet​

To add a certificate using the IE AppSet, the file must be located at \\server\share or a local location like c:\Certificates. Endpoint Policy Manager then accesses the file in that location and determines which certificate store you want to put it in. The available stores and the corresponding word to specify within Endpoint Policy Manager can be seen in Table 1.

Table 1: Certificate stores and corresponding terms.

IE Certificate StoreWord to specify in Endpoint Policy Manager AppSet
User storeMachine Store
PersonalPersonalMachine\Personal
Other PeopleAddressBookMachine\AddressBook
Intermediate Certification AuthoritiesCAMachine\CA
Trusted Root Certification AuthoritiesRootMachine\Root
Trusted PublishersTrustedPublisherMachine\TrustedPublisher
Untrusted PublishersDisallowedMachine\Disallowed

CAUTION: Not all certificate types will work in all locations for IE certificates.

The following line would look for a file named certificate.pfx on \\DC\Share and add it to the Personal certificate store: \\DC\Share\certificate.pfx, personal, add.

By default, certificates are added to and removed from the certificate store of the current user. Prepend any store name with Machine\ if you want to add or remove a certificate from the machine store. For example, the following line would would add a certificate to Intermediate Certification Authorities of the current user: \\DC\Share\CA.cer, CA, add, while the next line would add a certificate to Intermediate Certification Authorities of the machine, meaning that all users on the machine will get it: \\DC\Share\CA.cer, Machine\CA, add.

NOTE: Non-elevated users are not allowed to remove certificates from the machine store, so you can use Machine\{Store Name} to ensure certificates are delivered to everyone and cannot be removed by users.

Removing Certificates using the IE AppSet​

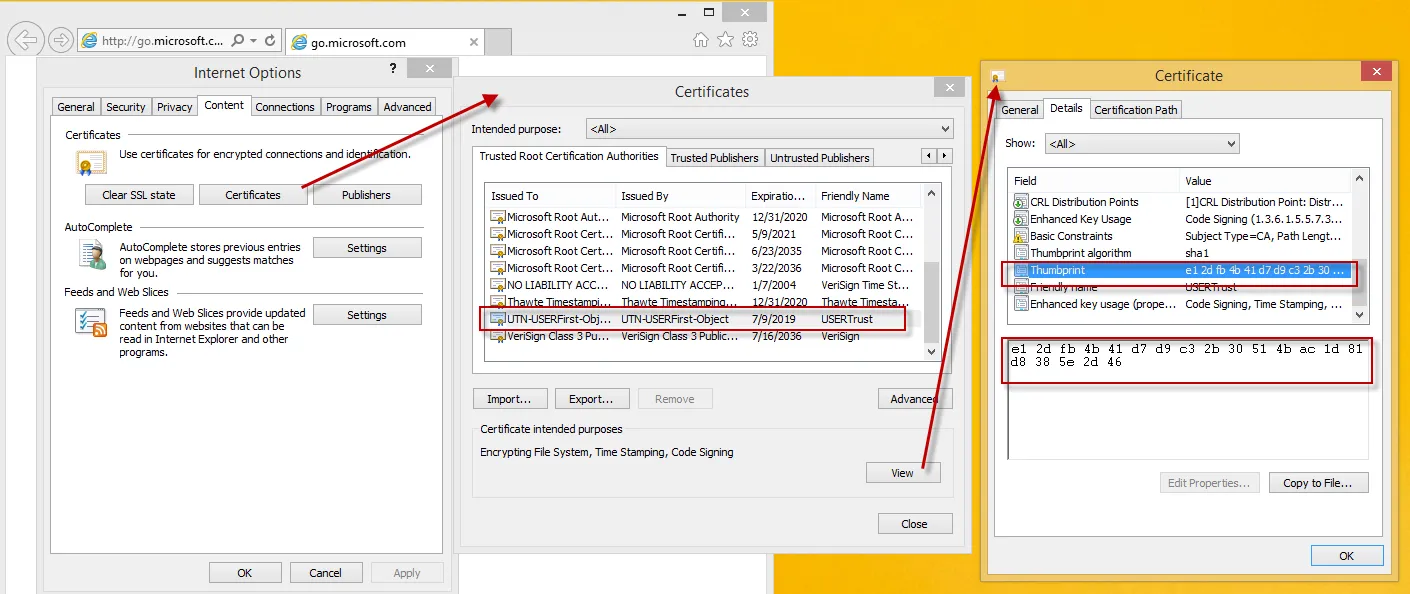

To remove certificates using the IE AppSet, you must know the thumbprint for the certificate you want to remove. You can find the thumbprint within IE by viewing the details for a certificate and selecting the thumbprint, as shown in Figure 31. Then, you can copy and paste it into the AppSet.

ie_appset_tab_by_tab_27

Figure 31. Details and thumbprints of certificates in IE.

The format of the text to remove the certificate should include the thumbprint with spaces, a comma, the certificate store word from the table above, and the word remove:

da 8f 1a 48 0b 43 93 01 fe 07 40 dc 9d d5 bb 78 9e 00 81 01, CA, remove

As with adding a certificate, you can prepend the store word with Machine\ to remove a certificate from the machine store:

da 8f 1a 48 0b 43 93 01 fe 07 40 dc 9d d5 bb 78 9e 00 81 01, Machine\CA, remove

Exporting Certificates to the Binary-Encoded DER Format​

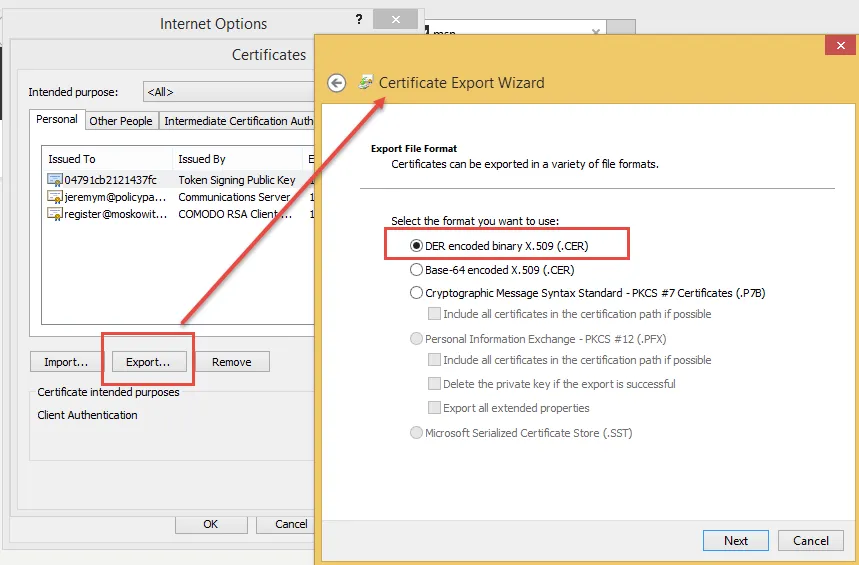

Endpoint Policy Manager can only work with binary-formatted/DER certificates. If you have a certificate of another type, you may import it first into Internet Explorer. Then you can immediately export it as a DER file, as shown in Figure 32.

ie_appset_tab_by_tab_28

Figure 32. Exporting a certificate as a DER file.

You can optionally perform the same type of export by finding the file itself in Explorer, navigating to the Details tab, and then clicking on the "Copy to File..." button and selecting "DER encoded binary X.509 (CER)," as shown in Figure 33.

ie_appset_tab_by_tab_29

Figure 33. Exporting a certificate using the "Copy to File..." button.
