Version Control of Endpoint Policy Manager Extension DLLs

From time to time, you may wish to update your original source Endpoint Policy Manager XML that you created using the Endpoint Policy Manager DesignStudio. The most common reasons for doing this ares:

• Targeting application updates (e.g., WinZip14 to WinZip15)
• Correcting errors from your original implementation (for example, some action data was incorrectly assigned using Endpoint Policy Manager DesignStudio)
• Adding more Endpoint Policy Manager Applock™ data or elements to a project if the vendor has an update (for example, if WinZip has a minor update, and a new control is available)
• Adding more Endpoint Policy Manager Applock™ data when controlling another operating system (for example, you captured WinZip on Windows 7 and now want to perform AppLock on Windows 10)
• Updating the name of an element (for example, you introduced a typo when creating an element using Endpoint Policy Manager DesignStudio)

If you need to update an AppSet, you will need to understand Endpoint Policy Manager Application Settings Manager's version control methodology.

NOTE: Transitioning from one DLL to another DLL isn't difficult, but a strong cautionary note is needed. That is, when you provide the next version of a DLL, you could be removing elements or whole tabs with a lot of elements. When you do this, you could lose the ability to manage previously deployed elements from existing AppSets.
Please read this whole section in its entirety to understand the issues surrounding version control before attempting to perform an upgrade. Additionally, you'll likely want to test out the version control mechanism in a test lab before rolling out an update into your production environment.

An AppSet is defined by its project name. You can see the project name when you utilize an AppSet and also when you're working with the project within Endpoint Policy Manager DesignStudio by selecting the Project Properties tab on the left (see Figure 78).

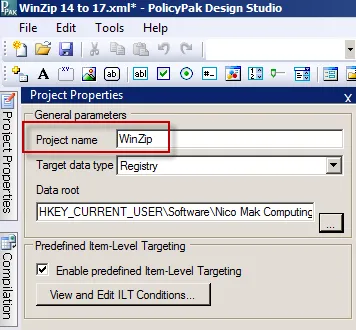

Figure 78. The project name on the Project Properties tab in Endpoint Policy Manager DesignStudio.

Note that the project name is NOT the same name as the file name, which you used for the pXML (XML) file. The project name is internal to the project itself.

In this example, our existing WinZip project file was opened and a new checkbox was added, v2, for the sake of adding something new for this example (see Figure 79). Then the file was saved with a different name (WinZipc.xml). Finally, the project was compiled. The result is as follows:

• The original output file is pp-WinZip 14 to 17.dll because the original pXML filename was Winzip 14 to 17.xml.
• The new output file ispp-WinZipc.dllbecause the updated pXML filename is WinZipc.xml.

However, in both cases, the internal project name is WinZip, as seen in Figure 79, because it did not change between projects.

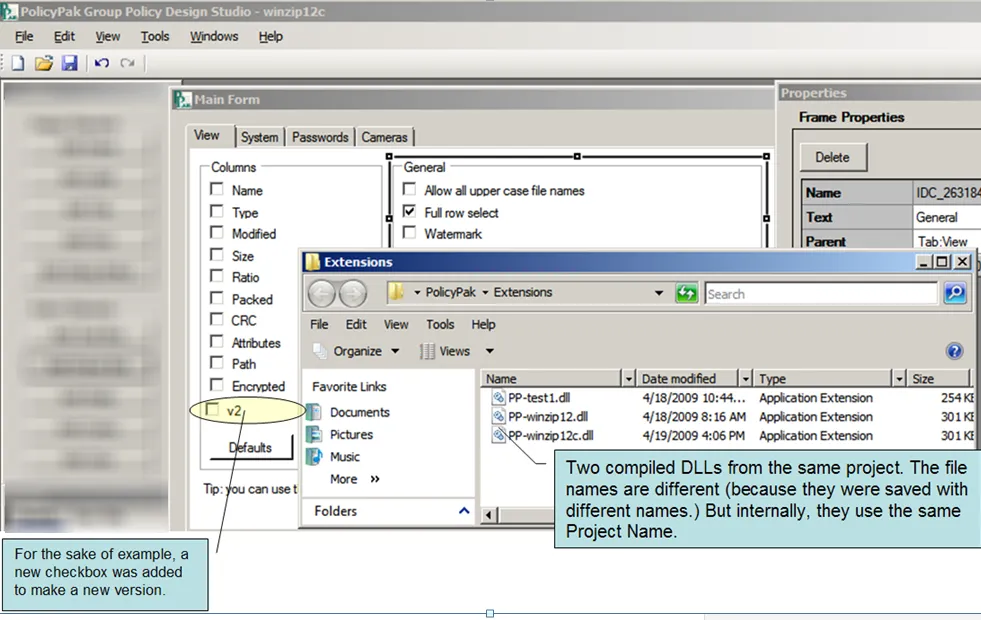

Figure 79. An example showing that, while the file names may change, the project name remains the same.

Version Control When Leveraging Only the Local Storage

In a previous section, we explained how to leverage the Central Storage, and we'll cover version control with regard to the Central Storage in the next section. However, let's first examine what happens if you're not using the Central Storage and have the situation we've seen in the last section where the local c:\Program Files\PolicyPak\Extensions directory has two versions of the same project (with the same underlying project name)—each with different compiled Endpoint Policy Manager extensions and filenames.

Step 1 – Creating a new GPO. While creating a new GPO, you will still be able to right-click the Endpoint Policy Manager | Applications node and select your application. In fact, even though multiple Endpoint Policy Manager extension DLLs exists for the same project, you'll only see one entry appears in the flyout menu. You can switch to different DLL at any time by right-clicking the item and selecting "Reconnect Endpoint Policy Manager DLL," as shown in Figure 80.

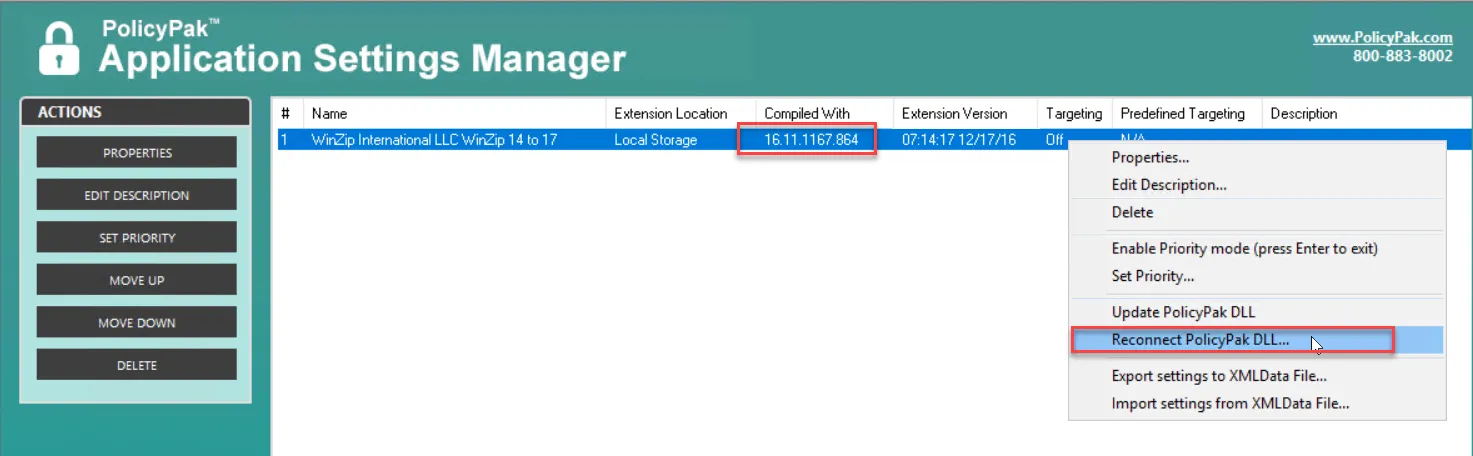

Figure 80. You can connect to any version at any time when working with GPOs.

Step 2 – Now select the DLL you want as shown in Figure 81.  You'll be able to select which local storage version you want based on compiled date and time. The file names are also shown as a convenience.

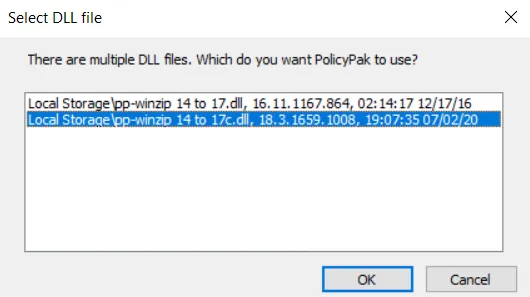

Figure 81. Pick the version you want, either according to DLL name or date.

Now the item is updated with the newer DLL as shown in Figure 82.

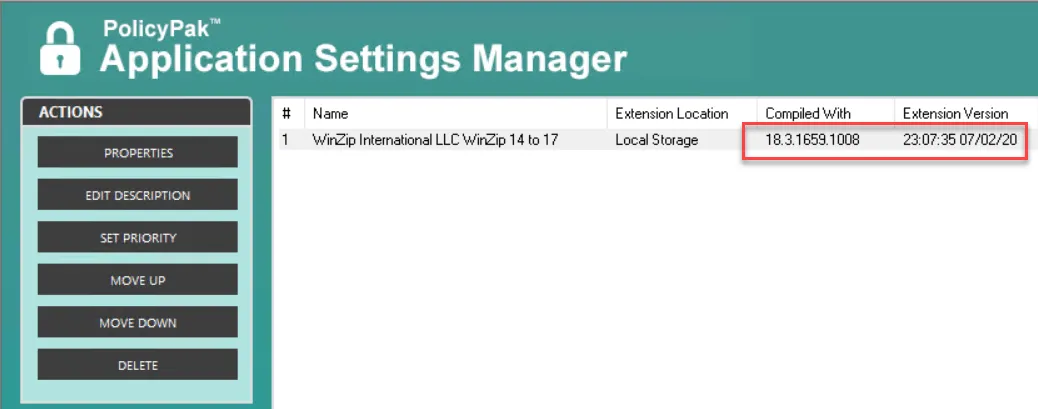

Figure 82. Note the new version is listed now.

Version Control When Leveraging the Central Storage

Using the Central Storage is the ideal solution for dealing with version control. For this section, we'll assume you have the Central Storage set up and have placed at least one Endpoint Policy Manager extension DLL inside.

If you use Endpoint Policy Manager DesignStudio to update your original pXML file and recompile, a new DLL will be created, as described in the "Endpoint Policy Manager Application Settings Manager: DesignStudio Quickstart" section in Appendix B: Endpoint Policy Manager Application Settings Manager DesignStudio Guide.

If the underlying project name is the same, you will have to understand how the version control system will work with regards to the original DLL already in Central Storage and the newly created DLL that was just compiled and saved locally.

The Endpoint Policy Manager DesignStudio will automatically place newly compiled DLLs in the same place: the Local Store at c:\Program Files\PolicyPak\Extensions. Now that there is an older DLL in the Central Storage and a newer DLL locally, here is what happens.

Creating a new GPO. While creating a new GPO, you will still be able to right-click the Endpoint Policy Manager | Applications node and select your application. In fact, even though multiple Endpoint Policy Manager extension DLLs exist for the same project, you'll only see one entry appear in the flyout menu. When you click the desired project, you'll be prompted for which version you want to use, as seen in Figure 83.

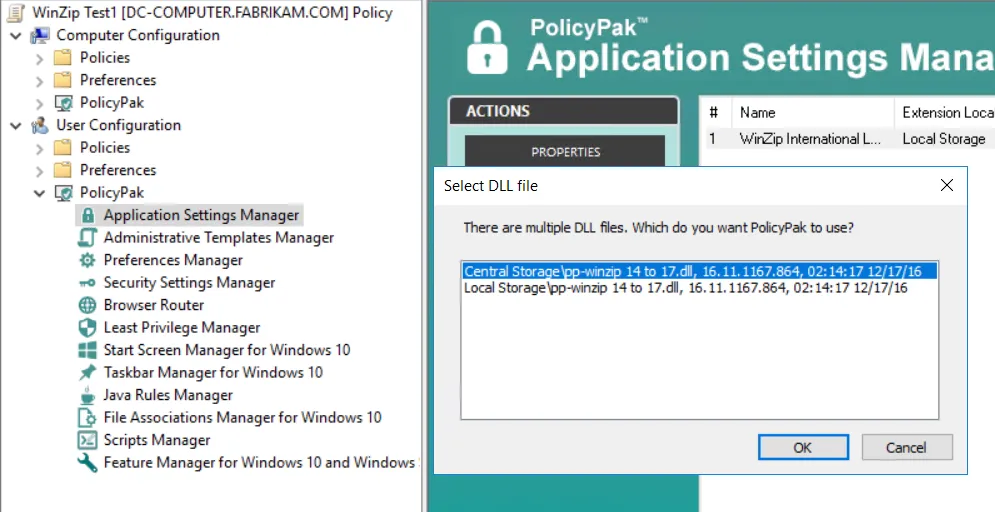

Figure 83. For projects with the same name, you'll be prompted to choose which version you want to use while creating a new GPO.

Since there is a DLL in both the Local Store and the Central Storage, you can choose which one you would like to use.

Editing an existing GPO. If you decide to edit an existing version of a GPO with an AppSet item—when one DLL is already in the Central Storage—then there is no immediate change. That is, you can double-click the AppSet item, and it will be edited using the original DLL that was already placed in the Central Storage. However, you can also upgrade an existing AppSet item with a newer DLL. To do this, right-click the item and select "Update Endpoint Policy Manager DLL," as seen in Figure 84. If the newer DLL is selected, it will update the underlying GPO data.

Figure 84. Upgrading an existing Pak item with a newer DLL.

Manually Migrating to Newer AppSet DLLs in the Central Storage

NOTE: If you would like to see a video overview of how to manually migrate to newer DLLs and update GPOs, please watch this tutorial video: Understanding and fixing Endpoint Policy Manager DLL Orphans.

With the versioning system, you will be able to create Endpoint Policy Manager DLLs locally and create and test GPOs, as needed, to make sure the new DLL works exactly as expected. Then, when you're ready, you can update the existing DLL in the Central Storage with the one that you have created and tested locally.

To do so, simply

Step 1 – copy the new DLL (even if it has a different name) from the Local Store into the Central Storage and

Step 2 – remove the older DLL from the Central Storage.

You can see this in Figure 85.

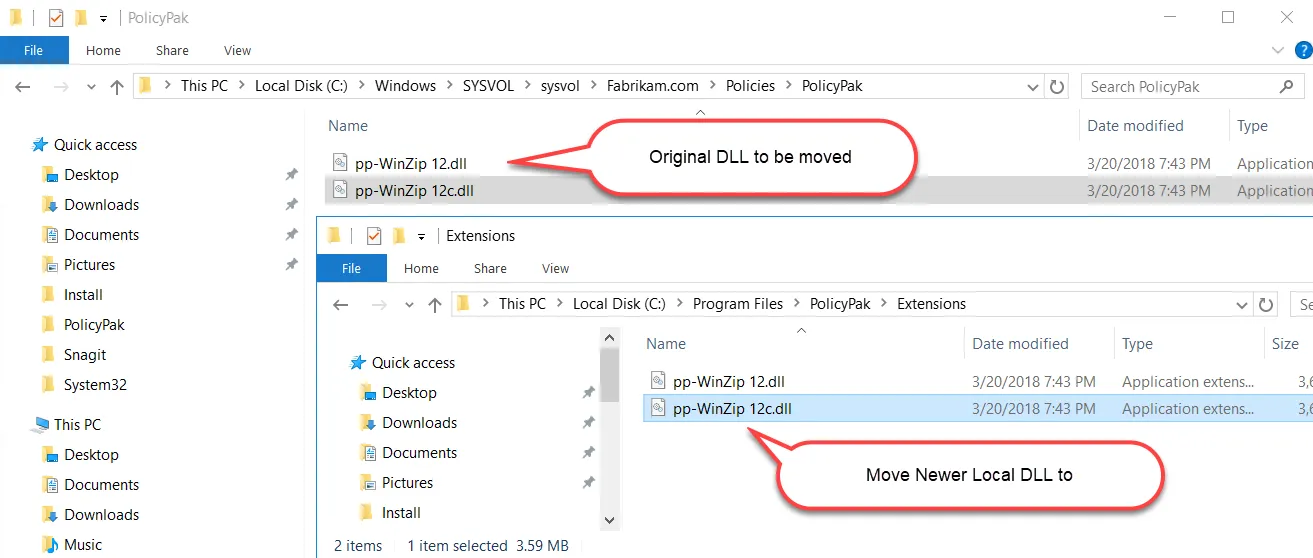

Figure 85. The process of removing old DLLs.

When you complete this process, the next time you (or other administrators) create new GPOs, you'll be using the version contained in the Central Storage. If you (or other administrators) edit an existing GPO, you will get the familiar notice shown in Figure 86.

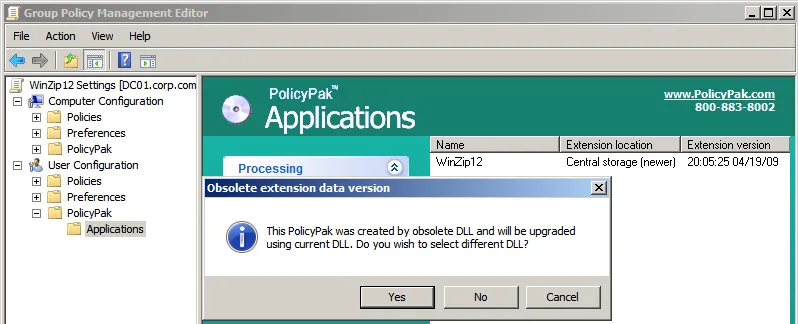

Figure 86. The notice received when editing an existing GPO.

Selecting "No" confirms that you want to upgrade the data inside the GPO using the only DLL available—the one you placed in Central Storage.

When you update the DLL (whether you're upgrading or downgrading), be aware of these very important cautions:

• If an element has been removed from the selected DLL, the data will be wiped out inside the GPO data and is not recoverable. For instance, if you set a checkbox on or off, put data such as "Hello, World" into a text box, or set a spinner to "12," this information will be erased from the GPO.
• Since the element is gone inside the DLL, Endpoint Policy Manager Application Settings Manager has no way to control it anymore. So the last known setting for that element will be left on the client machine even if "Revert this policy setting to the default value when it is no longer applied" was originally configured for that element.
