File Servers

The Entitlement page lists the servers specified for permission analysis in the identity store, displaying granular level permission granted to objects on shared files and folders. This data is subject to the date and time the permissions were last replicated.

You can view all active servers as enabled and not replicated servers as disabled. It is as:

Here, the second server is disabled while the first one is enabled. A disabled server indicates that the Entitlement job has not run to replicate permission data for it. Once permissions are replicated, the server is enabled.

• You will find the following information under a server name:

  • Path: the location where the server exists.
  • Total Shares: Number of shared folders that exist in the configured and replicated server.
  • Last Replication: day, date, and time when the server was last replicated.
  • Time Taken: time it took to complete the replication.

• Double click on the card to explore the server. Once explored, click Go Back to return to the list of available sites.

• You can search specific servers on the search bar on the top. If you want to undo the search results, click Refresh List which will display all the servers on the page.

What do you want to do?

• Explore a Server Card View
• View file/folder permissions
• Search shared files and folders on the server
• How GroupID Entitlement displays permissions

Explore a Server Card View

On double clicking the fileserver, a separate card for each file and folder shared at the root is displayed, showcasing the following information:

• The date and time the file/folder was last created.

• Owner of the file/folder.



NOTE: Date format: mm/dd/yyyy

• For child folders, the path is as: servername.parentsharedfoldername.



• You can view the child files and folders within a shared folder till the nth level. Double-click a folder card to view its direct child files and folders. Continue till the nth level.

View file/folder permissions

On clicking a file/folder card, all users and groups with effective NTFS permission on it are listed in the right pane.

Information includes:

• The date and time the file/folder was replicated and created, the name of the owner, and the number of files and folders that reside directly in the selected folder.

  For example, if the folder contains a folder, ABC, that further contains 3 folders, the direct sub file/folder count will be 1, not 4.

• Under Users/Groups, you can view all users and groups with permissions on the file/folder. You can also view the permission status, such as Full Control, Read & Execute, and so on.

  Use the search box to filter the listing.

• Add new users/groups who can have permissions on the file/folder. You can permanently or temporarily add user/groups.

  You can select multiple user/groups and collectively assign them the same permissions.

• On clicking a user or group name, the user/group's properties are displayed

  You can view and update properties, depending on your rights and privileges.

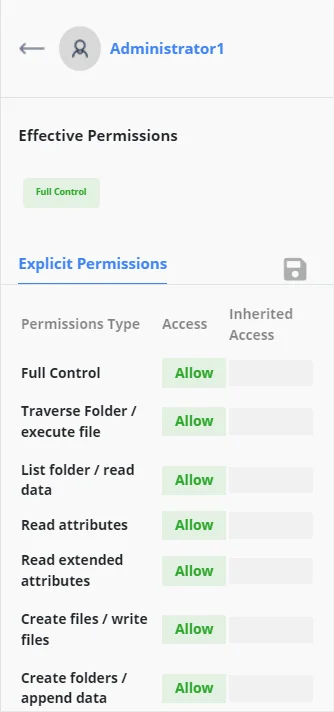

• Clicking the permission status for a user/group displays the effective permissions assigned to this user/group on the file/folder.

  You can allow and deny access and inherited access and click Save icon.



  Permissions are displayed as Explicit permissions which list the effective permissions set the user/group has on the file/folder.

With the effective permissions displayed, clicking the user/group again would launch the object properties as well as collapse the permissions view.

Search shared files and folders on the server

You can search for specific files and folders (shared) on the server. You can also search for a file or folder in a particular folder.

Search filter

Below the search box is the Add new filter link. Click it to apply a search filter with a user/group, access type, and permission criterion. This will display shared files/folders that match your criterion.

• Type the name of a user or group in the User or Group box. It must be a specific name, like 'Sarah' (for user) or 'Engineering team' (for group), and not an object type, like 'users', 'groups', 'contacts', or 'computers'.
• From the Access Type drop-down list, select the Allow or Deny option.
• In the Permission box, select one or more permissions.
• Click Apply filters.

GroupID Entitlement displays folders and files on which the user/group has the specific access type with respect to the specified permission(s).

Example:

User: Administrator

Access type: Allow

Permission: WriteAttributes, ExecuteFile, Read

This would list all files and folders on which the Administrator has these three permissions - WriteAttributes, ExecuteFile, and Read - set to 'Allow'.

You can apply multiple search filters. Click Add new filter to insert a filter row. Each filter row is taken as a separate criterion; any file or folder that matches all of these criteria will be displayed in the results.

How GroupID Entitlement displays permissions

Condition	Access level displayed
User has direct Allow access on a folder.	Allow
User has direct Deny access on a folder.	Deny
Group has direct Deny access on a folder.	Explicit Deny access is displayed on the root parent folder.
User has inherited the Allow access but has explicit Deny access on a folder.	Deny access is displayed on the folder.
User has inherited the Deny access but has explicit Allow access on a folder.	Allow access is displayed on the folder.

See Also

• Entitlement

Entitlement

GroupID Entitlement enables you to stay informed on the permissions assigned to objects residing on your Active Directory servers and SharePoint sites.

See the Entitlement topic for detailed information on Entitlement.

See Also

• Manage File Servers
• Manage SharePoint Sites
• File Servers
• Explore SharePoint Sites

Explore SharePoint Sites

The SharePoint Sites page lists the sites specified for permission analysis in the identity store, displaying granular level permission granted to objects on document libraries. This data is subject to the date and time the permissions were last replicated.

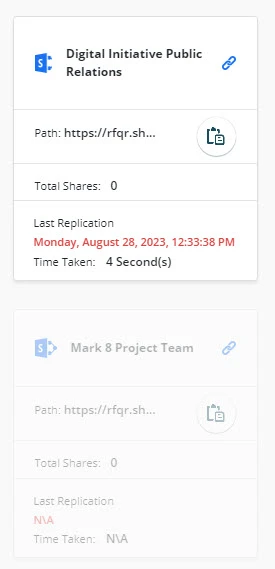

You can view all active sites as enabled and inactive sites as disabled. It is as:

A disabled site indicates that the Insights job has not run to replicate permission data for it. Once permissions are replicated, the site is enabled.

• You will find the following information under a site name:

  • Path: the location where the site exists.
  • Total Share: number of the shared document libraries.
  • Last Replication: day, date, and time when the site was last replicated.
  • Time Taken: time it took to complete the replication.

• Double click on the card to explore the site. Once explored, click Go Back to return to the list of available sites.

• You can search specific sites on the search bar on the top. If you want to undo the search results, click Refresh which will display all the sites on the page.

What do you want to do?

• Explore a Site Card View
• View levels and permissions on a library
• Search document libraries, files and folders in a site
• How GroupID Entitlement displays permissions

Explore a Site Card View

On double clicking the site, a separate card for each document library in the site is displayed, showcasing the following information:

• The date and time the library was last created.

  NOTE: Date format: mm/dd/yyyy

• You can view the files and folders within a document library till the nth level. Double-click a folder card to view its direct child files and folders. Continue till the nth level.



View levels and permissions on a library

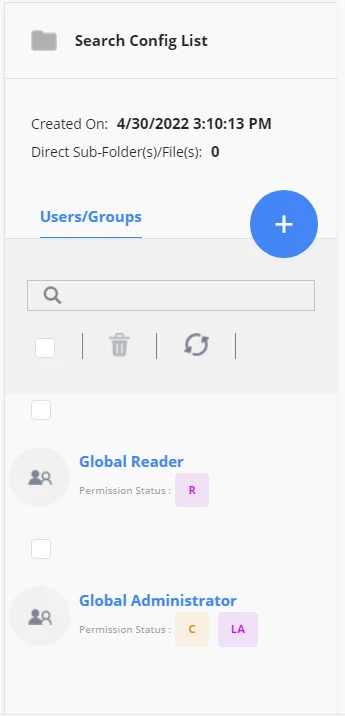

On clicking a library card or even a file/folder card, all users and groups with permission on it are listed in the right pane.

Information includes:

• The date and time the file/folder was created and the number of files and folders that reside directly in the selected folder.

  For example, if the folder contains a folder, ABC, that further contains 3 folders, the direct sub file/folder count will be 1, not 4.

• Under Users/Groups, you can view all users and groups with permissions on the file/folder. You can also view the levels, such as Full Control, Limited Access, View, Read, and Edit.

  Use the search box to filter the listing.

• Add new users who can have permissions on the file/folder in a site. You can permanently or temporarily add users.

  You can select multiple users and collectively assign them the same permissions.

• On clicking a user or group name, the user/group's properties are displayed.

  You can view and update properties, depending on your rights and privileges.

  NOTE: For groups, this functionality is available for domain groups only; SharePoint groups are not linked.

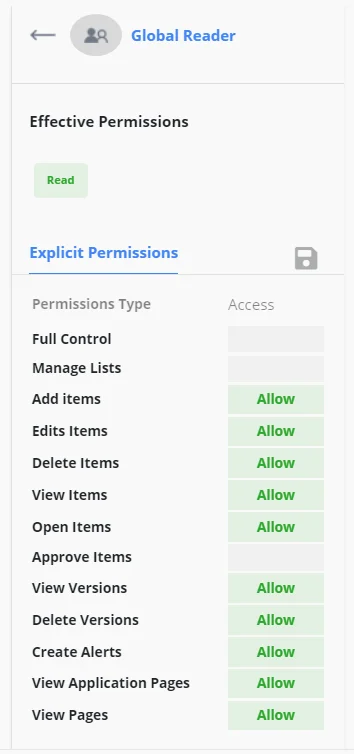

• Clicking a level for a user displays the effective permissions assigned to this user on the file/folder.

  You can update the permissions and click Save icon.



  Permissions are displayed as Explicit permissions which list the effective permissions set the user/group has on the file/folder.

Search document libraries, files and folders in a site

Use the search bar to search for specific files and folders in the site. You can also search for a file or folder in a particular folder. Click the card for that folder and search for the required child file/folder.

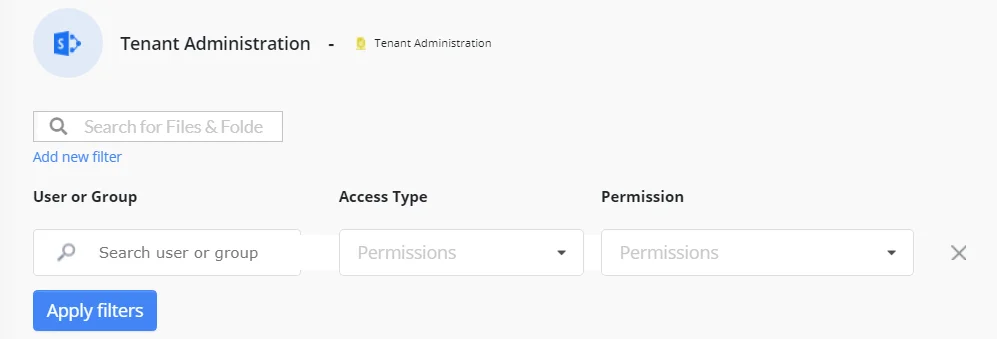

Search filter

Below the search box is the Add new filter link. Click it to apply a search filter with a user/group, access type, and permission criterion. This will display shared files/folders that match your criterion.

• Type the name of a user or group in the User or Group box. It must be a specific name, like 'Sarah' (for user) or 'Engineering team' (for group), and not an object type, like 'users', 'groups', 'contacts', or 'computers'.
• From the Access Type drop-down list, select the Allow or Deny option.
• In the Permission box, select one or more permissions.
• Click Apply filters.

GroupID Entitlement displays folders and files on which the user/group has the specific access type with respect to the specified permission(s).

Example:

User: Administrator

Access type: Allow

Permission: WriteAttributes, ExecuteFile, Read

This would list all files and folders on which the Administrator has these three permissions - WriteAttributes, ExecuteFile, and Read - set to 'Allow'.

You can apply multiple search filters. Click Add new filter to insert a filter row. Each filter row is taken as a separate criterion; any file or folder that matches all of these criteria will be displayed in the results.

How GroupID Entitlement displays permissions

Level	Access level displayed in GroupID Entitlement SharePoint
User/Group has the 'Full Control' permission level on a file/folder.	'Allow' for all list permissions.
User/Group has the 'Limited Access' permission level on a file/folder.	'Allow' only for the View Application Pages list permission.
User/Group has the 'Edit' permission level on a file/folder.	'Allow' for all list permissions except Full Control and Approve Items.
User/Group has the 'Read' permission level on a file/folder.	'Allow' for the View Items, Open Items, View Versions, Create Alerts, and View Application Pages list permissions.
