Continuation Mark

When exporting data from the Audit Database, a successful response includes:

  • For XML—A <ContinuationMark> inside the <ActivityRecordsList> root element.
  • For JSON—An object with the "ContinuationMark" field.

Continuation mark is a checkpoint, use it to retrieve data starting with the next Activity Record.

Send a POST request containing Continuation mark to the following endpoints:

MethodEndpointDescription
POST/netwrix/api/v1/activity_records/enum Returns next Activity Records.
POST/netwrix/api/v1/activity_records/searchReturns next Activity Records matching a filter criteria.

Ensure to pass information about transferred data, including Content-Type:application/xml or application/json and encoding. The syntax greatly depends on the tool you use.

You can send as many POST requests as you want. A new response returns next Activity Records and a new Continuation mark. Once all the Activity Records are retrieved, you will receive a 200 OK response with no Activity Records inside the ActivityRecordList root element (XML) or array (JSON).

Schema​

Copy the contents of ContinuationMark to a separate XML or JSON file (e.g., ContMark.xml).

FormatSchema description
XMLThe file must be compatible with the XML schema. On the computer where Auditor Server resides, you can find XSD file under Netwrix_Auditor_installation_folder\Audit Core\API Schemas. The ContinuationMark root element contains a value previously returned by Netwrix Auditor Integration API.
JSONJSON-formatted Continuation mark includes the field value in quotes.

If you want to retrieve next Activity Records for your search, include the Continuation mark to your Search parameters file. Search Parameters

Example​

XML
Retrieve Activity Records
<?xml version="1.0" standalone="yes"?> `````` <ContinuationMark xmlns="http://schemas.netwrix.com/api/v1/activity_records/"> `````` PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A+PC9ucj4A `````` </ContinuationMark>
Search Activity Records
<?xml version="1.0" standalone="yes"?> `````` <ActivityRecordSearch xmlns="http://schemas.netwrix.com/api/v1/activity_records/"> `````` <ContinuationMark>PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A+PC9ucj4A</ContinuationMark> `````` <FilterList> `````` <Who>Administrator</Who> `````` <DataSource>Active Directory</DataSource> `````` <Action>Added</Action> `````` <ObjectType Operator="DoesNotContain">Group</ObjectType> `````` <When> `````` <From>2016-09-16T16:30:00+11:00</From> `````` <To>2017-03-16T00:00:00Z</To> `````` </When> `````` </FilterList> `````` </ActivityRecordSearch>
JSON
Retrieve Activity Records
"PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A"
Search Activity Records
{ `````` "ContinuationMark": "PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A+PC9ucj4A", `````` "FilterList": { `````` "Who": "Administrator", `````` "DataSource": "Active Directory", `````` "Action": "Added", `````` "ObjectType": { "DoesNotContain": "Group"}, `````` "When": { `````` "From": "2016-09-16T16:30:00+11:00", `````` "To": "2017-03-16T00:00:00Z" `````` } `````` } `````` }

Search Parameters

Send the search parameters in the POST request body to narrow down the search results returned by the /netwrix/api/v1/activity_records/search endpoint. The Search parameters file includes one or more filters with operators and values (e.g., to find entries where data source is SharePoint); it may also contain a Continuation Mark. Generally, the Search parameters file looks similar to the following:

XML
<?xml version="1.0" encoding="utf-8"?> `````` <ActivityRecordSearch xmlns="http//schemas.netwrix.com/api/v1/activity_records/"> `````` <ContinuationMark>Continuation mark</ContinuationMark> `````` <FilterList> `````` <Filter1>Value</Filter1> `````` <Filter2>Value1</Filter2> `````` <Filter2>Value2</Filter2> `````` <Filter3 Operator="MatchType1">Value1</Filter3> `````` <Filter3 Operator="MatchType2">Value2</Filter3> `````` <Filter4>Value1</Filter4> `````` <Filter4 Operator="MacthType">Value2</Filter4> `````` </FilterList> `````` </ActivityRecordSearch>
JSON
{ `````` "ContinuationMark": "Continuation Mark", `````` "FilterList": { `````` "Filter1": "Value", `````` "Filter2": [ "Value1", "Value2" ], `````` "Filter3": { `````` "MatchType1": "Value1", `````` "MatchType2": "Value2" `````` }, `````` "Filter4": [ "Value1", { "MatchType": "Value2" } ] `````` } `````` }

Ensure to pass information about transferred data, including Content-Type:application/xml or application/json and encoding. The syntax greatly depends on the tool you use.

Schema​

FormatSchema description

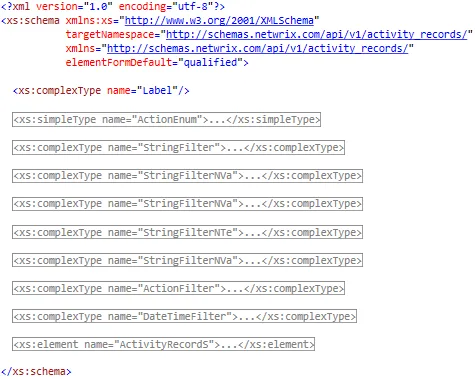

XMLThe file must be compatible with the XML schema. On the computer where Auditor Server resides, you can find XSD file under Netwrix_Auditor_installation_folder\Audit Core\API Schemas. The ActivityRecordSearch root element includes the FilterList element with one or more Filter elements inside. The root element may contain a ContinuationMark element. Each Filter specified within the FilterList must have a value to search for. The element may also include a modifier—a match type operator. minOccurs="0" indicates that element is optional and may be absent in the Search parameters. filterschema
JSONThe FilterList object includes with one or more Filter entries inside. JSON may contain a ContinuationMark object. Each Filter specified within the FilterList must have a value to search for. The entry may also include a modifier—a match type operator.

Review the following for additional information:

Example​

XML
<?xml version="1.0" encoding="utf-8"?> `````` <ActivityRecordSearch xmlns="http://schemas.netwrix.com/api/v1/activity_records/"> `````` <FilterList> `````` <Who Operator="NotEqualTo">Administrator</Who> `````` <MonitoringPlan>My Hybrid Cloud enterprise</MonitoringPlan> `````` <DataSource>Active Directory</DataSource> `````` <DataSource Operator="StartsWith">Exchange</DataSource> `````` <Action>Removed</Action> `````` <Action>Added</Action> `````` <ObjectType Operator="DoesNotContain">Group</ObjectType> `````` <When> `````` <From>2016-01-16T16:30:00+11:00</From> `````` <To>2017-01-01T00:00:00Z</To> `````` </When> `````` </FilterList> `````` </ActivityRecordSearch>
JSON
{ `````` "FilterList": { `````` "Who": { "NotEqualTo": "Administrator" }, `````` "MonitoringPlan": "My Hybrid Cloud enterprise", `````` "DataSource": [ "Active Directory", { "StartsWith": "Exchange" } ], `````` "Action": [ "Added", "Removed" ], `````` "ObjectType": { "DoesNotContain": "Group" }, `````` "When": { `````` "From": "2016-01-16T16:30:00+11:00", `````` "To": "2017-01-01T00:00:00Z" `````` } `````` } `````` }

Search Activity Records

The search functionality in the Netwrix Auditor Integration API reproduces interactive search available in the Netwrix Auditor client. See the Netwrix Auditor Intelligence Guide and View and Search Collected Data topic for detailed instruction on how to search and filter audit data.

As the interactive search in the Netwrix Auditor client, this REST API endpoint allows you to retrieve Activity Records matching a certain criteria. You can create your own set of filters in the Search parameters file. See the Search Parameters topic for more information. Activity Records are retrieved according to the account's delegated scope.

Endpoint​

To retrieve Activity Records matching a certain criteria, send a POST request containing search parameters (also may include a Continuation mark). See the Search Parameters topic for more information.

MethodEndpointPOST Data
POSThttps://{host:port}/netwrix/api/v1/activity_records/search{?format=json}{&count=Number}Search Parameters

Request Parameters​

ParameterMandatoryDescription
host:portYesReplace with the IP address or a name of your Netwrix Auditor Server host and port (e.g., 172.28.6.15:9699, stationwin12:9699, WKSWin2012.enterprise.local:9699). With enabled HTTPS, provide the computer name as it appears in certificate properties.
format=jsonNoAdd this parameter to retrieve data in JSON format. Otherwise, XML-formatted Activity Records will be returned.
count=NumberNoAdd this parameter to define the number of Activity Records to be exported. Replace Number with a number (e.g., ?count=1500).

Optional parameters (format and count) can be provided in any order. The first parameter must start with ?, others are joined with &, no spaces required (e.g., ?format=json&count=1500).

Response​

| Request Status | Response | | -------------- | ------------------------------------------------------------------------------------------------------------------------- | --- | --- | --- | --- | --- | --- | --- | --- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --- | | Success | The HTTP status code in the response header is 200 OK. The response body contains Activity Records and Continuation Mark. | | | | | --- | --- | --- | | HTTP/1.1 200 OK `````` Server: Microsoft-HTTPAPI/2.0 `````` Content-Length: 311896 `````` Content-Type: application/xml `````` Date: Fri, 08 Apr 2017 13:56:22 GMT | or | HTTP/1.1 200 OK `````` Server: Microsoft-HTTPAPI/2.0 `````` Content-Length: 311896 `````` Content-Type: application/json `````` Date: Fri, 08 Apr 2017 13:56:22 GMT | | | Error | The header status code is an error code. Depending on the error code, the response body may contain an error object. |

Usage Example—Retrieve All Activity Records Matching Search Criteria​

Follow the steps- to retrieve all Activity Records matching search criteria.

Step 1 – Send a POST request containing search parameters. See the Search Parameters topic for more information.

As an example, this request retrieves Activity Records where administrator added new objects to the Active Directory domain. Groups and group policies are not taken into account. Changes could only occur between September 16, 2016 and March 16, 2017.

Ensure to pass information about transferred data, including Content-Type:application/xml or application/json and encoding. The syntax greatly depends on the tool you use.

Step 2 – Receive the response. Activity Records are retrieved according to the account's delegated scope. Below is an example of a successful search request. The status is 200 OK. For XML, a response body contains the ActivityRecordList root element with Activity Records matching filter criteria and a Continuation mark inside. For JSON, a response body contains the ActivityRecordList array with Activity Records matching filter criteria and collected in braces , and a Continuation mark.

XML
<?xml version="1.0" standalone="yes"?> `````` <ActivityRecordList xmlns="http://schemas.netwrix.com/api/v1/activity_records/"> `````` <ContinuationMark>PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A</ContinuationMark> `````` <ActivityRecord> `````` <MonitoringPlan> `````` <Name>AD Monitoring</Name> `````` <ID>{42F64379-163E-4A43-A9C5-4514C5A23798}</ID> `````` </MonitoringPlan> `````` <DataSource>Active Directory</DataSource> `````` <Item> `````` <Name>enterprise.local (Domain)</Name> `````` </Item> `````` <ObjectType>user</ObjectType> `````` <RID>20160215110503420B9451771F5964A9EAC0A5F35307EA155</RID> `````` <What>\local\enterprise\Users\Jason Smith</What> `````` <Action>Added</Action> `````` <When>2017-02-14T15:42:34Z</When> `````` <Where>EnterpriseDC1.enterprise.local</Where> `````` <Who>ENTERPRISE\Administrator</Who> `````` <Workstation>EnterpriseDC1.enterprise.local</Workstation> `````` </ActivityRecord> `````` <ActivityRecord>...</ActivityRecord> `````` <ActivityRecord>...</ActivityRecord> `````` </ActivityRecordList>
JSON
{ `````` "ActivityRecordList": [ `````` { `````` "Action": "Added", `````` "MonitoringPlan" : { `````` "ID": "{42F64379-163E-4A43-A9C5-4514C5A23798}", `````` "Name": "AD Monitoring" `````` }, `````` "DataSource": "Active Directory", `````` "Item": {"Name": "enterprise.local (Domain)"}, `````` "ObjectType": "user", `````` "RID": "20160215110503420B9451771F5964A9EAC0A5F35307EA155", `````` "What": "\\local\\enterprise\\Users\\Jason Smith", `````` "When": "2017-02-14T15:42:34Z", `````` "Where": "EnterpriseDC1.enterprise.local", `````` "Who": "ENTERPRISE\\Administrator", `````` "Workstation": "EnterpriseDC1.enterprise.local" `````` }, `````` {...}, `````` {...} `````` ], `````` "ContinuationMark": "PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A" `````` }

Step 3 – Continue retrieving Activity Records. Send a POST request containing your search parameters and this Continuation mark to the same endpoint. Continuation Mark

XML
curl -H "Content-Type:application/xml; Charset=UTF-8" https://WKSWin2012:9699/netwrix/api/v1/activity_records/search -u Enterprise\NetwrixUser:NetwrixIsCool --data-binary @C:\APIdocs\Search.xml <?xml version="1.0" standalone="yes"?> `````` <ActivityRecordSearch xmlns="http://schemas.netwrix.com/api/v1/activity_records/"> `````` <ContinuationMark>PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A+PC9ucj4A</ContinuationMark> `````` <FilterList> `````` <Who>Administrator</Who> `````` <DataSource>Active Directory</DataSource> `````` <Action>Added</Action> `````` <ObjectType Operator="DoesNotContain">Group</ObjectType> `````` <When> `````` <From>2016-09-16T16:30:00+11:00</From> `````` <To>2017-03-16T00:00:00Z</To> `````` </When> `````` </FilterList> `````` </ActivityRecordSearch>
JSON
curl -H "Content-Type:application/json; Charset=UTF-8" https://WKSWin2012:9699/netwrix/api/v1/activity_records/search?format=json -u Enterprise\NetwrixUser:NetwrixIsCool --data-binary @C:\APIdocs\Search.json { `````` "ContinuationMark": "PG5yPjxuIG49IntFNzA...PjwvYT48L24+PC9ucj4A+PC9ucj4A", `````` "FilterList": { `````` "Who": "Administrator", `````` "DataSource": "Active Directory", `````` "Action": "Added", `````` "ObjectType": { "DoesNotContain": "Group"}, `````` "When": { `````` "From": "2016-09-16T16:30:00+11:00", `````` "To": "2017-03-16T00:00:00Z" `````` } `````` } `````` }

Ensure to pass information about transferred data, including Content-Type:application/xml or application/json and encoding. The syntax greatly depends on the tool you use.

Step 4 – Receive the next response. On success, the status is 200 OK. For XML, a response body contains the ActivityRecordList root element with next Activity Records and a new Continuation mark inside. For JSON, a response body contains the ActivityRecordSearch array with next Activity Records collected in braces and a new Continuation mark.

Step 5 – Continue retrieving Activity Records. Send POST requests containing your search parameters with new Continuation marks until you receive a 200 OK response with no Activity Records inside the ActivityRecordList. It means you retrieved all Activity Records matching your search criteria.
