Active Directory Activity Auditing Configuration

There are two methods to configure Activity Monitor to provide Active Directory domain activity to Access Analyzer:

  • API Server
  • File Archive Repository

See the File Archive Repository Option topic for additional information on that option.

API Server Option​

In this method, you will be deploying two agents:

  • First, deploy an Activity Agent to a Windows server that will act as the API server. This is a non-domain controller server.

    RECOMMENDED: Deploy the API Server to the same server where the Activity Monitor Console resides.

  • Next, deploy the AD Agent to all domain controllers in the target domain.

Follow the steps to setup integration between Activity Monitor and Access Analyzer through an API server.

Step 1 – Deploy the Activity Agent to the API server.

Step 2 – Deploy the AD Agent to each domain controller in the target domain.

The next step is to configure the agent deployed to the API server.

Configure API Server Agent​

Follow the steps to configure the agent deployed to the API server.

Step 1 – On the Agents tab of the Activity Monitor Console, select the agent deployed to the API server.

Step 2 – Click Edit. The Agent properties window opens.

Step 3 – Select the API Server tab and configure the following:

  • Select the Enable API access on this agent checkbox.

  • The default API server port (TCP) is 4494, but it can be modified if desired. Ensure the modified port is also used by Access Analyzer.

  • Click Add Application. The Add or edit API client window opens.

  • Configure the following:

    • Provide a descriptive and unique Application name, for example Access Analyzer.

    • Select the Read checkbox to grant this permission to this application.

    • Click Generate to generate the Client ID and Client Secret.

    • Copy the Client ID value to a text file.

    • Click Copy and save the Client Secret value to a text file.

      CAUTION: It is not possible to retrieve the value after closing the Add or edit API client window. It must be copied first.

    • By default, the Secret Expires in 3 days. That means it must be used in the Access Analyzer Connection Profile within 72 hours or a new secret will need to be generated. Modify if desired.

    • Click OK to save the configuration and close the Add or edit API client window.

  • If the Activity Monitor Console server is not the API Server, then click Use this console to grant the Activity Monitor the ability to manage the API server.

  • The IPv4 or IPv6 allowlist allows you to limit access to the API server data to specific hosts.

Step 4 – Click OK to save the configuration and close the Agent properties window.

The next step is to configure the agents deployed to the domain controllers.

Configure Domain Controller Agent​

Follow the steps to configure the agent deployed to the domain controller.

Step 1 – On the Agents tab of the Activity Monitor Console, select an agent deployed to domain controller.

Step 2 – Click Edit. The Agent properties window opens.

Step 3 – Select the Archiving tab and configure the following:

  • Select the Enable Archiving for this agent checkbox.

  • Select the Archive log files on a UNC path option. Click the ... button and navigate to the desired network share on the API server.

  • The User name and User password fields only need to be filled in if the account used to install the agent does not have access to this share.

    Remember, The account used to install the agent on a domain controller is a Domain Administrator account.

  • Click Test to ensure a successful connection to the network share.

Step 4 – Click OK to save the configuration and close the Agent properties window.

Step 5 – Repeat Steps 1-4 for each agent deployed to domain controller.

These agent are configured to save the Archive logs to the selected share.

Configure Monitored Domain Output​

Follow the steps configure the monitored domain output for Netwrix Access Analyzer (formerly Enterprise Auditor).

Step 1 – Select the Monitored Domains tab.

Step 2 – Select the desired domain and click Add Output. The Add New Ouptut window opens.

Step 3 – Configure the following:

  • Configure the desired number of days for the Period to keep Log files. This is the number of days the log files are kept on the API server configured in the sections above. This needs to be set to a greater value than the days between Access Analyzer scans.

    • For example, if Access Analyzer runs the AD_ActivityCollection Job once a week (every 7 days), then the Activity Monitor output should be configured to retain at least 10 days of log files.

  • Check the This log file is for StealthAUDIT box.

  • Optionally select the Enable periodic AD Status Check event reporting checkbox. When enabled, the agent will send out status messages every five minutes to verify whether the connection is still active.

Step 4 – Click Add Output to save and close the Add New Output window.

Access Analyzer now has access to the agent log files for this domain.

Configure Connection Profile​

Follow the steps to configure the Connection Profile in Access Analyzer.

Remember, the Client ID and Client Secret were generated by the API server and copied to a text file. If the secret expired before the Connection Profile is configured, it will need to be re-generated.

Step 1 – On the Settings > Connection node of the Access Analyzer Console, select the Connection Profile for the Active Directory solution. If you haven't yet created a Connection Profile or desire a specific one for AD Activity, create a new one and provide a unique descriptive name.

Step 2 – Click Add User credential. The User Credentials window opens.

Step 3 – Configure the following:

  • Select Account Type – Select Web Services (JWT)
  • User name – Enter the Client ID generated by the Activity Monitor API Server
  • Access Token – Enter the Client Secret generated by the Activity Monitor API Server

Step 4 – Click OK to save and close the User Credentials window.

Step 5 – Click Save and then OK to confirm the changes to the Connection Profile.

Step 6 – Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection Job Group. Select the Settings > Connection node.

Step 7 – Select the Select one of the following user defined profiles option. Expand the drop-down menu and select the Connection Profile with this credential.

Step 8 – Click Save and then OK to confirm the changes to the job group settings.

The Connection Profile will now be used for AD Activity collection.

Configure the AD_ActivityCollection Job​

The Access Analyzer requires additional configurations in order to collect domain activity data. Follow the steps to configure the AD_ActivityCollection Job.

NOTE: Ensure that the .Active Directory Inventory Job Group has been successfully run against the target domain.

Step 1 – Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection > AD_ActivityCollection Job. Select the Configure > Queries node.

Step 2 – Click Query Properties. The Query Properties window displays.

Step 3 – On the Data Source tab, select Configure. The Active Directory Activity DC wizard opens.

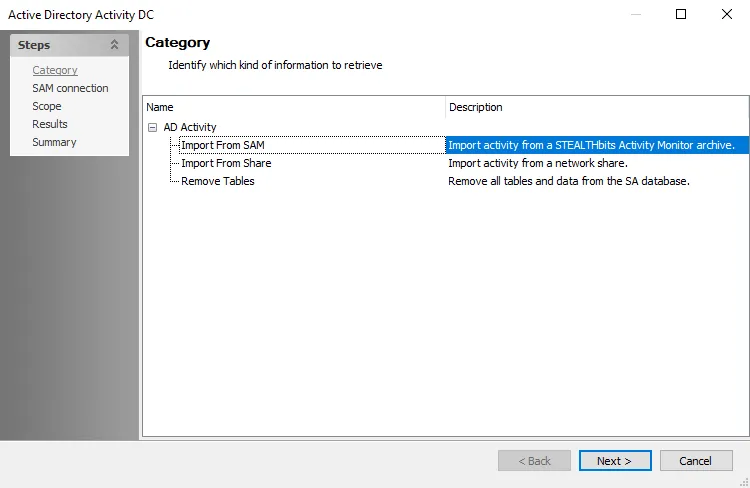

Active Directory Activity DC wizard Category page

Step 4 – On the Category page, choose Import from SAM option and click Next.

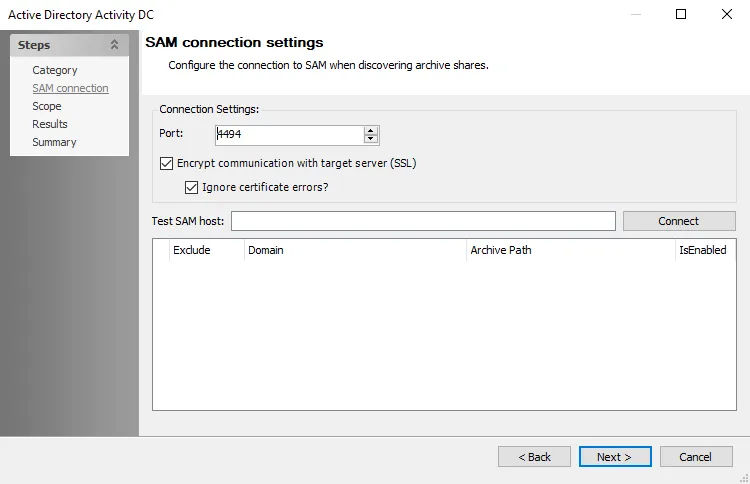

Active Directory Activity DC wizard SAM connection settings page

Step 5 – On the SAM connection page, the Port is set to the default 4494. This needs to match the port configured for the Activity Monitor API Server agent.

Step 6 – In the Test SAM host textbox, enter the Activity Monitor API Server name using fully qualified domain format. For example, NEWYORKSRV30.NWXTech.com. Click Connect.

Step 7 – If connection is successful, the archive location displays along with a Refresh token. Copy the Refresh token. This will replace the Client Secret in the Connection Profile in the last step.

Step 8 – Click Next.

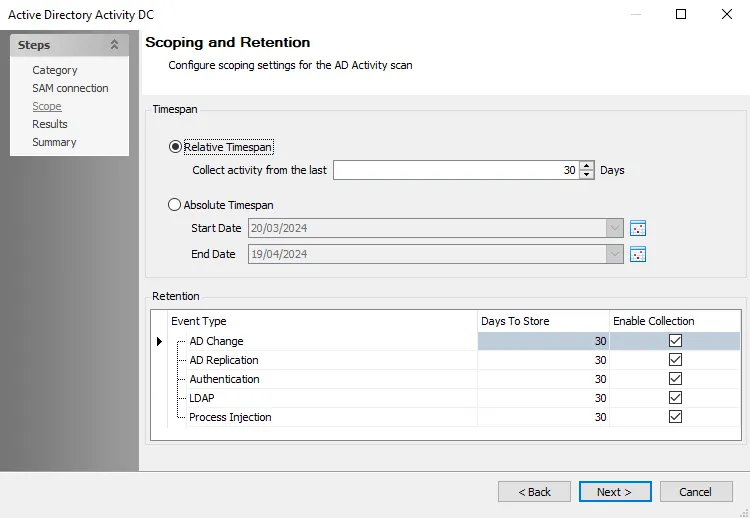

Active Directory Activity DC wizard Scoping and Retention page

Step 9 – On the Scope page, set the Timespan as desired. There are two options:

  • Relative Timespan – Set the number of days of activity logs to collect when the scan is run
  • Absolute Timespan – Set the date range for activity logs to collect when the scan is run

RECOMMENDED: The threshold should be set to ensure the logs are collected before the Activity Monitor domain output log retention expires. For example, if Access Analyzer runs the AD_ActivityCollection Job once a week (every 7 days), then the Activity Monitor output should be configured to retain at least 10 days of log files.

Step 10 – Set the Retention period as desired. This is the number of days Access Analyzer keeps the collected data in the SQL Server database.

Step 11 – Click Next and then Finish to save the changes and close the wizard.

Step 12 – Click OK to save the changes and close the Query Properties page.

Step 13 – Navigate to the global Settings > Connection node to update the User Credential with the Refresh token:

  • Select the Connection Profile assigned to the 6.Activity > 0.Collection Job Group.
  • Select the Web Services (JWT) User Credential and click Edit.
  • Replace the Access Token with the Refresh token generated by the data collector in Step 7.
  • Click OK to save and close the User Credentials window.
  • Click Save and then OK to confirm the changes to the Connection Profile.

The query is now configured to target the Activity Monitor API Server to collect domain activity logs.

(Optional) Configure Import of AD Activity into Netwrix Access Information Center​

AD Activity data can be imported into Netwrix Access Information Center by the AD_ActivityCollection Job. However, this is disabled by default. Follow the steps to enable the importing of AD activity data into the Access Information Center.

Step 1 – Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection > AD_ActivityCollection Job.

Step 2 – On the job's Overview page, enable the import of AD Events.

  • Click on the Enable to import AD events into the AIC parameter.
  • On the Parameter Configuration window, select the Enabled checkbox and click Save.

Step 3 – On the job's Overview page, enable the import of authentication Events.

  • Click on the Enable to import authentication events into the AIC parameter.
  • On the Parameter Configuration window, select the Enabled checkbox and click Save.

Step 4 – Optionally, modify the List of attributes to track for Object Modified changes and Number of days to retain activity data in the AIC parameters.

The AD_ActivityCollection Job is now configured to import both AD events and authentication events into the Netwrix Access Information Center.

Windows File Server Activity Auditing Configuration

In order for the Netwrix Activity Monitor to monitor Windows file server activity, an Activity Agent must be deployed to the server. It cannot be deployed to a proxy server. However, additional considerations are needed when targeting a Windows File System Clusters or DFS Namespaces.

Windows File System Clusters​

In order to monitor a Windows File System Cluster, an Activity Agent needs to be deployed on all nodes that comprise the Windows File System Cluster. The credential used to deploy the Activity Agent must have the following permissions on the server:

  • Membership in the local Administrators group
  • READ and WRITE access to the archive location for Archiving feature only

It is also necessary to enable the Remote Registry Service on the Activity Agent server.

For integration between the Activity Monitor and Access Analyzer, the credential used by Access Analyzer to read the activity log files must have also have this permission.

After the agent has been deployed, it is necessary to modify the HOST parameter in the SBTFilemon.ini file to be the name of the cluster. For integration with Netwrix Access Analyzer (formerly Enterprise Auditor), this must be an exact match to the name of the cluster in the Master Host Table.

DFS Namespaces​

In order to monitor activity on DFS Namespaces, an Activity Agent needs to be deployed on all DFS servers.

NOTE: The FileSystem > 0.Collection > 0-FSDFS System Scans Job in Netwrix Access Analyzer (formerly Enterprise Auditor) can be used to identify all DFS servers.

The credential used to deploy the Activity Agent must have the following permissions on the server:

  • Membership in the local Administrators group
  • READ and WRITE access to the archive location for Archiving feature only

It is also necessary to enable the Remote Registry Service on the Activity Agent server.

For integration between the Activity Monitor and Access Analyzer, the credential used by Access Analyzer to read the activity log files must have also have this permission.
