Server Summary Report

The Server Summary report at the File System node provides a top-level view of servers that have been scanned.

Server Summary report at the File System node

This report is comprised of the following columns:

  • Server Name – Name of the server
  • Operating System – Name of the server’s operating system
  • Shares – Count of shares on the server
  • Folders – Count of folders on the server
  • Exceptions – Count of exceptions on the server
  • Last Scanned – Date and timestamp of the last Enterprise Auditor scan

Also, the Group Membership pane displays Local Administrator and Local Group membership on the selected server.

Activity Summary Report

The Activity Summary report at the File System node provides an overview of activity performed on files and folders in each of the scanned servers. It reflects the total count of operations performed in each server, including operations in folders that are not shared. This activity report does not include a date range filter as it contains totals for all operations ever monitored by Enterprise Auditor for the targeted environment.

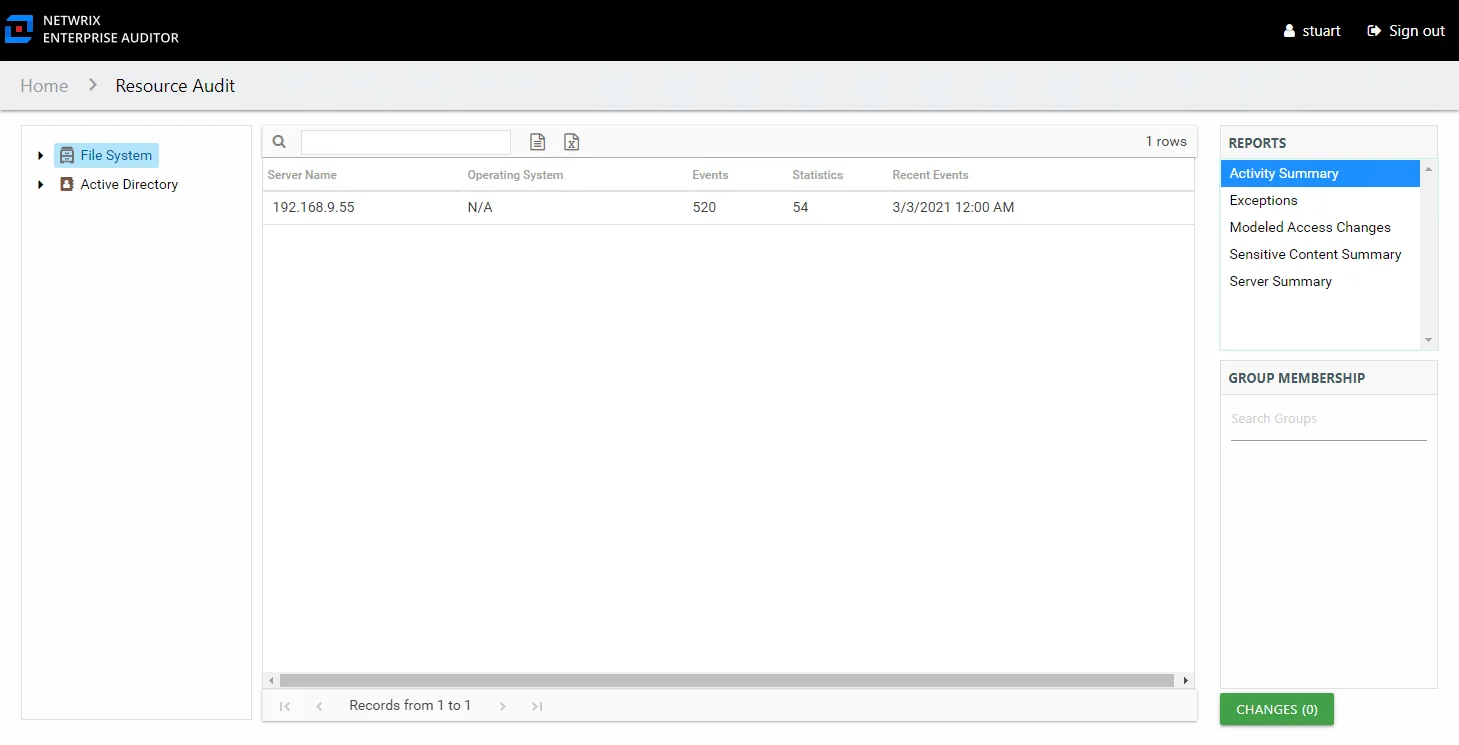

Activity Summary report at the File System node

This report is comprised of the following columns:

  • Server Name – Name of the server
  • Operating System – Name of the server’s operating system
  • Events – Total cumulative count of all operations events monitored for the server since the first scan
  • Statistics – Roll-up information of the number of operations that have been performed by a trustee on a file or folder
  • Recent Events – Date of the most recently scanned operations event

Admin Shares Node Report

The following report is available at the Admin Shares node:

See the Share & Subfolder Levels Reports topic for information on reports found under this node.

Scan Summary Report

The Scan Summary report at the Admin Shares node provides a summary view of all shares on the server with the share type of Admin.

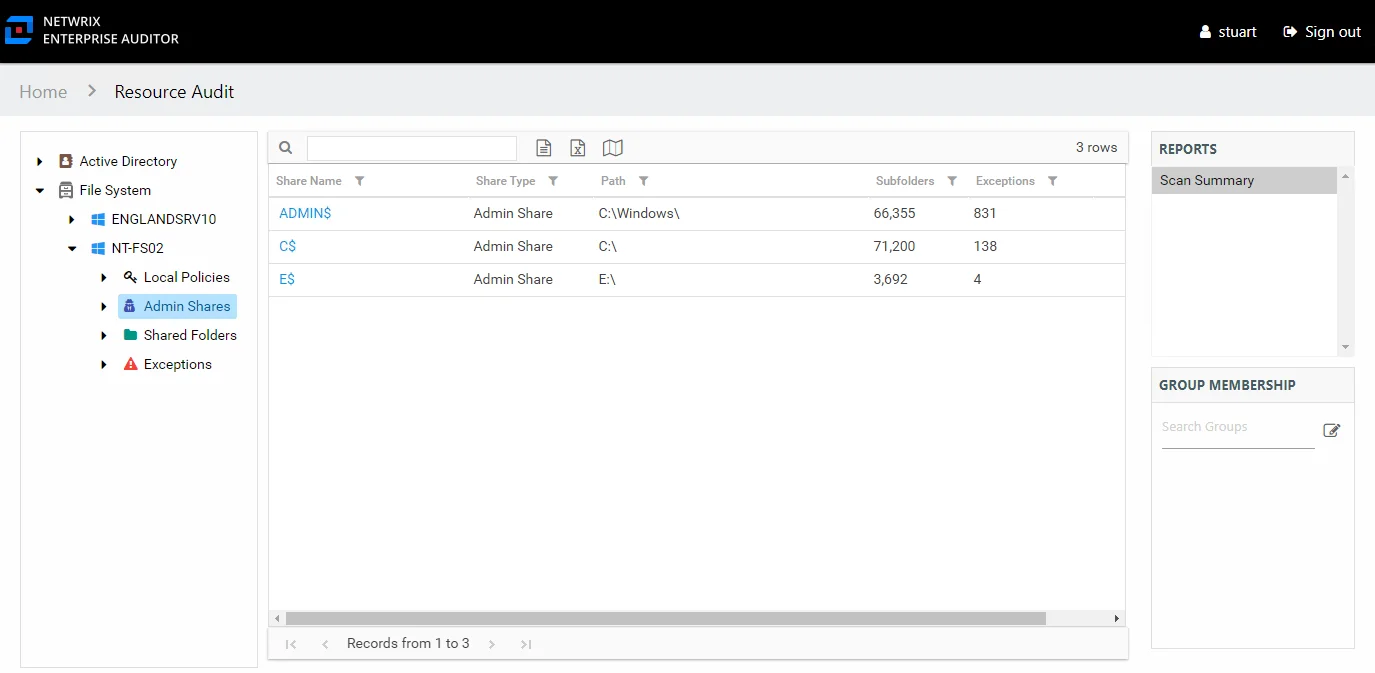

Scan Summary report at the Admin Shares node

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Share Type – Admin type of share, this report is filtered to exclude Shared type of shares
  • Path – Location of the share
  • Subfolders – Count of subfolders within the share
  • Exceptions – Count of exceptions within the share

Shared Folders Node Report

The following report is available at the Shared Folder node:

See the Share & Subfolder Levels Reports topic for information on reports found under this node.

Scan Summary Report

The Scan Summary report at the Shared Folders node provides a summary view of all shares on the server with the share type of Shared.

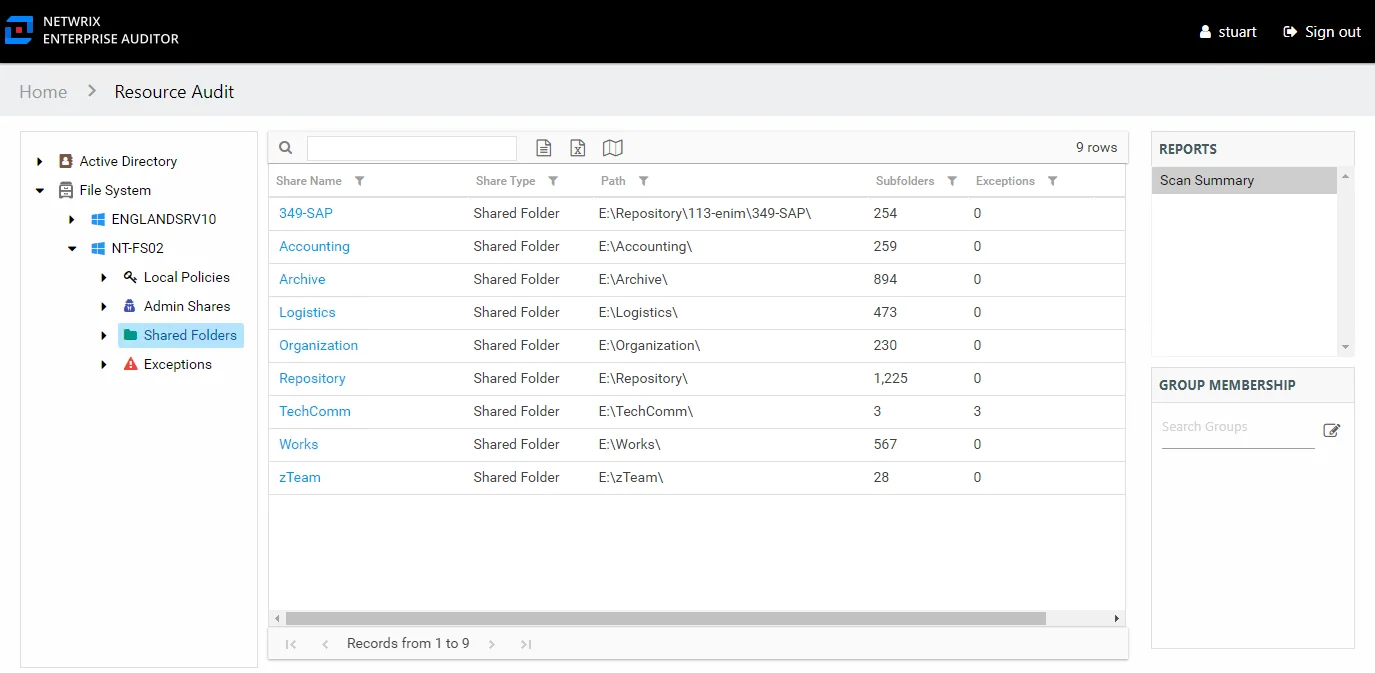

Scan Summary report at the Shared Folders node

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Share Type – Shared type of share, this report is filtered to exclude Admin type of shares (for example, C$)
  • Path – Location of the share
  • Subfolders – Count of subfolders within the share
  • Exceptions – Count of exceptions within the share

Share & Subfolder Levels Reports

The following reports are available at the share and subfolder levels:

Activity Details Report

The Activity Details report at the share and subfolder levels provides details on every operations logged during the selected date range. This report includes a Permission Changes table. The Include subfolders option is active by default until removed. See the Results Pane topic for information on changing this option.

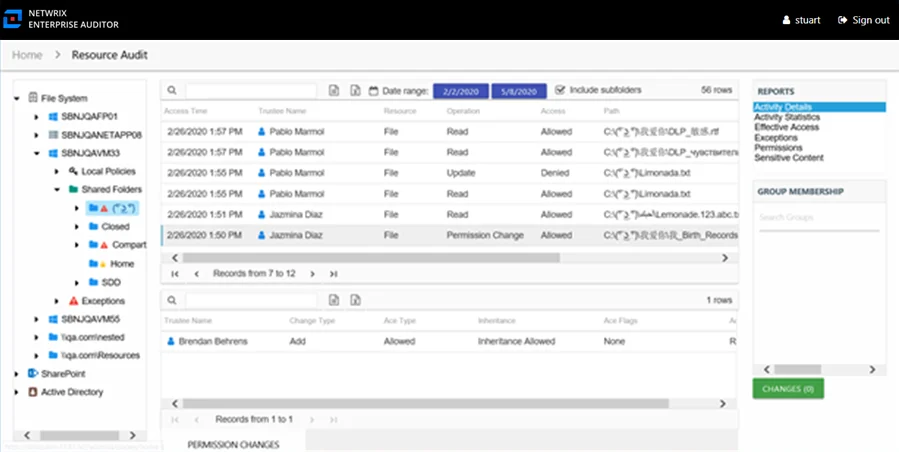

Activity Details report at the share and subfolder levels

This report is comprised of the following columns:

  • Access Time – Date and timestamp for when the operation occurred
  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Resource – Resource type being accessed
  • Operation – Name of operation logged
  • Access – Whether the trustee was granted access to execute the operation: Allowed or Denied
  • Path – Original location where the operation occurred
  • Target Path – New location if changed by the operation. Blank if the operation does not result in a new path.
  • Process Name – Name of the process which performed the operation

There is one table at the bottom displaying Permission Changes for the selected event. It contains details on the trustee whose permissions were updated, added, or removed. This table is comprised of the following columns:

  • Trustee Name – Trustee whose permissions were modified

  • Trustee Account – Active Directory account associated with the trustee

  • ObjectSid – Security ID of the object

  • Change Type – Type of change that occurred:

    • Add – Permission added to trustee
    • Remove – Permission removed from trustee
    • Update – Permission modified for trustee

  • Ace Type – Whether or not the right assigned is allowed or denied

  • Inheritance – Whether or not the Ace is inherited

  • Ace Flags – Inheritance flag description

  • Access Rights – Type of right assigned

The table data grid functions the same way as other table grids. See the Data Grid Features topic for additional information.

Activity Statistics Report

The Activity Statistics report at the share and subfolder levels provides statistical activity event information by user on the selected server during the specified date range. This report includes line graphs for Active Users Trend and Traffic Trend. The Include subfolders option is active by default until removed. See the Results Pane topic for information on changing this option.

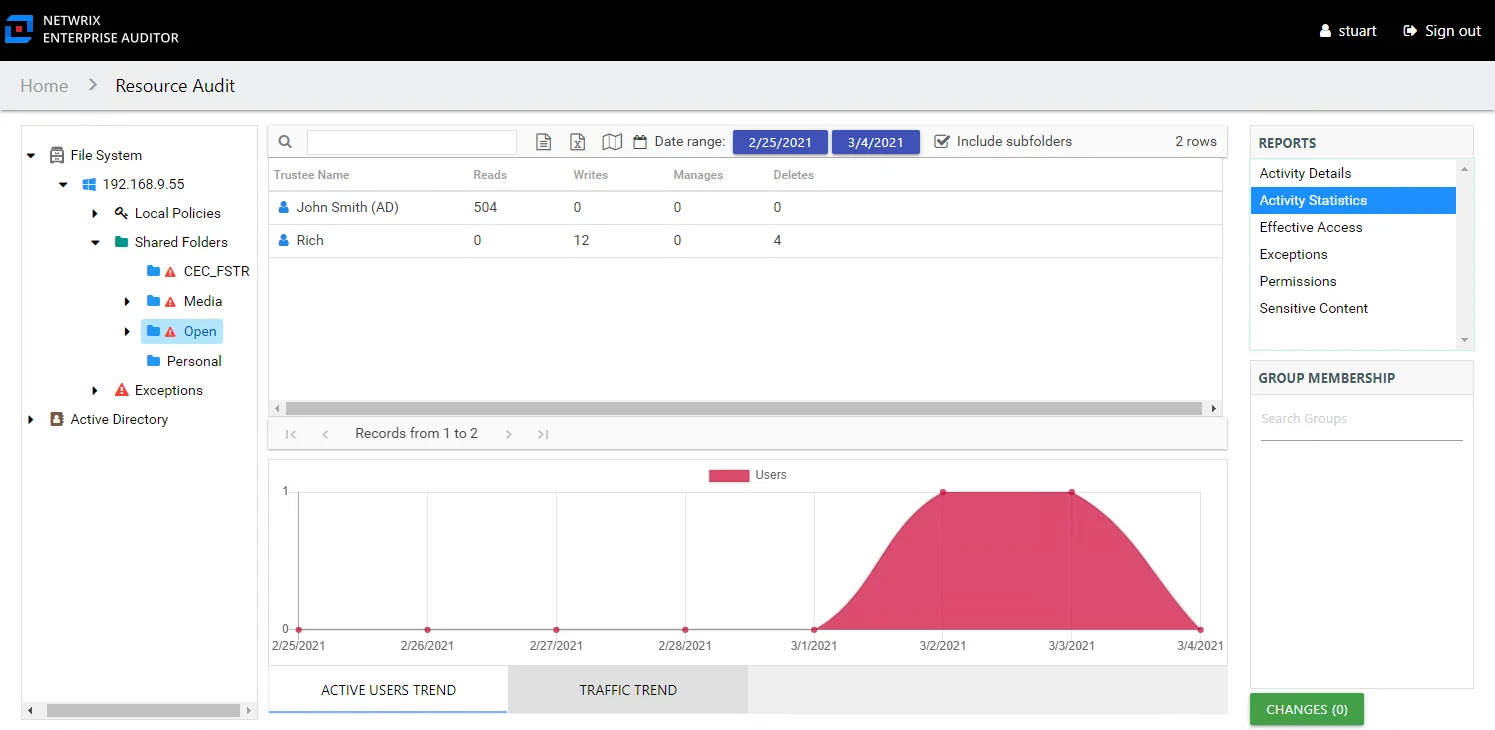

Activity Statistics report at the share and subfolder levels

This report is comprised of the following columns:

  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Stale – True or False if trustee account is stale (according to the length of inactive time used by the Enterprise Auditor data collection and analysis configuration to identify stale accounts)
  • Reads – Count of view/read operations on files and subfolders
  • Writes – Count of edit/modify operations on files and subfolders
  • Manages – Count of permission change operations on files and subfolders
  • Deletes – Count of delete operations on files and subfolders

The table data grid functions the same way as other table grids. See the Data Grid Features topic for additional information.

There are two line graphs at the bottom displaying Active Users Trend and Traffic Trend for the selected resource.

Active Users Trend line graph

The Active Users Trend line graph provides a visual representation of the number of active users over the selected date range. It indicates how many users are performing operations per day.

Traffic Trend line graph

The Traffic Trend line graph provides a visual representation of the number of operations events that occurred by operation type over the selected date range. It indicates what volume of operations occurred per day. Each operation type is shown with a different color, as indicated by the legend.

See the Activity Report Results Pane Features topic for instructions on filtering the trend graphs.

Effective Access Report

The Effective Access report at the share and subfolder levels provides insight into who has what level of access to this resource through a calculation that encompasses server policies, share and folder permissions, and group membership. It contains a list of all trustees with access to the selected resource and specifies the effective access level. This report includes a Permission Source table.

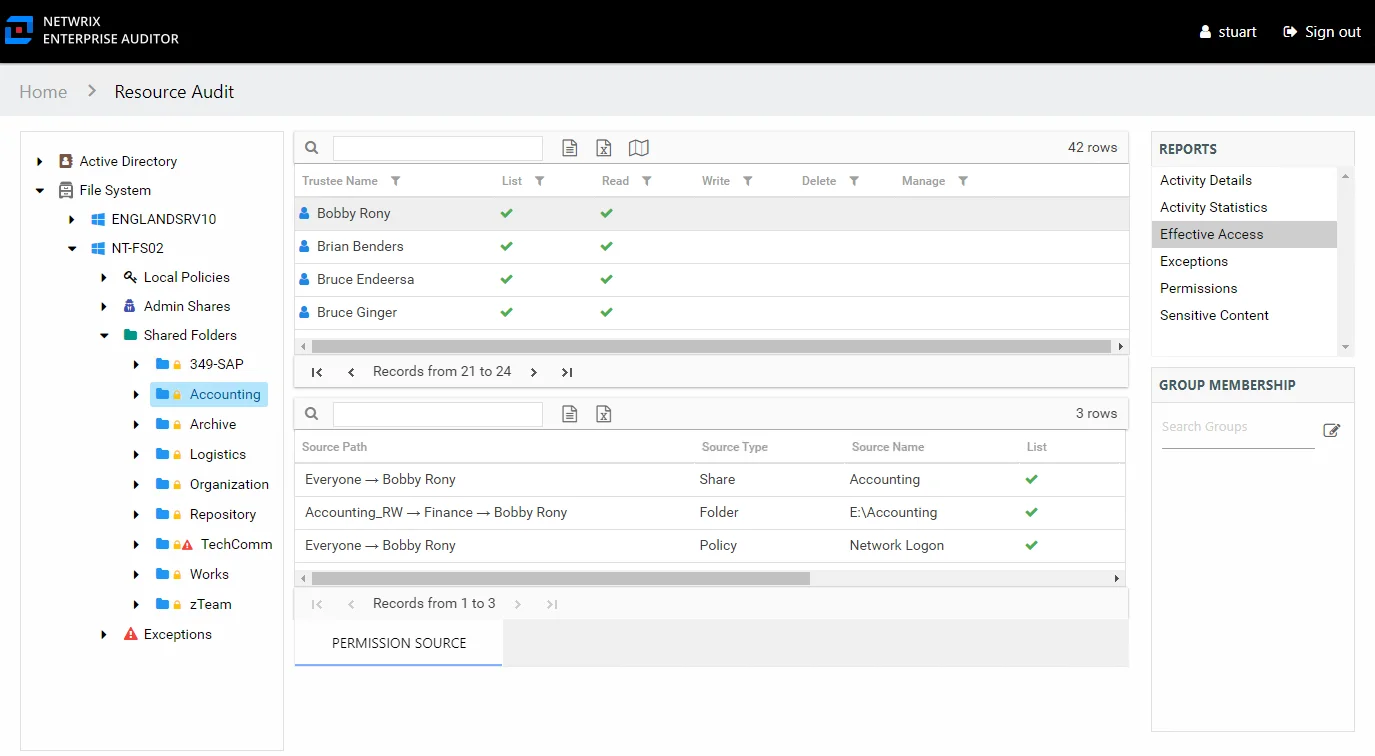

Effective Access report at the share and subfolder levels

This report is comprised of the following columns:

  • Trustee Type – Type of the trustee (for example, Domain User or Domain Group)
  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Stale – True or False if trustee account is stale (according to the length of inactive time used by the Enterprise Auditor data collection and analysis configuration to identify stale accounts)
  • Direct – True or False if the permission is directly assigned
  • Changed – True or False if the trustee has changes modeled that would impact access to the selected resource

The following rights are a normalized representation of the Share and NTFS permissions granted to the trustee:

  • List – Right to view list of files and subfolders
  • Read – Right to view/read files and subfolders
  • Write – Right to add or modify files and subfolders
  • Delete – Right to delete files and subfolders
  • Manage – Equivalent to full control over files and subfolders

If the selected trustee in the top section of the report is a group, the Group Membership pane displays the group membership, including nested groups.

There is one table at the bottom displaying Permission Source for the select trustee. It contains all of the ways the selected trustee has been granted rights to the selected resource.

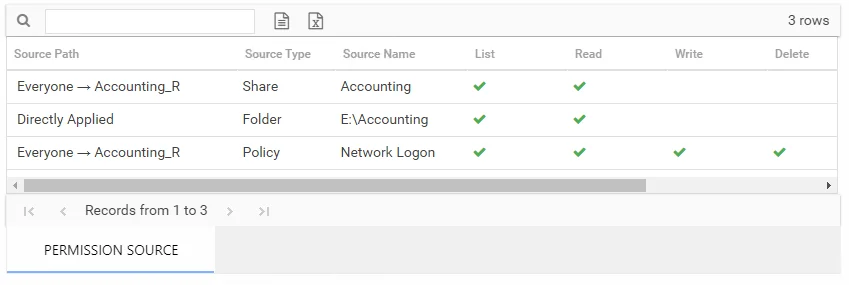

Permission Source table

The number of rows for this table indicates the number of ways this trustee has been granted access. This table is comprised of the following columns:

  • Source Path – Location for which the trustee was granted rights to the selected resource, which can be represented two ways:

    • Directly Applied – Rights granted directly to the selected trustee
    • Access through another trustee, path starts with trustee assigned the direct rights and shows all nested groups leading to the selected trustee

  • Source Type – Share or folder source of the permission

  • Source Name – Name of the share or folder where the permission is assigned

The following rights are a normalized representation of the Share and NTFS permissions granted to the trustee:

  • List – Right to view list of files and subfolders
  • Read – Right to view/read files and subfolders
  • Write – Right to add or modify files and subfolders
  • Delete – Right to delete files and subfolders
  • Manage – Equivalent to full control over files and subfolders

The following columns display the combined direct and inherited rights:

  • Allow Mask – Bitmask corresponding to Windows ACE permission bits for combined direct and inherited allow rights
  • Deny Mask – Bitmask corresponding to Windows ACE permission bits for combined direct inherited deny rights

In the example above, the selected trustee has three sources of access to the selected resource. One source is directly applied, one is through share permissions, one is through a policy. In order for this trustee’s access to the selected resource to be changed, each of these source paths must be taken into consideration.

Permissions Report

The Permissions report at the share and subfolder levels provides a list of trustees with permissions for the selected resource. This report includes a table with trustee access levels Compared to Parent.

If activity is being monitored for the selected resource, then this report indicates where stale permissions exist. See the Stale Permissions topic for additional information.

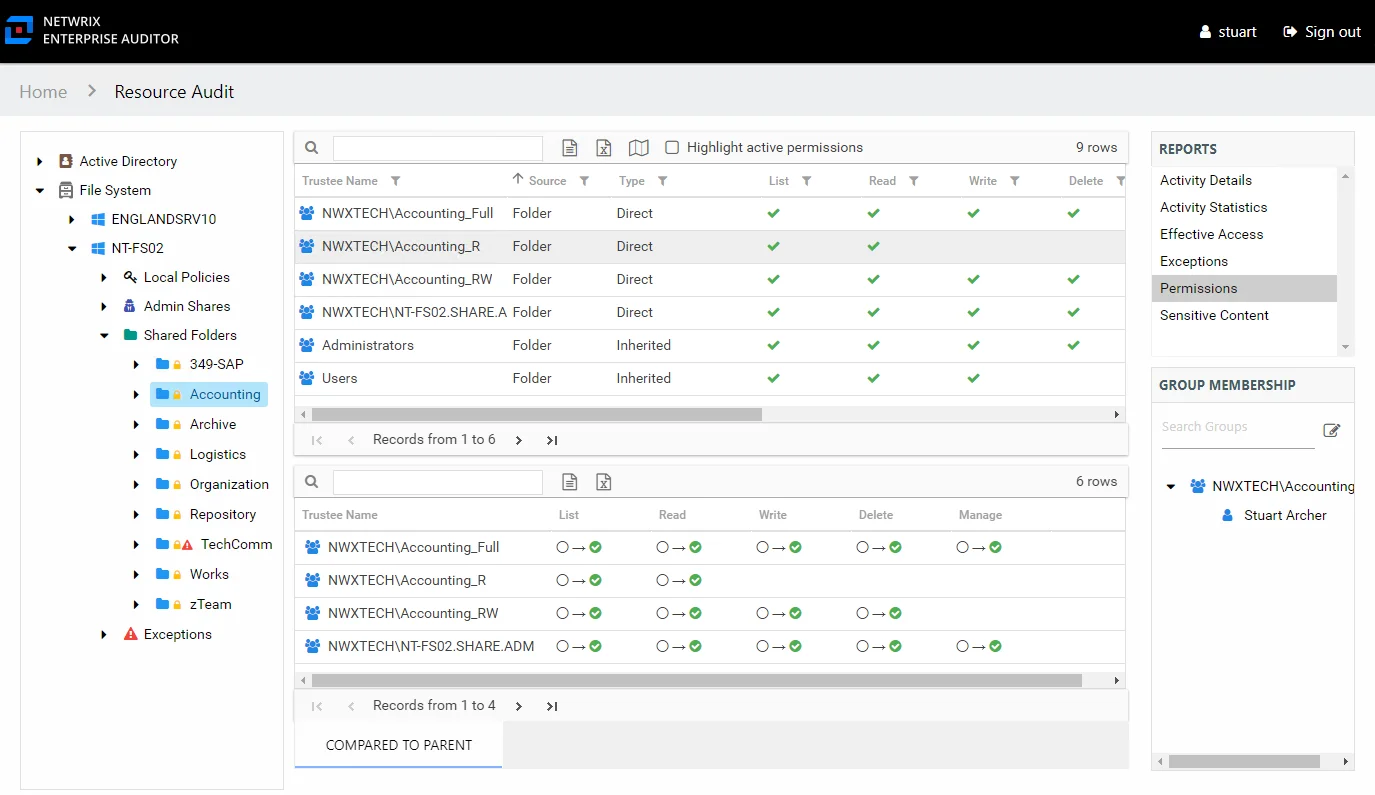

Permissions report at the share and subfolder levels

This report is comprised of the following columns:

  • Trustee Type – Type of the trustee (for example, Domain User or Domain Group)
  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Stale – True or False if trustee account is stale (according to the length of inactive time used by the Enterprise Auditor data collection and analysis configuration to identify stale accounts)
  • Source – Share or Folder source of the permission
  • Type – Direct or Inherited type of permission

The following rights are a normalized representation of the Share and NTFS permissions granted to the trustee:

  • List – Right to view list of files and subfolders
  • Read – Right to view/read files and subfolders
  • Write – Right to add or modify files and subfolders
  • Delete – Right to delete files and subfolders
  • Manage – Equivalent to full control over files and subfolders

The following columns display the combined direct and inherited rights:

  • Allow Mask – Bitmask corresponding to Windows ACE permission bits for combined direct and inherited allow rights
  • Deny Mask – Bitmask corresponding to Windows ACE permission bits for combined direct inherited deny rights

If the selected trustee in the top section of the report is a group, the Group Membership pane displays the group membership, including nested groups.

There is one table at the bottom displaying Compared to Parent permissions for the select trustee. It contains information on explicit permissions granted for the selected resource.

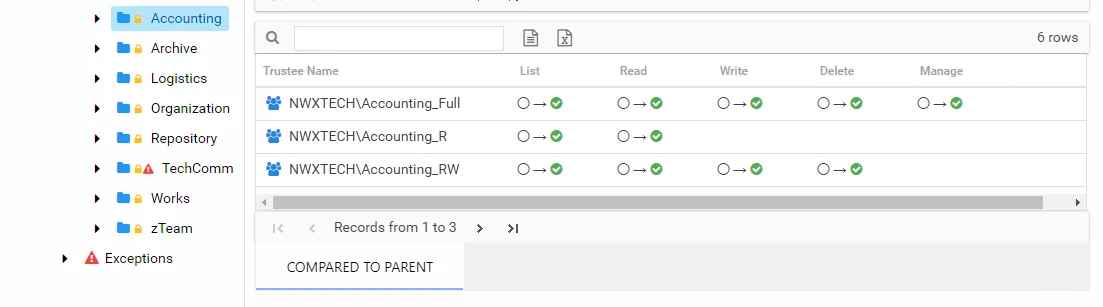

Compared to Parent table

This table will be blank unless an Explicit Permissions icon is attached to the resource in the Resources pane. See the Resources Pane topic for additional information. This table is comprised of the same columns as the primary report.

Stale Permissions​

The Permissions report also displays where stale permissions exists. Stale permissions provide a way to identify when permissions assigned to a resource are unused. Unused permissions can be removed, if desired.

A stale permission is defined as an access level not used to perform an activity on the resource within the value set for the ActivityDays parameter in the web.config file. By default this is set to 60 days. This feature requires the Enterprise Auditor File System Activity Auditing (FSAC) collection jobs to be executed on a regular basis.

Select the Highlight active permissionss checkbox to show permissions that are in use. When a user or effective member of a group that has permissions to a resource also has activity on the resource, a yellow icon is displayed for the permission type to indicate the access level used to perform the activity. Therefore, access level cells not highlighted when activity is being monitored represent permissions that are identified as stale.

Stale and active permissions

In the Permissions report, the yellow icons show permissions that are active, and the green check marks show permissions that are stale. The example shows that Jazmina’s activity has used the List, Write, Delete, and Manage permissions but not the Read permission. It also shows there are at least three other trustees with stale permissions.

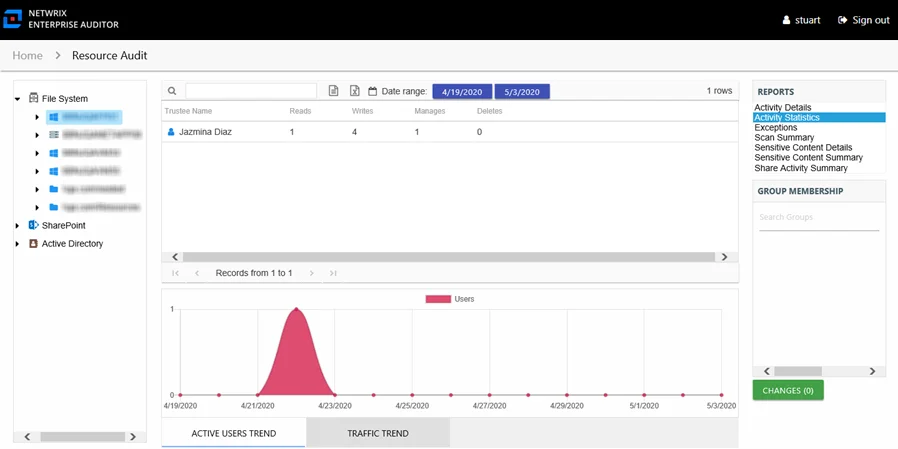

Activity Statistics report

The Activity Statisticsreport indicates that the trustee Jazmina has performed write, manage, and delete events on the selected resource. See the Activity Statistics Report topic for additional information.

Effective Access report

The Effective Access report shows that Jazmina has access to the resource through the Group_Manage group, and the access is directly applied. See the Effective Access Report topic for additional information.

Sensitive Content Report

The Sensitive Content report at the share and subfolder levels provides a list of files and a hit count per file where criteria matches were found on the selected resource. This report includes a table with criteria matches visible to Access Information Center users with either Administrator or Security Team roles. The Matches table requires the store discovered sensitive data configuration for the Enterprise Auditor data collection or it will be blank.

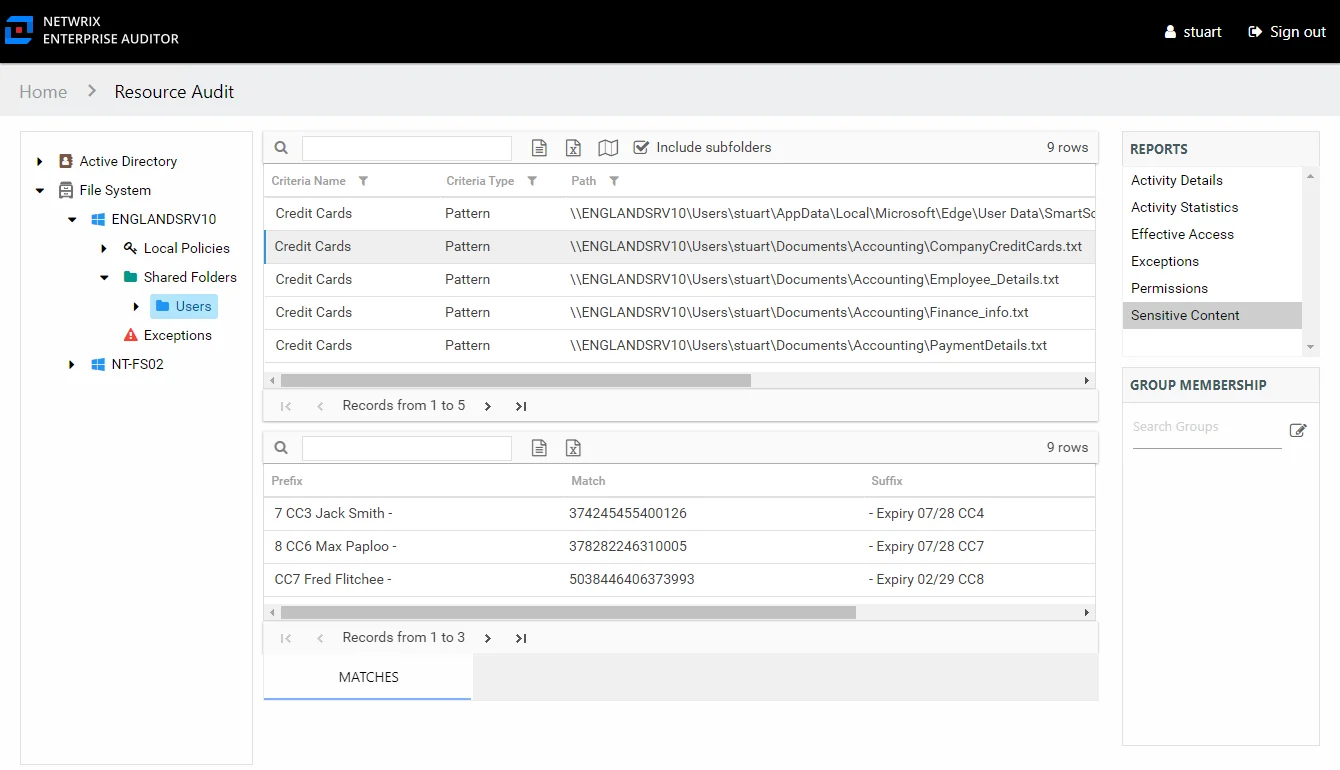

Sensitive Content report at the share and subfolder levels

This report is comprised of the following columns:

  • Criteria Name – Type of potentially sensitive criteria matches found
  • Criteria Type – Pattern for pattern based matches (System Criteria), and subject type based on Subject Profile matches (for example, Customer, Employee, and so on)
  • Path – Location of the file where the criteria matches were found
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file
  • Count – Number of criteria matches found within each file
  • Attributes – Comma separated list of Attributes found for the identity

There is one table at the bottom displaying Matches in the files where the selected criterion value were found:

  • Prefix – Text just prior to the sensitive data match in the file
  • Match – Lists any sensitive data matches found for the highlighted criteria in the top grid of the report
  • Suffix – Text just after the sensitive data match in the file
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file

Server Level Reports

The following reports are available at the server level:

Activity Details Report

The Activity Details report at the server level provides details on every operation logged during the selected date range. Activity on DFS Namespaces at this level is rolled up to the server hosting the DFS Namespace. This report includes a Permission Changes table.

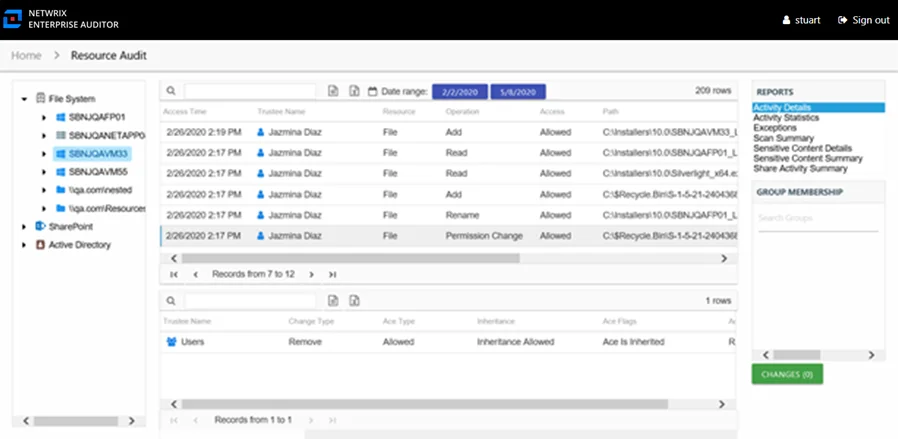

Activity Details report at the server level

This report is comprised of the following columns:

  • Access Time – Date and timestamp for when the operation occurred
  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Resource – Resource type being accessed
  • Operation – Name of operation logged
  • Access – Whether the trustee was granted access to execute the operation: Allowed or Denied
  • Path – Original location where the operation occurred
  • Target Path – New location if changed by the operation. Blank if the operation does not result in a new path.
  • Process Name – Name of the process which performed the operation

There is one table at the bottom displaying Permission Changes for the selected event. It contains details on the trustee whose permissions were updated, added, or removed. This table is comprised of the following columns:

  • Trustee Name – Trustee whose permissions were modified

  • Trustee Account – Active Directory account associated with the trustee

  • ObjectSid – Security ID of the object

  • Change Type – Type of change that occurred:

    • Add – Permission added to trustee
    • Remove – Permission removed from trustee
    • Update – Permission modified for trustee

  • Ace Type – Whether or not the right assigned is allowed or denied

  • Inheritance – Whether or not the Ace is inherited

  • Ace Flags – Inheritance flag description

  • Access Rights – Type of right assigned

Activity Statistics Report

The Activity Statistics report at the server level provides statistical activity event information by user on the selected server during the specified date range. Activity on DFS Namespaces at this level is rolled up to the server hosting the DFS Namespace. This report includes line graphs for Active Users Trend and Traffic Trend.

Activity Statistics report at the server level

This report is comprised of the following columns:

  • Trustee Name – Owner of the trustee account
  • Trustee Account – Active Directory account associated with the trustee
  • Department – Department to which the trustee account belongs
  • Title – Trustee’s title as read from Active Directory
  • Mail – Trustee’s email account as read from Active Directory
  • EmployeeId – Corporate ID for the employee as read from Active Directory
  • Description – Description of the trustee object as read from Active Directory
  • DistinguishedName – Distinguished name for the trustee account
  • ObjectSid – Security ID of the object
  • Disabled – True or False if trustee account is disabled
  • Deleted – True or False if trustee account is deleted
  • Stale – True or False if trustee account is stale (according to the length of inactive time used by the Enterprise Auditor data collection and analysis configuration to identify stale accounts)
  • Reads – Count of view/read operations on files and subfolders
  • Writes – Count of edit/modify operations on files and subfolders
  • Manages – Count of permission change operations on files and subfolders
  • Deletes – Count of delete operations on files and subfolders

The table data grid functions the same way as other table grids. See the Data Grid Features topic for additional information.

There are two line graphs at the bottom displaying Active Users Trend and Traffic Trend for the selected resource.

Active Users Trend line graph

The Active Users Trend line graph provides a visual representation of the number of active users over the selected date range. It indicates how many users are performing operations per day.

Traffic Trend line graph

The Traffic Trend line graph provides a visual representation of the number of operations events that occurred by operation type over the selected date range. It indicates what volume of operations occurred per day. Each operation type is shown with a different color, as indicated by the legend.

See the Activity Report Results Pane Features topic for instructions on filtering the trend graphs.

Scan Summary Report

The Scan Summary report at the server level provides a summary view of all shares on the selected server.

Scan Summary report at the server level

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Share Type – Admin or Shared type of share, an Admin share is a built-in share (for example, C$)
  • Path – Location of the share
  • Subfolders – Count of subfolders within the share
  • Exceptions – Count of exceptions within the share

Sensitive Content Details Report

The Sensitive Content Details report at the server level provides details of files where criteria matches were found on the selected resource. This report includes a Matches table.

Sensitive Content Details report at the server level

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Criteria Name – Type of potentially sensitive criteria matches found
  • Criteria Type – Pattern for pattern based matches (System Criteria), and subject type based on Subject Profile matches (for example, Customer, Employee, and so on)
  • Path – Location of the file where the criteria matches were found
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file
  • Count – Number of files with criteria matches
  • Attributes – Comma separated list of Attributes found for the identity

There is one table at the bottom displaying Details on the files where the selected criterion value were found:

  • Prefix – Text just prior to the sensitive data match in the file
  • Match – Lists any sensitive data matches found for the highlighted criteria in the top grid of the report
  • Suffix – Text just after the sensitive data match in the file
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file

Sensitive Content Summary Report

The Sensitive Content Summary report at the server level provides a count of files where criteria matches were found on the selected resource. This report includes a Details table.

Sensitive Content Summary report at the server level

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Criteria Name – Type of potentially sensitive criteria matches found
  • Criteria Type – Pattern for pattern based matches (System Criteria), and subject type based on Subject Profile matches (for example, Customer, Employee, and so on)
  • Count – Number of files with criteria matches

There is one table at the bottom displaying Details on the files where the selected criterion matches were found:

  • Source — For System Criteria this shows the criteria name (for example, Credit Cards). For Subject Profiles criteria it shows the individual identities (for example, Jon Doe).
  • Path – Location of the file where the criteria matches were found
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file
  • Count – Number of criteria matches found within each file
  • Attributes – Comma separated list of Attributes found for the identity

Share Activity Summary Report

The Share Activity Summary report at the server level provides statistical activity event information by share on the selected server during the specified date range. Activity on DFS Namespaces at this level is rolled up to the server hosting the DFS Namespace.

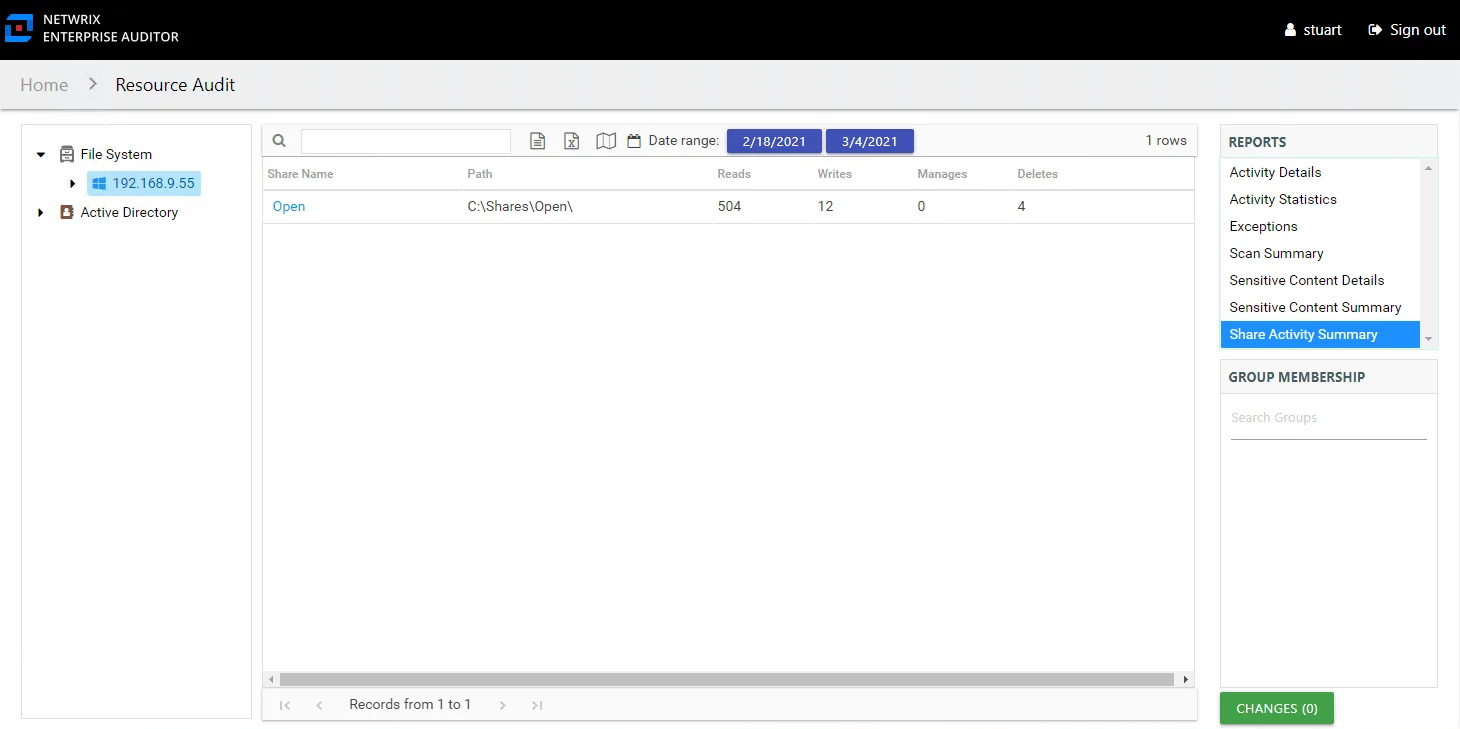

Share Activity Summary report at the server level

This report is comprised of the following columns:

  • Share Name – Name of the share
  • Path – Location of the share
  • Reads – Count of view/read operations on files and subfolders
  • Writes – Count of edit/modify operations on files and subfolders
  • Manages – Count of permission change operations on files and subfolders
  • Deletes – Count of delete operations on files and subfolders

Sensitive Content Summary Report

The Sensitive Content Summary report at the File System node provides a count of files where criteria matches were found in the targeted environment. This report includes a Details table.

Sensitive Content Summary report at the File System node

This report is comprised of the following columns:

  • Server Name – Name of the server
  • Criteria Name – Type of potentially sensitive criteria matches found
  • Criteria Type – Pattern for pattern based matches (System Criteria), and subject type based on Subject Profile matches (for example, Customer, Employee, and so on)
  • Count – Number of files with criteria matches

There is one table at the bottom displaying Details on the files where the selected criterion matches were found:

  • Source — For System Criteria this shows the criteria name (for example, Credit Cards). For Subject Profiles criteria it shows the individual identities (for example, Jon Doe).
  • Path – Location of the file where the criteria matches were found
  • Sub File – File name if the sensitive data files reside in a PST file or a ZIP file
  • Count – Number of criteria matches found within each file
  • Attributes – Comma separated list of Attributes found for the identity
