StealthAUDIT MAPI CDO Installation

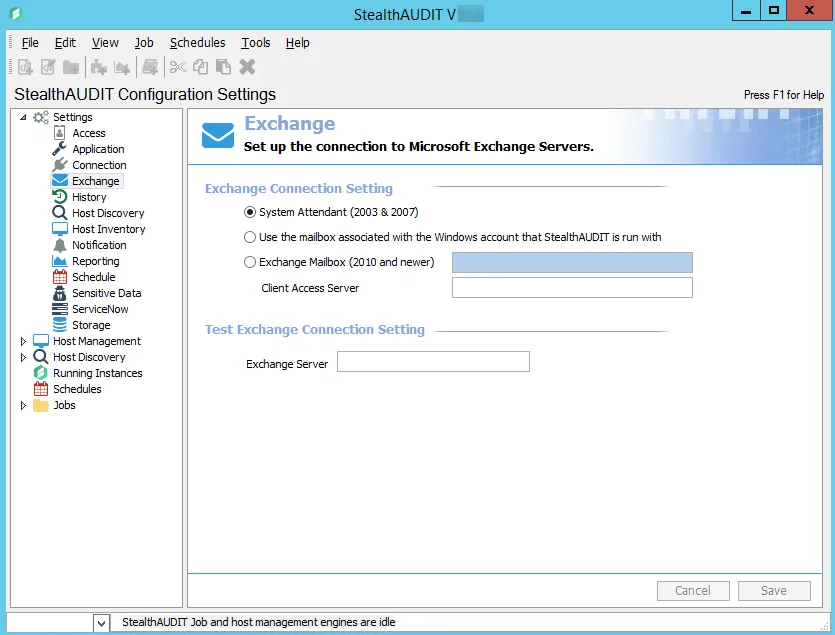

Both the Access Analyzer MAPI CDO and the Microsoft® Exchange MAPI CDO must to be installed in order to enable the Settings > Exchange node.

exchangenode

The Microsoft Exchange MAPI CDO is only required to run the MAPI-based data collectors. See the Exchange Solution topic for additional information.

The Access Analyzer MAPI CDO can be downloaded from the Product Downloads page of the Netwrix website. The Microsoft Exchange MAPI CDO can be downloaded directly from Microsoft. See the Appendix for the StealthAUDIT MAPI CDO Installation Guide for requirements and installation steps to install the Microsoft Exchange MAPI CDO.

CAUTION: The Access Analyzer MAPI CDO must be installed first before installing the Microsoft Exchange MAPI CDO.

Before installing either binary, close the Access Analyzer application and ensure the following requirements have been met:

  • Exchange System Manager for Exchange 2003 is not installed on the Access Analyzer Console server.
  • Microsoft Outlook is not installed on the Access Analyzer Console server.

These programs interfere with MAPI connections if they are installed on the Access Analyzer Console server.

Follow the steps to install the Access Analyzer MAPI CDO.

Step 1 – Run the StealthAuditMapiCDO executable.

stealthaudit_mapi_cdo_installation_1

Step 2 – Click OK to confirm the path.

The application will install and the wizard will close automatically when it is finished. See the Appendix for the StealthAUDIT MAPI CDO Installation Guide for information on installing the Microsoft Exchange MAPI CDO.
