Appendix for the StealthAUDIT MAPI CDO Installation Guide

CAUTION: The Access Analyzer MAPI CDO must be installed first before installing the Microsoft Exchange MAPI CDO.

Before installing either binary, close the Access Analyzer application and ensure the following requirements have been met:

  • Exchange System Manager for Exchange 2003 is not installed on the Access Analyzer Console server.
  • Microsoft Outlook is not installed on the Access Analyzer Console server.

These programs will interfere with the Microsoft Exchange MAPI CDO installation and with MAPI connections if they are installed on the Access Analyzer Console server.

Follow these steps to install the Microsoft Exchange MAPI CDO.

Step 1 – Download and run the ExchangeMapiCDO application from Microsoft.

NOTE: The steps may be slightly different than the following. See Microsoft’s website for additional detail.

appendix_for_the_stealthaudit

Step 2 – Choose the “Directory For Extracted Files” or accept the default location. Click OK.

appendix_for_the_stealthaudit_1

Step 3 – When the extraction is complete, click OK.

appendix_for_the_stealthaudit_2

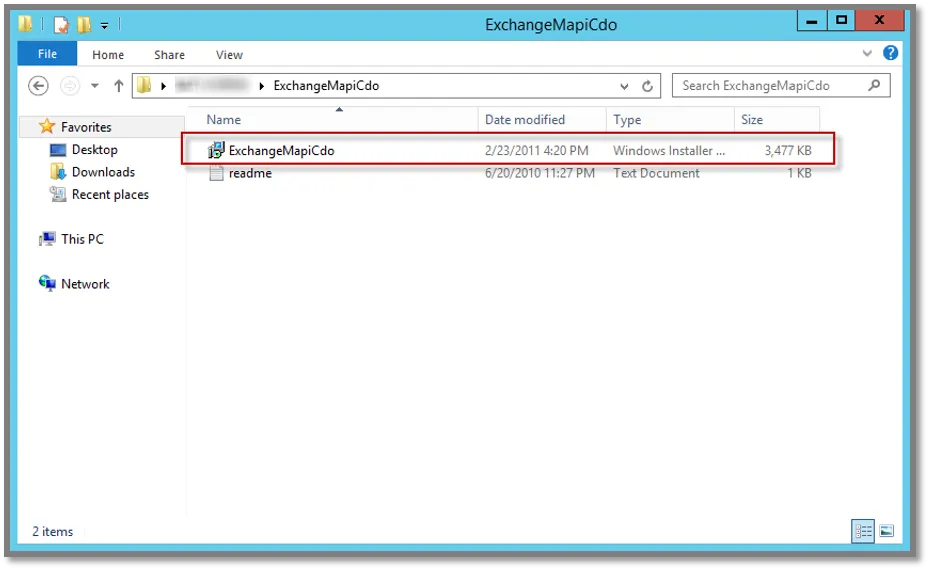

Step 4 – Open the ExchangeMapiCdo folder and run the ExchangeMapiCdo application installer.

appendix_for_the_stealthaudit_3

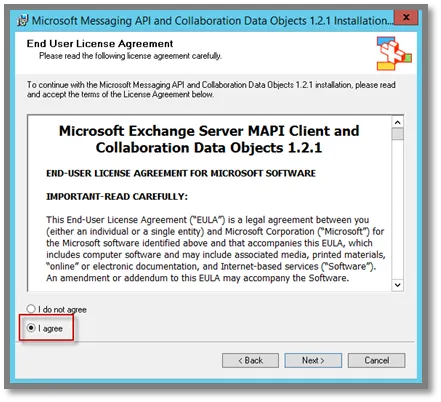

Step 5 – On the Welcome page of the Installation Wizard, click Next. Accept the license agreement and click Next.

appendix_for_the_stealthaudit_5

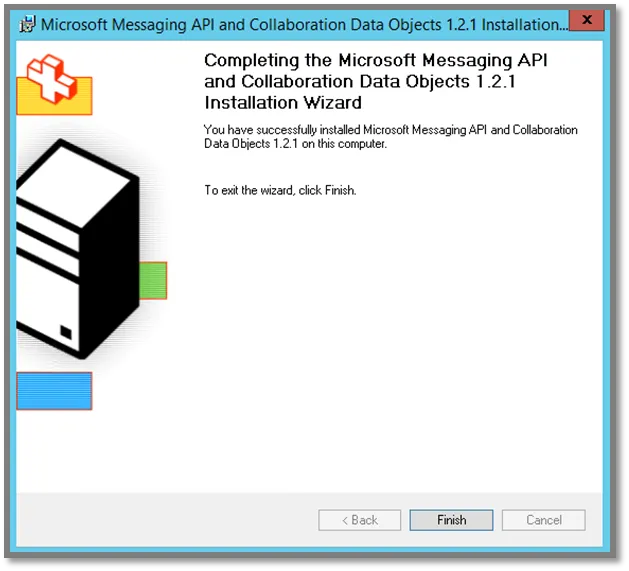

Step 6 – When the installation is complete, click Finish.

Reopen the Access Analyzer application, and the Settings > Exchange node is enabled for configuration.
