EX_PublicFolder_SDD Job

The EX_PublicFolder_SDD job locates sensitive data found in public folders in the Exchange environment.

Queries for the EX_PublicFolder_SDD Job​

The EX_PublicFolder_SDD job uses the EWSPublicFolder Data Collector.

Queries for the EX_PublicFolder_SDD Job

The following query is included in the EX_PublicFolder_SDD job:

  • Exchange Sensitive Data Discovery – Scans Exchange public folders for specified sensitive data

    • Set to search all public folders. It can be scoped.

    • Default sensitive data criteria includes:

      • Birth Records
      • Credit Cards
      • Passwords
      • Tax Forms
      • US SSN

    • See the Configure the EX_PublicFolder_SDD Query topic for additional information

Configure the EX_PublicFolder_SDD Query​

The Exchange Sensitive Data Discovery query has been preconfigured to run with the EWSPublicFolder Data Collector to scan for sensitive data.

Step 1 – Navigate to the Exchange > 7. Sensitive Data > 0. Collection > EX_EWSPublicFolder_SDD > Configure node and select Queries.

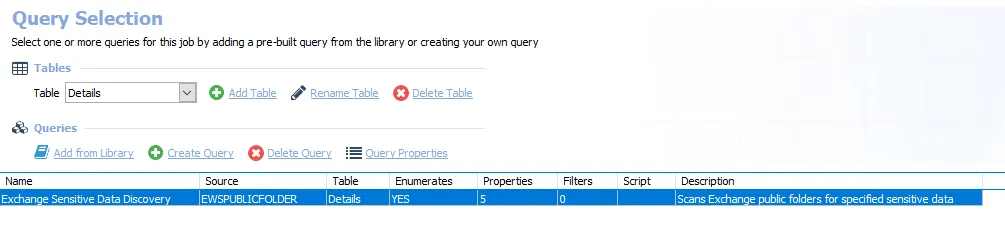

Step 2 – In the Query Selection view, select Exchange Sensitive Data Discovery and click Query Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab, and click Configure. The EWS Public Folder Data Collector Wizard opens.

CAUTION: Do not modify other wizard pages. The wizard pages are pre-configured for this job.

EWS Public Folder Data Collector Wizard SDD Options page

Step 4 – To enable storage of discovered sensitive data, navigate to the SDD Options page. Sensitive data matches can be limited to reduce storage space. See the EWSPublicFolder: SDD Options topic for additional information.

NOTE: By default, discovered sensitive data strings are not stored in the Access Analyzer database.

EWS Public Folder Data Collector Wizard Criteria page

Step 5 – To modify criteria, navigate to the Criteria page. Add or remove criteria as desired. See the EWSPublicFolder: Critieria topic for additional information.

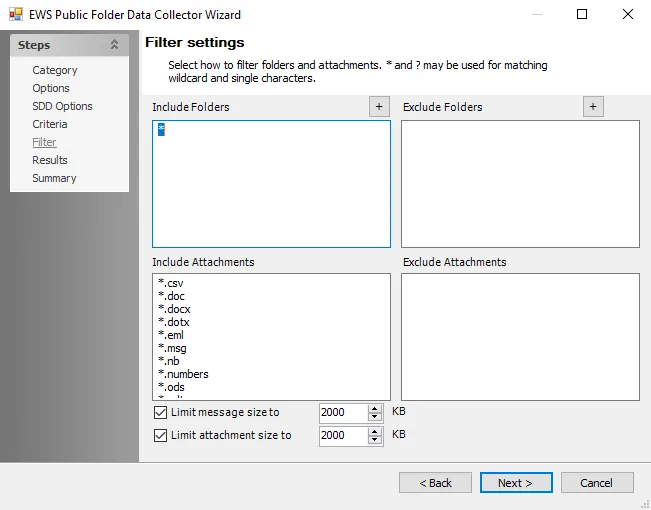

EWS Public Folder Data Collector Wizard Filter Settings page

Step 6 – To filter the scan to specific mailbox folders, navigate to the Filter page. Include or exclude folders and attachments as desired. See the EWSPublicFolder: Filter topic for additional information.

  • To modify the threshold for message size, set the Limit message size to value as desired. The default is 2000 KB.
  • To modify the threshold for large attachment size, set the Limit attachment size to value as desired. The default is 2000 KB.

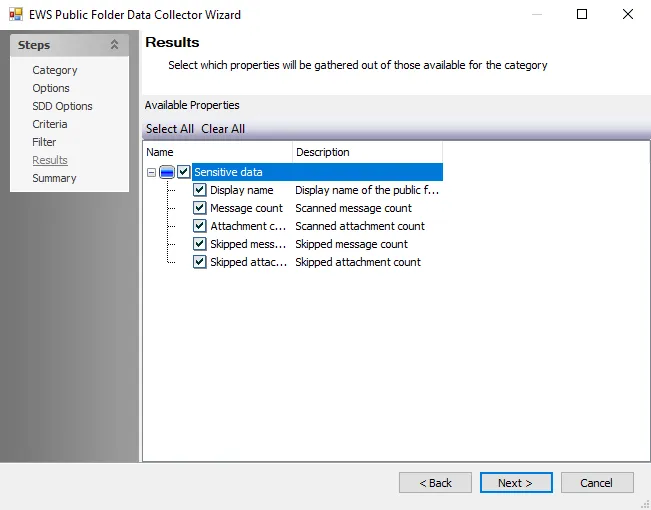

EWS Public Folder Data Collector Wizard Results page

Step 7 – To select which properties are gathered based on category, navigate to the Results page.  See the EWSPublicFolder: Results topic for additional information.

NOTE: By default, all categories are selected under sensitive data.

Step 8 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window

The job applies the modification to future job executions.
