EX_MailboxLogons Job
The EX_MailboxLogons Job provides details around Mailbox logon activity occurring within the Exchange environment.
Analysis Tasks for the EX_MailboxLogons Job

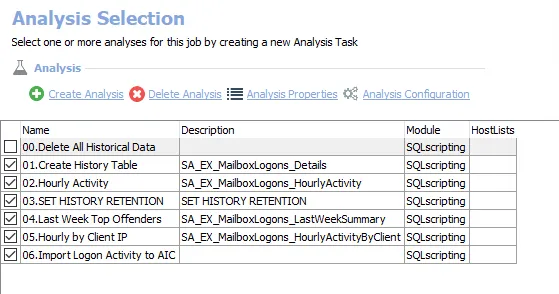

View the analysis tasks by navigating to the Exchange > 4. Mailboxes > Logons > EX_MailboxLogons > Configure node and select Analysis.
CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.
The following analysis tasks are selected by default:
-
- Create History Table – Creates the SA_EX_MailboxLogons_Details table, accessible under the job’s Results node
-
02.Hourly Activity – Creates the SA_EX_MailboxLogons_HourlyActivity table, accessible under the job’s Results node
-
03.SET HISTORY RETENTION – Sets retention period in months
- By default set to retain 6 months. It can be modified.
- See the Exchange History Retention topic for additional information
-
04.Last Week Top Offenders – Creates the SA_EX_MailboxLogons_LastWeekSummary table, accessible under the job’s Results node
-
05.Hourly by Client IP – Creates the SA_EX_MailboxLogons_HourlyActivityByClient table, accessible under the job’s Results node
-
06.Import Logon Activity to AIC – Imports Logon Activity to Access Information Center
The following analysis task deletes table data from data collection and analysis jobs. This analysis task should remain cleared unless specifically needed:
CAUTION: Do not select the 00. Delete All Historical Data option. This analysis task is for troubleshooting and cleanup only. Data will be deleted from the database.
-
00.Delete All Historical Data
- See the Troubleshooting Data Collection topic for additional information
In addition to the tables and views created by the analysis tasks, the EX_MailboxLogons Job produces the following pre-configured reports:
| Report | Description | Default Tags | Report Elements |
|---|---|---|---|
| Non Owner Mailbox Logons – Last Week (Top Users Logging into Other Mailboxes) | Lists the number of distinct non-owner mailboxes accessed by each user and counts of non-owner logons in the last seven days. | None | This report is comprised of two elements: - Bar Chart – Displays top users for non-owner activity – last week - Table – Provides details on all mailbox logons |
| Top Hourly Activity (By IP) (Top Hourly Activity) | This report shows periods where there was large amounts of traffic coming from a single machine. | None | This report is comprised of two elements: - Bar Chart – Displays top machines by user account activity - Table – Provides details on top machines by user account activity |
| Top Hourly Activity (By User) (Top Hourly Activity) | This report shows periods when users are most active. | None | This report is comprised of two elements: - Bar Chart – Displays top machines by non-owner logons - Table – Provides details on top users by non-owner logons |
