EX_UserMetrics Job

The EX_UserMetrics Job provides information around each users mail-flow in the organization.

Analysis Tasks for the EX_UserMetrics Job

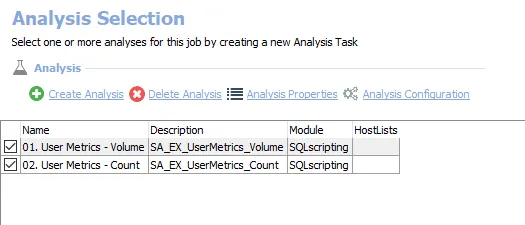

View the analysis tasks by navigating to the Exchange > 1. HUB Metrics > EX_UserMetrics > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The following analysis tasks are selected by default:

• 1. User Metrics - Volume – Creates the SA_EX_UserMetrics_Volume table, accessible under the job’s Results node
• 2. User Metrics - Count – Creates the SA_EX_UserMetrics_Count table, accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the EX_UserMetrics Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
Top Receivers by Message Count	This report identifies users who have received the most messages.	None	This report is comprised of two elements: - Bar Chart – Displays top receivers by message count (last 30 days) - Table – Provides details on top receivers by message count (last 30 days)
Top Receivers by Message Volume	This report identifies users who have received the most mail by total volume.	None	This report is comprised of two elements: - Bar Chart – Displays top receivers by message volume (last 30 days) - Table – Provides details on top receivers by message volume (last 30 days)
Top Senders by Message Count	This report identifies users who have sent the most mail.	None	This report is comprised of two elements: - Bar Chart – Displays top senders by message count (last 30 days) - Table – Provides details on top senders by message count (last 30 days)
Top Senders by Message Volume	This report identifies users who have sent the most mail by total volume.	None	This report is comprised of two elements: - Bar Chart – Displays top senders by message volume (last 30 days) - Table – Provides details on top senders by message volume (last 30 days)
