EX_MessageSize Job
The EX_MessageSize Job provides information around the size of sent and received messages.
Analysis Tasks for the EX_MessageSize Job

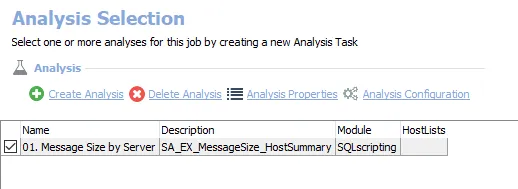

View the analysis task by navigating to the Exchange > 1. HUB Metrics > EX_MessageSize > Configure node and select Analysis.
CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.
The following analysis task is selected by default:
-
- Message Size by Server – Creates the SA_EX_MessageSize_HostSummary table accessible under the job’s Results node
In addition to the tables and views created by the analysis task, the EX_MessageSize Job produces the following pre-configured report:
| Report | Description | Default Tags | Report Elements |
|---|---|---|---|
| Message Size | This report identifies servers which handle the largest mail. | None | This report is comprised of two elements: - Bar Chart – Displays top servers by average message size (KB) - Table – Provides details on average message size by server (KB) |
