5-Oracle_Configuration Job

The 5-Oracle_Configuration Job is designed to return additional configuration settings from Oracle servers.

Queries for the 5-Oracle_Configuration Job​

The queries for the 5-Oracle_Configuration Job query uses the SQL Data Collector.

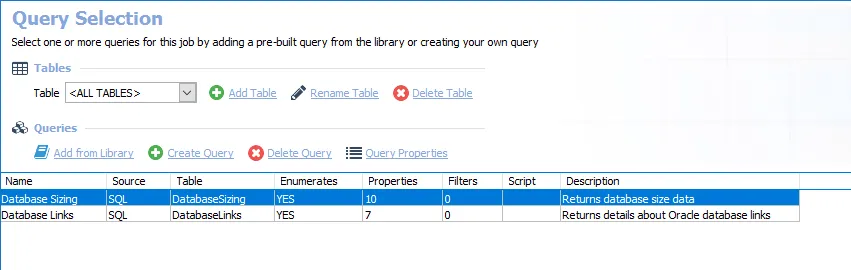

5oracleconfigurationqueries

The queries are:

  • Database Sizing – Returns database size data
  • Database Links – Returns details about Oracle database links

Configure the 5-Oracle_Configuration Queries​

The 5-Oracle_Configuration Job is preconfigured to run using the default settings for the Custom Oracle Query category in the SQL Data Collector. Follow the steps to customize configurations:

Step 1 – Navigate to the Databases > 0.Collection > Oracle > 5-Oracle_Configuration Job > Configure node and select Queries.

Step 2 – In the Query Selection view, select one of the queries and click on Query Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab and click Configure. The SQL Data Collector wizard opens.

CAUTION: Do not make changes to wizard pages not listed in these steps. They have been pre-configured for this job.

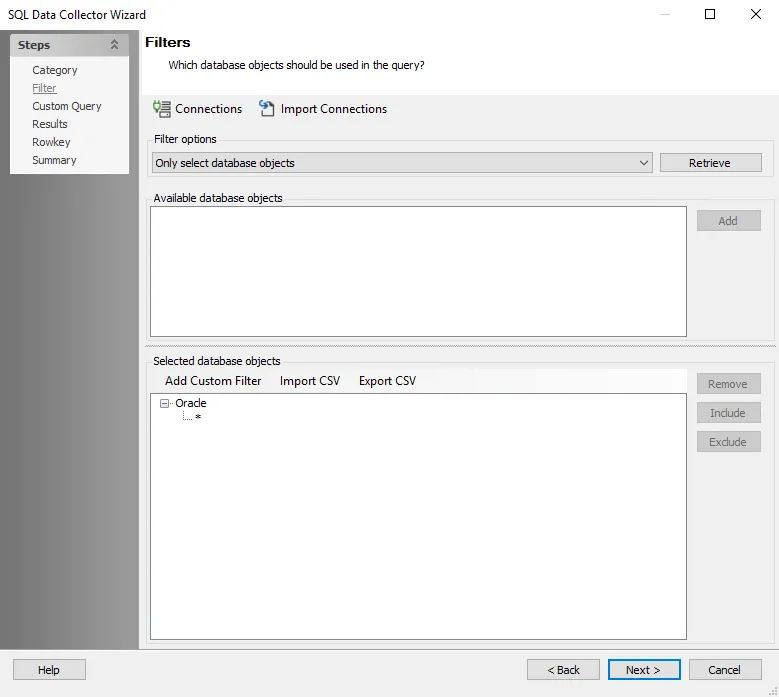

Filters page

Step 4 – To query for specific databases/instances, navigate to the Filter page. The default query target is All Databases. The default query scope is Only select database objects. Click Retrieve. The Available database objects section will be populated. Databases and instances can be added in the following ways:

  • Select the desired database objects and click Add
  • Use the Import CSV button to import a list from a CSV file, if desired
  • Optionally, use the Add Custom Filter button to create and apply a custom filter

Step 5 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

The 5-Oracle_Configuration Job is now ready to run with the customized settings.
