MongoDB_SensitiveDataScan Job

The MongoDB_SensitiveDataScan Job is designed to discover sensitive data in MongoDB databases based on pre-defined or user-defined search criteria.

Queries for the MongoDB_SensitiveDataScan Job​

The MongoDB_SensitiveDataScan Job uses the NOSQL Data Collector for queries.

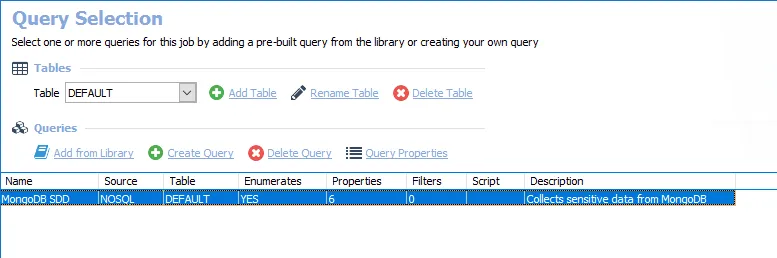

Query Selection

The query is:

  • MongoDB SDD - Collects sensitive data from MongoDB

Configure the MongoDB SDD Query​

The MongoDB SDD Query is preconfigured to run using the default settings for the Sensitive Data Collection category. Follow the steps to customize configurations.

Step 1 – Navigate to the Databases > 0.Collection > MongoDB > MongoDB_SensitiveDataScan > Configure node and select Queries.

Step 2 – In the Query Selection view, select the MongoDB SDD query and click Query Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab, and click Configure. The NoSQL Data Collector Wizard opens.

CAUTION: Do not make changes to wizard pages not listed in these steps. They have been pre-configured for this job.

Step 4 – Navigate to the NoSQL: Options page.

Sensitive Data Scan Settings

Step 5 – Select the desired scan options.

Step 6 – Navigate to the NoSQL: Criteria page.

Criteria Page

Step 7 – To modify criteria, navigate to the NoSQL: Criteria page. By default, the Sensitive Data Scan job is configured to scan for criteria configured in the Global Criteria settings. See the Sensitive Data Criteria Editor topic for additional information.

NOTE: The Sensitive Data Scan Settings are pre-configured for optimal performance for a high-level table scan. Configuring these settings to increase the scope of the sensitive data scan may significantly increase scan time.

Step 8 – Navigate to the NoSQL: Filter page.

Database Selection Settings

Step 9 – MongoDB databases must be added to the query before they can be scanned. Click Connections to open the Manage Connections window.

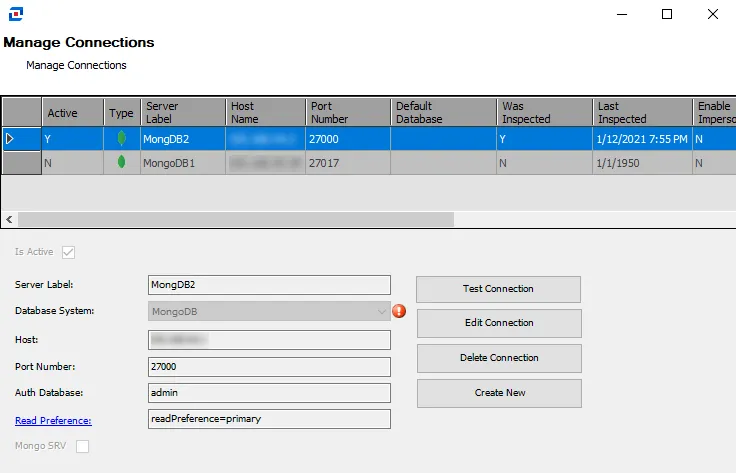

Manage Connections window

Step 10 – In the Manage Connections window, click Create New and add the following information:

  • Is Active Checkbox — Check to include the database on the Servers Pane on the Filter page.
  • Server Label — The name of the server
  • Host — Name or IP address of the host where the database is located
  • Port Number — Port number for the database. The default port is 27017.
  • Auth Database — Account used to access the database. Admin is recommended.
  • Read Preference — Read preference describes how MongoDB clients route read operations to the members of a replica set. By default, an application directs its read operations to the primary member in a replica set (i.e. read preference mode “primary”). But, clients can specify a read preference to send read operations to secondaries. Click the link for additional informatoin.
  • Mongo SRV Checkbox — Specifies that the information entered is for clusters or shards

Step 11 – Click to Test Connection to verify the connection to the database with the connection profile applied to the job

Step 12 – Click Save New Connection to add the connection to the list, then close the Manage Connections window.

Step 13 – On the Filter page, click Retrieveto populate the Servers pane with the databases and collections.

Step 14 – (Optional) Right click on an object in the list to include or exclude it from the sensitive data scan, or build /edit a pattern to create a custom filter. See the NoSQL: Filter topic for additional information.

Step 15 – Click Validate and then Save to apply the scoping. Navigating away from this page without saving will undo any changes made.

Step 16 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

The MongoDB SDD Query is now ready to run with the customized settings.

Analysis Tasks for the MongoDB_SensitiveDataScan Job​

Navigate to the Databases > > 0.Collection > MongoDB > MongoDB_SensitiveDataScan > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

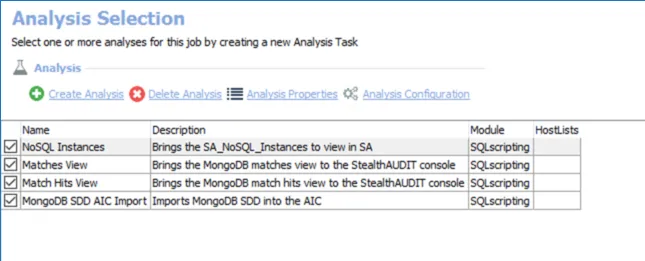

Analysis Selection

The default analysis tasks are:

  • NoSQL Instances — Brings the SA_NoSQL_Instances to view in SA
  • Matches View — Brings the MongoDB matches view to the Access Analyzer console
  • Match Hits View — Brings the MongoDB match hits view to the Access Analyzer console
  • MongoDB SDD AIC Import — Imports MongoDB SDD into the AIC
