0.Collection > AD_ActivityCollection Job

The AD_ActivityCollection Job located in the 0.Collection Job Group, imports data from the Netwrix Activity Monitor logs into the Access Analyzer Database. Retention can be modified in the query (120 days default).

There are two ways AD Activity data can be retrieved by Access Analyzer:

• Network share containing the archive logs
• API Server connected to the archive logs

This is configured in the query. See the Queries for the AD_ActivityCollection Job topic for additional information.

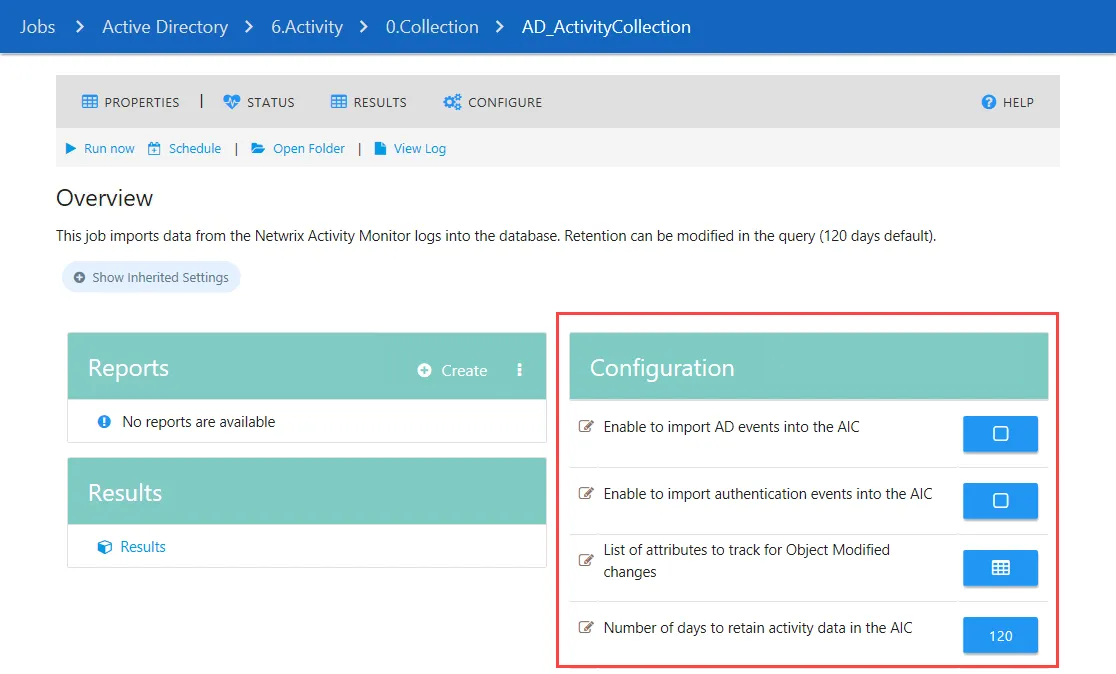

Parameter Configuration

The Configuration section on a Job's overview page allows you to easily modify any customizable parameters used by analysis tasks in the job. See the Parameter Configuration topic for instructions on how to edit parameters on a job overview page.

The AD_ActivityCollection page has the following configurable parameters:

• Enable to import AD events into the AIC

• Enable to import authentication events into the AIC

  NOTE: The import of AD events and authentication events is disabled by default. You must enable these parameters for the activity data to be imported into the Netwrix Access Information Center. See the (Optional) Configure Import of AD Activity into Netwrix Access Information Center topic for instructions.

• List of attributes to track for Object Modified changes

• Number of days to retain activity data in the AIC

See the Customize Analysis Parameters for the AD_ActivityCollection Job topic for additional information.

Queries for the AD_ActivityCollection Job

The AD Activity Collection query uses the ADActivity Data Collector to target the Activity Monitor archive logs for AD Activity.

NOTE: The query can be configured to connect directly to the network share where the archive logs are stored or the API Server.

The AD_ActivityCollection Job uses the ADActivity Data Collector for the following query:

• AD Activity Collection – Targets Netwrix Activity Monitor archives to collect AD Activity

Configure the Query to Import from the Activity Monitor

The AD_ActivityCollection Job requires configuration to collect data. Follow the steps to modify the query configuration when Netwrix Activity Monitor is configured to host domain activity logs on an API server.

NOTE: Ensure the Activity Monitor API Server and the required Connection Profile are successfully set up. See the Active Directory Activity Auditing Configuration topic for additional information.

Step 1 – Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection > AD_ActivityCollection Job. Select the Configure > Queries node.

Step 2 – Click Query Properties. The Query Properties window displays.

Step 3 – On the Data Source tab, select Configure. The Active Directory Activity DC wizard opens.

Step 4 – On the Category page, choose Import from SAM option and click Next.

Step 5 – On the SAM connection page, the Port is set to the default 4494. This needs to match the port configured for the Activity Monitor API Server agent.

Step 6 – In the Test SAM host textbox, enter the Activity Monitor API Server name using fully qualified domain format. For example, NEWYORKSRV30.NWXTech.com. Click Connect.

Step 7 – If connection is successful, the archive location displays along with a Refresh token. Copy the Refresh token. This will replace the Client Secret in the Connection Profile in the last step.

Step 8 – Click Next.

Step 9 – On the Scope page, set the Timespan as desired. There are two options:

• Relative Timespan – Set the number of days of activity logs to collect when the scan is run
• Absolute Timespan – Set the date range for activity logs to collect when the scan is run

RECOMMENDED: The threshold should be set to ensure the logs are collected before the Activity Monitor domain output log retention expires. For example, if Access Analyzer runs the AD_ActivityCollection Job once a week (every 7 days), then the Activity Monitor output should be configured to retain at least 10 days of log files.

Step 10 – Set the Retention period as desired. This is the number of days Access Analyzer keeps the collected data in the SQL Server database.

Step 11 – Click Next and then Finish to save the changes and close the wizard.

Step 12 – Click OK to save the changes and close the Query Properties page.

Step 13 – Navigate to the global Settings > Connection node to update the User Credential with the Refresh token:

• Select the Connection Profile assigned to the 6.Activity > 0.Collection Job Group.
• Select the Web Services (JWT) User Credential and click Edit.
• Replace the Access Token with the Refresh token generated by the data collector in Step 7.
• Click OK to save and close the User Credentials window.
• Click Save and then OK to confirm the changes to the Connection Profile.

The query is now configured to target the Activity Monitor API Server to collect domain activity logs.

Configure the Query to Import from a Share

The AD_ActivityCollection Job requires configuration to collect data. Follow the steps to modify the query configuration when Netwrix Activity Monitor is configured to store activity logs on a network share.

NOTE: Ensure the Activity Monitor domain output and the required Connection Profile are successfully set up. See the File Archive Repository Option topic for additional information.

Step 1 – Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection > AD_ActivityCollection Job. Select the Configure > Queries node.

Step 2 – Click Query Properties. The Query Properties window displays.

Step 3 – On the Data Source tab, select Configure. The Active Directory Activity DC wizard opens.

Step 4 – On the Category page, choose Import from Share option and click Next.

Step 5 – On the Share page, provide the UNC path to the AD Activity share archive location. If there are multiple archives in the same network share, check the Include Sub-Directories box. Click Next.

Step 6 – On the Scope page, set the Timespan as desired. There are two options:

• Relative Timespan – Set the number of days of activity logs to collect when the scan is run
• Absolute Timespan – Set the date range for activity logs to collect when the scan is run

RECOMMENDED: The threshold should be set to ensure the logs are collected before the Activity Monitor domain output log retention expires. For example, if Access Analyzer runs the AD_ActivityCollection Job once a week (every 7 days), then the Activity Monitor output should be configured to retain at least 10 days of log files.

Step 7 – Set the Retention period as desired. This is the number of days Access Analyzer keeps the collected data in the SQL Server database.

Step 8 – Click Next and then Finish to save the changes and close the wizard.

Step 9 – Click OK to save the changes and close the Query Properties page.

The query is now configured to target the network share where the Activity Monitor domain activity logs are archived.

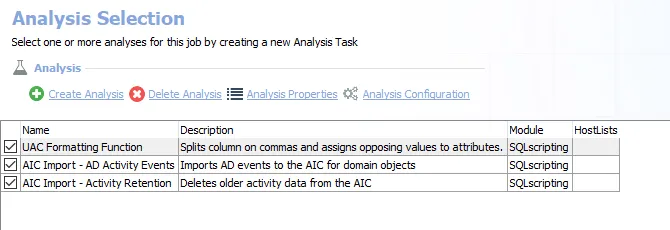

Analysis Tasks for the AD_ActivityCollection Job

Navigate to the Jobs > Active Directory > 6.Activity > 0.Collection > AD_ActivityCollection Job. Select the Configure > Analysis node.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The following analysis tasks are selected by default:

• UAC Formatting Function – Splits column on commas and assigns opposing values to attributes

• AIC Import - AD Activity Events – Imports AD events to the Access Information Center for domain objects

  • The @ADEvents and @AuthEvents parameters must be enabled for AD events and authentication events to be imported into the Access Information Center
  • The list of attributes to track for Object Modified changes can be customized by the #modifiedAttributeList parameter

• AIC Import - Activity Retention – Deletes older activity data from the Access Information Center

  • By default, data is retained for 120 days. This is customizable by the @Days parameter.

Customize Analysis Parameters for the AD_ActivityCollection Job

The customizable parameters for this job allow you to configure importing of AD activity data into the Netwrix Access Information Center.

Analysis Task	Customizable Parameter Name	Default Value	Value Indicates
AIC Import - AD Activity Events	#modifiedAttributeList	Default attributes: - givenName - sn - displayName - description - userPrincipalName - sAMAccountName - initials - title - department - company - manager - location - streetAddress - currentLocation - st - postalCode - c - otherTelephone - homePhone - ipPhone - mobile - facsimileTelephoneNumber - otherFacsimileTelephoneNumber - mail - wWWHomePage - employeeID - employeeType - employeeNumber - extensionAttribute1 - extensionAttribute2 - extensionAttribute3 - extensionAttribute4 - extensionAttribute5 - extensionAttribute6 - extensionAttribute7 - extensionAttribute8 - extensionAttribute9 - extensionAttribute10 - extensionAttribute11 - extensionAttribute12 - extensionAttribute13 - extensionAttribute14 - extensionAttribute15	List of attributes to track for Object Modified changes
AIC Import - AD Activity Events	@ADEvents	False	Enable to import AD events into the AIC
AIC Import - AD Activity Events	@AuthEvents	False	Enable to import authentication events into the AIC
AIC Import - Activity Retention	@Days	120	Number of days to retain activity data in the AIC

See the Configure the Customizable Parameters in an Analysis Task topic for additional information.
