CyberArk Integration

In order for Access Analyzer to be able to retrieve service account passwords from the CyberArk Password Vault, the following prerequisites must be completed:

• The Secrets Manager must be installed on the Access Analyzer Console server. The organization’s Vault administrator can provide the Secrets Manager installation package and most likely needs to be present during the installation to provide credentials in order for the Secrets Manager installation to complete. See the CyberArk Credential Provider (CP) article for additional information.

• An application must be added to CyberArk for the integration with Access Analyzer. The Application Id of this application must then be added to the GlobalOptions.xml file for Access Analyzer. See the Customize CyberArk Application Id topic for additional information. The application can be locked down by providing an OS User, a Path, or a Hash. See the CyberArk Add applications article for additional information.

  • The OS User needs to be the account running Access Analyzer. This could be the account used to launch the Access Analyzer application or an account used as the Schedule Service Account within Access Analyzer. More than one OS User can be added.

  • The Path should be a local path to the StealthAUDIT.exe file. The path should end with the file name: …\StealthAUDIT.exe.

  • The Hash should be generated using the AimGetAppInfo tool in the …\CyberArk\ApplicationPasswordProvider\Utils folder on the server where Secrets Manager is installed. AimGetAppInfo should be run in an Administrator Command Prompt. Run the following command:

    ..\CyberArk\ApplicationPasswordProvider\Utils\NETAimGetAppInfo.exe GetHash /AppExecutablesPattern <DevInstall>\PrivateAssemblies\Stealthbits.StealthAUDIT.Console.dll

    RECOMMENDED: Pipe the output hash value to a file to easily copy and paste it to the CyberArk application.

    See the CyberArk Generate an application hash value article for additional information.

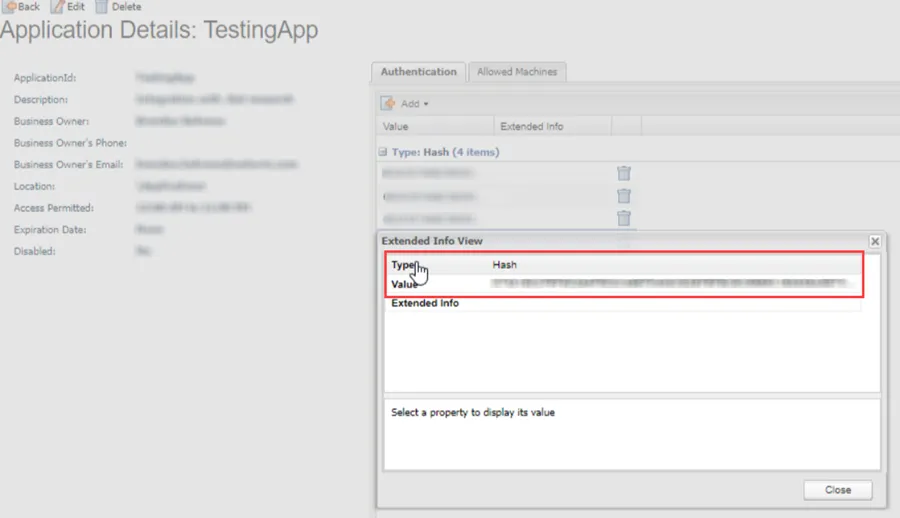

    Add the generated hash value in the Authentication tab of the Application Details page for the CyberArk Application.



  • The machine name for the Access Analyzer console needs to be added on the Allowed Machines list for the CyberArk application

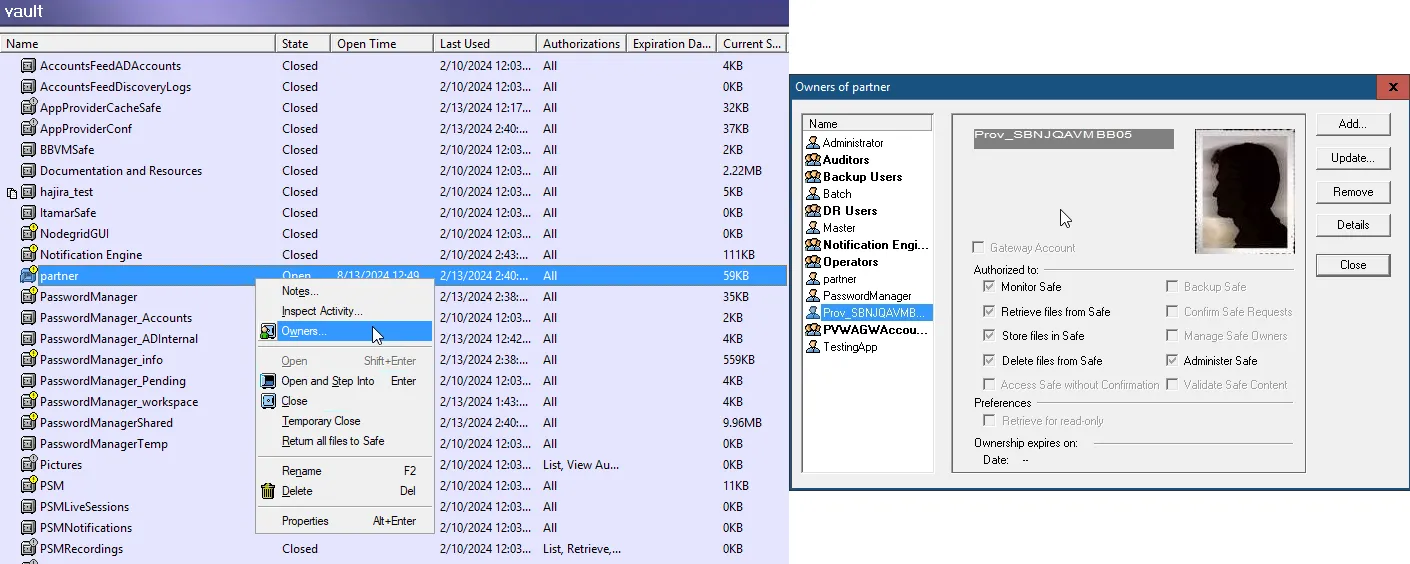

• Once the Secrets Manager installation has completed and the Access Analyzer application has been created, the necessary CyberArk accounts must be given access to the Safes in which the Access Analyzer service accounts are stored. This includes the account which was created automatically during the Secrets Manager installation, as well as the account created automatically as a result of the application creation.



  • The account created during the AIM installation is under the naming convention Prov_[COMPUTERNAME], where COMPUTERNAME is the name of the computer on which AIM is installed. This account should be given Retrieve accounts, List accounts, and View Safe Members rights on the desired Safes.
  • The account created during the application creation has the same name as the application itself and should be given Retrieve accounts rights on the desired Safes

Customize CyberArk Application Id

The Application id value of the application created within CyberArk for the integration with Access Analyzer must be configured within Access Analyzer. This is done in the GlobalOptions.xml file within the Access Analyzer installation directory. The default location is …\STEALTHbits\StealthAUDIT\.

Follow the steps to customize the CyberArk Application Id within Access Analyzer.

Step 1 – Navigate to the GlobalOptions.xml file. Open it with a text editor, for example Notepad.

CAUTION: Ensure Access Analyzer is closed when modifying this file.

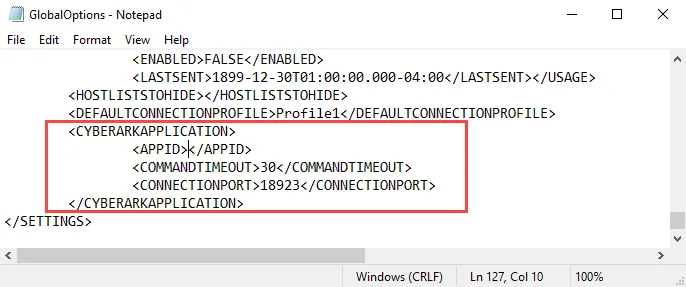

Step 2 – Find the <CYBERARKAPPLICATION> section of the GlobalOptions.xml file. Add the Application Id of the configured CyberArk application for the integration in the <APPID> tag. If required, customize the Command Timeout and Connection Port properties.

<CYBERARKAPPLICATION>
    <APPID>CyberArkApplicationID</APPID>
    <COMMANDTIMEOUT>30</COMMANDTIMEOUT>
    <CONNECTIONPORT>18923</CONNECTIONPORT>
</CYBERARKAPPLICATION>

• AppId – The name of the CyberArk application

• CommandTimeout – Set to the suggested default of 30

• ConnectionPort – This is a configurable option found during the installation of the CyberArk Credential Provider. After installation, it can be found in the configuration file located in the installation folder.

  See the CyberArk TCP parameters article for additional information.

Step 3 – Save and close the file.

Access Analyzer now uses the CyberArk Application Id identified in the XML string.

User Credentials Window

In Access Analyzer, the CyberArk option for Password Storage is available on the User Credentials window when configuring an Active Directory Account or Local Windows Account.

The credential information supplied in the User Credentials window must be an exact match to what is in CyberArk as the privileged account for which it is linked. It is case-sensitive.

If the Connection Profile with a Local Windows Account credential using CyberArk password storage is used to target multiple hosts, then the local credential on each host needs to have the exact same username and password combination.

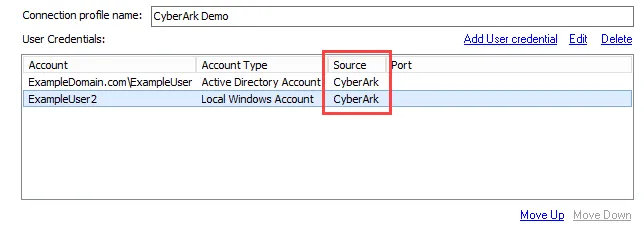

The Connection view displays CyberArk in the Source column of the User Credentials list for the selected Connection Profile.

Active Directory Account

Match the User Credentials window settings in Access Analyzer with the privilege account properties in CyberArk. These values are case-sensitive, and must be an exact match.

The table below shows the values from your CyberArk configuration that the User Credentials window should be populated with:

Access Analyzer	CyberArk Property	CyberArk Description	Example Value
Domain	Address	Domain address	ExampleDomain.com
User name	Username	Privilege account	ExampleUser
Safe	Safe	Vault managing the privileged accounts	Test
Folder	Folder	Folder within Safe	Root

Local Windows Account

Match the User Credentials window settings in Access Analyzer with the privilege account properties in CyberArk. These values are case-sensitive, and must be an exact match. The Access Analyzer Domain value is <HOST> and the CyberArk Address property value is the server address.

The table below shows the values from your CyberArk configuration that the User Credentials window should be populated with:

Access Analyzer	CyberArk Property	CyberArk Description	Example Value
User name	Username	Privilege account	ExampleUser2
Safe	Safe	Vault managing the privileged accounts	Test
Folder	Folder	Folder within Safe	Root

RECOMMENDED: Only use one Local Windows Account credential with CyberArk password storage in a Connection Profile. As part of the Access Analyzer to CyberArk integration, the Access Analyzer job is stopped immediately if the query from Access Analyzer to CyberArk for the credential fails. Therefore, a second credential within the Connection Profile would not be queried.
