AD_ComputerDelegation Job

The AD_ComputerDelegation Job provides details on computer accounts that have been enabled for unconstrained delegation. Once this configuration is enabled for a computer, any time an account connects to the computer for any reason, their ticket-granting ticket (TGT) is stored in memory so it can be used later by the computer for impersonation, which exposes a significant security risk in cases where privileged accounts access the computer.  See the What Is Kerberos Delegation? Netwrix blog article for more information about this configuration and the related security risks.

Analysis Task for the AD_ComputerDelegation Job

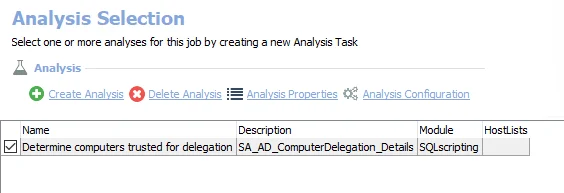

Navigate to the Active Directory > 3.Computers > AD_ComputerDelegation > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the analysis task. The analysis task is preconfigured for this job.

The default analysis tasks are:

• Determine computers trusted for delegation – Creates the SA_AD_ComputerDelegation_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_ComputerDelegation Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Computers Trusted for Delegation	This report highlights which computers are trusted for delegation, which accounts are sensitive, and whether the delegation is constrained or unconstrained.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays computers trusted for delegation by domain - Table – Provides details on computers trusted for delegation - Table – Provides details on computers trusted for delegation by domain

AD_StaleComputers Job

The AD_StaleComputers Job provides details on stale computers that may be candidates for cleanup.

Parameter Configuration

The Configuration section on a Job's overview page allows you to easily modify any customizable parameters used by analysis tasks in the job. See the Parameter Configuration topic for instructions on how to edit parameters on a job overview page.

The AD_StaleComputers Job has the following configurable parameters:

• Days since Last Logon
• Consider disabled accounts as stale

See the Customizable Analysis Parameters for the AD_StaleComputers Job topic for additional information.

Analysis Tasks for the AD_StaleComputers Job

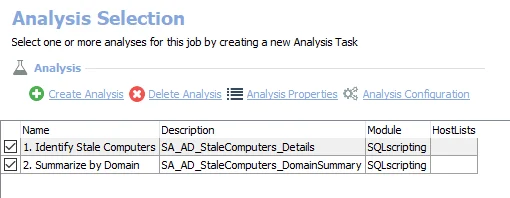

Navigate to the Active Directory > 3.Computers > AD_StaleComputers > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the 2. Summarize by Domain analysis task. This analysis task is preconfigured for this job.

The default analysis tasks are:

• 1. Identify Stale Computers
  • Identifies computer objects that are disabled or have exceeded the defined threshold of inactivity
  • Creates the SA_AD_StaleComputers_Details table accessible under the job’s Results node
  • Definition of a stale computer can be customized
• 2. Summarize by Domain – Creates the SA_AD_StaleComputers_DomainSummay table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_StaleComputers Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Stale Computers	This report presents potentially stale computers. Computers are considered stale if they have never logged onto the domain, have not logged onto the domain in the past 90 days, or are disabled. NOTE: The definition of a stale computer is customizable.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays stale computers by domain - Table – Provides details on computers - Table – Provides summary of stale computers

Customizable Analysis Parameters for the AD_StaleComputers Job

Analysis parameters that can be customized have the following default values:

Analysis Task	Customizable Parameter Name	Default Value	Value Indicates
1. Identify Stale Computers	@days_since_last_logon	90	A computer object that has been inactive for 90 days or more
1. Identify Stale Computers	@consider_disable	1	A computer object that has been disabled: - Value 1 = Disabled computers are included as stale - Value 0 = Disabled computers are not included as stale

See the Configure the Customizable Parameters in an Analysis Task topic for additional information.

3.Computers Job Group

The 3.Computers Job Group help to pinpoint potential areas of administrative concern related to computer accounts, including stale computers and computers that have been trusted for delegation.

The following jobs comprise the 3.Computers Job Group:

• AD_ComputerDelegation Job – Provides details on computer accounts that have been trusted for delegation. Once this configuration is enabled for a computer, any time an account connects to the computer for any reason, their ticket-granting ticket (TGT) is stored in memory so it can be used later by the computer for impersonation, which exposes a significant security risk in cases where privileged accounts access the computer.  See the What Is Kerberos Delegation? Netwrix blog article for more information about this configuration and the related security risks.
• AD_StaleComputers Job – Provides details on stale computers that may be candidates for cleanup

AD_DCSummary Job

The AD_DCSummary Job provides operational reporting related to the details collected for each domain controller. For each domain controller, the report identifies the FSMO role, whether it is a bridgehead server, whether it is a global catalog, and the time server it syncs to.

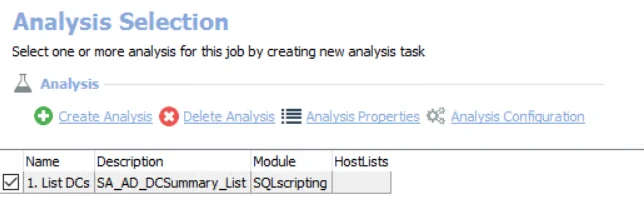

Analysis Task for the AD_DCSummary Job

Navigate to the Active Directory > 5.Domains > AD_DCSummary > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task(s). The analysis task(s) are preconfigured for this job.

The default analysis tasks are:

• 1. List DCs
  • Creates the AD_DCSummary_List table accessible under the job’s Results node
  • Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis task, the AD_DCSummary Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Domain Controllers Overview	This report identifies domain controllers' roles and attributes within each domain.	None	This report is comprised of two elements: - Bar Chart – Displays domain controllers by domain - Table – Provides details on domain controllers by domain

AD_DomainInfo Job

The AD_DomainInfo Job provides operational reporting related to the collected domains, sites, and trusts, providing details such as high level object counts by domain or site, domain and forest functional levels, and types and directions of trusts.

Queries for the AD_DomainInfo Job

The AD_DomainInfo Job uses the ActiveDirectory Data Collector and the LDAP Data Collector for the following queries:

CAUTION: Do not modify the queries. The queries are preconfigured for this job.

The queries for this job are:

• Trusts – Targets one domain controller per forest to retrieve domain trust information
• Sites – Targets one domain controller per forest to retrieve domain site information
• Domains – Targets one domain controller per forest to retrieve domain information
• Trust Filtering – Queries the host specified to retrieve domain trust information
• dSHeuristics – Returns dSHeuristics Unicode string using LDAP

NOTE: See the Active Directory Data Collector and LDAP Data Collector sections for additional information

Analysis Tasks for the AD_DomainInfo Job

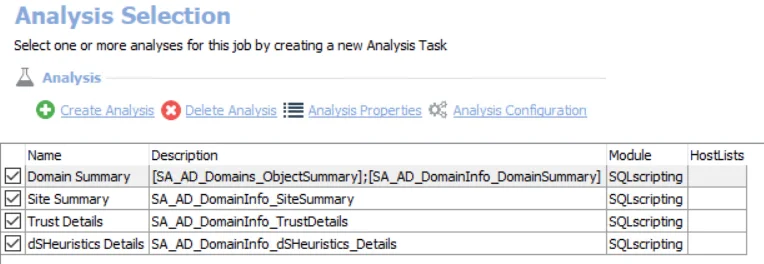

Navigate to the Active Directory > 5.Domains > AD_DomainInfo > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Domain Summary – Creates interim processing tables in the database for use by downstream analysis and report generation
• Site Summary – Creates an interim processing table in the database for use by downstream analysis and report generation
• Trust Details – Creates an interim processing table in the database for use by downstream analysis and report generation
• dSHeuristics Details – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_DomainInfo Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
Domains	This report lists the forest sites and presents the total number of domain controllers, GC Servers, and users per site.	None	This report is comprised of two elements: - Stacked Bar Chart – Displays domains - Table – Provides details on domains
Sites	This report lists the sites and counts the domain controllers, global catalogue servers, and users of each.	None	This report is comprised of two elements: - Bar Chart – Displays sites by user count - Table – Provides details on sites by user count
Trusts	This report lists the domains and presents the trust information, including type, direction, and transitivity.	None	This report is comprised of one elements: - Table – Provides details on domains and trusts

AD_DSRMSettings Job

The AD_DRSMSettings Job provides details on domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin Account can be used to log in to the domain controller even if it has not been started in DSRM which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.

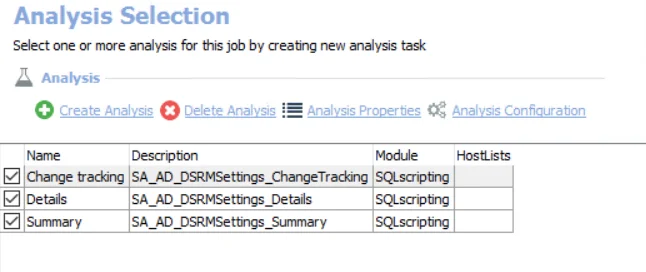

Analysis Tasks for the AD_DSRMSettings Job

Navigate to the Active Directory > 5.Domains > AD_DSRMSettings > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task(s). The analysis task(s) are preconfigured for this job.

The default analysis tasks are:

• Change tracking – Creates the SA_AD_DSRMSettings_ChangeTracking table accessible under the job’s Results node
• Details – Creates the SA_AD_DSRMSettings_Details table accessible under the job’s Results node
• Summary – Creates the SA_AD_DSRMSettings_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_DSRMSettings Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
DSRM Admin Security	This report highlights domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin account can be used to log in to the domain controller even if it has not been started in DSRM. This is a potential vulnerability. See the Microsoft Restartable AD DS Step-by-Step Guide for additional information.	None	This report is comprised of two elements: - Pie Chart – Displays DSRM admin logon  by domain controller - Table – Provides details on domain controllers

AD_DomainControllers Job

The 0.Collection > AD_DomainControllers Job collects domain controller details which will be further analyzed in order to provide information on domains, sites, and trusts.

Queries for the AD_DomainControllers Job

The AD_DomainControllers Job uses the LDAP Data Collector and the ActiveDirectory Data Collector for the following queries:

CAUTION: Except the first query, do not modify the remaining queries. The remaining queries are preconfigured for this job.

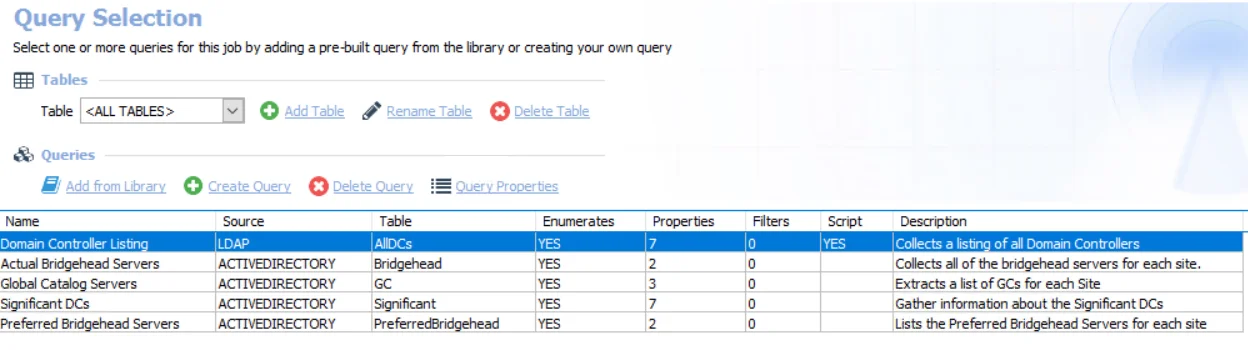

The queries for this job are:

• Domain Controller Listing – Targets one domain controller per domain known to Enterprise Auditor to collect a listing of all domain controllers

  • Can be modified to connect securely with TLS/SSL.
  • See the Connect Securely with TLS/SSL topic for additional information.

• Actual Bridgehead Servers – Targets one domain controller per domain known to Enterprise Auditor to collect all of the bridgehead servers for each site

• Global Catalog Servers – Targets one domain controller per domain known to Enterprise Auditor to extract a list of GCs for each site

• Significant DCs – Targets one domain controller per domain known to Enterprise Auditor to gather information about the significant DCs

• Preferred Bridgehead Servers – Targets one domain controller per domain known to Enterprise Auditor to list the preferred bridgehead servers for each site

  NOTE: See the Active Directory Data Collector and LDAP Data Collector sections for additional information.

Connect Securely with TLS/SSL

The Domain Controller Listing Query in the AD_DomainControllers Job is configured to use the LDAP Data Collector. This query can be optionally configured to connect securely with TLS/SSL.

CAUTION: Do not modify any other settings in this query.

Step 1 – Navigate to the job’s > Configure node and select Queries.

Step 2 – In the Query Selection view, select the Domain Controller Listing Query and click Query Properties. The Query Properties window displays.

Step 3 – Select the Data Source tab, and click Configure. The LDAP template form wizard opens.

Step 4 – Click Options.

Step 5 – On the Options page, select Connect Securely with TLS/SSL. Optionally, select Ignore Certificate Errors to connect even if certificate errors occur. Use Server Port 686 for a secure connection. Click OK to close the Options page.

Step 6 – Step 13 – Then click OK to close the LDAP template form wizard.

The job now connects securely with TLS/SSL.

AD_DSRM Job

The 0.Collection > AD_DSRM Job collects data related to domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin Account can be used to log in to the domain controller even if it has not been started in DSRM which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.

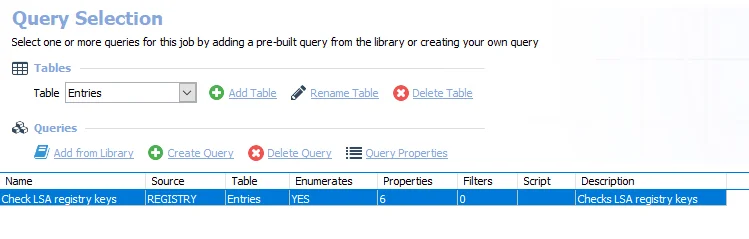

Query for the AD_DSRM Job

The AD_TimeSync Job uses the Registry Data Collector for the following query:

CAUTION: Do not modify this query. The query is preconfigured for this job.

The queries for this job are:

• Check LSA registry keys – Targets all domain controllers check LSA registry keys
  • See the Registry Data Collector topic for additional information.

AD_TimeSync Job

The 0.Collection > AD_TimeSync Job collects TimeSync information from the registry for each domain controller within the domain.

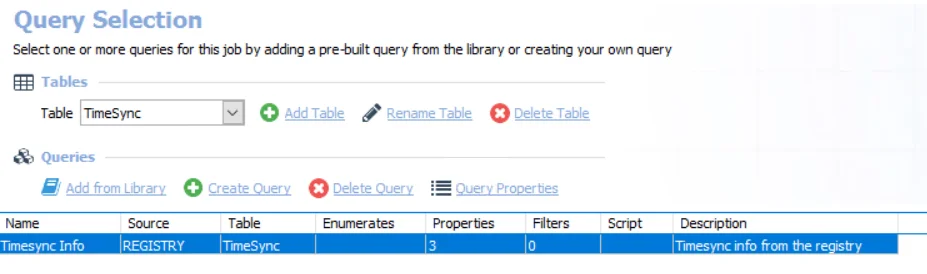

Query for the AD_TimeSync Job

The AD_TimeSync Job uses the Registry Data Collector for the following query:

CAUTION: Do not modify this query. The query is preconfigured for this job.

The queries for this job are:

• Timesync Info – Targets one domain controller per domain known to Enterprise Auditor to determine TimeSync information from the registry
  • See the Registry Data Collector topic for additional information.

0.Collection Job Group

The 5.Domains > 0.Collection Job Group collects the data which will be further analyzed in order to provide details on domains, sites, and trusts.

The 0.Collection Job Group is comprised of:

• AD_DomainControllers Job – Collects domain controller details which will be further analyzed in order to provide information on domains, sites, and trusts.
• AD_DSRM Job – Collects data related to domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin Account can be used to log in to the domain controller even if it has not been started in DSRM which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.
• AD_TimeSync Job – Collects TimeSync information from the registry for each domain controller within the domain

5.Domains Job Group

The 5.Domains Job Group provides details on domains, sites, and trusts, and highlight domain level configurations that may leave your environment at risk.

The following components comprises the 5.Domains Job Group:

• 0.Collection Job Group – Collects the data which will be further analyzed in order to provide details on domains, sites, and trusts.
• AD_DCSummary Job – Provides operational reporting related to the details collected for each domain controller. For each domain controller, the report identifies the FSMO role, whether it is a bridgehead server, whether it is a global catalog, and the time server it syncs to.
• AD_DomainInfo Job – Provides operational reporting related to the collected domains, sites, and trusts, providing details such as high level object counts by domain or site, domain and forest functional levels, and types and directions of trusts
• AD_DSRMSettings Job – Provides details on domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, the DSRM Admin Account can be used to log in to the domain controller even if it has not been started in DSRM which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.

AD_CPassword Job

The AD_CPassword Job identifies passwords that are stored in Group Policy Preferences which present a security risk allowing attackers access to these passwords. Microsoft published the AES private key, which can be used to decrypt passwords stored in Group Policy Preferences. See the Microsoft 2.2.1.1.4 Password Encryption article for additional information. Since Authenticated Users have read access to SYSVOL, any malicious insider or attacker can search for the cPassword file inside XML files shared through SYSVOL to decrypt them. GPOs can be stored in the %ProgramData%\Microsoft\Group Policy\History folder on each machine, meaning any results found by this job should be deleted off every computer once this policy has been removed.

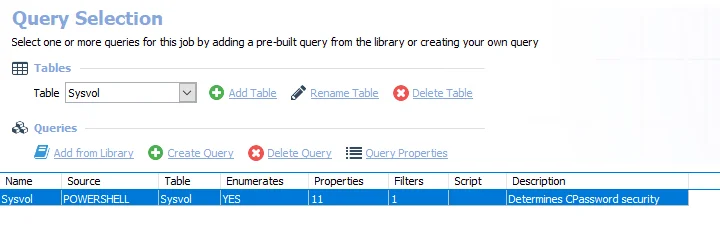

Query for the AD_CPassword Job

The AD_CPassword Job uses the PowerShell Data Collector for the following query:

CAUTION: Do not modify the query. The query is preconfigured for this job

The queries for this job are:

• Sysvol – Targets one domain controller per domain known to Enterprise Auditor to determine CPassword security

  • See the PowerShell Data Collector topic for additional information.

In addition to the tables created by the data collector, the AD_CPassword Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Potential Plaintext Passwords	This report highlights domain contollers where this vulnerability exists, and provides the path of the XML file in question.	None	This report is comprised of one elements: - Table – Provides details on potential plaintext passwords

AD_GroupPolicy Job

The AD_GroupPolicy Job audits all Group Policies that are present on the Domain Controller, and provides details on the containers they are linked to, and the settings that are configured.

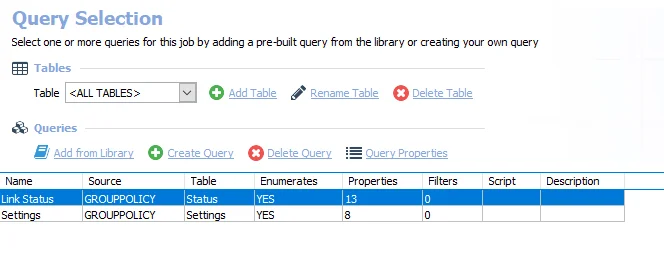

Queries for the AD_GroupPolicy Job

The AD_GroupPolicy Job uses the GroupPolicy Data Collector for the following query:

CAUTION: Do not modify the queries. The queries are preconfigured for this job.

The queries for this job are:

• Link Status – Targets the default domain controller known to Enterprise Auditor to retrieve a GPO's list for the domain
• Settings – Targets the default domain controller known to Enterprise Auditor to return the state for domain policies for all GPOs. See the GroupPolicy Data Collector topic for additional information.

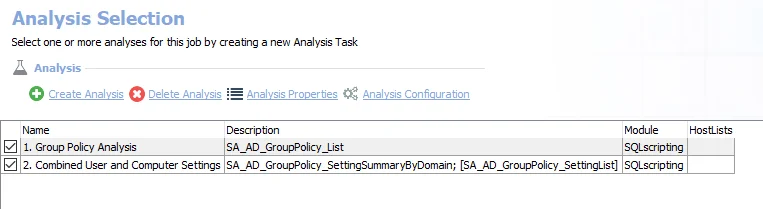

Analysis Tasks for the AD_GroupPolicy Job

Navigate to the Active Directory > 4.GroupPolicy > AD_GroupPolicy > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• 1. Group Policy Analysis – Creates an interim processing table in the database for use by downstream analysis and report generation
• 2. Combined User and Computer Settings – Creates the SA_AD_GroupPolicy_SettingList table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_GroupPolicy Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
GPO Details	This report lists all Group Policies and their settings.	None	This report is comprised of four elements: - Bar Chart – Displays GPO count by domain - Table – Provides details on policies by domain - Table – Provides details on GPO count by domain - Table – Provides details on settings
GPO Overview	This report lists all Group Policies and their settings.	None	This report is comprised of three elements: - Bar Chart – Displays GPO configuration by domain - Table – Provides details on GPOs - Table – Provides details on GPO configuration by domain

AD_OverlappingGPOs Job

The AD_OverlappingGPOs Job identifies conflicting and redundant GPO settings based on link location. These GPO settings should be cleaned up or consolidated.

Analysis Tasks for the AD_OverlappingGPOs Job

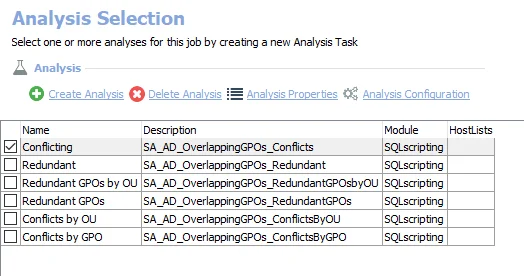

Navigate to the Active Directory > 4. Group Policy > AD_OverlappingGPOs > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected first analysis task. The first analysis task is preconfigured for this job.

The default analysis tasks are:

• Conflicting – Creates the SA_AD_OverlappingGPOs_Conflicts table accessible under the job’s Results node

The following analysis tasks are deselected by default:

NOTE: Deselect the Conflicting analysis task before selecting the analysis tasks below.

• Redundant – Restores the SA_AD_OverlappingGPOs_Redundant table to be visible under the job’s Results node
• Redundant GPOs by OU – Restores the SA_AD_OverlappingGPOs_RedundantGPOsbyOU table to be visible under the job’s Results node
• Redundant GPOs – Restores the SA_AD_OverlappingGPOs_RedundantGPOs table to be visible under the job’s Results node
• Conflicts by OU – Restores the SA_AD_OverlappingGPOs_ConflictsByOU table to be visible under the job’s Results node
• Conflicts by GPO – Restores the SA_AD_OverlappingGPOs_ConflictsByGPO table to be visible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_OverlappingGPOs Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
Conflicting GPOs	This report lists group policy objects that apply conflicting settings.	None	This report is comprised of four elements: - Bar Chart – Displays GPOs by conflicts - Table – Provides details on GPOs by conflicts - Table – Provides details on GPOs Details - Table – Provides details on OUs with conflicting GPOs
Redundant GPOs	This report lists group policy objects that apply redundant settings.	None	This report is comprised of four elements: - Bar Chart – Displays GPOs by redundant children - Table – Provides details on GPOs by redundant children - Table – Provides details on overlapping GPOs - Table – Provides details on OUs with most redundancies

AD_PasswordPolicies Job

The AD_PasswordPolicies Job identifies fine-grained domain password policies that are stored within the Password Settings Container. Fine-Grained password policies allow AD administrators to apply different password policies within a single domain.

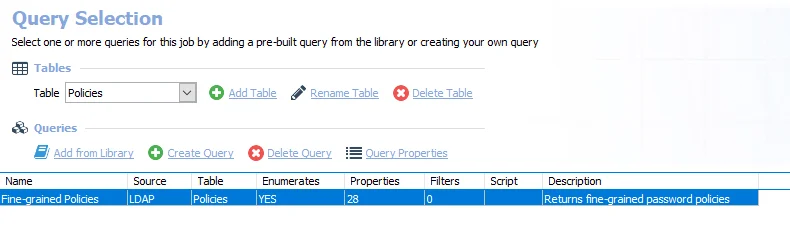

Query for the AD_PasswordPolicies Job

The AD_PasswordPolicies Job uses the LDAP Data Collector for the following query:

CAUTION: Do not modify the query. The query is preconfigured for this job.

The query for this job is:

• Fine-grained Policies – Targets one domain controller per domain known to Enterprise Auditor to return fine-grained password policies

  • See the LDAP Data Collector topic for additional information

Analysis Task for the AD_PasswordPolicies Job

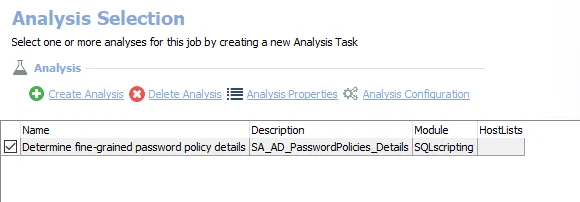

Navigate to the Active Directory > 4.GroupPolicy > AD_PasswordPolicies > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Determine fine-grained password policy details – Creates the SA_AD_PasswordPolicies_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_UserDelegation Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Fine-Grained Password Policies	This report highlights fine-grained password policies on all targeted domain controllers.	None	This report is comprised of one element: - Table – Provides details on fine-grained password policy details

4.Group Policy Job Group

The 4.Group Policy Job Group audits GPOs and their settings, and provides in depth analysis of conditions such as where GPOs have been linked, misconfigurations that can cause security or operational issues, and redundant GPOs that can be consolidated.

The following components comprise the 4.Group Policy Job Group:

• AD_CPassword Job – Identifies passwords that are stored in Group Policy Preferences which present a security risk allowing attackers access to these passwords. Microsoft published the AES private key, which can be used to decrypt passwords stored in Group Policy Preferences. See the Microsoft 2.2.1.1.4 Password Encryption article for additional information. Since Authenticated Users have read access to SYSVOL, any malicious insider or attacker can search for the cPassword file inside XML files shared through SYSVOL to decrypt them. GPOs can be stored in the %ProgramData%\Microsoft\Group Policy\History folder on each machine, meaning any results found by this job should be deleted off every computer once this policy has been removed.
• AD_GroupPolicy Job – Audits all Group Policies that are present on the Domain Controller, and provides details on the containers they are linked to and the settings that are configured
• AD_OverlappingGPOs Job – Identifies conflicting and redundant GPO settings based on link location. These GPO settings should be cleaned up or consolidated.
• AD_PasswordPolicies Job – Identifies fine-grained domain password policies that are stored within the Password Settings Container. Fine-Grained password policies allow AD administrators to apply different password policies within a single domain.

AD_CircularNesting Job

The AD_CircularNesting Job identifies circularly nested groups within Active Directory which can pose administrative and operational challenges with identifying effective access to resources.

Analysis Tasks for the AD_CircularNesting Job

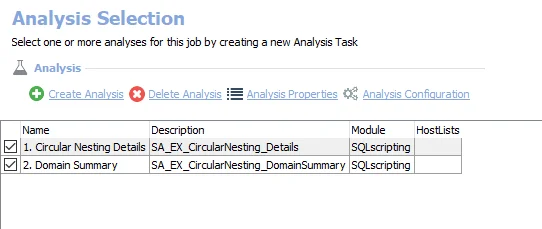

Navigate to the Active Directory > 1.Groups > AD_CircularNesting > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are :

• Circular Nesting Details – Creates the SA_AD_CircularNesting_Details table accessible under the job’s Results node
• Domain Summary – Creates the SA_AD_CircularNesting_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_CircularNesting Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Circular Nesting	This report identifies instances of circular nesting within the environment.	None	This report is comprised of three elements: - Bar Chart – Displays circular nesting by domain - Table – Provides details on circular nesting - Table – Provides details on circular nesting by domain

AD_DCLogonGroups Job

The AD_DCLogonGroups Job identifies users who are able to log on to Domain Controllers through effective membership to the Enterprise Admins, Domain Admins, Administrators, Backup Operators, Account Operators, Print Operators, or Remote Desktop Users groups. This type of access should be limited to only those individuals who require this level of administrative privileges.

Analysis Tasks for the AD_DCLogonGroups Job

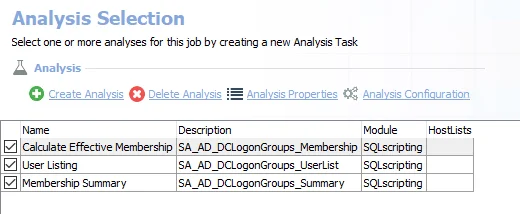

Navigate to the Active Directory > 1.Groups > AD_DCLogonGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Circular Effective Membership – Creates the SA_AD_DCLogonGroups_Membership table accessible under the job’s Results node
• User Listing – Creates the SA_AD_DCLogonGroups_UserList table accessible under the job’s Results node
• Membership Summary – Creates the SA_AD_DCLogonGroups_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_CircularNesting Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Domain Controller Logon Rights	This report displays effective membership for groups with logon rights to domain controllers.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays largest groups - Table – Provides details on membership - Table – Provides summary of membership

AD_DuplicateGroups Job

The AD_Duplicate Job identifies duplicate groups within Active Directory. Duplicate groups contain the same group membership as one another and are suitable candidates for cleanup.

Analysis Task for the AD_DuplicateGroups Job

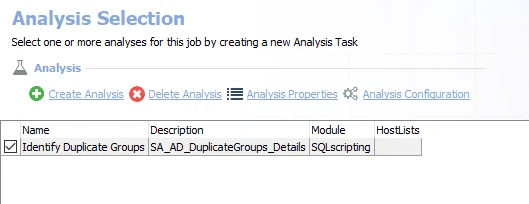

Navigate to the Active Directory > 1.Groups > AD_DuplicateGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.

The default analysis tasks are:

• Identify Duplicate Groups – Creates the SA_AD_DuplicateGroups_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_DuplicateGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Duplicate Groups	This report identifies duplicate groups within the audited domains.	None	This report is comprised of three elements: - Bar Chart – Displays domains by number of groups with duplicates - Table – Provides details on duplicate groups - Table – Provides details on domains by number of groups with duplicates

AD_EmptyGroups Job

The AD_EmptyGroups Job identifies empty and single member groups which are suitable candidates for consolidation or cleanup.

Analysis Tasks for the AD_EmptyGroups Job

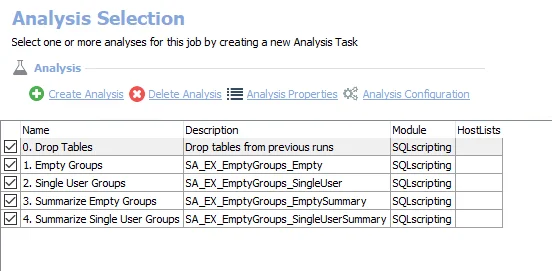

Navigate to the Active Directory > 1.Groups > AD_EmptyGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Empty Groups – Creates the SA_AD_EmptyGroups_Empty table accessible under the job’s Results node
• Single User Groups – Creates the SA_AD_EmptyGroups_SingleUser table accessible under the job’s Results node
• Summarize Empty Groups – Creates the SA_AD_EmptyGroups_EmptySummary table accessible under the job’s Results node
• Summarize Single User Groups – Creates the SA_AD_EmptyGroups_SingleUserSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_EmptyGroups Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
Empty Groups	This report identifies all groups without any members.	None	This report is comprised of three elements: - Bar Chart – Displays top domains by empty group counts - Table – Provides details on empty groups - Table – Provides details on empty groups by domain
Single User Groups	This report identifies groups which only contain a single user.	None	This report is comprised of three elements: - Bar Chart – Displays top domains by single user groups - Table – Provides details on groups - Table – Provides details on single user groups by domain

AD_GroupProbableOwners Job

The AD_GroupProbableOwners Job determines potential owners for Active Directory Groups which can be used to perform automated membership reviews and enable self-service group management and membership requests.

Analysis Tasks for the AD_GroupProbableOwners Job

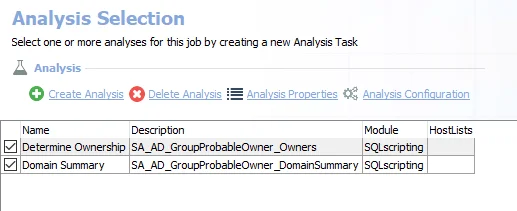

Navigate to the Active Directory > 1.Groups > AD_GroupProbableOwners > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Determine Ownership – Creates the SA_AD_GroupProbableOwner_Owners table accessible under the job’s Results node
• Domain Summary – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_GroupProbableOwner Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Probable Owners	This report identifies the most probable manager or department, based on effective member attributes.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays top domains by blank manager field - Table – Provides details on probable ownership - Table – Provides summary of managers

AD_LargestGroups Job

The AD_LargestGroups Job identifies groups with large effective member counts. These types of groups may cause administrative overhead and burden in being able to easily understand who is getting access to resources, or how much access is being granted to resources through these groups.

Analysis Task for the AD_LargestGroups Job

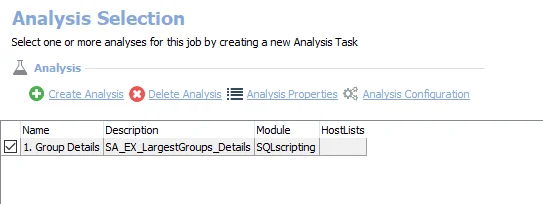

Navigate to the Active Directory > 1.Groups > AD_LargestGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.

The default analysis tasks are:

• Group Details – Creates the SA_AD_LargestGroups_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_LargestGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Largest Groups	This report identifies the largest groups within the audited environment.	None	This report is comprised of two elements: - Bar Chart – Displays largest groups - Table – Provides details on groups

AD_MailSecurityGroups Job

The AD_MailSecurityGroups Job identifies mail-enabled security groups within Active Directory.

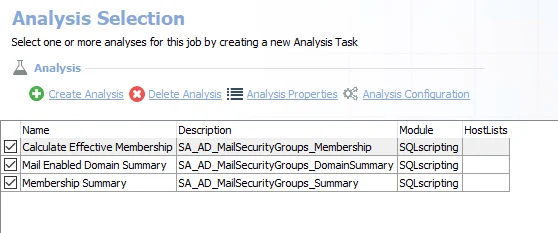

Analysis Tasks for the AD_MailSecurityGroups Job

Navigate to the Active Directory > 1.Groups > AD_MailSecurityGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Calculate Effective Membership – Creates the SA_AD_MailSecurityGroups_Membership table accessible under the job’s Results node
• Mail Enabled Domain Summary – Creates the SA_AD_MailSecurityGroups_DomainSummary table accessible under the job’s Results node
• Membership Summary – Creates the SA_AD_MailSecurityGroups_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_MailSecurityGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Mail Enabled Security Groups	This report displays summary data for mail enabled security groups.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays mail enabled security groups per domain - Table – Provides summary of mail enabled security groups - Table – Provides summary of mail enabled security groups by domain

AD_NestedGroups Job

The AD_NestedGroups Job identifies nested groups within Active Directory and provides details such as the levels of nesting. While Active Directory provides the ability to nest certain types of groups within other groups, Microsoft recommends nesting does not go beyond two levels in order to avoid difficulties in understanding effective membership and access.

Analysis Tasks for the AD_NestedGroups Job

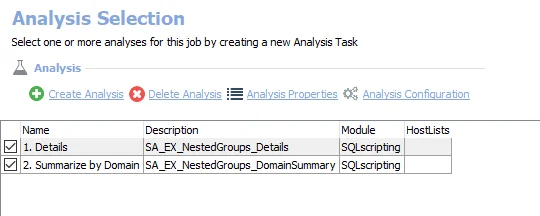

Navigate to the Active Directory > 1.Groups > AD_NestedGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Details – Creates the SA_AD_NestedGroups_Details table accessible under the job’s Results node
• Summarize by Domain – Creates the SA_AD_NestedGroups_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_NestedGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Nested Groups	This report identifies the groups with the largest amount of nested groups, and how many levels of nesting there are.	None	This report is comprised of three elements: - Bar Chart – Displays top groups by nesting - Table – Provides details on nested groups - Table – Provides details on top groups by nesting

AD_SensitiveSecurityGroups Job

The AD_SensitiveSecurityGroups Job identifies users who are granted administrative access within Active Directory through membership to the Enterprise Admins, Domain Admins, Schema Admins, DNS Admins, or Administrators groups. This level of access should be limited to only those individuals who require this level of administrative privileges.

Analysis Tasks for the AD_SensitiveSecurityGroups Job

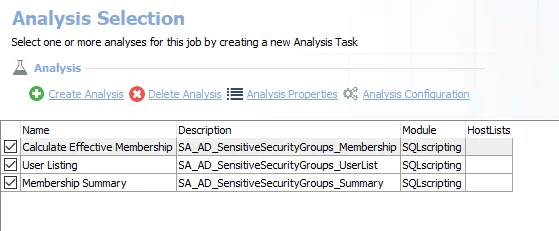

Navigate to the Active Directory > 1.Groups > AD_SensitiveSecurityGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Calculate Effective Membership – Creates the SA_AD_SensitiveSecurityGroups_Membership table accessible under the job’s Results node
• User Listing – Creates the SA_AD_SensitiveSecurityGroups_UserList table accessible under the job’s Results node
• Membership Summary – Creates the SA_AD_SensitiveSecurityGroups_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_SensitiveSecurityGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Sensitive Security Group Membership	This report displays effective membership for sensitive security groups.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays largest groups - Table – Provides details on membership - Table – Provides summary of group membership

AD_StaleGroups Job

The AD_StaleGroups Job identifies groups that contain potentially stale users. Users are considered stale if they have never logged onto the domain, have not logged onto the domain in the past 60 days, or are disabled. These group memberships should be reviewed and possibly removed.

Analysis Tasks for the AD_StaleGroups Job

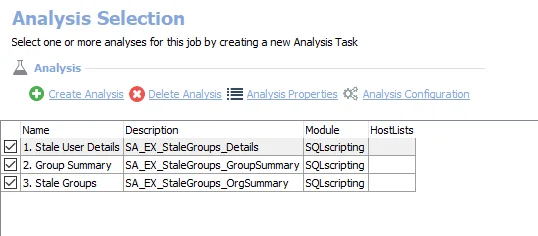

Navigate to the Active Directory > 1.Groups > AD_StaleGroups > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Stale Group Details – Creates the SA_AD_StaleGroups_Details table accessible under the job’s Results node
• Stale Groups Summary – Creates the SA_AD_StaleGroups_GroupSummary table accessible under the job’s Results node
• Stale Groups Org Summary – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_StaleGroups Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Stale Effective Membership (A.K.A. Stale Groups)	This report identifies groups with stale effective membership. A stale user is defined as someone who has not logged into the domain in over 60 days, is expired, or currently disabled.	None	This report is comprised of three elements: - Bar Chart – Displays group membership - Table – Provides details on membership - Table – Provides details on group membership

1.Groups Job Group

The 1.Groups Job Group identifies effective group membership and pinpoints potential areas of administrative concern such as nested or stale groups.

The following jobs comprise the 1.Groups Job Group:

• AD_CircularNesting Job – Identifies circularly nested groups within Active Directory which can pose administrative and operational challenges with identifying effective access to resources

• AD_DCLogonGroups Job – Identifies users who are able to log on to Domain Controllers through effective membership to the Enterprise Admins, Domain Admins, Administrators, Backup Operators, Account Operators, Print Operators, or Remote Desktop Users groups. This type of access should be limited to only those individuals who require this level of administrative privileges.

• AD_DuplicateGroups Job – Identifies duplicate groups within Active Directory. Duplicate groups contain the same group membership as one another and are suitable candidates for cleanup.

• AD_EmptyGroups Job – Identifies empty and single member groups which are suitable candidates for consolidation or cleanup

• AD_GroupProbableOwners Job – Determines potential owners for Active Directory Groups which can be used to perform automated membership reviews and enable self-service group management and membership requests

• AD_LargestGroups Job – Identifies groups with large effective member counts. These types of groups may cause administrative overhead and burden in being able to easily understand who is getting access to resources, or how much access is being granted to resources through these groups.

  • The definition of a large group is set by the .Active Directory Inventory > 3-AD_Exceptions Job. It can be customized. See the 3-AD_Exceptions Job topic for additional information.

• AD_MailSecurityGroups Job – Identifies mail-enabled security groups within Active Directory

• AD_NestedGroups Job – Identifies nested groups within Active Directory and provides details such as the levels of nesting. While Active Directory provides the ability to nest certain types of groups within other groups, Microsoft recommends nesting does not go beyond two levels in order to avoid difficulties in understanding effective membership and access.

  • The definition of a deeply nested group is set by the .Active Directory Inventory > 3-AD_Exceptions Job. It can be customized. See the 3-AD_Exceptions Job topic for additional information.

• AD_SensitiveSecurityGroups Job – Identifies users who are granted administrative access within Active Directory through membership to the Enterprise Admins, Domain Admins, Schema Admins, DNS Admins, or Administrators groups. This level of access should be limited to only those individuals who require this level of administrative privileges.

• AD_StaleGroups Job – Identifies groups that contain potentially stale users. Users are considered stale if they have never logged onto the domain, have not logged onto the domain in the past 60 days, or are disabled. These group memberships should be reviewed and possibly removed.

  • The definition of a stale user” is set by the .Active Directory Inventory > 3-AD_Exceptions Job. It can be customized. See the 3-AD_Exceptions Job topic for additional information.

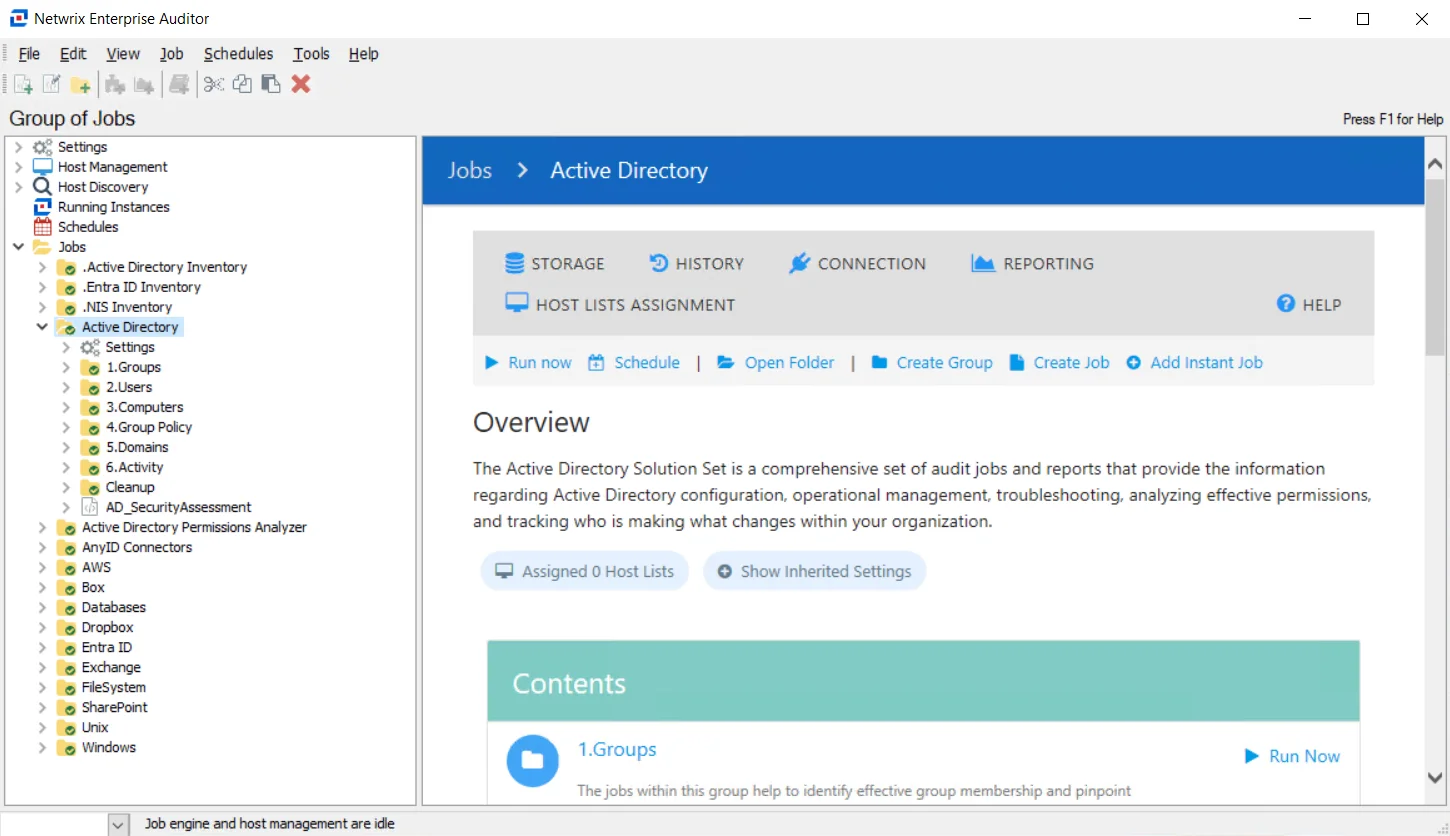

Active Directory Solution

The Active Directory Solution is a comprehensive set of audit jobs and reports that provide the information administrators need for Active Directory configuration, operational management, troubleshooting, analyzing effective permissions, and tracking who is making what changes within an organization.

Supported Platforms

• Windows Server 2016 and later
• Windows 2003 Forest level or higher

NOTE: See the Microsoft Windows Server end of support and Microsoft 365 Apps article for additional information.

Requirements, Permissions, and Ports

See the Active Directory Domain Target Requirements topic for additional information.

Location

The Active Directory Solution requires a special Enterprise Auditor license. It can be installed from the Enterprise Auditor Instant Job Wizard. Once installed into the Jobs tree, navigate to the solution: Jobs > Active Directory.

Each job group works independently from the other job groups. Some job groups run analysis tasks against the analyzed data collected by the .Active Directory Inventory Solution to generate reports, e.g. 1.Groups Job Group. Other job groups run both data collection and analysis to generate reports. The AD_SecurityAssessment Job summarizes security related results from both the Active Directory Solution and the Active Directory Permissions Analyzer Solution.

NOTE: The Cleanup Job Group requires additional licenses to function. See the Active Directory Job Groups topic for additional information.

See the Instant Job Wizard topic for additional information.

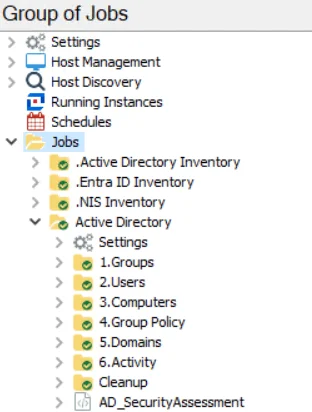

Active Directory Job Groups

The Active Directory solution is a comprehensive set of audit jobs and reports that provide the information every administrator needs for Active Directory configuration, operational management, troubleshooting, analyzing effective permissions, and tracking who is making what changes within an organization.

The following job groups comprise the Active Directory Solution:

• 1.Groups Job Group – Identifies effective group membership and pinpoints potential areas of administrative concern such as nested or stale groups

• 2.Users Job Group – Identifies user conditions and pinpoint potential areas of administrative concern such as weak passwords, user token size, or stale users

• 3.Computers Job Group – Pinpoints potential areas of administrative concern related to computer accounts, including stale computers and computers that have been trusted for delegation

• 4.Group Policy Job Group – Audits GPOs and their settings, and provides in depth analysis of conditions such as where GPOs have been linked, misconfigurations that can cause security or operational issues, and redundant GPOs that can be consolidated

• 5.Domains Job Group – Provides details on domains, sites, and trusts, and highlight domain level configurations that may leave your environment at risk

• 6.Activity Job Group – Provides insights into access sprawl, privileged account usage, and operational health of the Active Directory environment. Information collected includes Active Directory Changes, Authentication, LDAP Traffic, Replication Traffic, and LSASS.EXE process injection on domain controllers

  • Requires the Active Directory Activity license feature to function

• Cleanup Job Group – Identifies potential stale and unused users, computers, and groups as well as issues with group membership. Remediation workflows are included to de-provision unnecessary objects to help increase security and reduce complexity.

  • Requires the Active Directory Actions license feature to function.
  • Requires the Active Directory Actions Module to be installed

• AD Security Assessment Job – Summarizes security related results from the Active Directory Solution and the Active Directory Permissions Analyzer Solution

Since each job group within the Active Directory Solution is designed to run independently, refer to the Recommended Configurations section for each job group, for information on frequency and job group settings.

AD_DirectMembership Job

The AD_DirectMembership Job identifies users who do not have any group membership. This condition may indicate unnecessary user accounts that are suitable candidates for review and cleanup.

Analysis Tasks for the AD_DirectMembership Job

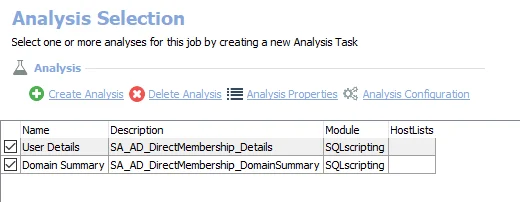

Navigate to the Active Directory > 2.Users > AD_DirectMembership > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• User Details – Creates the SA_AD_DirectMembership_Details table accessible under the job’s Results node
• Domain Summary – Creates the SA_AD_DirectMembership_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_DirectMembership Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
No Group Membership	This report identifies users with no group membership.	None	This report is comprised of three elements: - Bar Chart – Displays top domains by users with no membership - Table – Provides details on all users with no group membership - Table – Provides details on top domains by users with no membership

AD_DuplicateUsers Job

The AD_DuplicateUsers Job helps to identify multiple user accounts which may be owned by a single employee. A user may have accounts in multiple domains or administrative accounts with greater access than their normal account.

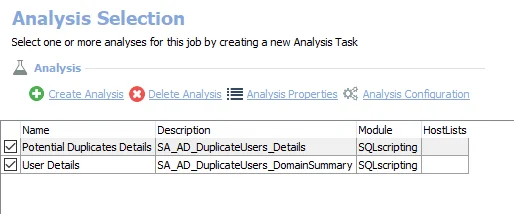

Analysis Tasks for the AD_DuplicateUsers Job

Navigate to the Active Directory > 2.Users > AD_DuplicateUsers > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Potential Duplicates Details – Creates the SA_AD_DuplicateUsers_Details table accessible under the job’s Results node
• User Details – Creates the SA_AD_DuplicateUsers_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_DuplicateUsers Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Duplicate User Accounts	This report identifies user accounts which may belong to a single employee, based on a variety of common attributes.	None	This report is comprised of three elements: - Bar Chart – Displays a domain summary - Table – Provides details on matches - Table – Provides details on duplicate user accounts by domain

AD_OrphanedUsers Job

The AD_OrphanedUsers Job identifies users whose managers are stale or disabled. These user accounts should be reviewed and appropriate management should be assigned.

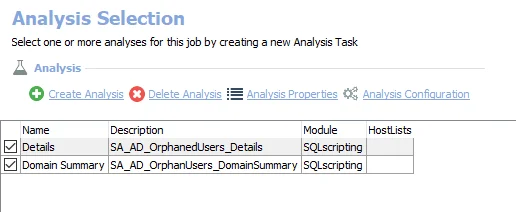

Analysis Tasks for the AD_OrphanedUsers Job

Navigate to the Active Directory > 2.Users > AD_OrphanedUsers > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Details – Creates the SA_AD_OrphanedUsers_Details table accessible under the job’s Results node
• Domain Summary – Creates the SA_AD_OrphanedUsers_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_OrphanedUsers Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Orphaned Users	A user is considered orphans when their manager is disabled or stale.	None	This report is comprised of three elements: - Bar Chart – Displays top domains by orphaned users - Table – Provides details on orphaned users - Provides details on top domains by orphaned users

AD_PasswordStatus Job

The AD_PasswordStatus Job highlights potential issues with user password settings that may exploited or compromised if not addressed.

Analysis Tasks for the AD_PasswordStatus Job

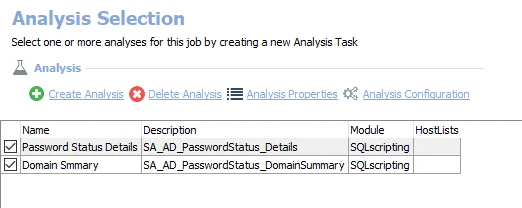

Navigate to the Active Directory > 2.Users > AD_PasswordStatus > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigure for this job.

The default analysis tasks are:

• Password Status Details – Creates the SA_AD_PasswordStatus_Details table accessible under the job’s Results node
• Domain Summary – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_PasswordStatus Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Password Status	This report identifies the password status of all users and highlights potential issues.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays password issues by domain - Table – Provides details on users - Provides details on password issues by domain

AD_ServiceAccounts Job

The AD_ServiceAccounts Job offers information about service accounts and if they are vulnerable to Kerberoasting. An account is deemed vulnerable to a Kerberoasting attack if the msDS-SupportedEncryptionTypes value supports RC4 as the highest encryption type.

Remember, the 1-AD_Scan Job needs to be configured to collect these Custom Attributes:

• servicePrincipalName – Provides service account information. See the Microsoft Service Principal Names article for additional information.
• msDS-SupportedEncryptionTypes – Identifies service accounts vulnerable to Kerberoasting attacks

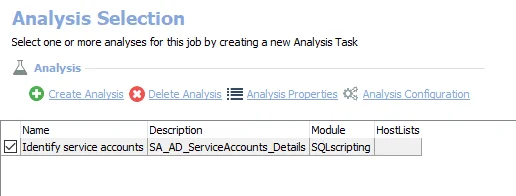

Analysis Task for the AD_ServiceAccounts Job

Navigate to the Active Directory > 2.Users > AD_ServiceAccounts > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Password Status Details – Creates the SA_AD_ServiceAccounts_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_ServiceAccounts Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Service Accounts	This report provides details on service accounts in the audited environment.	None	This report is comprised of three elements: - Bar Chart – Displays service accounts by domain - Table – Provides details on service accounts - Table – Provides details on service accounts by domain

AD_SIDHistory Job

The AD_SIDHistory Job enumerates historical SIDs in the audited environment and highlights exceptions involving the SIDHistory attribute on AD user objects. Specific conditions include when a user has a historical SID from their current domain, or when a non-admin user has a historical SID with administrative rights, both of which may be indicators of compromise.

Analysis Tasks for the AD_SIDHistory Job

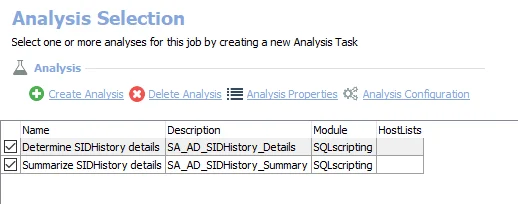

Navigate to the Active Directory > 2.Users > AD_SIDHistory > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Determine SIDHistory details – Creates the SA_AD_SIDHistory_Details table accessible under the job’s Results node
• Summarize SIDHistory details – Creates the SA_AD_SIDHistory_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_PasswordStatus Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
SID History	This report lists historical SIDs in the audited environment. Additionally, it highlights exceptions involving the SIDHistory attribute on AD user objects. Considered in particular are when a user has a historical SID from their current domain, or when a non-admin user has a historical SID with administrative rights.	None	This report is comprised of three elements: - Bar Chart – Displays historical SIDs by domain - Table – Provides details on SID history - Table – Provides details on historical SIDs by domain

AD_StaleUsers Job

The AD_StaleUsers job identifies potentially stale users based on the amount of time since their last login to the domain, or if the account has been disabled. These accounts should be reviewed and cleaned up in order to increase security and reduce complexity.

NOTE: The definition of a stale user is set by the .Active Directory Inventory solution. These parameters, including the number of days since last login to be considered stale (by default 60 days), can be customized within the .Active Directory Inventory > 3-AD_Exceptions job's Stale Users analysis task. See the 3-AD_Exceptions Job topic for additional information.

Analysis Tasks for the AD_StaleUsers Job

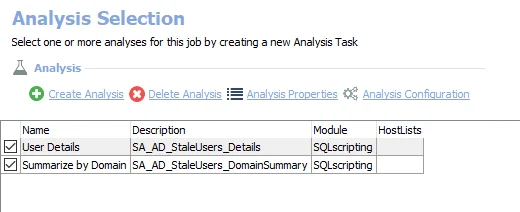

Navigate to the Active Directory > 2.Users > AD_StaleUsers > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• User Details – Creates the SA_AD_StaleUsers_Details table accessible under the job’s Results node
• Summarize by Domain – Creates the SA_AD_StaleUsers_DomainSummary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_StaleUsers job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Stale Users	This report identifies user accounts which have not logged into the domain for an extended amount of time or are currently disabled. A user account is considered stale if the last logon is over 60 days ago, is currently disabled, or expired.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays users by domain - Table – Provides details on users - Table – Provides details on users by domain

AD_UserAttributeCompletion Job

The AD_UserAttributeCompletion Job identifies which attributes are present within User fields in Active Directory, and which ones are blank for a majority of objects. This may indicate accounts within Active Directory which are lacking appropriate information.

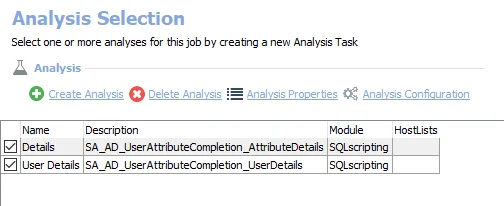

Analysis Tasks for the AD_UserAttributeCompletion Job

Navigate to the Active Directory > 2.Users > AD_UserAttributeCompletion > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Details – Creates an interim processing table in the database for use by downstream analysis and report generation
• User Details – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_UserAttributeCompletion Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
User Attribute Completion	This report identifies which attributes are present within User fields in Active Directory, and which ones are blank for a majority of objects.	None	This report is comprised of three elements: - Stacked Bar Chart – Displays completeness by attribute - Table – Provides details on users with blank attributes - Table –Provides details on completeness by attribute

AD_UserDelegation Job

The AD_Delegation Job highlights user accounts which are trusted for delegation. Kerberos delegation enables an application to access resources hosted on a different server, and opens up several avenues to compromise based on the type of delegation enabled.  See the What Is Kerberos Delegation? Netwrix blog article for more information about this configuration and the related security risks.

Analysis Task for the AD_UserDelegation Job

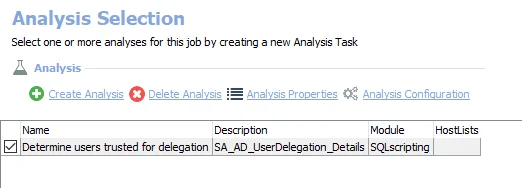

Navigate to the Active Directory > 2.Users > AD_UserDelegation > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.

The default analysis tasks are:

• Determine users for trusted delegation – Creates the SA_AD_UserDelegation_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_UserDelegation Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Users Trusted for Delegation	This report highlights which users are trusted for delegation, which accounts are sensitive, and whether the delegation is constrained or unconstrained.	None	This report is comprised of three elements: - Bar Chart – Displays users trusted for delegation by domain - Table – Provides details on users trusted for delegation - Table – Provides details on users trusted for delegation by domain

AD_UserToken Job

The AD_UserToken Job identifies and reports the number of SIDS and estimated token size associated with each user. Token bloat can lead to issues during login and can also cause applications that use Kerberos authentication to fail. See the Microsoft Problems with Kerberos authentication when a user belongs to many groups article for more information about estimated token size.

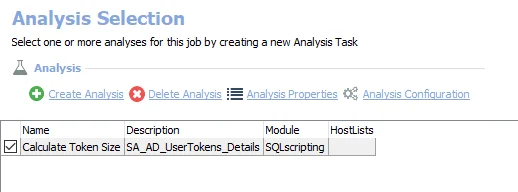

Analysis Task for the AD_UserToken Job

Navigate to the Active Directory > 2.Users > AD_UserToken > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis task. The analysis task is preconfigured for this job.

The default analysis tasks are:

• Calculate Token Size – Creates the SA_AD_UserTokens_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis task, the AD_UserToken Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
User Token	A user's token size is directly related to the number of SIDs associated with their user account, taking into account historical SIDs and effective membership.	None	This report is comprised of two elements: - Stacked Bar Chart – Displays top users by estimated token size - Table – Provides details on user tokens

AD_WeakPasswords Job

The AD_WeakPasswords Job analyzes user account password hashes to determine how easily each could be compromised or the likelihood their passwords are known through comparison with compromised password dictionaries and other exceptions. Exceptions include:

• AES Key Missing – Account is set up using older functional AD levels, so has no AES key. These accounts use weaker encryption methods susceptible to brute force attacks.
• Clear Text Password – Account has passwords stored with reversible encryption. See the Microsoft Store passwords using reversible encryption article for additional information.
• Default Computer Password – Computer has default computer passwords set
• Delegable Admins – Administrator account is allowed to be delegated to a service
• DES Encryption Only – Account is using Kerberos DES encryption. DES encryption is considered weak as the 56-bit key is prone to brute force attacks. See the Microsoft AD DS: User accounts and trusts in this domain should not be configured for DES only article for additional information.
• Empty Password – Account has an empty password
• Kerberos Pre-authentication is not required – Account does not require Kerberos pre-authentication. Kerberos pre-authentication can mitigate against brute force attacks. See the Microsoft Kerberos Pre-Authentication: Why It Should Not Be Disabled article for additional information.
• LM Hash – Account has stored LM hashes. The LM hash is a relatively weak hash that is prone to brute force attacks. See the Microsoft How to prevent Windows from storing a LAN manager hash of your password in Active Directory and local SAM databases article for additional information.
• Password Never Expires – Account has a password that never expires
• Password Not Required – Account does not require a password
• Weak Historical Password – Account has a historical password that was found in the dictionary
• Weak Password – Account has a password that was found in the dictionary
• Shares Common Password – Account shares a password with another account

Queries for the AD_WeakPasswords Job

The AD_WeakPasswords Job uses the PasswordSecurity Data Collector.

The query for this job are:

• Weak Passwords – Collects password hashes to identify weak passwords

  • See the PasswordSecurity Data Collector topic for additional information

Configure the Weak Passwords Query

The PasswordSecurity Data Collector can be scoped if desired. Follow the steps to modify the query configuration.

Step 1 – Navigate to the job’s Configure node and select Queries.

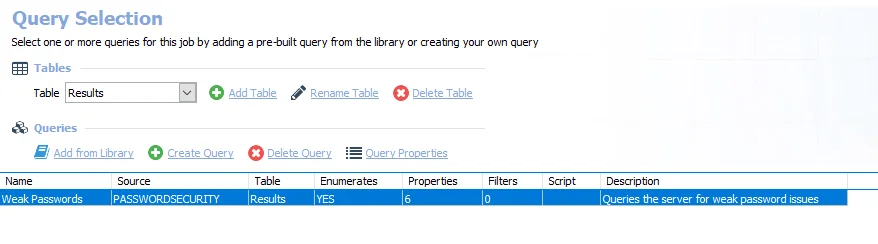

Step 2 – In the Query Selection view, select the Weak Passwords query and clickQuery Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab, and click Configure. The Password Security Data Collector Wizard opens.

CAUTION: Read the warning prior to enabling the cleartext password feature.

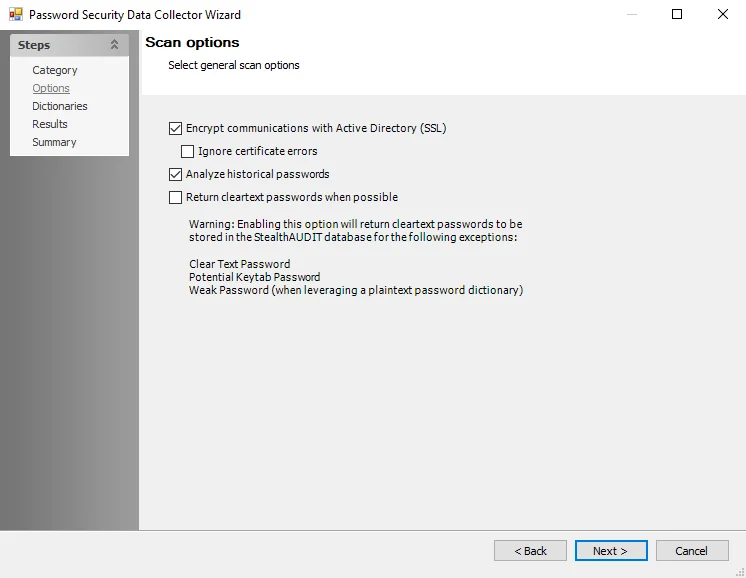

Step 4 – On the Options page, configure the scan options by enabling communication with the Active Directory via SSL or returning cleartext password entries.

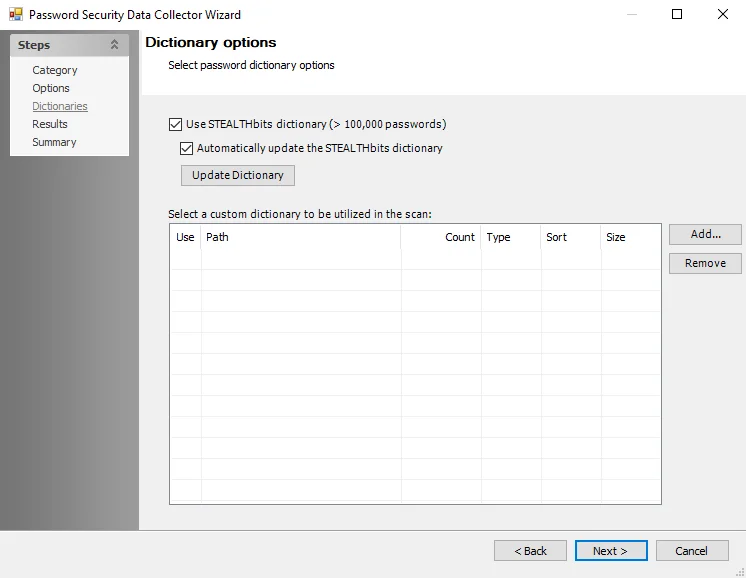

Step 5 – On the Dictionaries page, configure the dictionary options by enabling the Stealthbits password dictionary or click Add… to upload a custom dictionary with NTLM hashes or plaintext passwords to use during the scan.

• See the PasswordSecurity: Dictionaries topic for additional information

Step 6 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

The Weak Passwords query is now configured.

Analysis Tasks for the AD_WeakPasswords Job

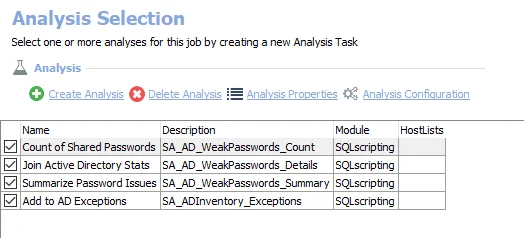

Navigate to the Active Directory > 2.Users > AD_WeakPasswords > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The default analysis tasks are:

• Count of Shared Passwords – Creates the SA_AD_WeakPasswords_Count table accessible under the job's Results node
• Join Active Directory Stats – Creates the SA_AD_WeakPasswords_Details table accessible under the job’s Results node
• Summarize Password Issues – Creates the SA_SA_AD_WeakPasswords_Summary table accessible under the job's Results node
• Add to AD Exceptions – Creates the SA_AD_UserDelegation_Details table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_UserDelegation Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Weak Passwords Checks	This job identifies accounts in the organization with weak passwords that can be easily decrypted or brute forced.	None	This report is comprised of three elements: - Bar Chart – Displays password weaknesses - Table – Provides details on password weaknesses - Table – Provides details on exceptions and user counts

2.Users Job Group

The 2.Users Job Group identifies user conditions and pinpoint potential areas of administrative concern such as weak passwords, user token size, or stale users.

The following components comprise the 2.Users Job Group:

• AD_DirectMembership Job – Identifies users who do not have any group membership. This condition may indicate unnecessary user accounts that are suitable candidates for review and cleanup.
• AD_DuplicateUsers Job – Identifies multiple user accounts which may be owned by a single employee. A user may have accounts in multiple domains or administrative accounts with greater access than their normal account.
• AD_OrphanedUsers Job – Identifies users whose managers are stale or disabled. These user accounts should be reviewed and appropriate management should be assigned.
• AD_PasswordStatus Job – Highlights potential issues with user password settings that may exploited or compromised if not addressed
• AD_ServiceAccounts Job – Offers information about service accounts and if they are vulnerable to Kerberoasting. An account is deemed vulnerable to a Kerberoasting attack if the msDS-SupportedEncryptionTypes value supports RC4 as the highest encryption type.
• AD_SIDHistory Job – Enumerates historical SIDs in the audited environment and highlights exceptions involving the SIDHistory attribute on AD user objects. Specific conditions include when a user has a historical SID from their current domain, or when a non-admin user has a historical SID with administrative rights, both of which may be indicators of compromise.
• AD_StaleUsers Job – Identifies potentially stale users based on the amount of time since their last login to the domain, or if the account has been disabled. These accounts should be reviewed and cleaned up in order to increase security and reduce complexity.
• AD_UserAttributeCompletion Job – Identifies which attributes are present within User fields in Active Directory, and which ones are blank for a majority of objects. This may indicate accounts within Active Directory which are lacking appropriate information.
• AD_UserDelegation Job – Highlights user accounts which are trusted for delegation. Kerberos delegation enables an application to access resources hosted on a different server, and opens up several avenues to compromise based on the type of delegation enabled.
• AD_UserToken Job – Identifies and reports the number of SIDS and estimated token size associated with each user. Token bloat can lead to issues during login and can also cause applications that use Kerberos authentication to fail.
• AD_WeakPasswords Job – Analyzes user account password hashes to determine how easily each could be compromised or the likelihood their passwords are known through comparison with compromised password dictionaries and other exceptions

1-AD_Scan Job

The 1-AD_Scan Job collects data from Active Directory. In most environments, this job requires no additional customizations before running it. Optionally, the job can be configured to scope scan options and to collect custom attributes. For enable SSL encryption for communication with Active Directory, see the Enable SSL Option topic for additional information.

Queries for the 1-AD Scan Job

The 1-AD_Scan Job uses the ADInventory Data Collector for the following query:

• AD Inventory – Targets a domain controller to collect inventory data for user, group, and computer objects

  • This query can be modified. See the Customize the 1-AD_Scan Query topic for additional information.

Customize the 1-AD_Scan Query

The 1-AD_Scan Job has been preconfigured to run with the default settings with the category of Scan Active Directory. Follow the steps to set any desired customizations to scan options or to collect custom attributes.

Step 1 – Navigate to the .Active Directory Inventory > 1-AD_Scan > Configure node and select Queries.

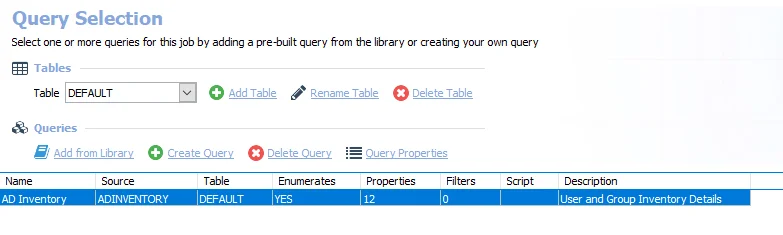

Step 2 – In the Query Selection view, click Query Properties. The Query Properties window opens.

Step 3 – Select the Data Source tab, and click Configure. The Active Directory Inventory DC Wizard opens.

CAUTION: Do not make changes to other wizard pages as they have been pre-configured for the purpose of this job.

Step 4 – (Optional) On the Options page, you can:

• Enable encrypted communication with Active Directory (SSL)
• Configure the differential scan settings using the Collect only updates since last scan settings

See the ADInventory: Options topic for more information.

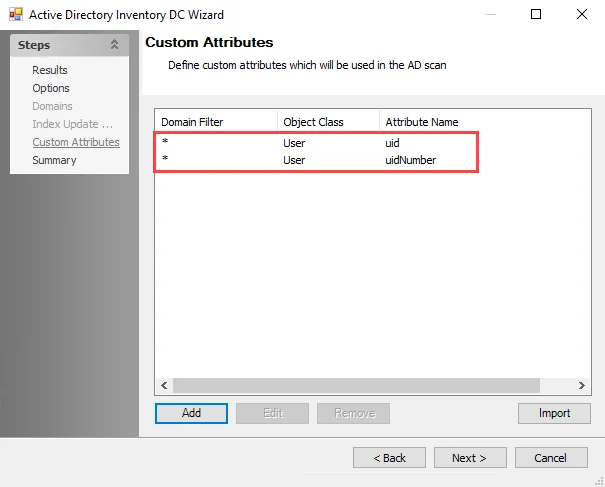

Step 5 – (Optional) On the Custom Attributes page, add any desired custom attributes to be used in the Active Directory scan. See the ADInventory: Custom Attributes topic for additional information.

Step 6 – Navigate to the Summary page. Click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

NOTE: In order for the Access Information Center to populate NFS permissions within File System reports, the .Active Directory Inventory Job Group must be configured to collect the uid and uidNumber attributes for Users. See the NFS Permissions for the AIC topic for additional information.

The 1-AD_Scan Job is now ready to run with the customized settings. If any custom attributes are added to the data collection, the Create Extended Attributes View analysis task can be enabled in order to have visibility into the collected data.

Analysis Tasks for the 1-AD_Scan Job

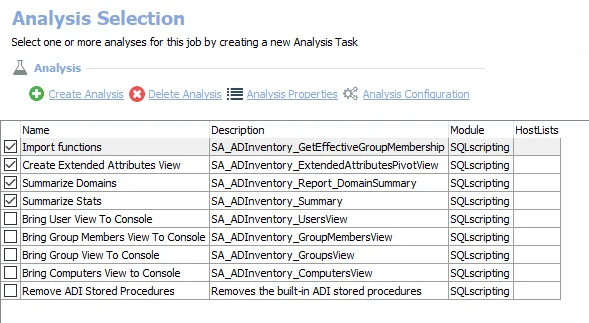

View the analysis tasks by navigating to the .Active Directory Inventory > 1-AD_Scan > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The following analysis tasks are selected by default:

• Import functions – Imports effective group membership function into the database
• Create Extended Attributes View – Creates the SA_ADInventory_ExtendedAttributesView for Custom Attributes that have been added to the query
• Summarize Domains – Creates the SA_ADInventory_Report_DomainSummary table
• Summarize Stats – Creates the SA_ADInventory_Summary table

The following analysis tasks never need to be selected as they are only needed to restore views that have been accidentally hidden:

• Bring User View To Console – Restores the SA_ADInventory_UsersView to be visible within the Enterprise Auditor Console if it is hidden
• Bring Group Members View To Console – Restores the SA_ADInventory_GroupMembersView to be visible within the Enterprise Auditor Console if it is hidden
• Bring Group View To Console – Restores the SA_ADInventory_GroupsView to be visible within the Enterprise Auditor Console if it is hidden
• Bring Computers View to Console – Restores the SA_ADInventory_ComputersView to be visible within the Enterprise Auditor Console if it is hidden
• Remove ADI Stored Procedures – Removes the built-in ADI stored procedures

In addition to the tables and views explained in the Standard Reference Tables & Views for the ADInventory Data Collector topic, the 1-AD_Scan Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Active Directory Summary	This report provides a summary of all audited domains and objects.	None	This report is comprised of four elements: - Table – Displays general statistics in the Users, Groups, and Computers in All Audited Domains - Pie Chart – Displays Principals by Object Class - Pie Chart – Displays Principals by Audited Domain - Table – Displays detailed statistical information for each of the AD objects

NFS Permissions for the AIC

In order for the Access Information Center to populate NFS resources within all File System permissions and resource audit reports, the .Active Directory Inventory Job Group must be configured to collect the following custom attributes for Users:

• uid
• uidNumber

Follow the steps to add the custom attributes.

Step 1 – Navigate to the Active Directory Inventory DC Wizard for the AD Inventory Query within the 1-AD_Scan Job.

Step 2 – Navigate to the Options page. Ensure the Collect only updates since last scan option is deselected.

NOTE: Whenever query configurations are modified, it is necessary to do a full scan. After the first full scan, differential scanning can be re-enabled.

Step 3 – Use the Next button to navigate to the Custom Attributes page. Add both uid and uidNumber attributes to the existing list of custom attributes. See the ADInventory: Custom Attributes topic for additional information.

• uid attribute:

  • Domain Filter – *
  • Object Class – User
  • Attribute Name – uid

• uidNumber attribute:

  • Domain Filter – *
  • Object Class – User
  • Attribute Name – uidNumber

Step 4 – Use the Next button to navigate to the Summary page and click Finish. The Active Directory Inventory DC Wizard closes. Click OK to close the Query Properties window.

Step 5 – Run the .Active Directory Inventory Job Group either manually or through a scheduled task.

The .Active Directory Inventory Job Group is now collecting attributes required for NFS data to be visible within the Access Information Center.

Remember, it is necessary to re-enable differential scanning after Step 5 if desired.

See the Resource Audit topics in the Netwrix Access Information Center Documentation for additional information.

Enable SSL Option

Follow the steps to enable SSL encryption for communications with Active Directory:

Step 1 – Navigate to the 1-AD_Scan > Configure node and select Queries.

Step 2 – In the Query Selection view, select the query and click Query Properties. The Query Properties window opens.

Step 3 – Go to the Options page and select the Encrypt communication with Active Directory (SSL) checkbox. Click Next.

Step 4 – Navigate to the Summary page, click Finish to save any setting modifications or click Cancel if no changes were made. Then click OK to close the Query Properties window.

The job will now use SSL encryption to query Active Directory.

2-AD_Changes Job

The 2-AD_Changes Job tracks changes within all scanned domains. Reports in the job highlight Active Directory changes which have occurred since the last time the .Active Directory Inventory Job Group was run. It is dependent on the running of the 1-AD_Scan Job, also located in the .Active Directory Inventory Job Group.

The 1-AD_Scan Job must have the Query Option to Track changes into Change tracking tables selected in order for the Analysis Tasks in the 2-AD_Changes Job to work. See Step 4 of the Customize the 1-AD_Scan Query topic for additional information.

Analysis Tasks for the 2-AD_Changes Job

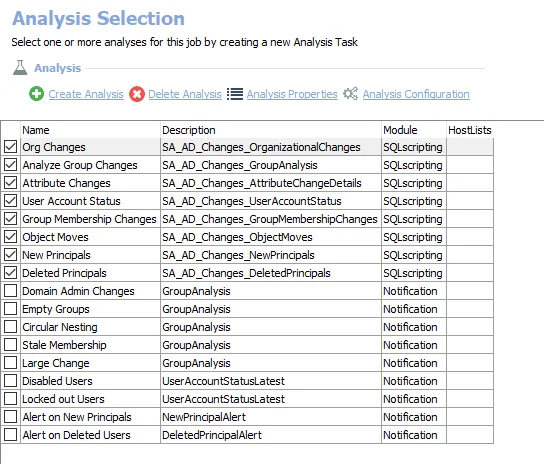

View the analysis tasks by navigating to the .Active Directory Inventory > 2-AD_Changes > Configure node and select Analysis.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The following analysis tasks are selected by default:

• Org Changes

  • Creates the SA_AD_Changes_OrganizationalChanges table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

• Analyze Group Changes – Creates the SA_AD_Changes_GroupAnalysis table accessible under the job’s Results node

• Attribute Changes

  • Creates the SA_AD_Changes_AttributeChangeDetails table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

• User Account Status

  • Creates the SA_AD_Changes_UserAccountStatus table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

• Group Membership Changes

  • Creates the SA_AD_Changes_GroupMembershipChanges table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

• Object Moves

  • Creates the SA_AD_Changes_ObjectMoves table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

• New Principals – Creates interim processing tables in the database for use by downstream analysis and report generation

• Deleted Principals

  • Creates the SA_AD_Changes_DeletedPrincipals table accessible under the job’s Results node
  • Creates interim processing tables in the database for use by downstream analysis and report generation

The Notification analysis tasks are optional and require configuration before enabling them. The following analysis tasks are deselected by default:

• Domain Admin Changes – Alerts when Domain Admins Group membership changes occur

  • Importance – Security, as this is a Sensitive Security Group

• Empty Groups – Alerts when group membership changes result in an empty group

  • Importance – AD Clean-up

• Circular Nesting – Alerts when group membership changes result in a group effectively containing itself

  • Importance – Security and AD Clean-up

• Stale Membership – Alerts when group members become stale

  • Importance – Security and AD Clean-up

• Large Change – Alerts when group membership changes result in a group becoming large

  • Importance – Security

• Disabled Users – Alerts when user accounts become disabled

  • Importance – Security

• Locked out Users – Alerts when user accounts become locked-out

  • Importance – Security  and Employee Productivity

• Alert on New Principals – Alerts when new user, group, or computer objects are created

  • Importance – Security and AD Clean-up

• Alert on Deleted Users – Alerts when user accounts are deleted

  • Importance – Security  and Employee Productivity

Notification must have recipients configured for the analysis task. Optionally, the email subject and body can be modified. See the Notification Analysis Tasks for the 2-AD_Changes Job topic for additional information.

In addition to the tables and views created by the analysis tasks, the 2-AD_Changes Job produces the following pre-configured reports:

Report	Description	Default Tags	Report Elements
Attribute Changes	This report tracks attribute changes within Active Directory.	None	This report is comprised of three elements: - Bar graph – Displays Attribute Changes (Past 24 Hours) - Table – Provides details on attribute changes (Past 24 Hours) - Table – Provides details on changes
Group Membership Changes (A.K.A. Most Active Groups)	This report tracks group membership changes in Active Directory.	None	This report is comprised of three elements: - Bar graph – Displays Most Active Groups (Past 24 Hours) - Table – Provides details on the most active groups (Past 24 Hours) - Table – Provides details on the most active groups
New Principals	This report identifies when principals have been created on the targeted domains.	None	This report is comprised of two elements: - Bar graph – Displays New Principals by Domain (Past 24 Hours) - Table – Provides details on the new principals by domain
Object Moves	This report tracks object moves in Active Directory.	None	This report is comprised of two elements: - Table – Displays Most Active OUs (Past 24 Hours) - Table – Provides details on the most active OUs
Org Changes (A.K.A. Organizational Changes)	This report tracks organizational moves such as manager, title or department changes.	None	This report is comprised of three elements: - Bar graph – Displays Organizational Changes (Past 24 Hours) - Table – Provides details on organizational changes (Past 24 Hours) - Table – Provides details on the organizational changes
Principal Deletions (A.K.A. Past 24 Hours)	This report identifies when principals have been deleted from the targeted domains.	None	This report is comprised of three elements: - Bar graph – Displays Deleted Principals by Domain (Past 24 Hours) - Table – Provides details on deleted principals by domain (Past 24 Hours) - Table – Provides details on the principals by domain
User Account Status Changes	This report tracks user account status changes.	None	This report is comprised of three elements: - Bar graph – Displays User Account Control Changes (Past 24 Hours) - Table – Provides details on user account control changes (Past 24 Hours) - Table – Provides details on the user account control changes

Notification Analysis Tasks for the 2-AD_Changes Job

In order for Enterprise Auditor to send email notifications, it is necessary for the Settings > Notification node to be properly configured. See the Notification topic for instructions on enabling the Enterprise Auditor Console to send email notifications. Once email notifications have been enabled, the individual notification analysis tasks can be configured and enabled. Follow the steps to configure a notification analysis task.

Step 1 – Navigate to the .Active Directory Inventory > 2-AD_Changes > Configure node and select Analysis.

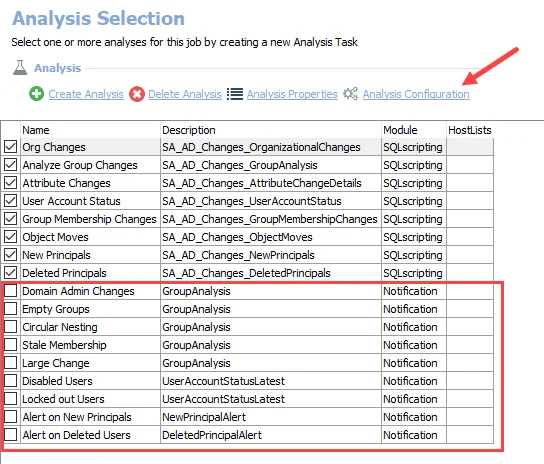

Step 2 – In the Analysis Selection view, select the desired notification analysis task and click Analysis Configuration. The Notification Data Analysis Module opens.

CAUTION: Do not make changes to the pages preceding the SMTP page.

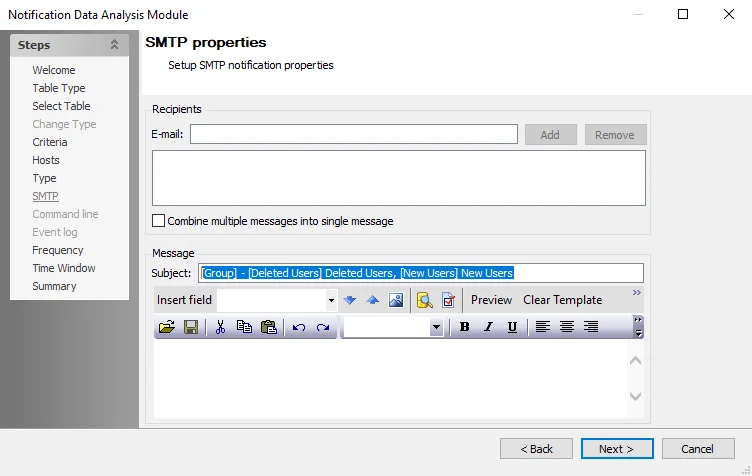

Step 3 – Use the Next button to navigate to the email configuration SMTP page.

Step 4 – In the Recipients section, provide the email addresses or distribution lists (fully qualified address) for those who are to receive this notification. Multiple addresses can be provided. You can use the following options:

• Add – Add an email address to the E-mail field
• Remove – Remove an email address from the Recipients list
• Combine multiple messages into single message – Sends one email for all objects in the record set instead of one email per object to all recipients

Step 5 – In the Message section, edit the Subject. It is not recommended to remove any parameters. Then, customize the email content in the textbox to provide an explanation of the notification to the recipients.

Step 6 – Click Next to save these configuration changes and navigate to the Summary page. Do not make changes to any other pages. Click Finish. The Notification Data Analysis Module window closes.

Step 7 – This notification analysis task is now configured to send emails. In the Analysis Selection view, select the task checkbox.

Step 8 – Repeat this process for each desired notification analysis task.

Configured and enabled notifications now send alerts automatically during the execution of the 2-AD_Changes Job.

3-AD_Exceptions Job

The 3-AD_Exceptions Job identifies toxic conditions that exist within Active Directory which may leave your environment at risk or add unnecessary administrative overhead. It is dependent on running the 1-AD_Scan Job, also located in the .Active Directory Inventory Job Group.

Parameter Configuration

The Configuration section on a Job's overview page allows you to easily modify any customizable parameters used by analysis tasks in the job. See the Parameter Configuration topic for instructions on how to edit parameters on a job overview page.

The 3-AD_Exceptions Job has the following configurable parameters:

• Threshold of group members
• Threshold of nesting
• Threshold necessary to identify a stale group (0-100%)
• Whether to include disabled users that are stale
• Whether to include expired users that are stale
• Threshold for token size
• List of administrative groups

See the Customize Analysis Parameters for the 3-AD_Exceptions Job topic for additional information.

Analysis Tasks for the 3-AD_Exceptions Job

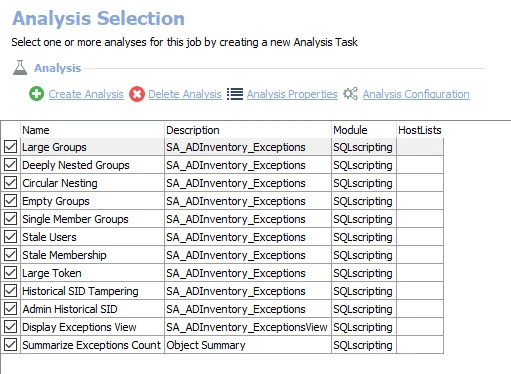

View the analysis tasks by navigating to the .Active Directory Inventory > 3-AD_Exceptions > Configure node and select Analysis. Analysis tasks with configuration parameters that define the security concerns within them can be modified.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

The following analysis tasks are selected by default:

• Large Groups

  • Identifies groups that exceeded the defined threshold for effective group membership
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of a large group can be customized

• Deeply Nested Groups

  • Identifies groups that exceeded the defined threshold of deep levels of membership nesting
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of a deeply nested group can be customized

• Circular Nesting

  • Identifies groups with circular references in their effective membership
  • Populates processing tables in the database for use by downstream analysis and report generation

• Empty Groups

  • Identifies groups with no membership
  • Populates processing tables in the database for use by downstream analysis and report generation

• Single Member Groups

  • Identifies groups with a single direct member
  • Populates processing tables in the database for use by downstream analysis and report generation

• Stale Users

  • Identifies user accounts that are expired, are disabled, or have exceeded the defined threshold of inactivity
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of a stale user can be customized

• Stale Membership

  • Identifies groups with a high percentage of effective members that are stale users
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of stale membership can be customized

• Large Token

  • Identifies users that exceeded the defined threshold for effective membership in authorization groups
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of a large token can be customized

• Historical SID Tampering

  • Identifies users that have a historical SID from their current domain
  • Populates processing tables in the database for use by downstream analysis and report generation

• Admin Historical SID

  • Identifies users that have a historical SID from an administrator account
  • Populates processing tables in the database for use by downstream analysis and report generation
  • Definition of an administrator group can be customized

• Display Exceptions View – Creates the SA_ADInventory_ExceptionsView accessible under the job’s Results node

• Summarize Exceptions Count – Generates data used in the Exceptions report

In addition to the tables and views created by the analysis tasks, the 3-AD_Exceptions Job produces the following pre-configured report:

Report	Description	Default Tags	Report Elements
Exceptions Summary (A.K.A. AD Exceptions)	This report summarizes common issues with user accounts and group membership	None	This report is comprised of three elements: - Pie Chart – Displays exceptions by class - Table – Provides exceptions by count - Table – Provides details on exceptions

Customize Analysis Parameters for the 3-AD_Exceptions Job

Exception definitions that can be customized have the following default values for the customizable parameters:

Analysis Task	Customizable Parameter Name	Default Value	Value Indicates
Large Groups	@LARGE_THRESHOLD	10	A group object with 10 members or more
Deeply Nested Groups	@NESTING_THRESHOLD	1	A group object nested 1 level or deeper within another group object
Stale Users	@STALE_THRESHOLD	60	A user object that has been inactive for 60 days or more
	@INCLUDE_DISABLED	True	A user object that has been disabled
	@INCLUDE_EXPIRED	True	A user object that has expired
Stale Membership	@STALE_THRESHOLD	10	A group with 10% of its effective members are stale users
Large Token	@TOKEN_THRESHOLD	10	A user object with effective membership in more than 10 group objects
Admin Historical SID	#ADMIN_GROUPS	- Domain Admins - Enterprise Admins - Schema Admins	List of administrative groups

See the Configure the Customizable Parameters in an Analysis Task topic for instructions to modify the parameters. See the AD Exception Types Translated topic for an explanation of Exception Types.

.Active Directory Inventory Solution

Active Directory (AD) acts as the central nervous system of any Microsoft environment and plays a vital role in granting access to resources such as Exchange, File Systems, SharePoint, and SQL Server. The .Active Directory Inventory Solution is designed to provide essential user, group membership, and computer details from the targeted domains to many Enterprise Auditor built-in solutions. Key information includes user status, user attributes, and group membership. The collected data is accessed by other Enterprise Auditor solutions and the Netwrix Access Information Center for analysis.

NOTE: This solution is required for using the Access Information Center.

This topic covers information on using the ADInventory Data Collector and the .Active Directory Inventory Job Group.

Supported Platforms

• Windows 2003 Forest level or higher

Permissions

• Read access to directory tree

• List Contents & Read Property on the Deleted Objects Container

  NOTE: See the Microsoft Searching for Deleted Objects article and the Microsoft Dsacls article for additional information.

Ports

• TCP 389
• TCP 135-139
• Randomly allocated high TCP ports

Location

The .Active Directory Inventory Solution is a core component of all Enterprise Auditor installations. Typically this solution is instantiated during installation, but it can be installed from the Instant Job Wizard. Once it has been installed into the Jobs tree, navigate to the solution: Jobs > .Active Directory Inventory. This group has been named in such a way to keep it at the top of the Jobs tree.

Jobs

This Job Group is comprised of three jobs that collect, analyze, and report on data. The data collection is conducted by the ADInventory Data Collector. See the Standard Reference Tables & Views for the ADInventory Data Collector topic for database table information.

The .Active Directory Inventory Solution has the following jobs:

• 1-AD_Scan Job – Collects data and generates the standard reference tables and views
• 2-AD_Changes Job – Analyzes the collected data to track and alert on changes within all scanned domains that occurred since the last scan
• 3-AD_Exceptions Job – Analyzes the collected data to identify security and provisioning concerns, such as circular nesting and stale membership

Recommended Configurations for the .Active Directory Inventory Solution

The .Active Directory Inventory Solution has been configured by default to run with the out-of-the-box settings, but some settings are optional for configuration. It can be run directly or scheduled.

Dependencies

This job group does not have dependencies.

Targeted Hosts

The host list assignment has been configured under the .Active Directory Inventory > Settings > Host List Assignment node. It is set to target the Default domain controller host list, which is the domain in which the Enterprise Auditor Console server resides.

If targeting multiple domains, change the Host List Assignment to the ONE DOMAIN CONTROLLER PER DOMAIN host list.

The Default domain controller host list and ONE DOMAIN CONTROLLER PER DOMAIN host list are dynamic host lists based on the host inventory value in the isDomainController field in the Host Master Table.

Connection Profile

The Connection Profile has been configured under the .Active Directory Inventory > Settings > Connection node. It is set to Use the Default Profile, as configured at the global settings level. Ensure the assigned Connection Profile has the necessary permissions on all targeted domains.

If targeting multiple domains, ensure the assigned Connection Profile has the necessary permissions on all targeted domains.

History Retention

Not supported and should be turned off

Multi-Console Support

Not supported

Schedule Frequency

RECOMMENDED: Schedule the .Active Directory Inventory Job Group to run once a day.

If there are frequent AD changes within the target environment, then it can be executed more often. It is best to rerun it anytime AD changes might have occurred.

Run at the Solution Level

The jobs in the .Active Directory Inventory Job Group should be run together and in order by running the entire solution, instead of the individual jobs.

Query Configuration

The solution is best run with the default query configuration. However, a possible modification might be to include configurations of the scan options or additional custom attributes within the 1-AD_Scan Job.

Analysis Configuration

The solution is best run with the default analysis configuration. However, possible modifications might be to:

• Enable notification analysis tasks within the 2-AD_Changes Job
• Customize exception analysis parameters within the 3-AD_Exceptions Job

Workflow

The .Active Directory Inventory Job Group has been set to run against the following default dynamic host list:

• Default domain controller

Default dynamic host lists are populated from hosts in the Host Master Table that meet the host inventory criteria for the list. Ensure the appropriate host lists have been populated through host inventory results.

Step 1 – (Optional) Run a host discovery query to discover domain controllers. This is needed when targeting multiple domains.

Step 2 – Set a Connection Profile.

Step 3 – chedule the .Active Directory Inventory Job Group to run as desired.

Step 4 – Review the reports generated by the .Active Directory Inventory Job Group.
